Siemens 6XV1830-0ET10 Migration-Ready PROFIBUS Cable

Overview

Siemens 6XV1830-0ET10 Migration-Ready PROFIBUS Cable: Legacy System Retrofit & Upgrade

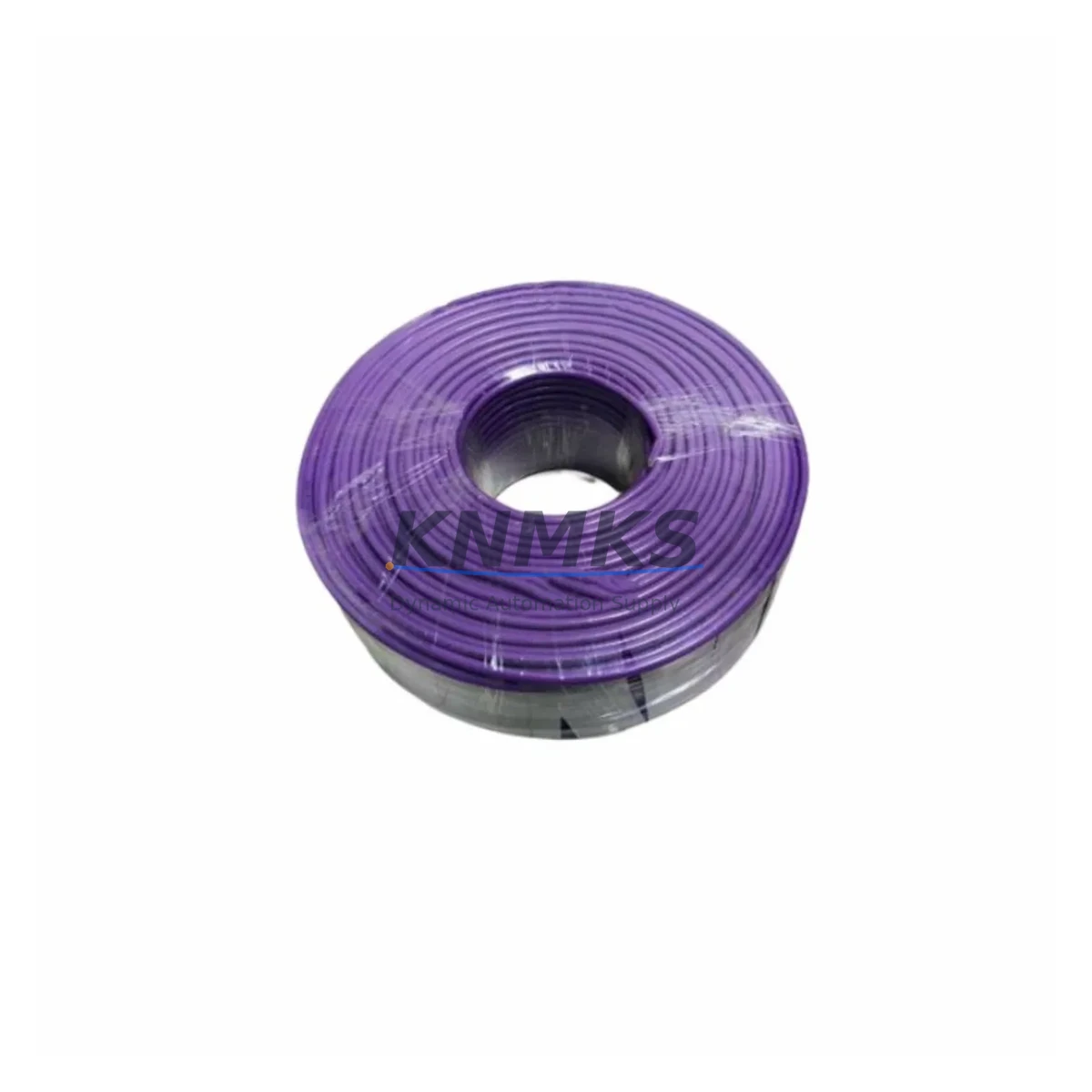

The Siemens 6XV1830-0ET10 is a Type A PROFIBUS bus cable rated at 12 Mbit/s, supplied in a 100-meter reel. Engineered to Siemens Simatic Net specifications, this cable is the standard drop-in replacement for aging PROFIBUS DP network infrastructure across S7-300, S7-400, and legacy Simatic S5 control architectures. As industrial facilities accelerate their migration away from discontinued fieldbus hardware, the 6XV1830-0ET10 remains the most widely specified cable for maintaining network integrity during phased retrofit programs.

When planning a PROFIBUS network retrofit, the cable is rarely the only component under review. Engineers replacing end-of-life DP masters or slaves must simultaneously verify that the 6XV1830-0ET10 termination resistance matches the existing bus topology. The cable’s characteristic impedance of 135–165 Ω and capacitance of ≤30 pF/m are fully compatible with active bus terminators found on Siemens DP/PA Link modules and ET 200M distributed I/O stations. Confirming these parameters before cutover prevents reflection errors that can destabilize the entire DP segment during live migration.

In control cabinet upgrades where a Siemens CP 342-5 or CP 443-5 communications processor is being replaced with a current-generation CP 342-5 FO or equivalent, the 6XV1830-0ET10 copper variant continues to serve trunk segments up to 100 meters at 12 Mbit/s. For longer runs or electrically noisy environments, the migration plan should document whether a transition to 6XV1830-3FH10 fiber-optic PROFIBUS cable is warranted, and the 6XV1830-0ET10 can remain in service on the short-haul cabinet-to-cabinet segments while fiber handles the plant backbone.

Retrofit projects involving Siemens IM 153-2 interface modules on ET 200M racks frequently require re-cabling when the original installation used non-Type-A cable that cannot sustain 12 Mbit/s. Swapping to 6XV1830-0ET10 at the same time as the IM module replacement eliminates a common source of intermittent DP faults and reduces the number of diagnostic cycles needed during commissioning. Engineers should record the new cable routing, connector pin assignments on Siemens 6ES7 972-0BA52-0XA0 bus connectors, and segment lengths in the updated network documentation before restarting the CPU.

For facilities running Siemens WinCC or Step 7 Classic, the PROFIBUS network configuration stored in the hardware catalog must reflect the updated segment parameters after re-cabling. If the retrofit also involves migrating from Step 7 V5.x to TIA Portal, the network topology import should be validated against the physical 6XV1830-0ET10 installation to ensure address assignments and DP cycle times are consistent. HMI screen tag bindings tied to DP slave addresses must be re-verified after any address reassignment during the migration.

Inventory availability and lead time are critical factors in shutdown planning. The 6XV1830-0ET10 is held availability confirmed by RFQ and ships within 24–48 hours of order confirmation, supporting both emergency replacement scenarios and scheduled maintenance windows. Each reel is subject to pre-shipment continuity and impedance testing. All units are covered by a support terms confirmed by quotation against manufacturing defects, providing assurance for both immediate replacements and long-cycle spare parts programs.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PROFIBUS retrofit begins well before the maintenance window. The first step is a full audit of the existing DP segment: measure the total cable length, count the number of nodes, and identify any non-Type-A cable sections that must be replaced with 6XV1830-0ET10. At the same time, inspect all Siemens 6ES7 972-0BA52-0XA0 bus connectors for cracked housings or corroded contacts, as connector failure is a leading cause of DP faults after re-cabling.

Power supply capacity must be confirmed before adding nodes or extending segments. If the retrofit includes new ET 200M distributed I/O racks with IM 153-2 interface modules, calculate the additional current draw on the 24 VDC rail and verify that the existing Siemens PS 307 or equivalent power supply module has sufficient headroom. Undersized power supplies are a common root cause of intermittent DP communication errors that are difficult to diagnose after commissioning.

Backplane slot assignments and module addresses must be documented before any hardware is removed. For S7-300 racks, photograph the existing slot configuration and export the Step 7 or TIA Portal hardware configuration before beginning physical work. If the retrofit involves replacing a CP 342-5 communications processor, note the DP master system number and all slave addresses assigned to that master, as these must be preserved in the new configuration.

Signal isolators and repeaters in the DP segment should be inspected during the retrofit. If the existing installation uses Siemens RS 485 repeaters to bridge segment lengths, verify that the repeater firmware is compatible with the target data rate after re-cabling. In some legacy installations, repeaters are operating at reduced data rates due to original cable limitations; upgrading to 6XV1830-0ET10 allows the segment to run at full 12 Mbit/s, but the repeater configuration must be updated accordingly.

Programming cables such as the Siemens PC Adapter USB A2 should be on-site during commissioning to allow direct CPU connection for online diagnostics. After re-cabling, perform a full DP network scan in Step 7 or TIA Portal to confirm all slave addresses are visible and responding before restarting production.

Downtime Control During System Migration

Minimizing unplanned downtime during a PROFIBUS re-cabling project requires a structured cutover plan. Pre-stage all 6XV1830-0ET10 cable reels, connectors, and tools in the control room before the maintenance window begins. Label both ends of every new cable run with the segment number, node addresses, and installation date to simplify future troubleshooting.

Preserve the original program logic by uploading the current CPU program to an offline backup before disconnecting any hardware. For S7-300 and S7-400 systems, use Step 7 or TIA Portal to save the complete project, including hardware configuration, network topology, and symbol tables. If the retrofit involves a CPU replacement, verify that the memory card format is compatible with the replacement unit before the maintenance window.

To maintain field control continuity during phased migrations, consider keeping non-critical DP segments live while re-cabling critical segments one at a time. This approach limits the scope of each cutover and reduces the risk of a plant-wide shutdown caused by a single wiring error. Use the DP diagnostic buffer in the CPU to monitor segment health in real time during the transition.

After re-cabling, perform a cold restart of the CPU and monitor the DP diagnostic buffer for bus errors before declaring the migration complete. Document the final cable routing, connector assignments, and segment parameters in the updated network drawing set. Retain the pre-migration backup program for a minimum of 90 days after successful commissioning.

Retrofit Support FAQ

Q: Is the 6XV1830-0ET10 a direct replacement for older Siemens PROFIBUS cable used in S7-300 systems?
A: Yes. The 6XV1830-0ET10 is the current Siemens Simatic Net Type A PROFIBUS cable and is a direct drop-in replacement for earlier-generation PROFIBUS cable used in S7-300, S7-400, and legacy Simatic S5 DP networks. No protocol conversion or configuration change is required on the CPU or DP master after replacement.

Q: What connector and termination hardware is compatible with the 6XV1830-0ET10?
A: The cable is designed for use with standard 9-pin Sub-D PROFIBUS bus connectors, including the Siemens 6ES7 972-0BA52-0XA0 series. Existing connectors in good condition can be re-used; damaged or corroded connectors should be replaced at the same time as the cable to avoid intermittent faults after commissioning.

Q: Has the cable been tested before shipment?
A: Yes. Each reel of 6XV1830-0ET10 undergoes pre-shipment continuity and impedance testing to confirm compliance with Simatic Net Type A specifications. Units are shipped with test records available on request. All stock is covered by a support terms confirmed by quotation against manufacturing defects.

Q: What is the lead time and availability for the 6XV1830-0ET10?
A: The 6XV1830-0ET10 is held availability confirmed by RFQ and typically ships within 24–48 hours of order confirmation. For large-quantity orders or scheduled maintenance programs, contact our sales team to confirm inventory levels and arrange priority allocation. Emergency replacement orders are supported with same-day processing where stock permits.
