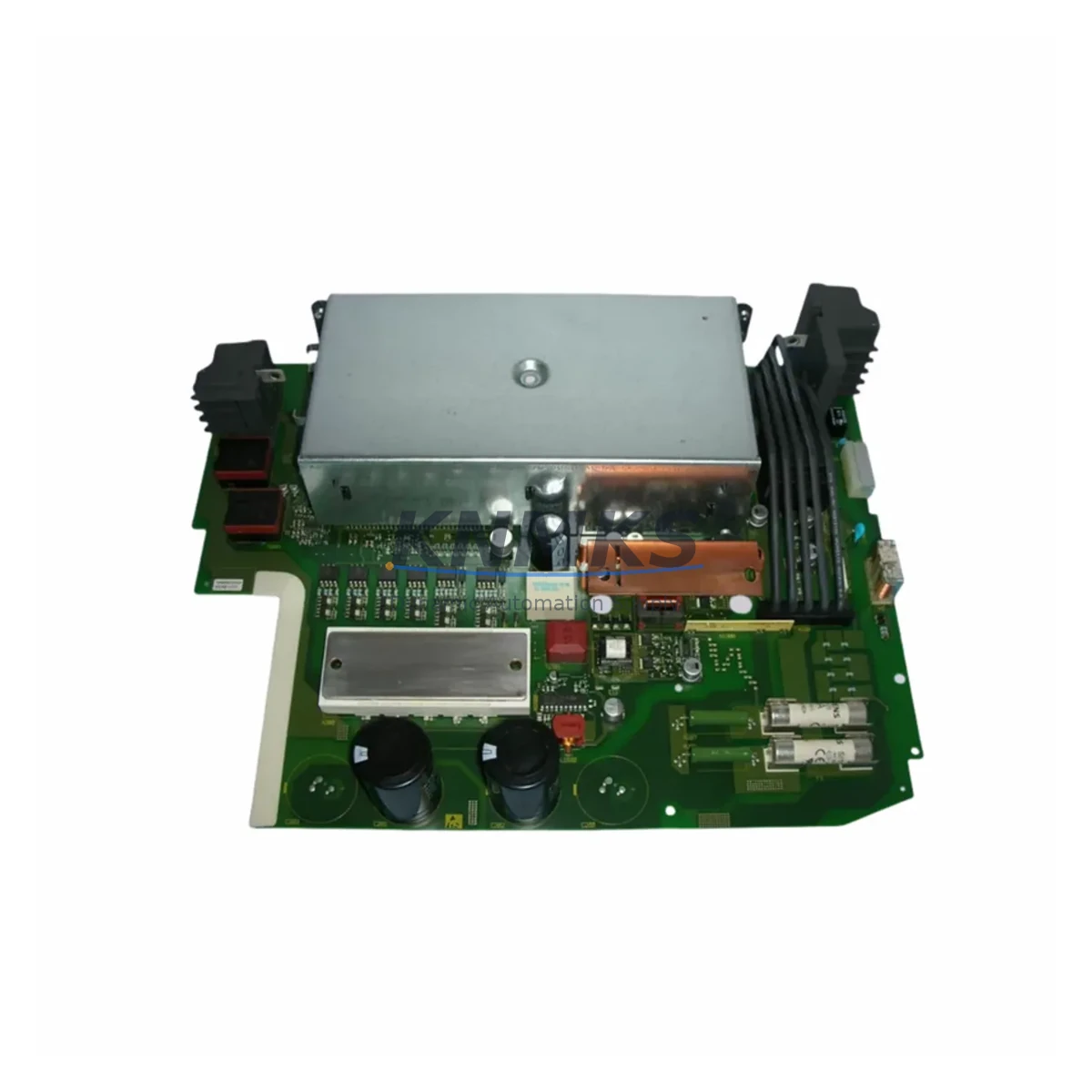

Siemens 6SE7016-1TA84-1HF3 Migration-Ready Output Module

Overview

Siemens 6SE7016-1TA84-1HF3 Migration-Ready Output Module for Legacy Control Systems

The Siemens 6SE7016-1TA84-1HF3 is a migration-ready AC drive output module engineered for the SIMOVERT MASTERDRIVES MC platform — one of Siemens’ most widely deployed variable-speed drive families in industrial automation. As legacy MASTERDRIVES MC installations approach end-of-service milestones, this module serves as a verified drop-in replacement and upgrade path for facilities managing aging control cabinets, discontinued spare parts, and phased modernization programs.

Designed to slot directly into the MASTERDRIVES MC modular rack architecture, the 6SE7016-1TA84-1HF3 maintains full electrical and mechanical compatibility with existing backplane connectors, terminal wiring layouts, and module addressing schemes. Engineers undertaking a retrofit must confirm the output current rating against the existing drive configuration, verify the DC bus voltage range, and ensure the firmware version loaded on the Control Unit — typically a CU3 or CU4 board — supports the module’s parameter set. Mismatched firmware revisions are a common source of commissioning delays and should be resolved before the replacement module is installed.

When planning a cabinet-level upgrade, the power supply module feeding the MASTERDRIVES MC rack must be assessed for available headroom. The 6SE7016-1TA84-1HF3 draws regulated DC from the shared bus; if the existing PSU is already operating near capacity due to additional I/O expansion modules or communication boards, a parallel power supply or a higher-rated replacement unit should be factored into the retrofit bill of materials. Terminal block wiring from the motor output side — U2, V2, W2 — must be re-verified against the original drive schematic to prevent phase sequence errors during first-run commissioning.

For sites running PROFIBUS DP as the primary fieldbus, the module address assigned in the original STEP 7 or STARTER project must be preserved during the swap. If the control program references the drive via a fixed PROFIBUS node address, any change to that address will require a corresponding update in the PLC configuration and a re-download to the CPU — typically a SIMATIC S7-300 or S7-400 series controller. Sites that have already migrated their PLC platform to S7-1500 with TIA Portal should verify that the MASTERDRIVES MC drive object is correctly mapped in the hardware configuration before going live.

In multi-axis installations, the 6SE7016-1TA84-1HF3 often operates alongside companion modules such as the MASTERDRIVES MC Closed-Loop Control Board and the SIMOVERT Braking Module, both of which share the same rack and DC bus. Replacing the output module without auditing the condition of adjacent boards — particularly the gate driver and snubber circuits — can result in recurring faults after the new module is energized. A pre-replacement thermal scan of the cabinet and a review of the drive’s fault history log are strongly recommended as part of the migration checklist.

HMI screens built on SIMATIC OP or TP panels that display drive status, speed reference, and fault codes via the USS protocol or PROFIBUS must be validated after the module swap. Parameter block transfers using the STARTER commissioning tool or DriveMonitor should be completed before the system is returned to production, ensuring that all ramp times, current limits, and motor data sets are correctly restored from the backup dataset.

All units supplied by KNMKS undergo pre-shipment functional testing, including insulation resistance checks, output voltage symmetry verification, and communication link validation where applicable. Each 6SE7016-1TA84-1HF3 is covered by a support terms confirmed by quotation from the date of dispatch, with in-stock availability supporting emergency replacement timelines. Global dispatch is available with lead times confirmed at the time of order.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6SE7016-1TA84-1HF3 into an existing MASTERDRIVES MC installation requires a structured approach that accounts for both the electrical and software layers of the drive system. Before the replacement module arrives on site, the maintenance team should pull the current parameter dataset from the drive using STARTER or DriveMonitor and archive it to a secure location. This dataset — containing motor nameplate data, encoder configuration, speed controller gains, and fault response settings — is the single most important asset for restoring the drive to its pre-failure operating state.

On the hardware side, the rack slot dimensions and backplane connector pinout of the 6SE7016-1TA84-1HF3 are consistent with the MASTERDRIVES MC modular family, meaning no mechanical modification to the cabinet is required for a like-for-like swap. However, if the retrofit is being used as an opportunity to expand the drive’s capability — for example, by adding an encoder feedback board or a technology option module — the rack must have a free slot and the Control Unit firmware must support the additional function block.

Sites that also operate SIMATIC ET 200 distributed I/O racks connected to the same PROFIBUS segment as the drive should verify that the DP master cycle time is not impacted by the module replacement. In high-speed applications where the drive receives speed setpoints from a SIMATIC S7-400H redundant controller, the watchdog timeout settings in the drive’s communication parameters must be reviewed to prevent nuisance trips during the commissioning window.

For cabinet upgrades that include replacing the MASTERDRIVES MC Braking Module or the Line Filter alongside the output module, the installation sequence matters: the DC bus must be fully discharged before any module is removed, and the new modules should be installed and secured before the bus is re-energized. A SIMOVERT Braking Resistor connected externally must also be checked for continuity and correct resistance value before the drive is powered up. If the site uses a SIMATIC OP277 or TP277 HMI panel for local drive control, the panel’s communication settings should be confirmed against the drive’s USS baud rate and station address parameters before the first test run.

Downtime Control During System Migration

Minimizing unplanned downtime during a MASTERDRIVES MC output module replacement begins with preparation, not execution. The most effective strategy is to have the 6SE7016-1TA84-1HF3 on the shelf before the existing module fails — a practice that reduces mean time to repair from days to hours. KNMKS maintains in-stock inventory of this module to support emergency dispatch requirements, with order confirmation and shipping documentation provided on the same business day for stocked items.

During the swap window, the original control program in the SIMATIC PLC does not need to be modified if the module address and PROFIBUS node configuration are preserved. The PLC CPU can remain in RUN mode during the physical module exchange if the drive is safely isolated from the process — a significant advantage in facilities where a full PLC restart would trigger additional interlock sequences or require operator re-authorization. Once the new module is seated and the drive is re-energized, a short no-load test run at reduced speed reference should be performed to confirm output voltage balance and current feedback before the load is reconnected.

For sites where the MASTERDRIVES MC drive controls a critical process — such as a compressor, extruder, or centrifuge — a parallel commissioning approach using a spare drive chassis can further reduce exposure. The 6SE7016-1TA84-1HF3 can be pre-loaded with the archived parameter dataset and bench-tested before it enters the cabinet, allowing the swap itself to be completed in under 30 minutes by a qualified drive technician. This approach also provides an opportunity to verify firmware compatibility and communication link integrity before the production deadline.

Retrofit Support FAQ

Q: Is the 6SE7016-1TA84-1HF3 a direct replacement for the original MASTERDRIVES MC output module in my cabinet?
A: Yes. The 6SE7016-1TA84-1HF3 is designed as a drop-in replacement within the SIMOVERT MASTERDRIVES MC modular rack. Mechanical dimensions, backplane connector pinout, and module addressing are consistent with the original design. Confirm the firmware version on your Control Unit (CU3 or CU4) is compatible before installation.

Q: What pre-shipment testing is performed on each unit?
A: Every 6SE7016-1TA84-1HF3 dispatched by KNMKS undergoes insulation resistance testing, output voltage symmetry verification across all three phases, and communication link validation. A test report is available on request. All units carry a support terms confirmed by quotation from the date of dispatch.

Q: Do I need to re-download my PLC program after replacing the output module?
A: Not necessarily. If the PROFIBUS node address and module slot assignment are unchanged, the SIMATIC S7 program will recognize the replacement module without modification. However, if the firmware version on the new module differs from the original, a parameter re-download via STARTER or DriveMonitor is recommended to ensure all drive settings are correctly applied.

Q: What is the typical lead time and do you hold stock?
A: The 6SE7016-1TA84-1HF3 is held availability confirmed by RFQ at KNMKS for immediate dispatch. Lead time for in-stock units is 1–3 business days depending on destination. For urgent requirements, contact [email protected] or call +86 18359268345 to confirm availability and arrange priority shipping.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6SE7016-1TA84-1HF3
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6SE7016-1TA84-1HF3
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
