Siemens 6SE6440-2UD31-5DA1 Migration-Ready VFD

Overview

Siemens 6SE6440-2UD31-5DA1 Migration-Ready VFD: Legacy System Retrofit and Compatibility Upgrade

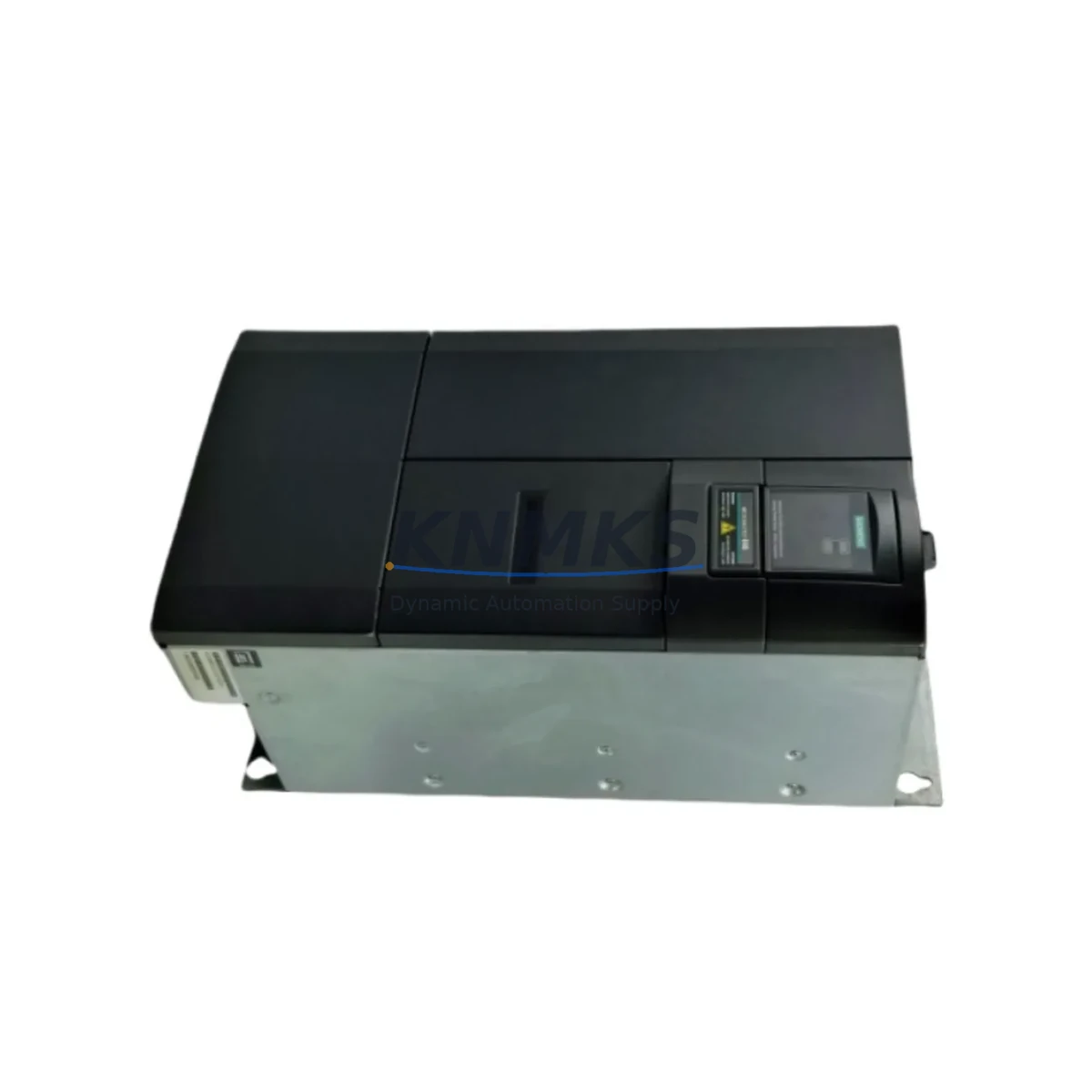

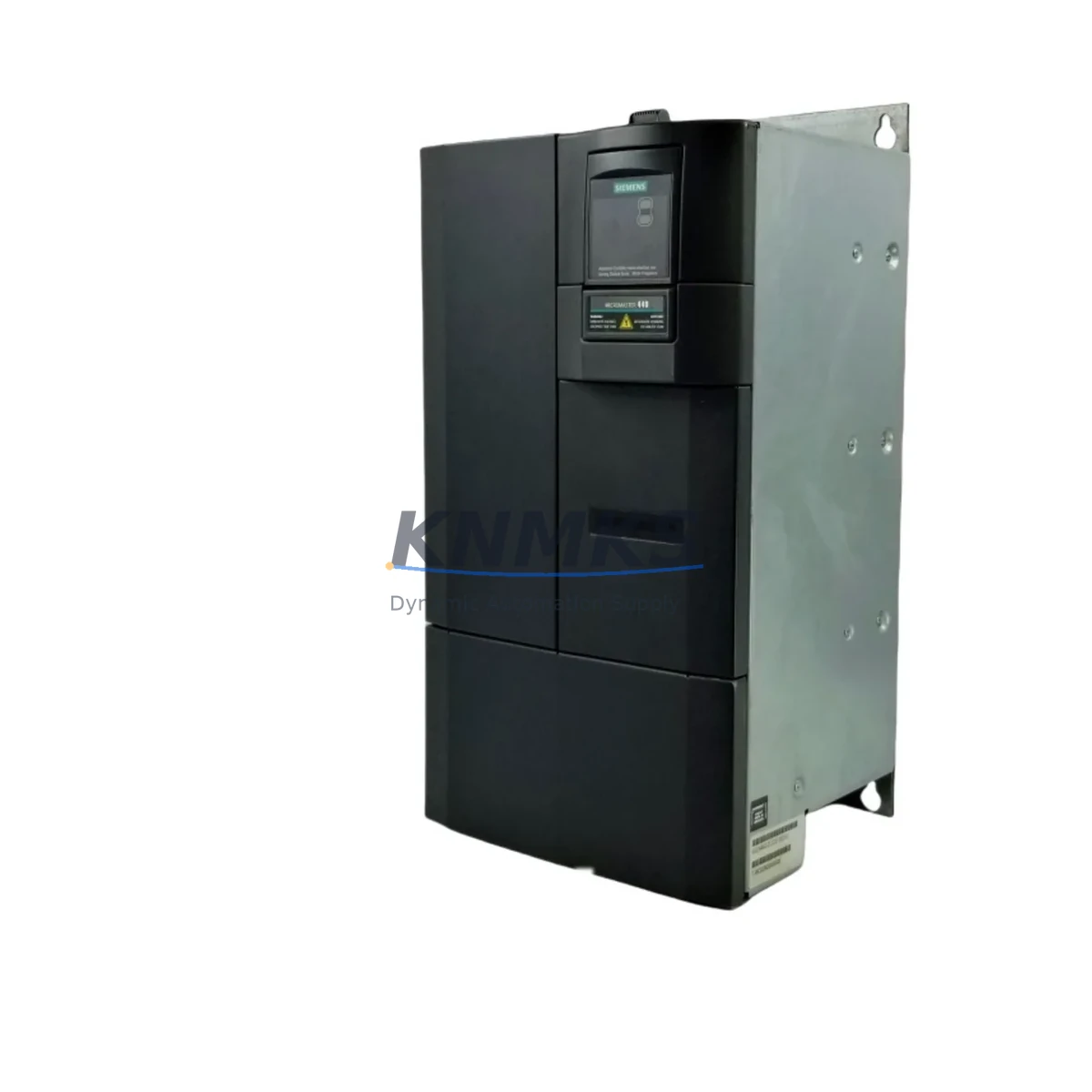

The Siemens 6SE6440-2UD31-5DA1 is a 15 kW (20 HP) three-phase MICROMASTER 440 series variable frequency drive rated for 380–480 V AC input, designed for demanding industrial motor control applications. As legacy automation lines reach end-of-service milestones and OEM support for first-generation MICROMASTER 440 units is phased out, the 6SE6440-2UD31-5DA1 has become a primary migration target for maintenance engineers managing aging control cabinets, retrofit projects, and spare-parts lifecycle programs.

This unit is stocked, pre-tested, and available for immediate dispatch. Each drive ships with a support terms confirmed by quotation covering manufacturing defects and functional performance under rated operating conditions. Whether you are replacing a failed drive on a running production line, building a retrofit-ready spare inventory, or executing a planned control system upgrade, the 6SE6440-2UD31-5DA1 delivers the electrical and mechanical compatibility required for a controlled, low-risk changeover.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a MICROMASTER 440 drive in an active production environment requires a structured pre-swap assessment to avoid extended downtime and configuration errors. Before removing the existing 6SE6440-2UD31-5DA1 or its predecessor, engineers should verify the incoming supply voltage and phase balance at the cabinet terminals, confirm that the upstream circuit breaker and contactor ratings match the drive’s input current requirements, and document all existing parameter settings using a BOP-2 operator panel or a laptop running STARTER software.

Terminal wiring on the MM440 series follows a consistent layout across frame sizes, which simplifies direct rewiring during a like-for-like swap. However, if the original installation used a 6SE6400-series MICROMASTER 4 predecessor or an earlier 6SE3-series unit, terminal mapping differences must be resolved before energizing the replacement drive. In these cross-generation migrations, it is common to also replace the associated 6SL3255-0AA00-4CA1 BOP-2 operator panel to ensure parameter compatibility and to restore local HMI control capability at the drive door.

For systems communicating over PROFIBUS DP, the CB15 PROFIBUS option board must be verified or replaced alongside the drive. The GSD file version installed in the PLC project — typically a Siemens S7-300 or S7-400 CPU — must match the firmware revision of the replacement drive. If the control program references specific drive parameter addresses via DP telegram type 1 or PPO type 3, these mappings should be validated in STEP 7 or TIA Portal before the drive is brought online. In USS-based architectures, the baud rate, drive address, and USS telegram length configured in the PLC’s serial communication block must be re-confirmed after the swap.

Control cabinet space is a frequent constraint in retrofit projects. The 6SE6440-2UD31-5DA1 Frame Size D footprint is compatible with most standard 600 mm deep industrial enclosures, but engineers should verify that the existing cable management, EMC filter (such as the 6SE6400-2FA00-6AD0), and braking resistor connections can be retained without rerouting. Where a 6SE6400-2FB00-6AD0 line filter was previously installed upstream, it should be inspected and replaced if it shows signs of thermal stress or capacitor aging.

I/O expansion requirements should also be reviewed during retrofit planning. If the original system relied on a 6SE6400-1PB00-0AA0 analog I/O expansion or external signal isolators for 4–20 mA feedback loops, these components must be re-commissioned and calibrated after the drive replacement. Similarly, if the motor encoder feedback was routed through a 6SE6400-1PC00-0AA0 encoder module, the pulse count and direction logic should be verified against the motor nameplate data before running the first test cycle.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive replacement is the primary operational concern for maintenance teams managing continuous or semi-continuous production processes. A structured migration approach for the 6SE6440-2UD31-5DA1 begins with a full parameter backup performed while the original drive is still operational. Using the BOP-2 panel’s upload function or STARTER’s parameter export, all P-parameters — including ramp times, current limits, PID setpoints, and motor data — should be saved to a portable storage medium or the engineering laptop before the drive is de-energized.

Once the replacement drive is installed and wired, a cold commissioning sequence should be followed: verify supply voltage at L1/L2/L3 before closing the main contactor, restore the saved parameter set via BOP-2 or STARTER, and perform a motor identification run (P1910 = 1) if the motor data has not been previously stored in the drive. This step is critical when the replacement unit is a new-production drive rather than a refurbished unit with pre-loaded parameters.

For PROFIBUS-connected drives, the PLC should be placed in STOP mode before the drive is swapped to prevent the DP master from generating fault alarms that could propagate to the HMI and trigger unnecessary process shutdowns. After the replacement drive is online and the PROFIBUS address is confirmed, the PLC can be returned to RUN mode and the drive’s ready signal verified on the HMI screen before resuming automatic control. This sequence protects the original program logic and prevents spurious fault states from being latched in the PLC’s diagnostic buffer.

Where a hot-swap or minimal-interruption changeover is required, a pre-configured spare drive with parameters pre-loaded and PROFIBUS address pre-set can reduce the physical swap window to under 30 minutes for experienced technicians. KNMKS can supply pre-configured units on request, with parameter files prepared based on customer-supplied backup data prior to shipment.

Retrofit Support FAQ

Q1: Is the 6SE6440-2UD31-5DA1 a direct drop-in replacement for earlier MICROMASTER 440 15 kW variants?
In most cases, yes. The MM440 series maintains consistent terminal layouts and parameter structures across production batches. Minor firmware differences may require a motor re-identification run after installation, but the physical mounting, power wiring, and control terminal connections are directly compatible with earlier 15 kW Frame Size D units. Cross-generation replacements from MICROMASTER 4 (6SE6400-series) require terminal mapping verification.

Q2: Can I reuse my existing PROFIBUS configuration after the swap?
Yes, provided the CB15 option board is transferred or replaced with a compatible unit and the PROFIBUS node address is set to match the original drive. The GSD file in the PLC project should be verified against the replacement drive’s firmware version. No changes to the PLC program are required if the DP telegram type and PPO configuration remain unchanged.

Q3: What pre-shipment testing is performed on each unit?
Each 6SE6440-2UD31-5DA1 unit undergoes functional power-on testing, output voltage balance verification across all three phases, and control terminal continuity checks before dispatch. Units are packed in anti-static, shock-protected packaging. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and rated operational performance.

Q4: What is the typical lead time and stock availability?
The 6SE6440-2UD31-5DA1 is maintained in regional stock for immediate dispatch. Standard orders ship within 2–5 business days. For bulk orders or blanket-stock programs supporting multi-site maintenance contracts, contact the sales team to discuss allocation, lead time, and pricing. Emergency dispatch for critical production line failures can be arranged on request.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6SE6440-2UD31-5DA1

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: Siemens 6SE6440-2UD31-5DA1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
