Siemens 6SE6440-2UD25-5CA1 Maintenance-Proven Spare for Factory Uptime

Overview

Siemens 6SE6440-2UD25-5CA1 Maintenance-Proven Spare for Factory Uptime

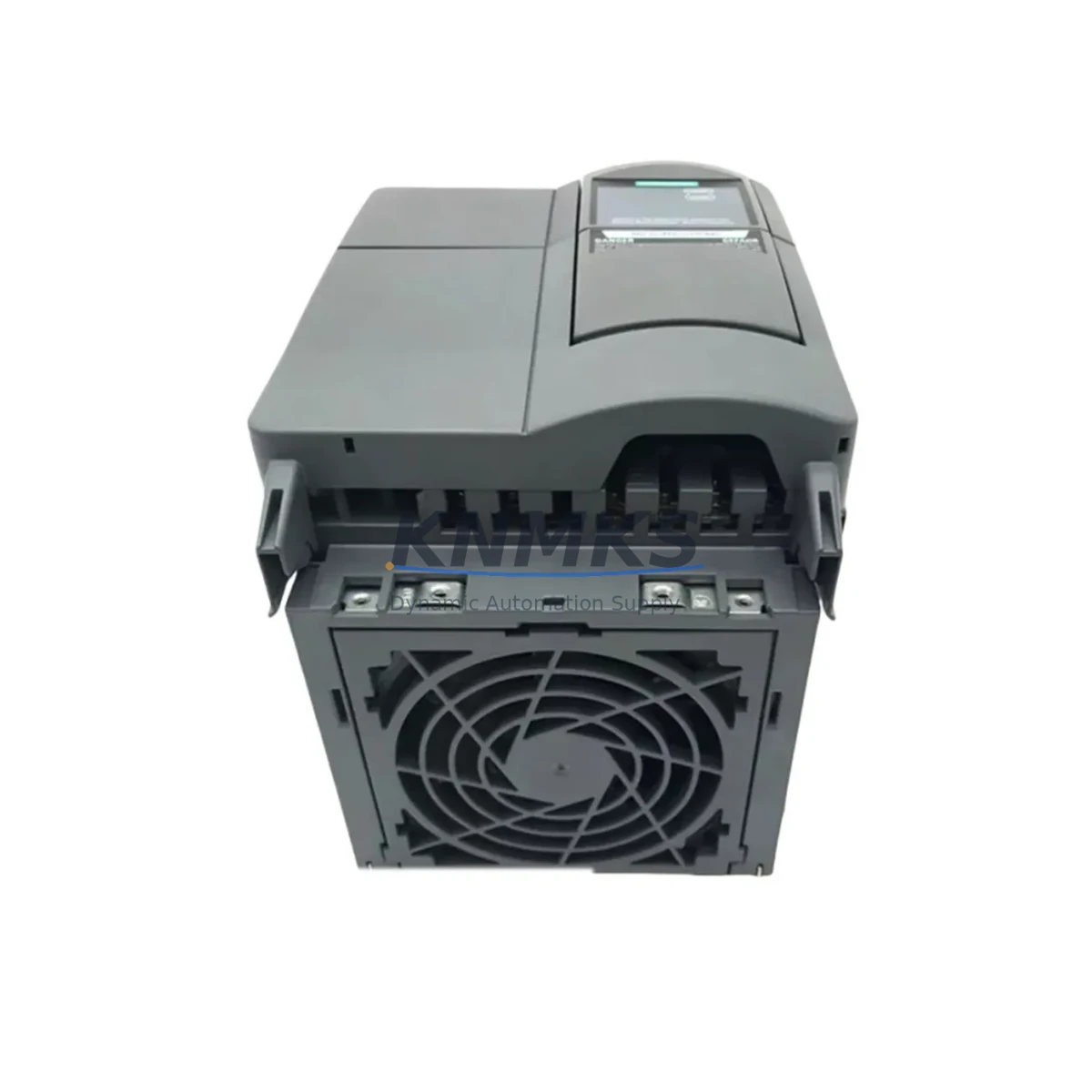

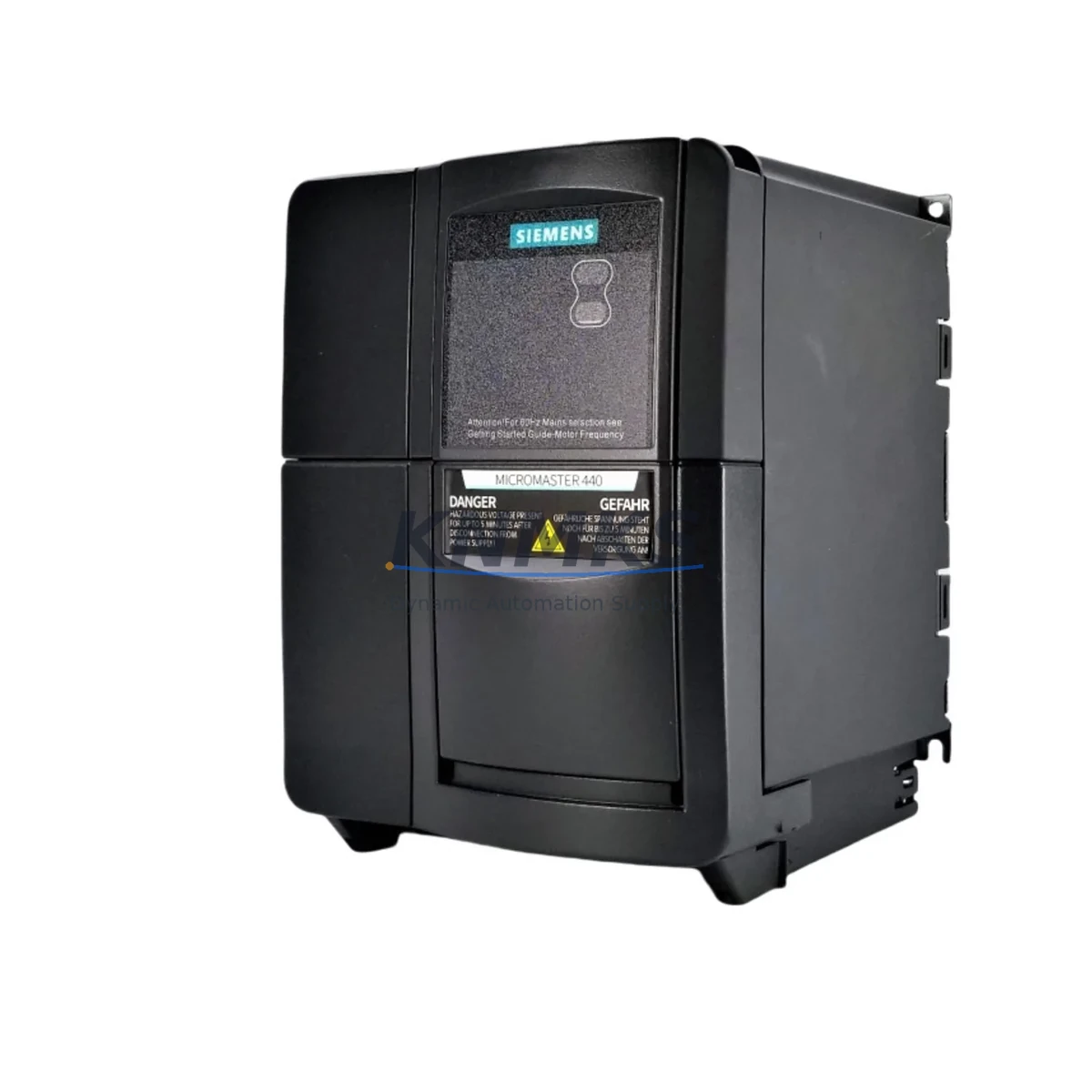

The Siemens 6SE6440-2UD25-5CA1 is a 5.5 kW (7.5 HP) three-phase AC variable frequency drive from the MICROMASTER 440 series, engineered for demanding industrial motor control applications including pumps, fans, compressors, conveyors, and general-purpose machine drives. As a maintenance-proven spare part, this unit is sourced, inspected, and dispatched to support rapid line recovery when the original drive fails or degrades beyond safe operating thresholds. Holding a verified replacement unit in your spare parts cabinet is the single most effective measure to reduce unplanned downtime on MICROMASTER 440-equipped production lines.

Maintenance engineers and procurement teams working with Siemens MICROMASTER 440 installations recognize that drive failures rarely occur in isolation. A failed 6SE6440-2UD25-5CA1 is frequently accompanied by upstream or downstream stress on connected components — power supply rails, motor cables, input fuses, and control wiring all warrant inspection during any drive replacement event. This product page is structured to support both the immediate replacement decision and the broader maintenance planning process that follows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6SE6440-2UD25-5CA1 drive is removed from service — whether due to fault codes F0001 (overcurrent), F0002 (overvoltage), F0003 (undervoltage), or thermal shutdown — the replacement event is the optimal moment to audit the entire drive circuit. Experienced maintenance engineers treat a drive swap not as a single-component task but as a system-level inspection checkpoint.

Begin with the input power section: verify that the upstream circuit breaker or fuse (typically a 20 A gG-type fuse for a 5.5 kW load at 400 V) has not been weakened by repeated fault trips. A degraded fuse that has not yet blown can cause nuisance trips on the replacement drive. Siemens 3NA series fuses and 3RV motor protection circuit breakers are the standard pairing for MICROMASTER 440 installations and should be checked for contact wear and trip calibration.

Next, inspect the input line reactor or EMC filter. The Siemens 6SE6400-2FA00-6AB0 line filter (or equivalent class C2 filter) is commonly installed ahead of the MM440 to suppress conducted emissions. A failed or bypassed filter can expose the drive’s rectifier bridge to line transients, accelerating DC bus capacitor aging. If the filter shows signs of overheating or insulation breakdown, replace it concurrently with the drive.

On the motor cable side, measure insulation resistance between each phase conductor and earth before reconnecting the motor. Degraded motor cable insulation — particularly in cables longer than 25 m — can cause ground fault trips on the new drive within hours of commissioning. Shielded VFD-rated cable is mandatory for MICROMASTER 440 installations per Siemens EMC guidelines.

If the installation uses a PROFIBUS-DP communication module (CB15) or an operator panel (BOP / AOP), verify that parameter sets (P0010 factory reset, P0970 parameter reset) are backed up before the swap. The Siemens AOP (Advanced Operator Panel) supports parameter upload/download and is the recommended tool for cloning drive configurations during planned maintenance windows, eliminating manual re-entry of P-parameters.

For sites running multiple MM440 drives in a common DC bus configuration, also inspect the braking resistor (e.g., 6SE6400-4BD16-5CA0 or equivalent) and the braking chopper circuit. Overvoltage faults on one drive can cascade to adjacent drives sharing the same bus if the braking resistor is undersized or has drifted in resistance value.

Finally, review the control terminal wiring: analog inputs (AI1/AI2), digital inputs (DIN1–DIN6), relay outputs (DOUT), and the 10 V reference supply. Loose or corroded terminal connections at the control board are a common root cause of intermittent drive faults that are misdiagnosed as drive failures. Torque all control terminals to specification and apply contact protection spray where humidity is a concern.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the drive via the upstream isolator. Wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 V before opening the drive enclosure. Verify with a calibrated multimeter across the DC bus terminals (B+/B−).

Step 2 — Parameter backup: If the existing drive is still partially functional, use the AOP or BOP to upload the full parameter set. Record P0304 (motor rated voltage), P0305 (motor rated current), P0307 (motor rated power), P0310 (motor rated frequency), and P0311 (motor rated speed) as a minimum. These values are motor-specific and must be re-entered on the replacement unit.

Step 3 — Mechanical removal: Disconnect input power cables (L1/L2/L3), output motor cables (U/V/W), PE earth, control terminal ribbon or individual wires, and any communication cables. Label all connections before removal. The 6SE6440-2UD25-5CA1 chassis mounts with four M5 screws; torque to 3 Nm on reinstallation.

Step 4 — Replacement unit inspection: Before installation, verify the replacement 6SE6440-2UD25-5CA1 firmware version (readable from the nameplate or P0018). If the site uses a specific firmware revision for compatibility with a PLC or SCADA system, confirm alignment before powering up.

Step 5 — Commissioning: Restore parameter set via AOP download or manual entry. Run the motor identification routine (P1910 = 1) if motor parameters are uncertain. Perform a no-load test run before reconnecting the mechanical load. Confirm output frequency, current, and voltage readings match pre-failure baseline values.

Step 6 — Documentation: Update the maintenance log with the replacement date, unit serial number, fault history, and next scheduled inspection interval. For critical drives, set a calendar reminder for the 6-month inspection checkpoint.

Spare Parts Support FAQ

Q1: Is the 6SE6440-2UD25-5CA1 a direct drop-in replacement for the existing unit without parameter changes?
A: Yes, provided the replacement unit carries the same firmware revision and the motor parameters (P0304–P0311) are correctly restored. If the original drive’s parameter set was backed up via AOP, the download process takes under 5 minutes and eliminates manual re-entry errors. If no backup exists, the motor nameplate data is sufficient to re-commission the drive.

Q2: What is the recommended spare parts inventory strategy for MICROMASTER 440 installations?
A: For production lines with more than three MM440 drives, maintaining one spare unit per power rating tier (e.g., one 5.5 kW, one 11 kW) is the industry-standard approach. This covers the majority of failure scenarios without excessive capital tied up in inventory. For critical single-drive applications (e.g., a sole cooling pump or compressor), a dedicated hot-spare is justified by the cost of even one hour of unplanned downtime.

Q3: How is the replacement unit tested before shipment?
A: Each 6SE6440-2UD25-5CA1 unit is function-tested under load prior to dispatch. Testing includes DC bus charge verification, output phase balance check, and a no-fault run cycle. A test report is available on request. Units are packed in anti-static foam with corner protection to prevent transit damage to the control board and display interface.

Q4: What support terms and long-term supply commitment applies to this spare part?
A: A support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of receipt. For procurement teams managing multi-year maintenance contracts, blanket stock arrangements are available — contact our sales team to discuss reserved inventory, scheduled release, and fixed-price agreements that protect against market allocation risk for discontinued or end-of-life Siemens components.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6SE6440-2UD25-5CA1

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: Siemens 6SE6440-2UD25-5CA1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
