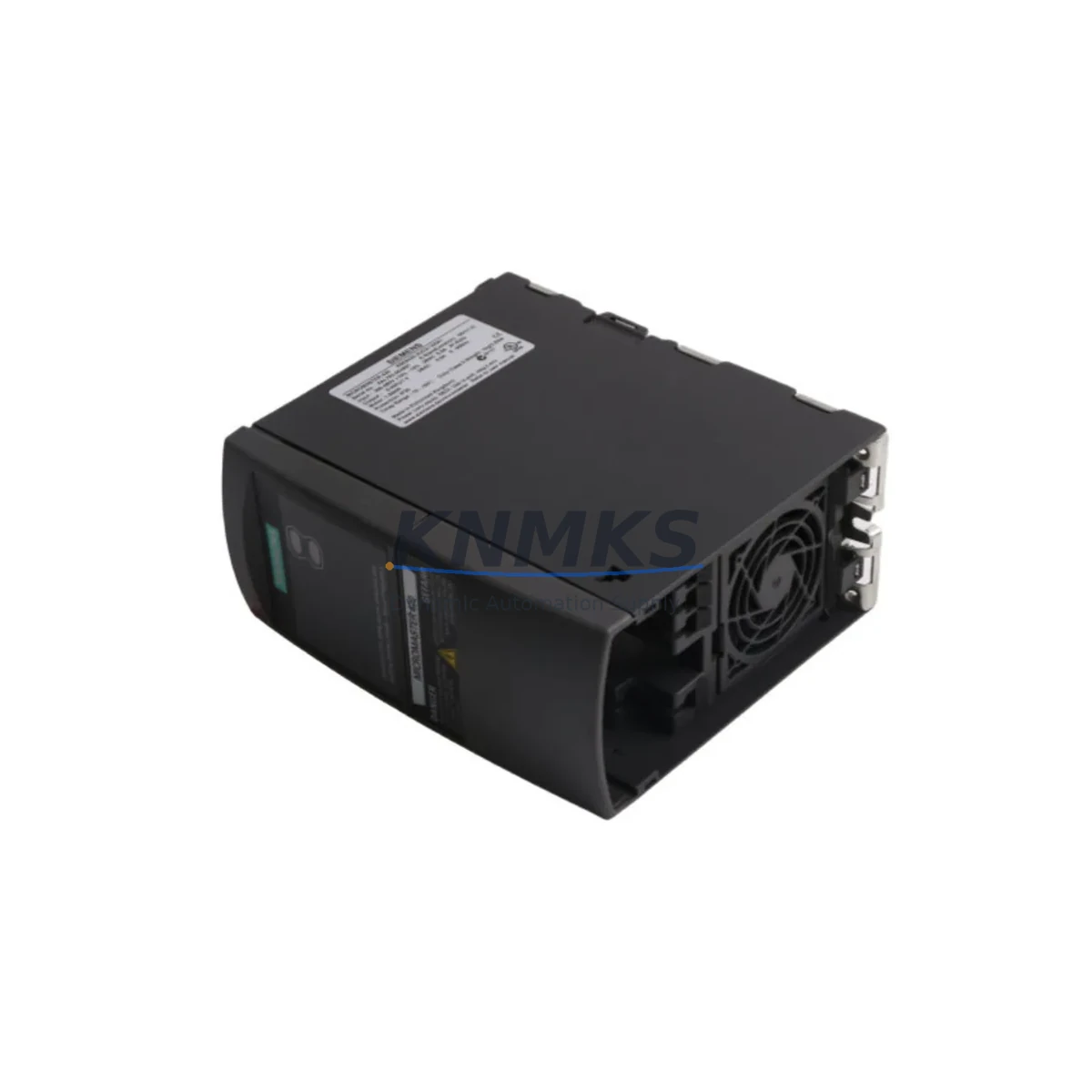

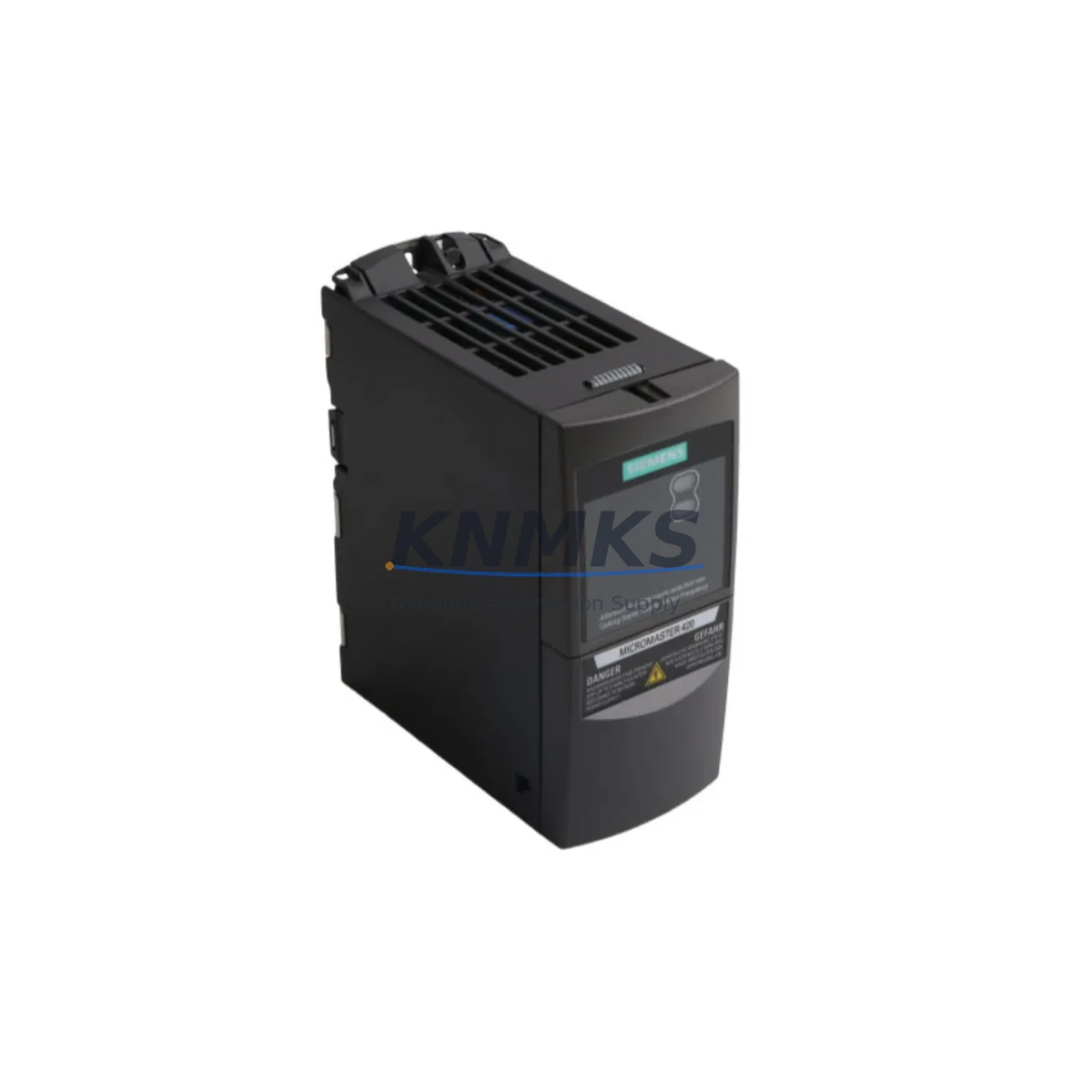

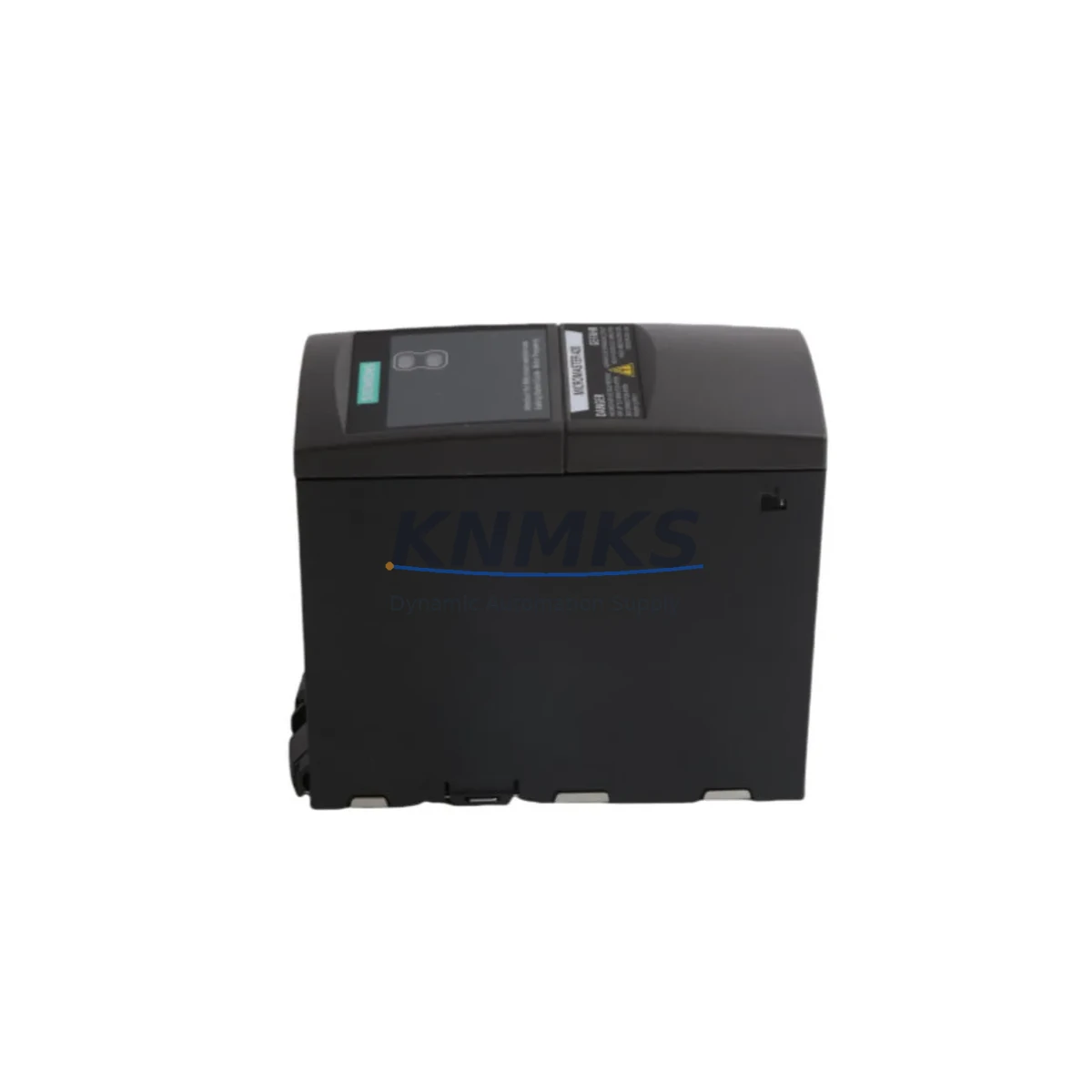

Siemens 6SE6420-2UD21-5AA1 Migration-Ready VFD: Legacy System Retrofit and Compatibility Upgrade

The Siemens 6SE6420-2UD21-5AA1 is a 1.5 kW MICROMASTER 420 series variable frequency drive designed for three-phase motor control in industrial automation environments. As legacy MICROMASTER 420 units approach end-of-service life, this migration-ready replacement module provides a direct upgrade path for engineers managing aging control panels, retrofit projects, and spare parts lifecycle programs. With a rated input voltage of 3-phase 200–240 V AC and a compact footprint compatible with standard DIN rail and panel mounting configurations, the 6SE6420-2UD21-5AA1 is engineered to minimize installation rework during system changeover.

Before initiating a replacement, engineers should verify the existing terminal block layout against the MM420 standard wiring diagram. The 6SE6420-2UD21-5AA1 retains the same control terminal assignments as earlier MICROMASTER 420 variants, including digital inputs DIN1–DIN3, analog input AIN1, and relay output DOUT1, which significantly reduces rewiring time during panel upgrades. Power terminals L1, L2, L3 and U, V, W maintain the same physical positions, allowing direct conductor reuse in most retrofit scenarios where cable lengths are sufficient.

For sites running PROFIBUS DP communication networks, the optional CB15 PROFIBUS module remains compatible with this drive frame size, preserving existing network topology and GSD file configurations. Engineers migrating from older MM420 units with USS protocol over RS485 should confirm that the parameter set — particularly P0700 (command source) and P1000 (frequency setpoint source) — is backed up using the STARTER commissioning tool or a BOP-2 operator panel before decommissioning the legacy unit. Parameter cloning via the BOP-2 panel is supported and can reduce re-commissioning time from hours to minutes on repeat installations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6SE6420-2UD21-5AA1 into an existing control cabinet requires a structured pre-installation review. Begin by auditing the available panel space: the MM420 Frame A drive requires a minimum installation depth of 149 mm and adequate top and bottom clearance for thermal management. In densely populated control cabinets, this may require repositioning adjacent components such as 24 V DC power supply modules or terminal marshalling blocks before the new drive can be seated.

For systems where the legacy drive was connected to a Siemens S7-300 or S7-400 PLC via PROFIBUS DP, the CB15 communication board must be pre-fitted and addressed before the drive is powered on. The PROFIBUS node address should match the address previously assigned to the decommissioned unit to avoid GSD configuration changes in the PLC hardware configuration. If the control system has been migrated to a newer S7-1500 platform with PROFINET IO, a protocol gateway or a drive replacement with native PROFINET support — such as units from the SINAMICS G120 series — may be a more appropriate long-term upgrade path, though the 6SE6420-2UD21-5AA1 remains a cost-effective interim solution for sites not yet ready for full platform migration.

In multi-drive installations, the 6SE6420-2UD21-5AA1 can share a common DC bus with other MM420 units of compatible frame sizes, reducing overall energy consumption through regenerative braking energy exchange. Engineers should verify that the combined load does not exceed the input fuse rating of the distribution board. Where signal isolation is required between the PLC analog output and the drive’s AIN1 input — particularly in environments with high electromagnetic interference from welding equipment or large motor starters — a DIN rail-mounted signal isolator module should be inserted in the 0–10 V or 4–20 mA signal path to prevent reference signal corruption.

The BOP-2 basic operator panel is strongly recommended during initial commissioning to allow on-site parameter verification without a laptop. For sites managing multiple MM420 drives across a production line, a single BOP-2 can be used sequentially across all units, and parameter sets can be uploaded and downloaded to speed up batch commissioning. Programming cables compatible with the MM420 RS232 port are also available for sites preferring PC-based commissioning via the STARTER tool.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement requires preparation that begins well before the maintenance window. The most effective approach is to pre-configure the replacement 6SE6420-2UD21-5AA1 off-line using a BOP-2 panel loaded with the parameter set from the outgoing unit. This allows the new drive to arrive at the panel pre-programmed, reducing the live swap to a mechanical and electrical task rather than a commissioning exercise.

Before isolating the legacy drive, document the current motor nameplate data, acceleration and deceleration ramp times (P1120, P1121), and any active fault history from the drive’s diagnostic buffer. Photograph the existing terminal wiring before disconnection. During the swap, retain the original cable ferrules and terminal labels where possible to preserve traceability. After mechanical installation, perform a continuity check on all control and power terminals before energizing.

On first power-up, run the drive in no-load condition to verify parameter integrity before reconnecting the motor. Confirm that the motor identification routine (P1910) is executed if the motor data has changed or if the drive is being used with a different motor than the original installation. For critical processes where even a brief interruption is unacceptable, a hot-standby spare unit pre-configured with the same parameter set should be held in the local stores. All units supplied by KNMKS are pre-shipment tested under load conditions and shipped with a support terms confirmed by quotation, supporting both planned maintenance schedules and emergency replacement scenarios.

Retrofit Support FAQ

Q1: Is the 6SE6420-2UD21-5AA1 a direct drop-in replacement for all MM420 1.5 kW variants?
A: The 6SE6420-2UD21-5AA1 is the three-phase 200–240 V input variant of the MM420 1.5 kW frame. It is a direct replacement for units with the same input voltage specification. If the existing installation uses a single-phase 200–240 V input drive (6SE6420-2UC21-5AA1), the input wiring configuration differs and must be verified before substitution. Always confirm the input voltage code in the SKU (2UD = 3-phase 200–240 V; 2UC = 1-phase 200–240 V) before ordering.

Q2: Can I reuse the existing parameter set from the old drive without re-commissioning?
A: Yes, provided the parameter set was backed up using a BOP-2 panel or the STARTER commissioning tool. The MM420 parameter structure is consistent across production revisions of the same frame size and voltage class. Upload the saved parameter file to the replacement unit, then verify motor nameplate data (P0304–P0311) and run a short no-load test before returning the drive to service. Re-running the motor identification routine (P1910) is recommended if motor data is uncertain.

Q3: What pre-shipment testing is performed, and what does the support terms confirmed by quotation cover?
A: Every 6SE6420-2UD21-5AA1 unit dispatched by KNMKS undergoes functional power-on testing and output voltage verification across all three phases before packaging. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated specification. Support requests are supported directly by KNMKS with replacement or repair turnaround.

Q4: How quickly can a replacement unit be sourced for emergency breakdown situations?
A: KNMKS maintains stock inventory of the 6SE6420-2UD21-5AA1 to support both planned maintenance and emergency breakdown requirements. Lead times and current stock availability can be confirmed by contacting the sales team directly. For sites with critical uptime requirements, KNMKS recommends holding at least one pre-configured spare unit on-site, particularly for drives controlling essential process equipment such as pumps, compressors, or conveyor systems.
