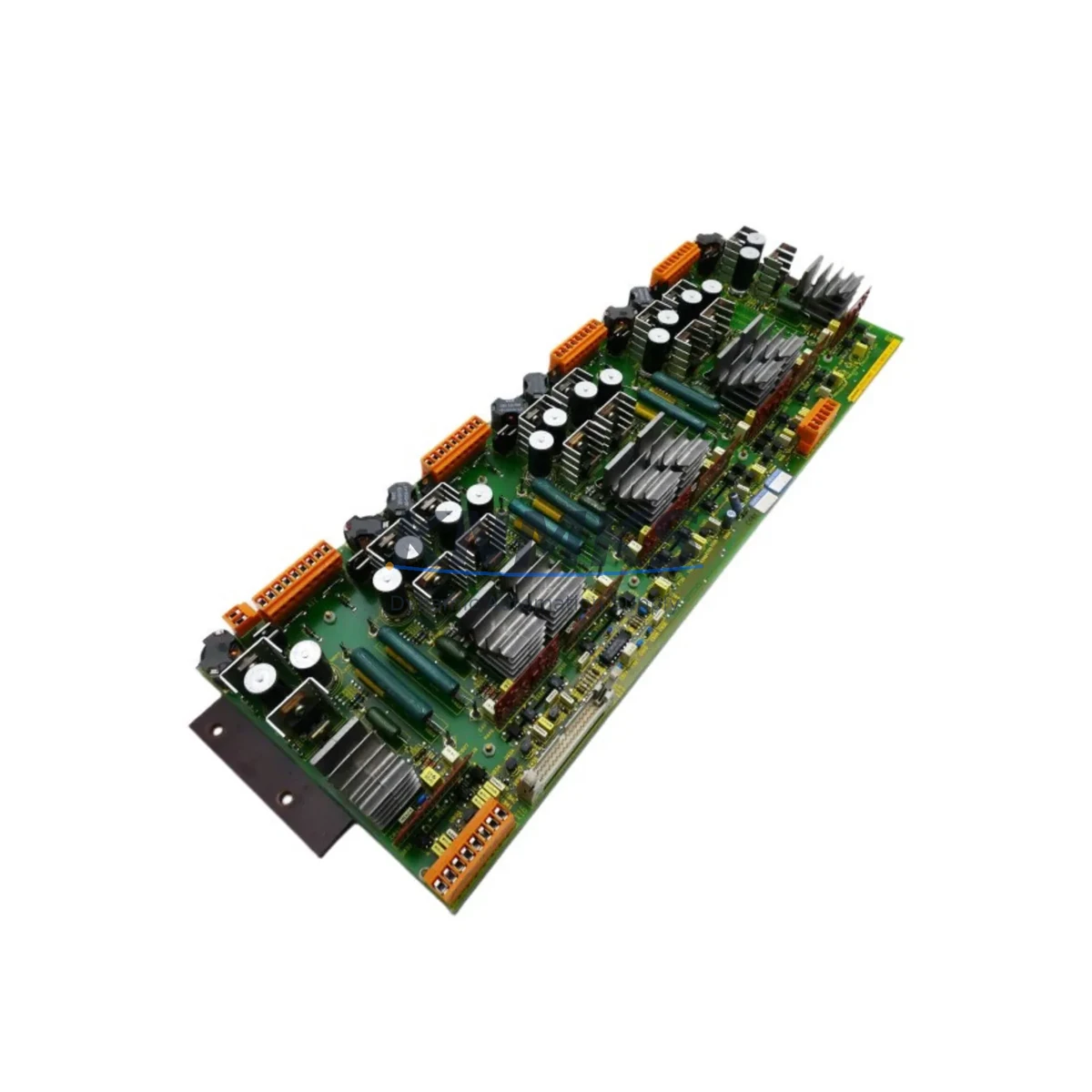

Siemens 6SC6512-0AA02 Axis Control for SIMODRIVE 650

Overview

Siemens 6SC6512-0AA02 Axis Control for SIMODRIVE 650: Legacy System Migration & Compatible Upgrade

The Siemens 6SC6512-0AA02 is a migration-ready axis control module designed for the SIMODRIVE 650 drive system — one of Siemens’ most widely deployed servo drive platforms in CNC machining centers, transfer lines, and multi-axis motion control cabinets. As original SIMODRIVE 650 hardware reaches end-of-life and spare parts become increasingly scarce, the 6SC6512-0AA02 remains a critical component for engineers tasked with extending the operational life of legacy automation systems or executing a controlled retrofit to modern drive architectures.

This module serves as a direct axis control interface within the SIMODRIVE 650 rack, managing position loop closure, speed reference signals, and encoder feedback for individual servo axes. When planning a replacement or upgrade, engineers must verify the existing backplane slot assignment, confirm the axis address configured via DIP switches or parameter P100, and ensure the encoder interface type — whether TTL incremental or resolver-based — matches the replacement unit. Mismatch in encoder protocol between the 6SC6512-0AA02 and the connected motor feedback system is one of the most common commissioning errors during retrofit projects.

Power supply compatibility is equally critical. The SIMODRIVE 650 system relies on a dedicated DC bus supplied by the infeed/regenerative module — typically a 6SC6100-series unit — and the axis control module draws its logic supply from the backplane. Before swapping the 6SC6512-0AA02, technicians should measure the DC link voltage under load and confirm the infeed module’s current capacity covers all active axes simultaneously. Undersized infeed capacity after adding axes during an upgrade is a frequent cause of nuisance trips and E-stop faults during initial commissioning.

For sites migrating from SIMODRIVE 650 to SINAMICS S120, the 6SC6512-0AA02 is often retained as a bridging component during phased migration. In this scenario, the existing SINUMERIK 840C or 840D controller continues to command the legacy axis via the 6SC6512-0AA02 while new axes are brought online on the SINAMICS S120 platform using CU320-2 control units and Motor Modules. This parallel operation requires careful attention to the PROFIBUS DP node addresses and drive object assignments to avoid address conflicts on the shared fieldbus segment. The 6SC6512-0AA02 communicates via the internal SIMODRIVE 650 drive bus, while SINAMICS S120 axes use DRIVE-CLiQ — these two communication architectures must remain logically isolated during the transition period.

Terminal wiring adaptation is another key consideration. The 6SC6512-0AA02 uses the standard SIMODRIVE 650 terminal strip layout, and any replacement must preserve the existing wiring for enable signals, speed setpoint inputs (±10 V analog or digital reference), and fault relay outputs. If the retrofit involves replacing the axis control with a SINAMICS S120 Motor Module, a terminal adapter or rewiring of the control cabinet is required, and the HMI screens on the SINUMERIK operator panel must be updated to reflect the new drive object structure and alarm mapping.

Firmware version compatibility should be confirmed before installation. The 6SC6512-0AA02 operates under the SIMODRIVE 650 firmware loaded on the central control board (CCB), and mismatched firmware versions between the CCB and axis modules can result in initialization errors or reduced functionality. Always record the existing firmware version from the CCB parameter list before replacing any axis module, and restore the parameter set after installation using SIMODRIVE 650 parameterization software or a PCMCIA parameter card if available.

Installation space within the SIMODRIVE 650 rack is fixed by the module slot width. The 6SC6512-0AA02 occupies a standard single-axis slot and must be inserted into the correct position as defined by the system configuration. Rack expansion using additional SIMODRIVE 650 expansion racks connected via the drive bus extension cable is possible if additional axis slots are required during an I/O or axis count upgrade.

All units supplied by KNMKS undergo pre-shipment functional testing, including power-on verification, communication bus check, and parameter initialization confirmation. Each 6SC6512-0AA02 is covered by a support terms confirmed by quotation from the date of shipment, with in-stock inventory available for immediate dispatch to minimize production downtime.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6SC6512-0AA02 within an existing SIMODRIVE 650 system requires a structured approach that accounts for all interdependent components in the control cabinet. The axis control module does not operate in isolation — it is part of a tightly integrated drive system that includes the SIMODRIVE 650 infeed/regenerative module (6SC6100 series), the central control board (CCB), and the power section modules that supply the motor phases.

When upgrading a multi-axis machine, engineers frequently need to address the SIMODRIVE 650 expansion rack and drive bus extension cable to accommodate additional axes. If the retrofit involves adding I/O capacity, the SIMATIC S7-300 distributed I/O modules or ET 200M remote I/O stations connected via PROFIBUS DP are commonly integrated alongside the SIMODRIVE 650 system to handle auxiliary signals such as lubrication interlocks, tool change confirmations, and safety relay monitoring.

For machines where the original SINUMERIK 840C operator panel is being retained, the HMI machine data must be reviewed to ensure axis assignments, drive object numbers, and alarm texts remain consistent after the module replacement. If the project scope includes upgrading the operator panel to a SINUMERIK 840D sl with PCU 50.3, the NC machine data migration must be planned carefully to preserve existing part programs, tool offsets, and zero point shifts.

Signal isolation between the 6SC6512-0AA02 analog speed reference output and the drive’s internal reference input should be verified, particularly on older installations where signal isolators or galvanic separation modules may have been added to address ground loop issues. Replacing the axis control module without checking the signal chain integrity can reintroduce noise problems that were previously resolved through field modifications.

Programming cable access to the CCB for parameter backup and restoration is essential before any module swap. Ensure the RS-232 or PCMCIA interface is functional and that a complete parameter backup has been taken and verified before removing the 6SC6512-0AA02 from the rack.

Downtime Control During System Migration

Minimizing production downtime during a SIMODRIVE 650 axis control replacement requires advance preparation and a disciplined commissioning sequence. Before the maintenance window begins, the complete drive parameter set should be backed up from the CCB, and the existing axis configuration — including P100 axis address, encoder type, current controller gains, and speed loop parameters — should be documented in full.

During the swap, the DC bus should be fully discharged before the 6SC6512-0AA02 is removed from the rack. Verify discharge using a calibrated voltmeter at the DC bus terminals of the infeed module before touching any internal components. Failure to confirm discharge is a safety risk and a common cause of module damage during field replacement.

After installing the replacement module, restore the parameter set before enabling the drive. Run the axis in jog mode at reduced speed to verify encoder feedback direction, speed loop stability, and position reference tracking before returning the machine to automatic cycle. If the machine uses a SINUMERIK 840D with servo optimization functions, run the automatic servo gain optimization routine to confirm the axis dynamics match the original tuning.

For critical production lines where even a brief unplanned stop is unacceptable, KNMKS recommends holding a pre-tested, parameter-loaded spare 6SC6512-0AA02 on-site. This eliminates the commissioning time associated with parameter restoration and allows the axis to be returned to service within the mechanical replacement time only. Combined with the support terms confirmed by quotation coverage on all supplied units, this approach provides the lowest-risk path to maintaining control system continuity on legacy SIMODRIVE 650 installations.

Retrofit Support FAQ

Q: Is the 6SC6512-0AA02 a direct replacement for other SIMODRIVE 650 axis modules?
A: The 6SC6512-0AA02 is a specific axis control variant within the SIMODRIVE 650 family. Compatibility with other axis module part numbers depends on the encoder interface type, axis address configuration, and firmware version on the CCB. Contact KNMKS with your existing module part number and CCB firmware version for a confirmed replacement recommendation before ordering.

Q: What commissioning steps are required after installing a replacement 6SC6512-0AA02?
A: After physical installation, restore the parameter backup to the CCB, verify the axis address (P100) matches the original configuration, confirm encoder feedback polarity in jog mode, and check speed loop stability at low speed before enabling full automatic operation. Document all parameter changes made during commissioning for future reference.

Q: How do I confirm terminal wiring compatibility before installation?
A: The 6SC6512-0AA02 uses the standard SIMODRIVE 650 axis module terminal layout. Compare the terminal assignment diagram in the SIMODRIVE 650 configuration manual (Siemens document 6SC6500-0AA00) against your existing wiring documentation. Pay particular attention to the enable input, speed reference input, and encoder connector pinout. KNMKS can provide terminal assignment reference sheets on request.

Q: What does the support terms confirmed by quotation cover, and what is the stock availability?
A: All 6SC6512-0AA02 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Units are held availability confirmed by RFQ and available for immediate shipment. Pre-shipment testing including power-on verification and bus communication check is performed on every unit before dispatch. Contact [email protected] or +86 18359268345 for current stock confirmation and lead time.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6SC6512-0AA02
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6SC6512-0AA02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
