Siemens 6ES7131-6BF01-0BA0 Fail-Safe DI Module ET 200SP

Overview

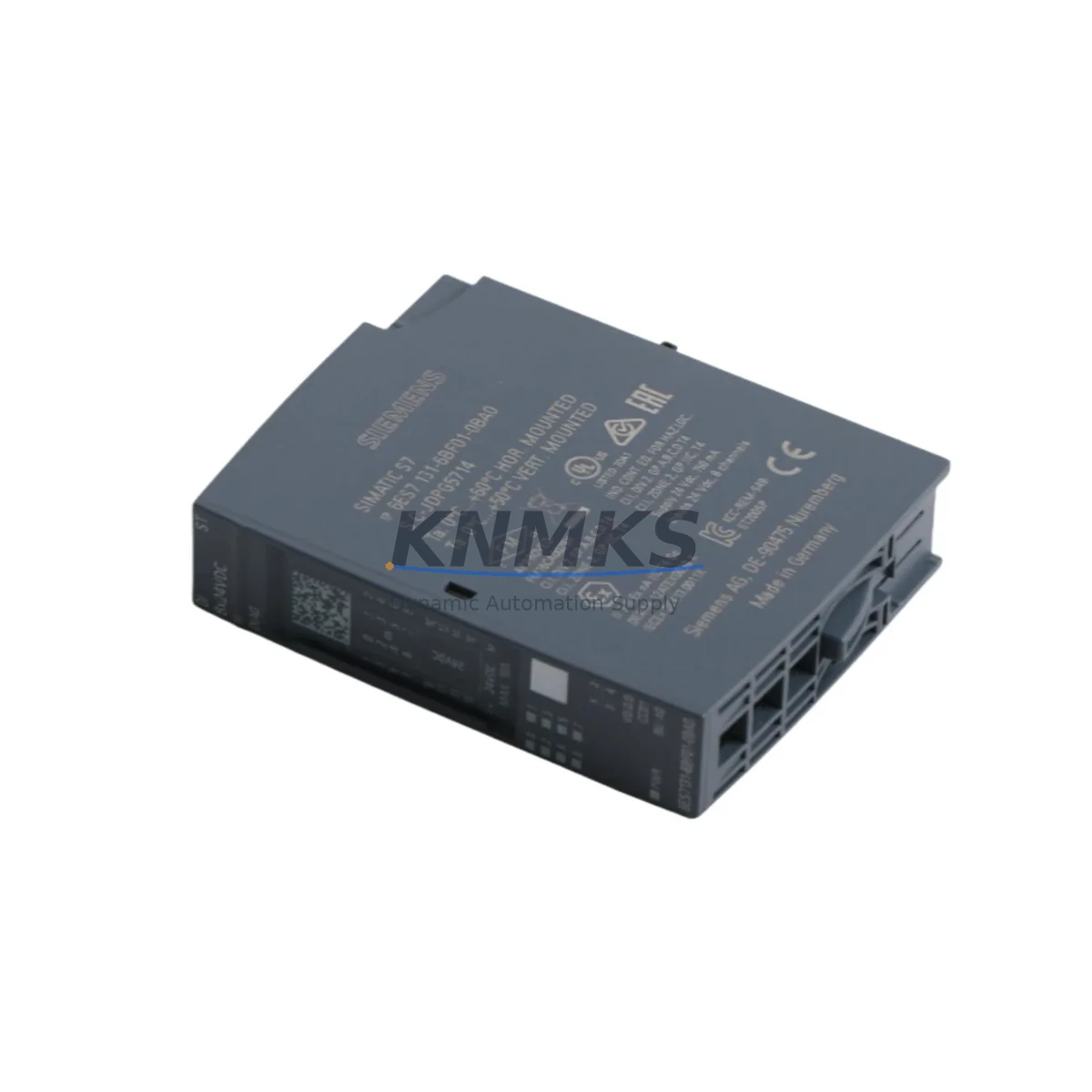

Siemens 6ES7131-6BF01-0BA0 Fail-Safe DI Module ET 200SP: Fault-Tolerant Digital Input for Critical Industrial Control Reliability

The Siemens 6ES7131-6BF01-0BA0 is an 8-channel digital input module designed for the ET 200SP distributed I/O system, fully compatible with SIMATIC S7-1500 and S7-1500F safety controllers. Built to IEC 61131-2 standards and rated for continuous operation in demanding industrial environments, this module delivers the signal integrity, surge immunity, and diagnostic transparency that safety-critical control loops demand. Whether deployed in a petrochemical interlock panel, a power generation switchgear cabinet, or a continuous mining conveyor system, the 6ES7131-6BF01-0BA0 provides the fail-safe digital input backbone that keeps processes running safely and predictably.

In high-electromagnetic-interference environments — such as those found near variable frequency drives, large motor starters, or high-voltage bus bars — signal drift and false triggering represent serious operational hazards. The 6ES7131-6BF01-0BA0 incorporates hardware-level input filtering and galvanic isolation to suppress common-mode noise and transient spikes, ensuring that only valid process signals reach the CPU. This directly reduces the risk of spurious trips, unplanned shutdowns, and dangerous misoperations in safety instrumented systems (SIS).

The module’s compact BaseUnit mounting system integrates seamlessly into the ET 200SP backplane, enabling hot-swappable replacement without interrupting adjacent channel operation — a critical advantage in continuous production facilities where planned downtime windows are measured in minutes, not hours. Paired with the SIMATIC S7-1500F CPU and TIA Portal engineering software, the 6ES7131-6BF01-0BA0 supports PROFINET-based diagnostics, delivering real-time channel-level fault reporting directly to the operator HMI without requiring additional field wiring.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a collection of individual components. The 6ES7131-6BF01-0BA0 performs at its highest reliability when integrated within a coherent protection architecture. In a typical ET 200SP control cabinet serving a critical interlock loop, the module is mounted on a Siemens BU Type A0 BaseUnit, which provides the 24 V DC supply rail and signal routing without additional terminal blocks, reducing wiring complexity and potential fault points.

Power quality is foundational to digital input accuracy. Upstream of the 6ES7131-6BF01-0BA0, a Siemens SITOP PSU8600 power supply module provides regulated, filtered 24 V DC with built-in diagnostics and load-segment monitoring — preventing input voltage sag from propagating into the I/O layer during motor start transients or load switching events. For installations in environments with significant surge exposure, such as outdoor substations or port crane control rooms, a Siemens SIMATIC surge protection device on the 24 V DC bus provides an additional layer of transient suppression.

On the communication side, the ET 200SP station connects to the S7-1500F CPU via PROFINET with media redundancy protocol (MRP), ensuring that a single cable fault does not interrupt safety-critical data exchange. The Siemens SCALANCE X-200 managed switch supports MRP ring topology and provides port-level diagnostics, making it straightforward to isolate communication faults without field intervention. For safety loop integrity, the 6ES7131-6BF01-0BA0 works in conjunction with Siemens F-DI modules and the S7-1500F safety CPU to form a complete IEC 62061 / ISO 13849-compliant safety instrumented function, covering emergency stop circuits, light curtain inputs, and pressure interlock signals.

In high-dust or high-humidity enclosures — common in cement plants, water treatment facilities, and food processing lines — cabinet thermal management is equally critical. The Siemens SIMATIC ET 200SP system’s low power dissipation per module (typically under 1 W for the 6ES7131-6BF01-0BA0) contributes to reduced cabinet heat load, supporting longer MTBF for all installed components. When combined with a Siemens LOGO! or SIMATIC HMI panel for local status visualization, operators gain immediate visibility into input channel states without requiring laptop access to TIA Portal.

Critical Industrial Safety Applications

Petrochemical & Refinery: In hydrocarbon processing plants, the 6ES7131-6BF01-0BA0 serves as the digital input interface for emergency shutdown (ESD) pushbuttons, pressure switch contacts, and flame detector relay outputs. Its galvanic isolation and surge immunity are essential in environments where ground potential differences between field instruments and control room equipment can introduce common-mode voltages that corrupt input readings. The module’s channel-level diagnostics allow maintenance teams to identify a failing field device before it causes a spurious trip or, worse, a missed shutdown signal.

Electric Power Generation & Transmission: In generator protection panels and substation automation systems, the 6ES7131-6BF01-0BA0 captures status signals from circuit breaker auxiliary contacts, relay trip outputs, and transformer Buchholz relay contacts. The module’s IEC 61000-4-5 surge immunity rating — critical in high-voltage switchgear environments — ensures that switching transients on adjacent busbars do not corrupt protection system inputs. Paired with an S7-1500F CPU running IEC 61511-compliant safety logic, this module forms part of a complete protection relay interface that meets utility-grade reliability requirements.

Mining & Mineral Processing: Conveyor belt systems, crusher interlocks, and hoisting machine safety circuits in underground and open-pit mining operations demand input modules that maintain signal integrity despite severe vibration, dust ingress, and wide temperature swings. The 6ES7131-6BF01-0BA0’s IEC 60068-2-6 vibration rating and IP20 protection (within a sealed enclosure) make it suitable for these environments. Its hot-swap capability is particularly valuable in mining operations where replacing a faulty I/O module during a scheduled maintenance window — rather than waiting for a full system shutdown — directly reduces lost production time.

Water & Wastewater Treatment: Pump station control panels, chemical dosing interlocks, and overflow alarm circuits in water treatment facilities rely on consistent digital input performance across wide ambient temperature ranges and in the presence of chemical vapors. The 6ES7131-6BF01-0BA0’s operating temperature range and robust EMC immunity make it a dependable choice for these applications, where a missed high-level alarm input could result in environmental non-compliance or equipment damage.

Port & Maritime Logistics: Ship-to-shore crane control systems and automated container terminal equipment operate in salt-air environments with significant vibration and shock loading. The 6ES7131-6BF01-0BA0’s shock resistance per IEC 60068-2-27 and its compatibility with the ET 200SP’s sealed enclosure options support reliable operation in these demanding conditions, where control system downtime directly translates to berth occupancy costs and cargo handling delays.

Safety and Quality FAQ

Q1: What support terms coverage does KNMKS provide for the 6ES7131-6BF01-0BA0?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Each module undergoes pre-shipment functional testing — including input channel verification, power consumption measurement, and communication interface check — before dispatch. Support requests are handled directly by KNMKS with replacement or repair turnaround prioritized for customers with active production commitments.

Q2: Is the 6ES7131-6BF01-0BA0 compatible with existing S7-300 or S7-400 installations?
The 6ES7131-6BF01-0BA0 is a native ET 200SP module designed for use with SIMATIC S7-1500, S7-1500F, and ET 200SP CPU controllers via PROFINET. It is not directly compatible with S7-300 or S7-400 DP-based systems without a PROFINET gateway or system migration. KNMKS can advise on migration pathways and compatible gateway modules for customers transitioning from legacy platforms.

Q3: Can KNMKS support long-term spare parts supply for this module?
Yes. KNMKS maintains stock of the 6ES7131-6BF01-0BA0 and related ET 200SP components to support customers with long-term maintenance agreements, typically covering 12–36 month supply horizons. For critical infrastructure operators requiring guaranteed availability, KNMKS offers consignment stock arrangements and priority allocation agreements. Contact our team to discuss your specific supply continuity requirements.

Q4: What should be verified before replacing a 6ES7131-6BF01-0BA0 in a live safety system?
Before replacing the module in a safety-instrumented system, confirm that the associated safety function has been placed in a safe state or bypassed per your site’s management of change (MOC) procedure. Verify that the replacement unit carries the same firmware version as the installed module, or that your TIA Portal project supports the firmware version of the replacement. After installation, perform a channel-by-channel input verification test and confirm that the S7-1500F CPU reports no safety-relevant faults before returning the safety function to service. KNMKS provides pre-tested replacement units to minimize the time required for this verification process.
