Siemens 6ES5466-3LA11 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES5466-3LA11 Maintenance-Proven Spare Part for Factory Uptime

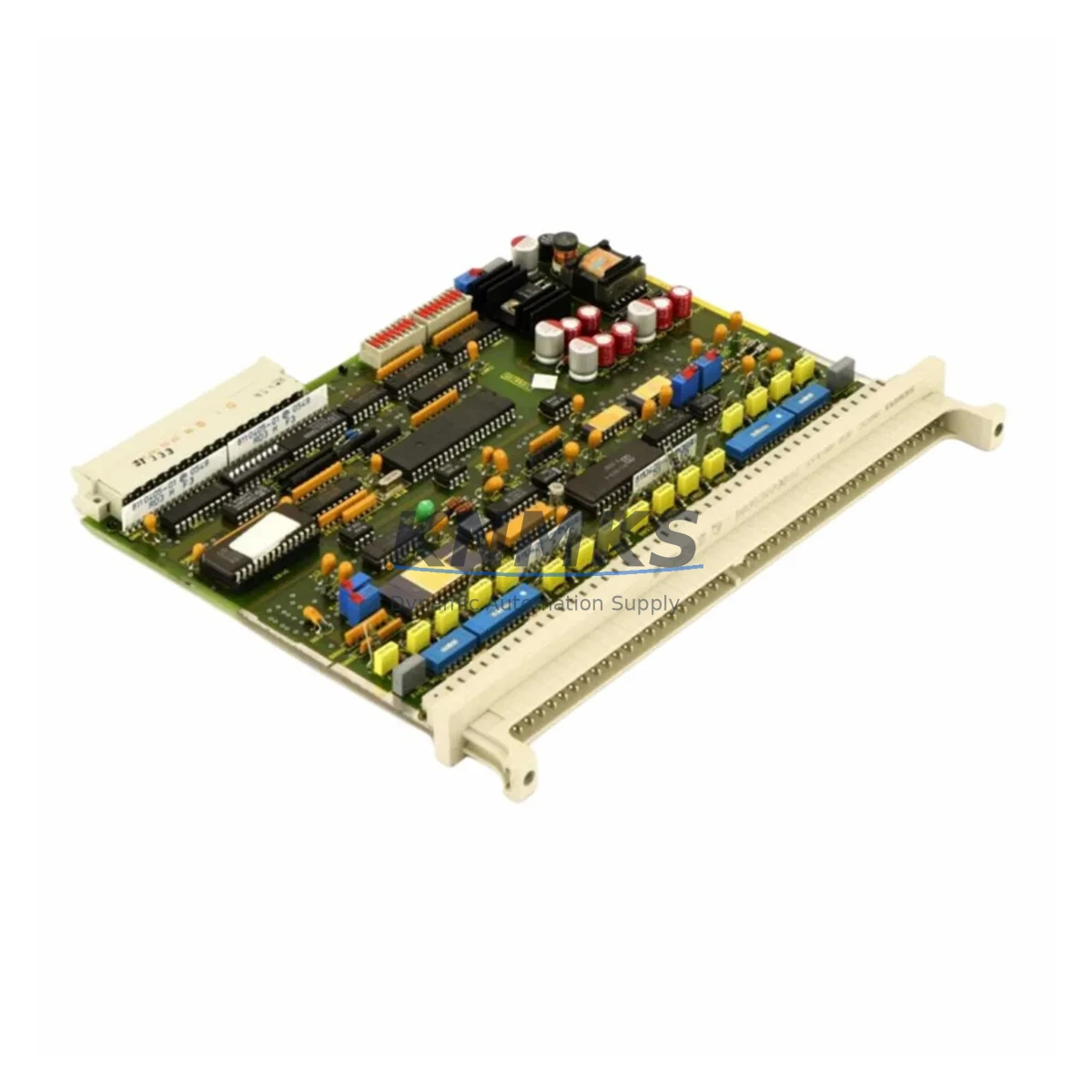

The Siemens 6ES5466-3LA11 is an 8-channel analog input module designed for the SIMATIC S5 programmable controller family, including the S5-115U, S5-135U, and S5-155U platforms. As legacy SIMATIC S5 systems continue to operate in process industries, automotive plants, chemical facilities, and utility infrastructure worldwide, maintaining a reliable inventory of the 6ES5466-3LA11 is a critical element of any long-term maintenance strategy. This module handles analog signal acquisition from field instruments — thermocouples, RTDs, 4–20 mA transmitters, and voltage inputs — feeding real-time process data to the CPU for closed-loop control and alarm management.

Sourced as an original Siemens spare part, each 6ES5466-3LA11 unit is pre-shipment tested to verify channel integrity, input range accuracy, and backplane communication before dispatch. With a support terms confirmed by quotation and confirmed long-term supply availability, this module supports both emergency breakdown replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES5466-3LA11 analog input module fails or is flagged during a scheduled inspection, the replacement workflow should extend beyond the module itself. Maintenance engineers working on SIMATIC S5 systems know that analog signal faults are rarely isolated — they often indicate stress on adjacent components in the same electrical loop or control cabinet.

Before returning the system to service after replacing the 6ES5466-3LA11, inspect the 6ES5095-8MA01 S5 power supply module for output voltage stability, as analog input modules are sensitive to supply ripple. Verify the 6ES5700-8MA11 CPU module for any accumulated diagnostic flags that may have been masked by the analog fault. Check the 6ES5316-8MA12 digital output module in the same rack for signs of cross-talk or ground loop interference, which can corrupt analog readings.

At the field wiring level, inspect the 6ES5727-2BD20 analog output module if the process loop includes a control valve or actuator driven from the same S5 rack — a degraded AO module can cause erratic setpoint behavior that mimics an AI fault. Review the 6ES5373-0AA21 EPROM memory module to confirm the analog scaling parameters and channel assignments remain intact after any CPU restart. For systems using serial communication to SCADA or HMI, verify the 6ES5523-3UA11 CP 523 communication processor is reporting correct analog values upstream.

Terminal blocks and field wiring connectors at the 6ES5466-3LA11 front connector should be inspected for corrosion, loose crimps, and insulation degradation — particularly in high-humidity or chemically aggressive environments. Signal isolation barriers and surge protection devices on 4–20 mA loops should be tested as part of the same maintenance event to prevent repeat failures.

For annual maintenance planning, consider stocking a minimum of one 6ES5466-3LA11 per S5 rack that contains analog I/O, alongside a matched set of front connectors and terminal labels. This reduces mean time to repair (MTTR) during unplanned outages and supports rapid swap-out during planned shutdowns.

Site Replacement Workflow

Step 1 — Isolation: Place the S5 CPU in STOP mode via the mode selector switch. De-energize the rack power supply and lock out the cabinet per site LOTO procedures. Document the existing channel assignments and wiring labels on the 6ES5466-3LA11 front connector before removal.

Step 2 — Module Removal: Disconnect the front connector (retain wiring harness intact). Release the module locking lever and slide the 6ES5466-3LA11 out of the rack slot. Note the slot address — this must be preserved for the replacement unit.

Step 3 — Replacement Installation: Insert the new 6ES5466-3LA11 into the same rack slot. Reconnect the front connector. Verify the module address switch settings match the original configuration (refer to the S5 system manual for slot-address mapping on EU 183/185/187/188 racks).

Step 4 — Power-Up and Verification: Restore rack power. Set the CPU to RUN mode. Monitor the S5 diagnostic buffer (via STEP 5 programming software or a compatible PG/PC interface) for any analog channel errors. Verify live process values on all 8 channels against known field instrument readings before releasing the system to production.

Step 5 — Documentation: Record the replacement in the maintenance log with the new module serial number, installation date, and support terms expiry. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

This workflow is compatible with direct replacement of earlier 6ES5466-3LA11 revisions and supports system continuity without requiring CPU reprogramming or rack reconfiguration in standard installations.
