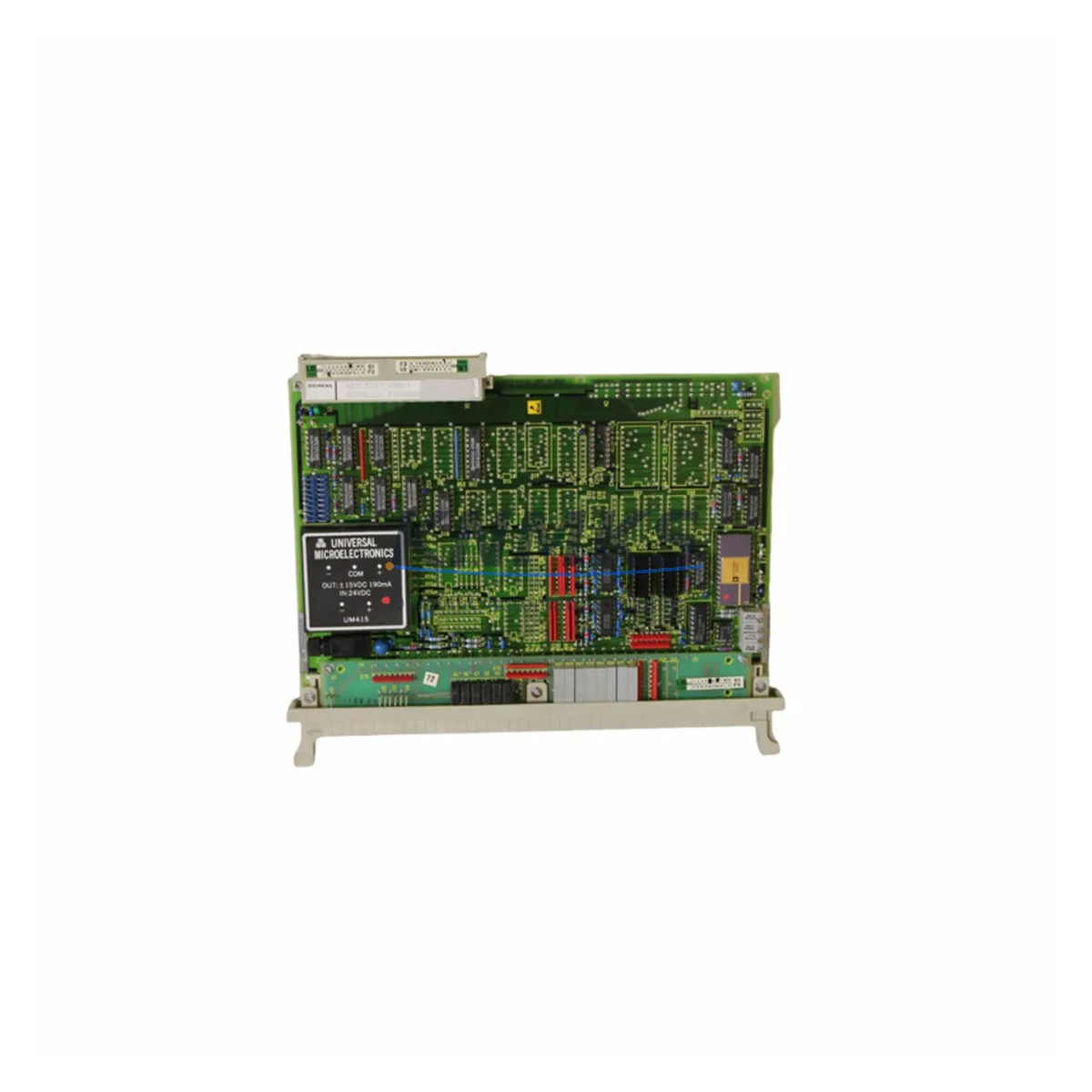

Siemens 6ES5243-1AB11 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES5243-1AB11 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES5243-1AB11 is an 8-channel analog input module designed for the SIMATIC S5 programmable controller family, including the S5-115U, S5-135U, and S5-155U central processing units. As legacy SIMATIC S5 systems continue to operate across process industries, utilities, and discrete manufacturing, maintaining a verified stock of the 6ES5243-1AB11 is a critical element of any proactive maintenance strategy. This module handles analog signal acquisition from field sensors — thermocouples, RTDs, 4–20 mA transmitters, and voltage inputs — feeding real-time process data directly into the S5 CPU for closed-loop control and alarm management.

Each 6ES5243-1AB11 unit supplied by KNMKS is sourced from verified industrial channels, subjected to pre-shipment functional testing, and dispatched with a support terms confirmed by quotation. Our multi-region stock ensures rapid availability for both emergency breakdowns and scheduled annual overhauls, minimizing unplanned downtime and protecting production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES5243-1AB11 analog input module is flagged during a routine control cabinet inspection or fails during a production shift, the replacement scope should extend beyond the module itself. Maintenance engineers and procurement teams should treat this event as a trigger for a broader system health review within the same S5 subrack and electrical circuit.

Begin by verifying the 6ES5308-7LA11 power supply module that feeds the subrack. A degraded or intermittent power supply is a common root cause of analog input drift and module faults in aging S5 installations. Simultaneously, inspect the 6ES5700-8MA11 subrack backplane for oxidized bus connectors or cracked PCB traces — backplane integrity is essential for reliable analog signal transfer across all installed modules.

Check the 6ES5316-8MA12 digital output module and any adjacent 6ES5482-8MA13 digital input modules sharing the same subrack, as cross-talk or ground loop issues can manifest as analog measurement errors. Review the field wiring terminations at the 6ES5490-8MB11 front connector — corroded or loose terminals are a frequent cause of signal instability in 4–20 mA loops and thermocouple circuits.

For installations using serial communication to SCADA or HMI systems, inspect the 6ES5734-1BD20 CP 523 communication processor for firmware integrity and cable continuity. Where signal isolation is required between field instruments and the S5 CPU, verify that any installed signal isolators or barriers remain within calibration. Finally, confirm that all subrack fuses and circuit protection devices are rated correctly and show no signs of thermal stress — a blown fuse upstream of the analog input circuit will produce the same symptom as a failed 6ES5243-1AB11 module and is often overlooked during initial fault diagnosis.

Maintaining a minimum stock of one spare 6ES5243-1AB11 per production line, alongside a matched set of front connectors and subrack fuses, is the recommended inventory posture for facilities operating SIMATIC S5 systems beyond their original design life.

Site Replacement Workflow

Replacing the 6ES5243-1AB11 on a live S5 system requires a structured approach to minimize downtime and avoid configuration errors. Before removing the module, document the current channel assignments, scaling parameters, and alarm setpoints stored in the S5 CPU program — these are not retained in the module itself and must be verified post-replacement.

Power down the subrack segment or isolate the affected slot using the appropriate S5 maintenance procedure. Disconnect the 6ES5490-8MB11 front connector with all field wiring attached — this preserves the wiring integrity and reduces reconnection errors. Slide out the faulty 6ES5243-1AB11 and insert the replacement unit, ensuring the module coding keys are correctly positioned to prevent mis-seating.

Reconnect the front connector, restore power, and perform a cold restart of the S5 CPU. Verify that all 8 analog input channels return expected process values within the configured engineering unit ranges. Compare live readings against the historian or DCS trend data to confirm signal accuracy before returning the loop to automatic control. Document the replacement in the site maintenance log, including the serial number of the removed module and the replacement unit, to support future support requests and lifecycle tracking.

For facilities planning a phased migration from SIMATIC S5 to SIMATIC S7 or TIA Portal-based systems, the 6ES5243-1AB11 can serve as a bridge component during Phase 1 of the migration, maintaining analog input functionality while the new S7 hardware is commissioned in parallel. This approach reduces migration risk and allows production to continue uninterrupted during the transition period.

Spare Parts Support FAQ

Q1: Is the 6ES5243-1AB11 still available as a new original spare part?
The SIMATIC S5 series has reached end-of-life status with Siemens, meaning new production has ceased. However, KNMKS maintains verified stock of original 6ES5243-1AB11 modules sourced from authorized industrial channels. Each unit undergoes pre-shipment functional testing and is supplied with a support terms confirmed by quotation, providing a reliable replacement option for facilities that have not yet completed their S5-to-S7 migration.

Q2: How do I confirm compatibility between the 6ES5243-1AB11 and my existing S5 subrack configuration?
Compatibility is determined by the subrack type (EU or ER series), the CPU variant (S5-115U, S5-135U, or S5-155U), and the slot addressing configured in the S5 program. Share your existing hardware configuration list (HW Config or STEP 5 project file) with our technical team at [email protected] and we will confirm compatibility before dispatch. We recommend verifying the front connector type (6ES5490-8MB11 or equivalent) to ensure field wiring can be transferred without modification.

Q3: What is included in the support terms confirmed by quotation and what does the pre-shipment test cover?
Every 6ES5243-1AB11 supplied by KNMKS is tested for power-on functionality, channel-by-channel analog input response across the supported signal ranges (thermocouple, RTD, 4–20 mA, and voltage), and backplane bus communication integrity. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Support requests are processed directly through KNMKS — contact [email protected] with the order reference and fault description.

Q4: Can KNMKS support long-term supply agreements for 6ES5243-1AB11 and related S5 spare parts?
Yes. KNMKS offers long-term supply agreements for facilities with ongoing SIMATIC S5 maintenance requirements. These agreements cover scheduled annual deliveries, priority stock reservation, and extended support terms options. Long-term agreements are particularly valuable for utilities, chemical plants, and infrastructure operators running S5 systems on 5–10 year decommissioning timelines. Contact our procurement team to discuss volume pricing and delivery scheduling.
