Siemens 6ES5101-8UA12 Maintenance-Proven Spare for Factory Uptime

Overview

Siemens 6ES5101-8UA12 Maintenance-Proven Spare for Factory Uptime

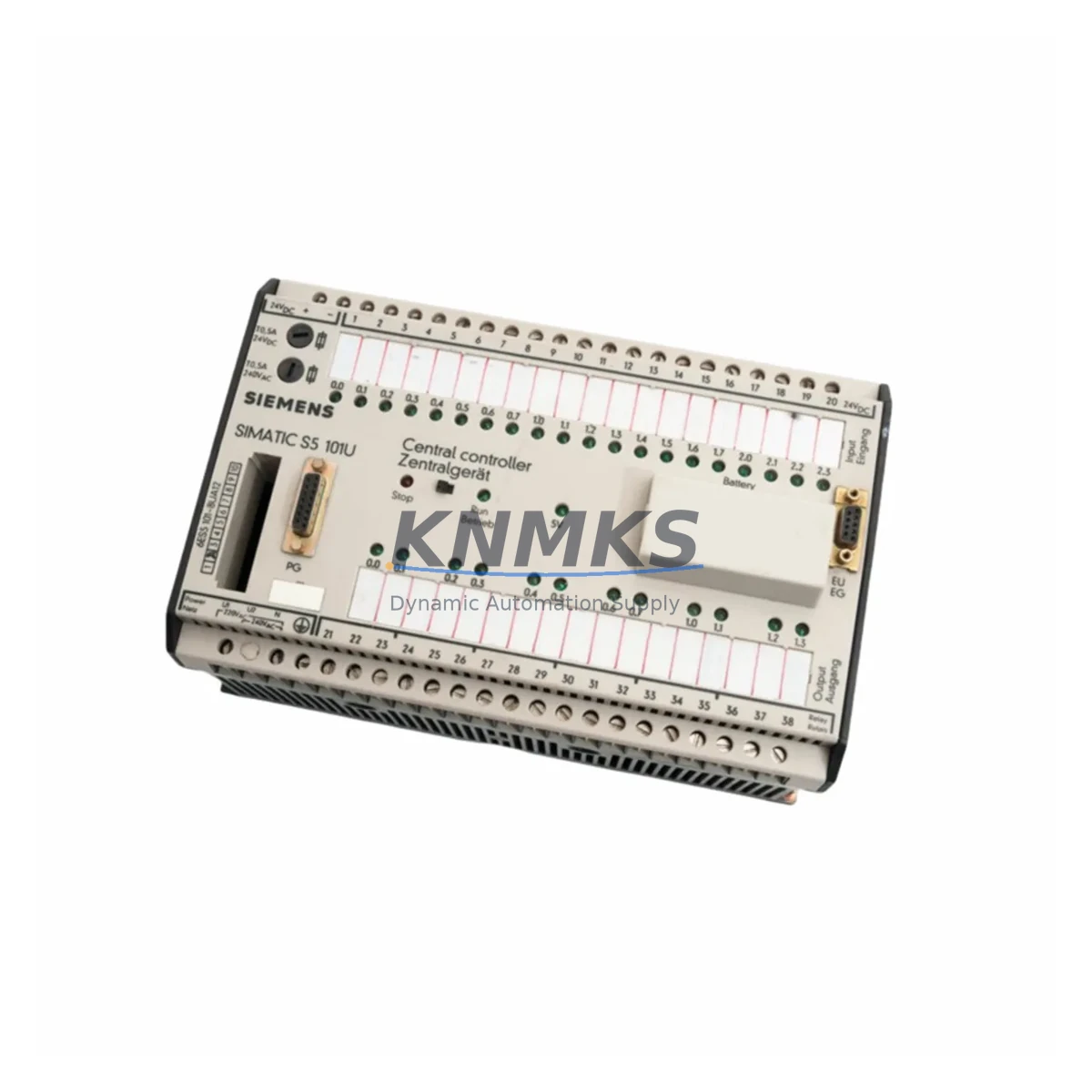

The Siemens 6ES5101-8UA12 is a compact CPU module for the SIMATIC S5-100U programmable controller family — one of Siemens’ most widely deployed legacy PLC platforms across discrete manufacturing, process control, material handling, and utilities infrastructure. As original production of this series has been discontinued, maintaining a verified spare of the 6ES5101-8UA12 is a critical element of any industrial maintenance strategy for facilities still operating S5-based control architectures.

This unit is supplied as an original Siemens component, sourced from authenticated distribution channels and subject to pre-shipment functional verification. Each module is dispatched with a support terms confirmed by quotation covering manufacturing defects and operational failure under normal industrial service conditions. Multi-region stock availability supports both emergency breakdown response and planned annual maintenance cycles, with typical lead times suitable for unscheduled outage recovery.

For maintenance engineers managing aging S5-100U systems, the 6ES5101-8UA12 represents the core processing element of the compact controller rack. Its replacement requires careful attention to program backup, I/O mapping verification, and communication parameter restoration — all of which are addressed in the site replacement workflow below.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 6ES5101-8UA12 CPU module — whether during a planned annual shutdown or in response to an unscheduled fault — maintenance and procurement engineers should treat the CPU as the anchor of a broader inspection scope. The S5-100U compact rack integrates tightly with its surrounding components, and a CPU failure or degraded performance event is frequently accompanied by stress on adjacent modules.

Begin with the 6ES5 951-7LD21 power supply module, which provides regulated 24 V DC to the CPU and I/O bus. Capacitor aging and ripple voltage drift in the power supply are common contributors to intermittent CPU resets and memory corruption — symptoms that are often misdiagnosed as CPU failure. Verify output voltage stability under load before committing to a CPU swap.

Inspect all 6ES5 482-8MA13 or 6ES5 482-8MA11 digital input modules connected to the rack. Worn terminal blocks, corroded field wiring connections, and failed input optocouplers can generate spurious signals that stress the CPU’s I/O scan cycle. Similarly, review any 6ES5 470-8MA12 analog output modules in the cabinet for calibration drift or channel failure, particularly in temperature-sensitive process environments.

For systems using serial communication to SCADA or HMI stations, inspect the 6ES5 734-1BD20 communications processor or equivalent CP module. TTY loop current integrity and RS-232 signal levels should be verified with a loop tester before and after CPU replacement to confirm that communication restoration is not masked by a failing CP module.

Where the S5-100U cabinet includes a Siemens OP7 or OP17 operator panel connected via the MPI or point-to-point interface, confirm panel firmware compatibility with the replacement CPU revision. HMI communication parameters are stored in the panel and may require re-entry if the CPU memory battery was discharged during the outage period.

Finally, audit the cabinet’s fuse and surge protection components — particularly the 24 V DC branch fuses protecting individual I/O modules and field device circuits. A shorted field device that caused the original CPU fault may have left upstream fuses in a degraded state. Replacing the CPU without restoring full protection coordination risks repeat failure within the first operational cycle.

Procurement engineers supporting multi-site S5-100U installations should consider holding a minimum of one 6ES5101-8UA12 unit per site as a cold standby, supplemented by a shared regional pool for less critical installations. Given the end-of-life status of the S5-100U platform, forward-buying verified original stock against a 24–36 month consumption forecast is a prudent risk mitigation strategy.

Site Replacement Workflow

Step 1 — Program Backup: Before powering down, connect a PG/PC running STEP 5 software via the 6ES5101-8UA12’s PG interface. Perform a full program upload and save the AWL source and system data blocks to a secure location. Confirm the backup file integrity before proceeding.

Step 2 — Power Down and Isolation: Switch the S5-100U power supply to OFF. Verify zero voltage at the CPU bus connector using a calibrated multimeter. Remove the battery cover and note the battery condition — replace the backup battery (type: 3.6 V lithium, e.g., Siemens 6ES5 980-0MA11) if it has not been replaced within the past 24 months.

Step 3 — Module Removal: Release the CPU module locking mechanism and slide the 6ES5101-8UA12 out of the rack slot. Label the slot position and document any DIP switch settings visible on the module face before removal.

Step 4 — Replacement Module Preparation: Inspect the replacement 6ES5101-8UA12 for physical damage. Confirm DIP switch settings match the removed unit (operating mode, memory configuration). Install a fresh backup battery before inserting the module.

Step 5 — Program Download and Verification: With the replacement CPU installed and powered, connect the PG/PC and download the saved program. Perform a full I/O force test to verify all digital and analog channels respond correctly before releasing the system to production.

Step 6 — Communication Restoration: Re-establish all serial and network communication links. Confirm SCADA and HMI data exchange is stable for a minimum of 15 minutes under normal process load before signing off the maintenance record.

This workflow minimizes total downtime to typically 2–4 hours for a prepared maintenance team, compared to 8–24 hours for unprepared sites sourcing parts reactively. Pre-positioning a verified 6ES5101-8UA12 spare eliminates the largest variable in unplanned outage duration.

Spare Parts Support FAQ

Q1: Is the 6ES5101-8UA12 still in production, and how long can I source original units?
The SIMATIC S5-100U series has been discontinued by Siemens. Original units are available through specialist industrial spare parts suppliers maintaining authenticated legacy stock. We recommend securing a multi-year supply agreement or forward-buying against your site’s projected consumption to avoid sourcing gaps as global inventory depletes. All units we supply are original Siemens components — not remanufactured or third-party substitutes.

Q2: How do I verify compatibility between a replacement 6ES5101-8UA12 and my existing S5-100U rack?
Compatibility is confirmed by matching the order number (6ES5 101-8UA12) and verifying the firmware revision is consistent with your existing I/O expansion modules. In most S5-100U installations, the compact CPU is interchangeable within the same hardware generation. If your system uses specific CP modules or analog I/O with firmware dependencies, provide your existing module revision numbers and we will confirm compatibility before dispatch.

Q3: What pre-shipment testing is performed on each unit?
Each 6ES5101-8UA12 is subject to functional power-on verification, memory integrity check, and I/O bus communication test prior to dispatch. Units that do not pass all test criteria are quarantined and not shipped. A test record is available on request. The support terms confirmed by quotation cover failure under normal operating conditions from the dispatch date.

Q4: Can you support long-term supply agreements for multi-site S5-100U maintenance programs?
Yes. We support blanket purchase orders, consignment stock arrangements, and scheduled release programs for customers managing multiple S5-100U installations. Long-term supply agreements include price protection, priority allocation from regional stock, and dedicated account management. Contact our sales team to discuss your site inventory requirements and annual consumption forecast.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES5 101-8UA12
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES5 101-8UA12
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
