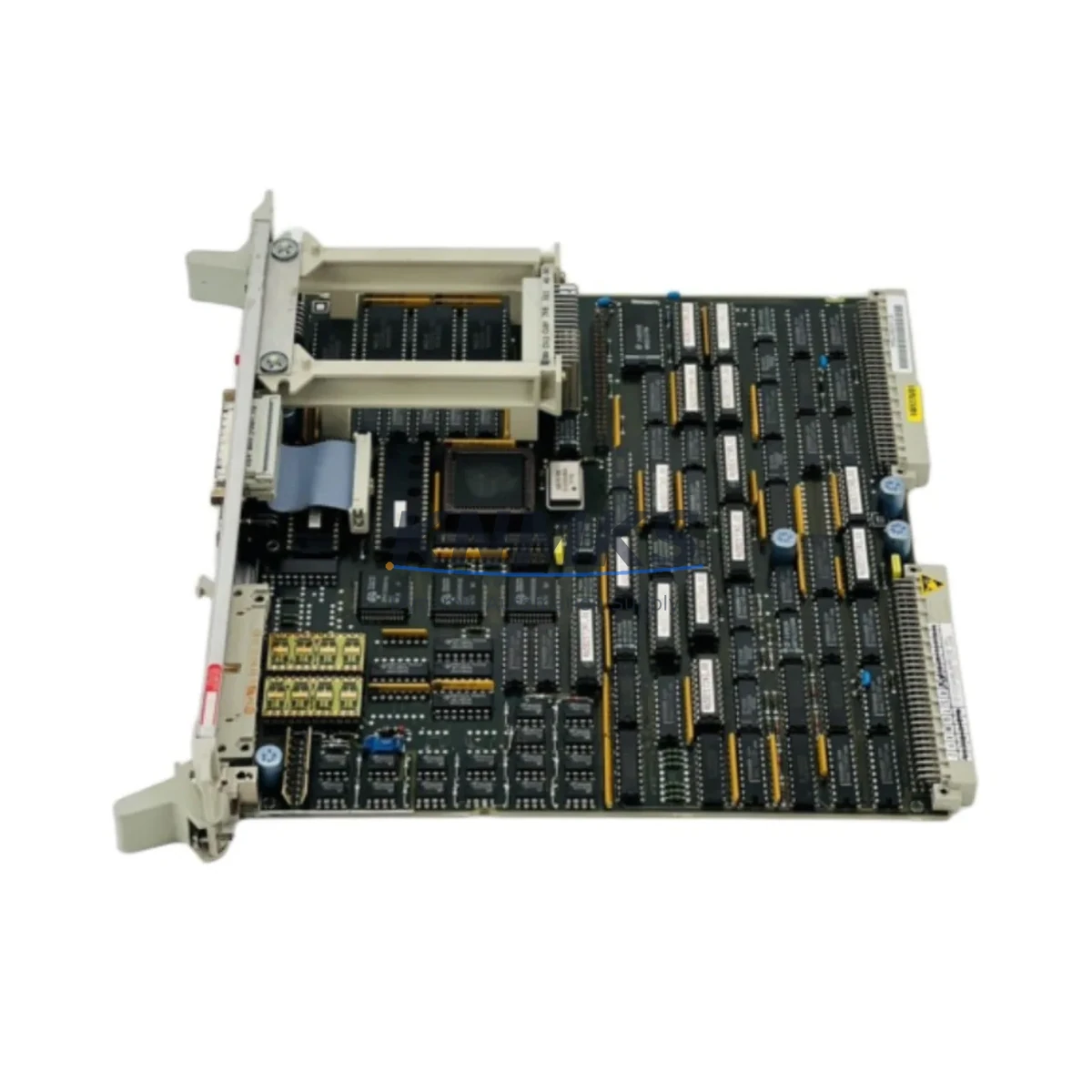

Siemens 6DD1600-0AF0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6DD1600-0AF0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6DD1600-0AF0 is a CPU processor module engineered for the SIMADYN D modular automation platform — a high-performance, rack-based control system widely deployed in heavy industry, power generation, steel mills, and large-scale drive applications. As legacy SIMADYN D installations continue to operate well beyond their original design life, maintaining a verified stock of the 6DD1600-0AF0 is a critical element of any long-term maintenance strategy. This module serves as the central processing unit within the SIMADYN D rack, executing real-time control tasks, managing I/O communication, and coordinating inter-module data exchange across the backplane bus.

For maintenance engineers managing aging automation infrastructure, the 6DD1600-0AF0 represents one of the highest-priority spare parts in the control cabinet. CPU module failures are rarely gradual — they typically manifest as sudden system halts, loss of process control, or unresponsive HMI communication, all of which translate directly into unplanned downtime and production loss. Stocking a pre-tested, original 6DD1600-0AF0 eliminates the most dangerous variable in emergency recovery: sourcing time. With global dispatch capability and pre-shipment functional verification, this spare is ready to deploy the moment it arrives on site.

Procurement engineers sourcing 6DD1600-0AF0 units should prioritize suppliers who can confirm original manufacture provenance, provide functional test documentation, and offer a minimum support terms confirmed by quotation covering both hardware integrity and operational performance. Counterfeit or refurbished-without-disclosure units present significant risk in CPU-class components, where firmware compatibility and signal timing are critical to system stability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 6DD1600-0AF0 CPU module, a disciplined maintenance engineer will not limit the scope to the CPU alone. The SIMADYN D architecture distributes control functions across multiple coordinated modules, and a CPU failure event often masks or is caused by upstream power quality issues or downstream I/O faults. Before returning the system to service after a 6DD1600-0AF0 swap, the following components should be inspected or tested as part of the same maintenance window:

The 6DD1607-0AA0 power supply module feeding the SIMADYN D rack should be load-tested to confirm stable DC rail output — CPU modules are particularly sensitive to voltage ripple and transient drops that may not trigger a power supply fault alarm but will cause intermittent CPU resets. Similarly, the 6DD1681-0AE0 communication module should be checked for firmware version alignment with the replacement CPU, as mismatched firmware revisions between CPU and communication modules are a common cause of post-replacement communication failures.

I/O interface modules such as the 6DD1682-0BD0 digital I/O module should be inspected for contact wear, loose terminal connections, and correct address configuration, since a CPU replacement resets the system scan and may expose pre-existing I/O faults that were masked by the previous CPU’s error-handling routines. Signal isolation barriers and 6DD1607-0AB0 analog input modules in the same rack should also be verified for calibration drift, particularly in high-temperature or high-vibration environments.

Backplane bus connectors and rack slot contacts deserve physical inspection during any CPU module change — oxidized or mechanically stressed backplane contacts are a leading cause of intermittent faults in rack-based systems. Additionally, review the status of any SIMATIC S5 or S7 gateway modules if the SIMADYN D system interfaces with a broader plant network, as CPU replacement may require re-initialization of gateway communication parameters. Finally, confirm that all fuse elements in the control cabinet power distribution panel are within specification before energizing the replacement module.

Site Replacement Workflow

Replacing the 6DD1600-0AF0 in a live industrial environment requires a structured approach to minimize downtime and avoid secondary faults. Begin by documenting the current system configuration — capture all parameter sets, firmware versions, and I/O mapping from the existing CPU before removal, using the SIMADYN D programming tool or a connected engineering workstation. This backup is essential: if the replacement module requires parameter loading, having a verified configuration file reduces recommissioning time from hours to minutes.

Power down the rack following the correct de-energization sequence for the SIMADYN D system, ensuring that all drive outputs are at zero and process interlocks are confirmed safe. Remove the 6DD1600-0AF0 by releasing the module locking mechanism and extracting it from the rack slot — avoid touching the backplane connector pins. Insert the replacement module, confirm the locking tab is fully engaged, and restore power in the correct sequence.

After power-up, verify that the CPU module initializes correctly by checking the status LEDs and confirming communication with the HMI or engineering workstation. Load the saved parameter set if required, run a full I/O diagnostic scan, and confirm process variable feedback before releasing the system to automatic operation. Document the replacement event, including the removed module’s serial number, the replacement unit’s serial number and test certificate, and the date of installation — this record supports support requests and future maintenance planning.

For sites managing multiple SIMADYN D racks or operating in 24/7 continuous process environments, maintaining at least one pre-tested 6DD1600-0AF0 in local stock is strongly recommended. The lead time risk for CPU-class modules in legacy platforms is significant, and a single unplanned outage event will typically exceed the annual cost of maintaining a spare unit by a wide margin.

Spare Parts Support FAQ

Q: Is the 6DD1600-0AF0 still available as an original spare part?
A: Yes. Despite the SIMADYN D platform’s legacy status, original 6DD1600-0AF0 units remain available through specialist industrial spare parts suppliers. Each unit is subject to pre-shipment functional testing and ships with a support terms confirmed by quotation. Long-term supply continuity is supported for sites requiring ongoing maintenance stock.

Q: How do I verify compatibility before installing a replacement 6DD1600-0AF0?
A: Confirm the firmware revision of the replacement module matches or is compatible with the firmware expected by your SIMADYN D rack configuration. Check the module order number suffix and compare against your existing system documentation. If in doubt, contact your supplier with the full rack configuration details before installation.

Q: What pre-shipment testing is performed on the 6DD1600-0AF0?
A: Each 6DD1600-0AF0 unit undergoes functional verification prior to dispatch, including power-on initialization testing, communication interface checks, and visual inspection for physical integrity. Test results are available upon request and support support terms documentation.

Q: What is the recommended spare parts inventory strategy for SIMADYN D CPU modules?
A: For sites with one to three SIMADYN D racks, maintaining one 6DD1600-0AF0 in local stock is the minimum recommended posture. Sites with four or more racks, or operating in critical continuous-process environments, should consider holding two units. Annual stock reviews should align with planned shutdown windows to allow pre-testing of stored spares and rotation of long-held inventory.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6DD1600-0AF0
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6DD1600-0AF0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
