Siemens 505-4232 Migration-Ready AC Input Module for Legacy TI505 Control Systems

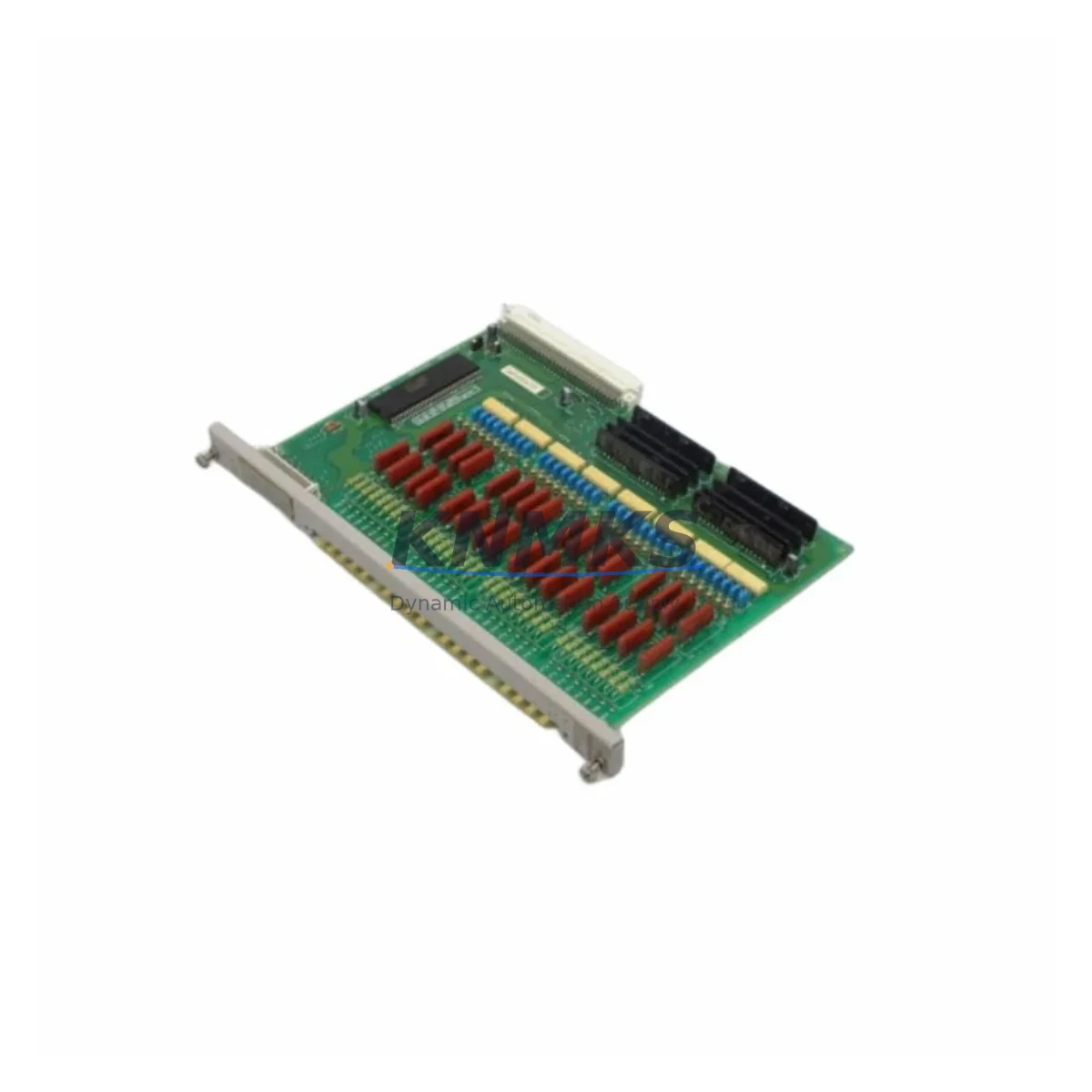

The Siemens 505-4232 is a 32-point, 100–240VAC discrete input module engineered for the SIMATIC TI505 programmable logic controller platform — one of the most widely deployed legacy control architectures in process manufacturing, utilities, and heavy industry. As TI505 components approach end-of-life and OEM support windows close, the 505-4232 remains a critical drop-in replacement for facilities that must maintain operational continuity without committing to a full platform migration. Whether you are extending the service life of an existing TI505 rack, recovering from an unplanned module failure, or executing a phased retrofit toward a modern control architecture, the 505-4232 provides a verified, field-tested path forward.

Each unit supplied by KNMKS is sourced from traceable inventory channels, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. We maintain buffer stock specifically for legacy TI505 components to support both emergency breakdown orders and planned maintenance schedules.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 505-4232 retrofit begins well before the module arrives on-site. Engineers responsible for TI505-based control cabinets should audit the existing rack configuration, confirming the slot assignment of the failed or aging input module and cross-referencing it against the current I/O map in the PLC program. The 505-4232 occupies a single slot in any standard TI505 base rack — including the 505-6860 10-slot rack and the 505-6870 16-slot rack — and draws power directly from the rack’s backplane power bus. Before installation, verify that the rack’s power supply module, such as the 505-6860PS or equivalent, has sufficient remaining capacity to support the 505-4232’s current draw alongside all other installed modules. Overloaded rack power supplies are a common and overlooked cause of intermittent I/O faults in aging TI505 systems.

Terminal wiring on the 505-4232 follows the standard TI505 discrete input wiring convention. Field technicians should photograph or document the existing terminal assignments before disconnecting any wiring, particularly in installations where as-built drawings have not been maintained. The 32 input channels are grouped in commons of 8 or 16 depending on the field wiring configuration, and each common must be connected to the appropriate AC neutral or return line. Incorrect common wiring is the most frequent commissioning error encountered during module replacement in legacy TI505 panels.

For facilities that are simultaneously upgrading their HMI infrastructure — for example, migrating from legacy Siemens OP or TP panels to a modern SCADA or WinCC-based visualization — the 505-4232 replacement provides an opportunity to audit and update HMI screen tag bindings. Input status bits mapped to the replaced module’s slot address should be verified in the HMI tag database before the system is returned to automatic operation. In installations where a 505-CP1434 TCP/IP communication processor or similar network module is used to bridge the TI505 backplane to an Ethernet-based SCADA system, confirm that the communication module’s I/O polling configuration reflects the updated module slot assignment.

If the retrofit scope extends beyond a single module swap to include I/O expansion — for example, adding additional discrete input capacity to accommodate new field instruments — consider whether the existing rack has available slots or whether a secondary expansion rack connected via a 505-6850 I/O expansion cable is required. For installations where analog signal conditioning is also being updated, the 505-4002 analog input module is a commonly co-ordered component in TI505 retrofit projects, particularly in process applications where 4–20mA transmitter inputs are being consolidated or re-ranged.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy TI505 module replacement. The 505-4232 is a hot-swap-capable module within the TI505 architecture when the CPU is placed in STOP mode, but the practical approach for most production environments is to schedule the swap during a planned maintenance window and execute a structured changeover procedure. Before placing the CPU in STOP mode, capture a full program backup using TISOFT or an equivalent Series 505 programming tool, and store the backup on a separate medium independent of the programming terminal. This protects the existing ladder logic, data table values, and I/O configuration against any inadvertent overwrite during the maintenance activity.

Once the 505-4232 is seated in the rack and the CPU is returned to RUN mode, perform a systematic input verification by forcing each of the 32 input channels through the TISOFT diagnostic interface and confirming the corresponding status bit change in the data table. Do not rely solely on HMI indication for this verification, as HMI tag mapping errors can mask input faults that are visible only at the PLC data table level. After all 32 inputs are verified, confirm that any interlock logic dependent on the replaced module’s inputs is functioning correctly before releasing the system to automatic operation.

For facilities operating continuous processes where even a brief STOP mode is unacceptable, KNMKS can support pre-shipment configuration verification and provide detailed swap procedures tailored to the specific rack and slot configuration of your installation. Contact our technical team at [email protected] to discuss your site-specific requirements before scheduling the maintenance window.

Retrofit Support FAQ

Q1: Is the 505-4232 a direct replacement for the 505-4230 or 505-4231?
The 505-4232 provides 32 input points versus 16 (505-4230) or 24 (505-4231). It is physically and electrically compatible with the same TI505 rack slots, but the PLC program I/O map must be updated to reflect the expanded point count if you are upgrading from a lower-density module. If you are replacing a like-for-like 505-4232, no program changes are required.

Q2: What commissioning steps are required after installation?
After seating the module and powering the rack, use TISOFT or Series 505 programming software to force each input channel and verify the corresponding data table bit. Confirm HMI tag bindings for all 32 points, and verify that any communication processor polling the affected I/O range — such as a 505-CP1434 TCP/IP module — is correctly reflecting the updated input states. Document the as-commissioned configuration for future reference.

Q3: Does KNMKS provide pre-shipment testing, and what does the support terms confirmed by quotation cover?
Yes. Every 505-4232 unit is functionally tested prior to shipment. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Dead-on-arrival (DOA) units are replaced at no charge. Support requests are processed through [email protected].

Q4: Can the 505-4232 be used in a mixed-voltage TI505 rack alongside DC input or output modules?
Yes. The TI505 rack architecture supports mixed module types within the same rack, provided the rack power supply has sufficient capacity for the combined module load. The 505-4232 AC input module operates independently of adjacent DC I/O modules such as the 505-4424 DC output module or 505-3401 DC input module. Verify total rack power budget before finalizing the module configuration.
