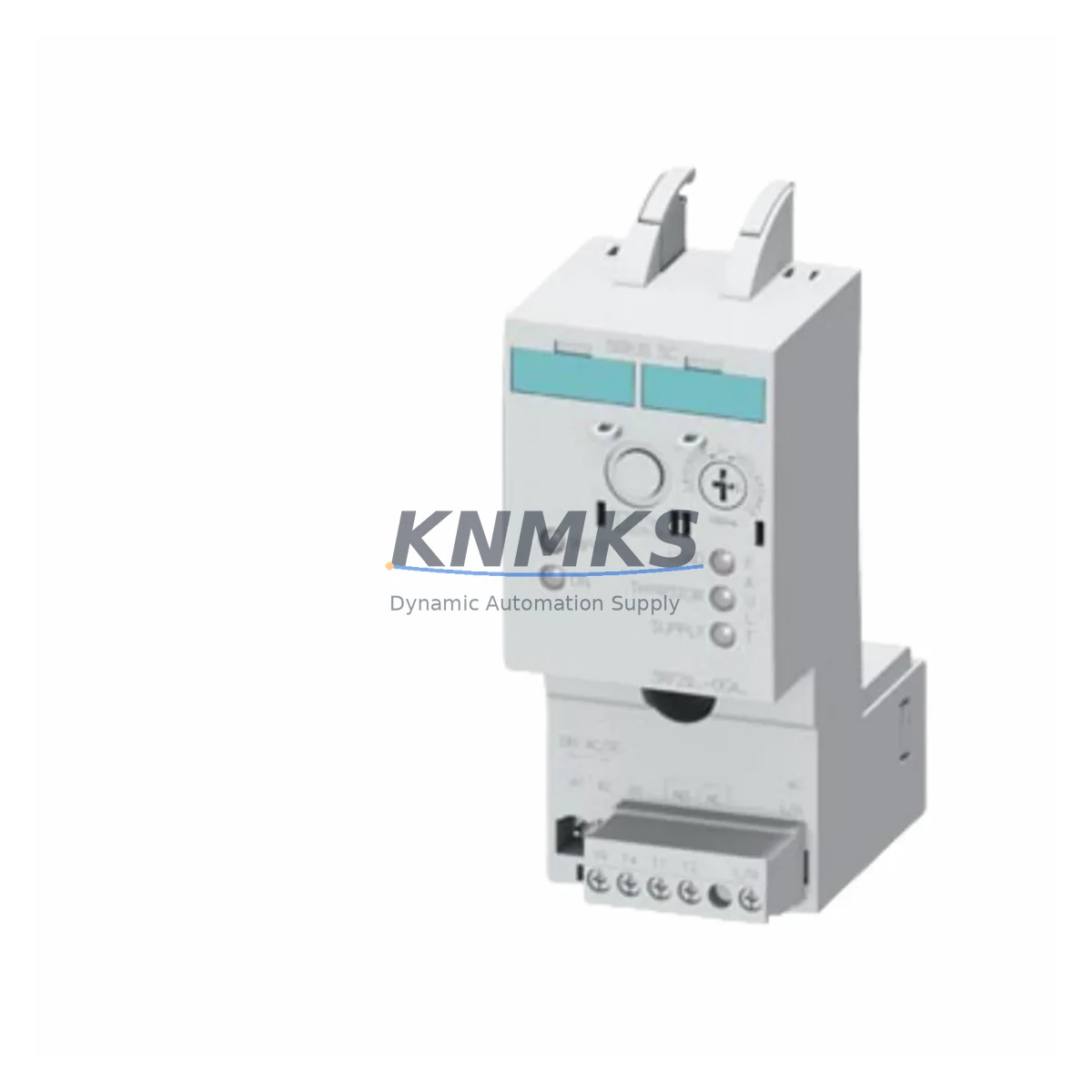

Siemens 3RF2950-0KA13 Fail-Safe Solid State Power Controller

Overview

Siemens 3RF2950-0KA13 Fail-Safe Solid State Power Controller: Fault Protection and Critical Industrial Field Reliability

The Siemens 3RF2950-0KA13 is a SIRIUS-series 3-phase solid state power controller (SSPC) engineered for fail-safe operation in demanding industrial environments. Rated at 50A continuous load current and designed for 480V AC three-phase networks, this unit eliminates the mechanical wear and contact arcing inherent in conventional electromechanical contactors. Its semiconductor switching core ensures zero-bounce, zero-spark load transitions — a critical advantage in explosive-atmosphere zones, high-cycle furnace control, and precision motor soft-start applications where control interruption or misfiring carries serious safety and production consequences.

In continuous production facilities — petrochemical reactors, power generation auxiliaries, metallurgical rolling mills, and port crane drives — the 3RF2950-0KA13 delivers the switching repeatability and thermal stability that safety interlocks demand. Its integrated thyristor (SCR) output stage provides phase-angle and zero-crossing firing modes, allowing smooth ramp-up of resistive and inductive loads without voltage spikes that could destabilize adjacent instrumentation loops or trip upstream protection relays. When paired with a Siemens SIRIUS 3RW soft starter or a 3RT contactor in a hybrid protection topology, the SSPC handles high-frequency switching duty while the contactor manages isolation — a proven cabinet architecture for critical pump and compressor drives.

Signal integrity is preserved even in high electromagnetic interference environments. The 3RF2950-0KA13 incorporates internal RC snubber networks and EMI suppression circuitry that attenuate conducted interference back onto the supply bus, protecting co-located Siemens S7-300 or S7-1500 PLC I/O modules and PROFIBUS/PROFINET communication cards from noise-induced faults. In cabinet layouts where variable frequency drives, servo amplifiers, and power supplies share a common busbar, this suppression capability is not optional — it is the difference between stable process control and nuisance trips.

Thermal management is addressed through the unit’s aluminum heat-sink extrusion and optional forced-air cooling compatibility. In high-ambient-temperature enclosures — common in steel plant motor control centers and offshore platform switchgear rooms — the 3RF2950-0KA13 maintains rated current capacity up to 40°C ambient with appropriate derating curves applied above that threshold. Its IP20 protection rating suits standard DIN-rail cabinet mounting; for dusty or humid field environments such as cement plant conveyor drives or water treatment pump stations, supplementary cabinet sealing to IP54 or IP65 is recommended alongside this controller.

For safety loop integrity, the 3RF2950-0KA13 supports integration with Siemens 3TK28 safety relay modules and SIRIUS 3SK safety controllers, enabling SIL 2-capable interlock architectures. The solid state output eliminates the contact welding failure mode that can cause a conventional contactor to fail in the energized state — a critical fault scenario in emergency stop and fire suppression interlock circuits. When the safety relay de-energizes the control input, the SSPC’s gate drive circuit cuts thyristor conduction within one half-cycle, providing deterministic load disconnection that mechanical devices cannot match.

Surge and transient protection is inherent to the SCR topology. Unlike relay outputs, the thyristor junction absorbs repetitive inductive kick-back from motor and transformer loads without degradation, reducing the need for external surge suppressors on the load side. This simplifies cabinet wiring, reduces component count, and lowers the probability of a suppressor failure cascading into a control board fault — a common root cause of unplanned downtime in legacy motor control centers.

Every 3RF2950-0KA13 unit dispatched from KNMKS stock undergoes pre-shipment functional verification: gate trigger response, load current linearity across the control range, thermal resistance check, and insulation resistance test. This ensures that replacement units installed during a planned or emergency maintenance window perform identically to the original factory specification, with no commissioning surprises on a live production line.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust motor control center (MCC) or power distribution cabinet built around the 3RF2950-0KA13 typically integrates several complementary protection layers. The Siemens 3RW44 soft starter handles ramp-up current limiting for large induction motors, while the 3RF2950-0KA13 manages high-cycle switching duty on resistive heating or smaller motor loads in the same cabinet — the two devices share a common 24V DC control bus fed by a Siemens SITOP PSU8200 power supply, which provides regulated, surge-protected DC power to all control-tier components. Upstream, a Siemens 3VA molded case circuit breaker (MCCB) provides short-circuit and overload protection for the entire feeder, coordinating with the SSPC’s overtemperature shutdown to create a two-tier fault isolation strategy.

For communication-intensive cabinets running PROFINET or PROFIBUS-DP, the Siemens ET 200SP distributed I/O interfaces the 3RF2950-0KA13 control input to the PLC without requiring additional signal conditioning — the SSPC’s 24V DC logic input is directly compatible with ET 200SP digital output modules. In safety-rated architectures, a Siemens 3SK1 safety controller monitors E-stop and guard door inputs and de-energizes the SSPC control signal within the required SIL 2 response time, ensuring deterministic load disconnection without relying on a mechanical contactor as the final switching element.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 3RF2950-0KA13 controls electric heat tracing circuits on process pipelines and vessels where conventional contactors are prohibited in Zone 1 or Zone 2 classified areas due to arc ignition risk. Its solid state output produces no spark, making it compatible with intrinsically safe cabinet designs when properly enclosed.

In power generation and substation auxiliary systems, the SSPC controls cooling fan motors, lube oil pump motors, and battery room ventilation loads — all of which require high switching reliability and zero maintenance over multi-year intervals between planned outages. The absence of contact wear eliminates a common failure mode that has historically caused forced outages in auxiliary motor control panels.

In metallurgical and steel plant applications — induction furnace auxiliary drives, rolling mill cooling water pumps, and ladle preheating systems — the 3RF2950-0KA13 withstands the severe conducted EMI generated by large thyristor rectifiers and induction heating generators, maintaining stable control loop behavior where relay-based controllers frequently suffer from nuisance trips.

In water and wastewater treatment facilities, the SSPC controls submersible pump motor starters and UV disinfection lamp ballasts in high-humidity, corrosive-atmosphere pump stations. Its sealed semiconductor construction is inherently immune to the contact corrosion that degrades conventional contactors in these environments within 12–18 months of installation.

In mining and mineral processing plants, the 3RF2950-0KA13 is deployed in conveyor drive control panels and crusher auxiliary systems where dust ingress and vibration rapidly degrade mechanical switching devices. The solid state design eliminates the primary failure mechanisms — contact bounce, spring fatigue, and arc erosion — that drive high replacement frequency in these environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 3RF2950-0KA13?
The support terms confirmed by quotation cover all functional defects in the thyristor output stage, gate drive circuitry, control input interface, and thermal protection system. Units that fail to meet rated current capacity, switching response time, or insulation resistance specifications within the confirmed support period are replaced at no charge. Support terms is supported by KNMKS pre-shipment test records for each unit dispatched.

Q2: What pre-shipment tests are performed before dispatch?
Each 3RF2950-0KA13 undergoes gate trigger response verification, load current linearity test across 10–100% of rated capacity, thermal resistance measurement, hi-pot insulation resistance test (≥500MΩ at 500V DC), and visual inspection for mechanical damage. Test results are retained and available on request for critical installation documentation packages.

Q3: Is the 3RF2950-0KA13 a direct drop-in replacement for the earlier 3RF29 series units?
Yes. The 3RF2950-0KA13 maintains dimensional, terminal, and control-input compatibility with earlier SIRIUS 3RF29 series solid state power controllers. No cabinet rewiring or DIN-rail modification is required for like-for-like replacement. Confirm the control voltage (24V DC) and load current rating match the existing installation before ordering.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
KNMKS maintains multi-region stock of the 3RF2950-0KA13 to support planned maintenance schedules and emergency replacement requirements. Standing purchase orders and scheduled delivery agreements are available for facilities with annual or semi-annual maintenance windows. Contact the sales team to discuss volume pricing and reserved stock arrangements for critical spare parts programs.
