Schneider TRICONEX 8110 Maintenance-Proven Spare Part for Factory Uptime

Overview

Schneider TRICONEX 8110 Maintenance-Proven Spare Part for Factory Uptime

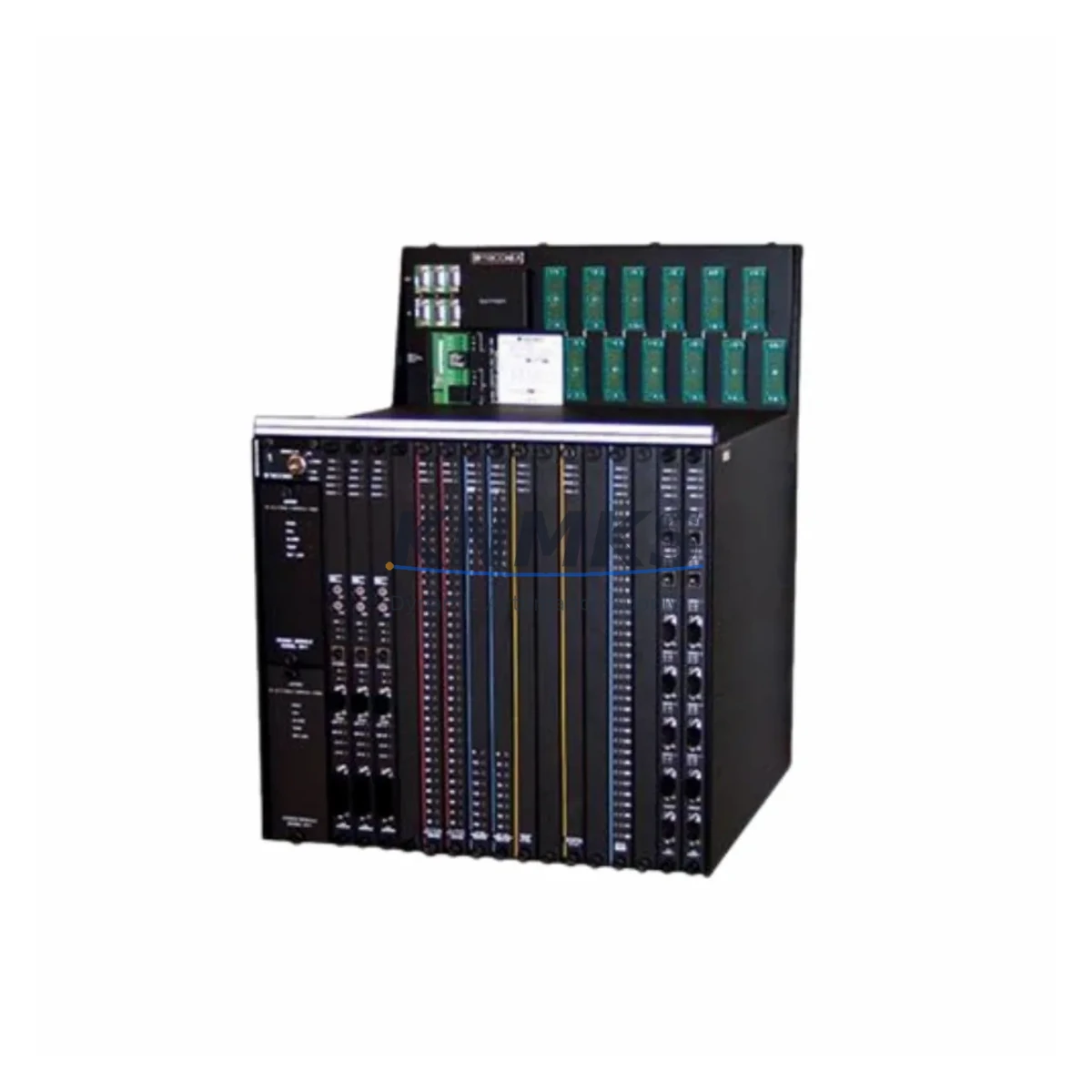

The TRICONEX 8110 is the main chassis unit of the Schneider Electric Tricon Triple Modular Redundant (TMR) Safety PLC system — one of the most widely deployed safety-rated control platforms in oil & gas, petrochemical, power generation, and continuous process industries. As a maintenance-proven spare part, the 8110 chassis forms the structural and electrical backbone of the Tricon system, housing the main processor modules, I/O modules, and communication cards that keep safety-critical processes running without interruption.

For maintenance engineers managing aging Tricon installations, securing a verified original 8110 chassis spare is a non-negotiable element of any serious spare parts strategy. Unplanned downtime caused by chassis failure — whether from backplane connector wear, power distribution faults, or physical damage — can halt production for days. Stocking a tested, ready-to-deploy 8110 chassis eliminates that risk and enables rapid site replacement with minimal engineering intervention.

From a procurement perspective, the 8110 is a long-lifecycle component. Many Tricon systems installed in the 1990s and 2000s remain in active service, and OEM supply channels for legacy chassis have become increasingly constrained. Sourcing from a specialist industrial spare parts supplier with documented testing, traceability, and a support terms confirmed by quotation provides the assurance that procurement and reliability teams require.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Tricon 8110 chassis replacement is scheduled — whether as part of a planned annual shutdown or an emergency corrective action — experienced maintenance engineers know that the chassis itself is rarely the only component requiring attention. A thorough site replacement workflow should encompass the full control cabinet ecosystem to prevent repeat failures and ensure the restored system meets its original safety integrity level.

Power supply integrity is the first checkpoint. The Tricon 8312 or 8310 power supply modules that feed the chassis should be inspected for output voltage stability, capacitor aging, and fan operation. A degraded power supply installed into a new chassis will shorten the replacement’s service life and may introduce nuisance trips. If the power supplies are approaching their recommended service interval, replacement during the same maintenance window is strongly advised.

Main processor modules — typically the 4351B or 4352 — should be reseated and their diagnostic LEDs verified after chassis installation. Firmware version compatibility between the processor and the chassis backplane revision must be confirmed using the Tricon system documentation. Any processor showing intermittent communication faults or elevated error counts in the system log should be flagged for replacement.

I/O module condition is equally critical. Digital input modules, analog input modules, and digital output modules installed in the 8110 chassis should be individually tested for channel accuracy and response time. Modules with field wiring that has experienced surge events or moisture ingress are candidates for proactive replacement. Terminal blocks and field wiring terminations should be inspected for corrosion and torque compliance.

Communication infrastructure deserves dedicated attention. The Tricon Communication Module (TCM) handles Modbus RTU/TCP, TSAA, and peer-to-peer links to DCS, SCADA, and HMI systems. A chassis swap is the ideal time to verify TCM firmware, check network cable integrity, and confirm that the Tricon Engineering Workstation (EWS) can establish a clean connection to the restored system before returning it to service.

Signal isolation and protection components — including signal isolators on analog loops, fuses on field power circuits, and surge protection devices on I/O terminals — should be tested and replaced as needed. These low-cost components are frequently overlooked during chassis-level maintenance but are common root causes of recurring field faults.

Finally, HMI and operator station connectivity should be validated end-to-end after chassis restoration. Confirm that all process variables are reading correctly, all alarm setpoints are active, and the safety function proof-test has been completed and documented per the site’s functional safety management plan.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Download the current Tricon application program, system configuration, and I/O map from the existing chassis using the Tricon Engineering Workstation. Archive a timestamped backup before any hardware is disturbed.

Step 2 — Safe isolation: Follow the site’s Management of Change (MOC) and Permit to Work (PTW) procedures. Place the safety system in bypass mode per the approved bypass management procedure. Notify the control room and affected process operators.

Step 3 — Module extraction: Label and photograph all module positions before removal. Extract processor modules, I/O modules, and communication modules in sequence, storing them in anti-static packaging. Do not remove field wiring from terminal blocks unless the wiring itself requires replacement.

Step 4 — Chassis installation: Install the replacement 8110 chassis into the control cabinet. Verify that the chassis revision is compatible with the existing module set. Torque all mounting fasteners to specification.

Step 5 — Module reinstallation and power-up: Reinstall modules in their original positions. Apply power and verify that all module status LEDs indicate healthy operation. Connect the Engineering Workstation and confirm system communication.

Step 6 — Program restore and validation: Download the archived application program to the restored system. Perform a full I/O verification, verify safety function response times, and complete the required proof-test documentation before releasing the system from bypass.

Step 7 — Return to service: Close the bypass, notify the control room, and update the maintenance management system (CMMS) with the completed work order, replaced components, and next scheduled inspection date.

This structured workflow minimizes total downtime, reduces the risk of configuration errors, and ensures the restored Tricon system meets its original SIL 3 safety integrity requirements.

Spare Parts Support FAQ

Q1: Is the TRICONEX 8110 chassis compatible with both Tricon v9 and v10 systems?
The 8110 chassis has been used across multiple Tricon system generations. Compatibility depends on the specific chassis revision (indicated by the revision label on the unit) and the firmware version of the installed processor modules. Always cross-reference the chassis revision with your Tricon system documentation or contact our technical team with your system serial number before ordering.

Q2: What testing is performed before shipment?
Each 8110 chassis unit undergoes visual inspection, backplane connector integrity verification, and functional power-up testing prior to shipment. A test report is available upon request. Units are shipped in anti-static, shock-protected packaging to prevent transit damage.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range. Support requests are supported with direct technical assistance and expedited replacement.

Q4: Can you support long-term supply for multiple chassis units across a multi-site maintenance program?
Yes. We maintain standing inventory of Tricon spare parts and can support blanket purchase orders, consignment arrangements, and scheduled delivery programs for multi-site operators. Contact our sales team to discuss volume pricing, lead time commitments, and documentation requirements for your procurement process.
