Schneider BMH1002P22A2A Maintenance-Proven Spare Part for Factory Uptime

Overview

Schneider BMH1002P22A2A Maintenance-Proven Spare Part for Factory Uptime

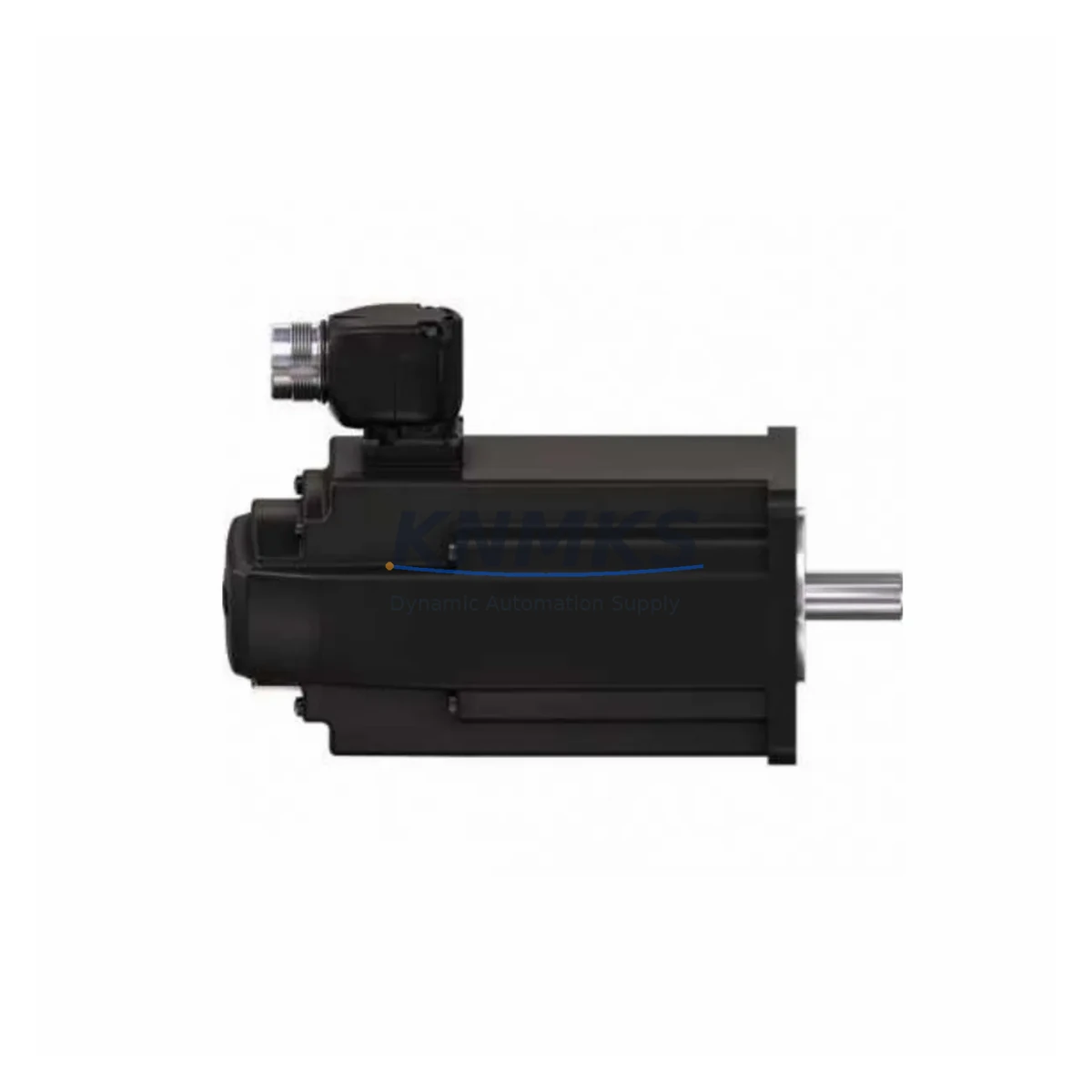

The Schneider Electric BMH1002P22A2A is a Lexium BMH series AC servo motor rated at 1.0 kW continuous output power, 3000 RPM nominal speed, and IP65 ingress protection. Designed for demanding industrial motion control environments, this motor is a direct-fit replacement for Lexium 32 and Lexium 62 servo drive systems. Maintenance engineers and procurement teams operating packaging lines, CNC machining centers, material handling conveyors, and automated assembly stations rely on the BMH1002P22A2A to restore axis motion quickly and maintain production continuity.

Sourced as an original spare, each unit undergoes pre-shipment functional verification covering winding insulation resistance, encoder signal integrity, and shaft runout. A support terms confirmed by quotation is included from the date of dispatch. Global stock availability supports emergency same-week shipment to minimize unplanned downtime exposure.

Whether you are executing a planned annual overhaul, responding to an unexpected axis fault, or building a strategic servo spare inventory for a multi-axis production line, the BMH1002P22A2A provides a verified, drop-in solution that eliminates compatibility risk and accelerates return-to-production.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BMH1002P22A2A servo motor fails or shows signs of degradation — abnormal vibration, encoder fault codes, thermal shutdown, or bearing noise — the replacement workflow extends beyond the motor itself. A thorough site inspection should cover the complete servo axis circuit to prevent repeat failures and ensure stable recommissioning.

Begin with the Lexium 32 or Lexium 62 servo drive (e.g., LXM32AD18N4 or LXM62PD22A) paired to this motor. Verify that the drive’s motor parameter set matches the BMH1002P22A2A nameplate data and that no latent drive faults exist before energizing the replacement motor. A drive with degraded IGBT output stages or corrupted parameter memory will damage a new motor within hours of operation.

Inspect the servo power cable and encoder feedback cable — Schneider VW3M5101 or equivalent shielded cable assemblies — for insulation breakdown, connector pin corrosion, and shield continuity. Cable faults are a leading cause of encoder noise and premature motor failure in high-cycle applications. Replace any cable showing outer jacket cracking or connector fretting.

Check the 24 VDC control power supply feeding the drive’s logic and I/O circuits. An unstable control voltage causes spurious enable/disable signals that stress motor windings during repeated start-stop cycles. Schneider ABL8 series power supplies are commonly used in Lexium control cabinets and should be load-tested during the maintenance window.

Review the safety relay or STO (Safe Torque Off) module wiring. Incorrect STO circuit wiring after a motor swap is a frequent commissioning error that prevents the axis from enabling. Confirm STO input wiring integrity and test the safety function before returning the machine to automatic mode.

For multi-axis systems, inspect the DC bus capacitor bank and shared bus connections between drives. A degraded bus capacitor causes voltage ripple that manifests as torque instability on all connected axes, not just the replaced motor’s axis.

Finally, verify the PLC I/O module handling axis enable, fault reset, and position reference signals — typically a Modicon M340 or M580 digital output module. Confirm that the PLC program’s axis configuration references the correct motor inertia and speed limits for the BMH1002P22A2A to avoid tuning-related oscillation after replacement.

Site Replacement Workflow

Step 1 — Isolation and Safety: De-energize the servo drive and lock out the main disconnect. Wait for the DC bus voltage to discharge below 50 VDC before disconnecting motor cables. Confirm STO is active.

Step 2 — Documentation: Photograph existing cable routing, connector orientation, and motor mounting position. Export the current drive parameter file using SoMachine or EcoStruxure Machine Expert before disconnecting the drive.

Step 3 — Motor Removal: Disconnect the power cable (U/V/W/PE) and encoder cable. Remove the motor mounting bolts and coupling or gearbox interface. Note the shaft key orientation if applicable.

Step 4 — Replacement Motor Inspection: Verify the BMH1002P22A2A replacement unit’s nameplate against the removed motor. Confirm encoder type compatibility with the drive’s feedback interface card. Measure winding resistance (U-V, V-W, W-U) and insulation resistance (>100 MΩ at 500 VDC) before installation.

Step 5 — Installation and Cable Connection: Mount the motor, torque fasteners to specification, and reconnect power and encoder cables. Restore the drive parameter file. Confirm motor direction and encoder phasing in the drive commissioning menu.

Step 6 — Functional Test: Enable the axis in manual jog mode at low speed. Verify smooth rotation, correct position feedback, and absence of fault codes. Gradually increase to operating speed and confirm torque limits are respected before returning to automatic production mode.

Spare Parts Support FAQ

Q1: Is the BMH1002P22A2A compatible with both Lexium 32 and Lexium 62 drive platforms?
The BMH1002P22A2A is designed for the Lexium BMH motor family and is compatible with Lexium 32 (LXM32A/D series) and Lexium 62 (LXM62P series) drives when the correct feedback interface and motor parameter set are configured. Always verify the drive’s motor compatibility list and confirm encoder interface type before installation.

Q2: What pre-shipment testing is performed on each unit?
Each BMH1002P22A2A undergoes winding insulation resistance measurement, encoder signal output verification, and shaft runout inspection prior to dispatch. Test records are available upon request. The support terms confirmed by quotation cover manufacturing defects and verified pre-shipment condition.

Q3: How should the BMH1002P22A2A be stored if purchased for strategic spare inventory?
Store in original packaging in a dry, vibration-free environment at 10°C to 40°C with relative humidity below 85% non-condensing. Rotate the shaft manually every six months to prevent bearing brinelling. Inspect the encoder connector for moisture ingress annually. Recommended maximum storage period before installation is 24 months.

Q4: Can you supply the BMH1002P22A2A on a long-term or blanket order basis?
Yes. Long-term supply agreements and scheduled release orders are supported for maintenance programs requiring guaranteed stock availability. Contact our sales team to discuss lead time commitments, pricing tiers, and consignment stock options for high-volume or multi-site maintenance programs.
