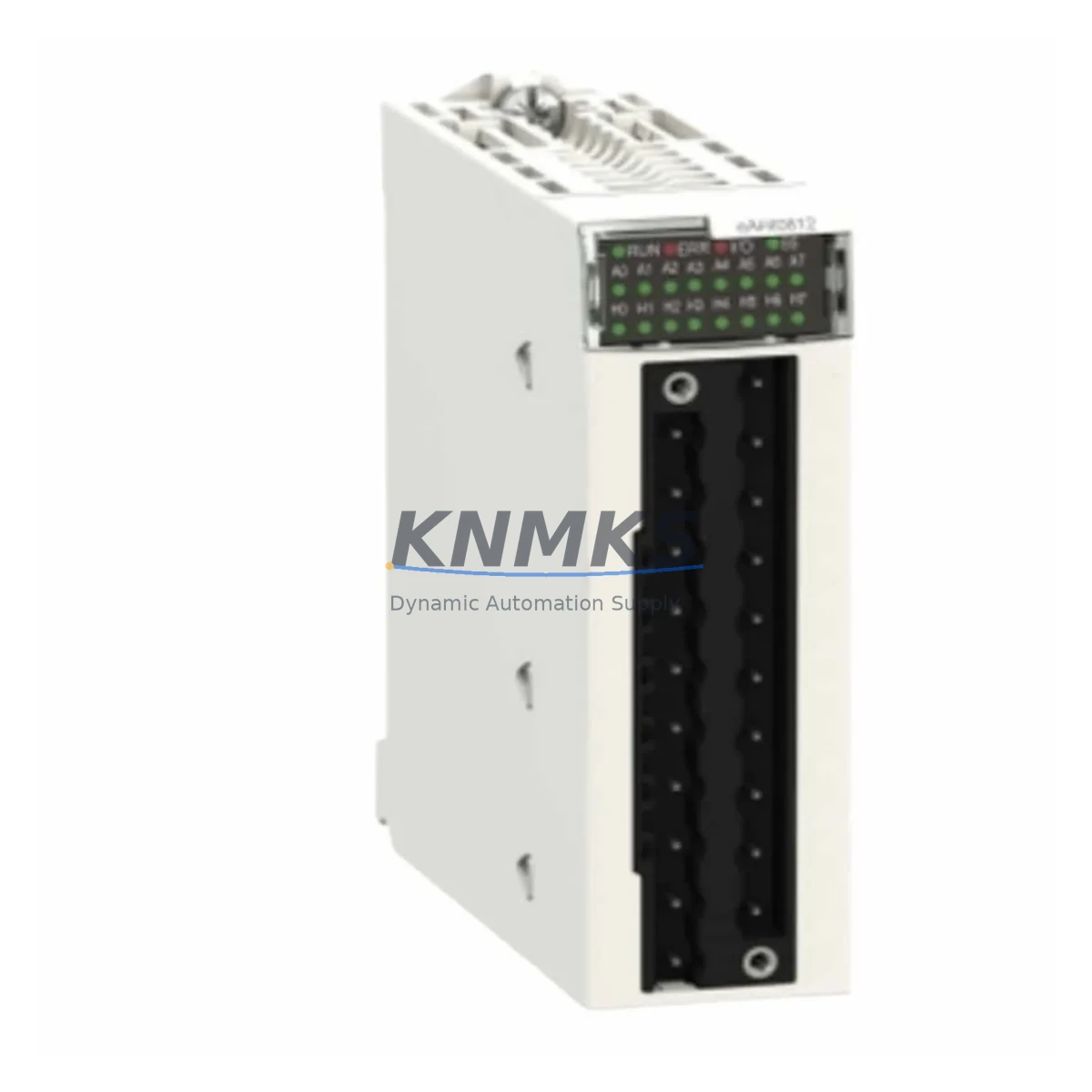

Schneider BMEAHI0812 Fail-Safe Analog Input Module

Overview

Schneider BMEAHI0812 Fail-Safe Analog Input Module: Fault Protection and Critical Industrial Field Reliability

The Schneider Electric BMEAHI0812 is an 8-channel analog input module engineered for the Modicon M580 ePAC platform — Schneider’s flagship Ethernet-native process automation controller. Designed to operate in continuous production environments where signal integrity and control loop protection are non-negotiable, the BMEAHI0812 delivers fail-safe analog acquisition across demanding industrial applications including petrochemical processing, power generation, mining extraction, water treatment, metallurgy, port logistics, and heavy manufacturing.

In high-stakes control architectures, analog input modules are the first line of defense against process deviation. Signal drift, electromagnetic interference, ground loops, and power supply fluctuations can all introduce measurement errors that cascade into unplanned shutdowns, equipment damage, or — in safety-critical loops — hazardous conditions. The BMEAHI0812 addresses each of these failure vectors through hardware-level isolation, channel-by-channel diagnostics, and tight integration with the M580 backplane’s redundant communication fabric.

Each of the eight input channels supports current (4–20 mA) and voltage (±10 V, 0–10 V) signal types, with per-channel open-wire detection and over-range fault reporting delivered directly to the M580 CPU via the X-Bus backplane. This means the controller can execute fail-safe logic — isolating a faulty transmitter, triggering an alarm, or initiating a controlled shutdown — without waiting for a watchdog timeout or operator intervention. In SIL-rated safety loops, this deterministic fault response is essential for maintaining functional safety integrity.

The module’s EMI shielding and differential input architecture suppress common-mode noise generated by variable frequency drives, high-current bus bars, and switching power supplies commonly found in heavy industrial control cabinets. When deployed alongside the BMXCPS4002 redundant power supply module and the BMENOC0311 Ethernet communication module, the BMEAHI0812 forms a robust, fault-tolerant acquisition layer capable of sustaining accurate measurement even during partial power events or network topology changes.

For control cabinet protection strategies involving safety instrumented systems, the BMEAHI0812 integrates naturally with XPSMCMCO0000 safety relay modules and BMXSAI0410 safety analog input modules in mixed-criticality architectures. Where process variables must be cross-validated — for example, comparing redundant pressure transmitter readings before enabling a high-pressure interlock — the BMEAHI0812’s per-channel diagnostic data can be consumed by the M580 CPU’s safety task to implement 1oo2 or 2oo3 voting logic without additional hardware.

Thermal management is a persistent challenge in densely populated control cabinets. The BMEAHI0812 operates across a wide ambient temperature range and is rated for installation in cabinets with restricted airflow, making it suitable for outdoor substations, marine control rooms, and underground mining switchgear enclosures where cabinet cooling is limited. Its conformal-coated PCB provides additional protection against condensation, corrosive atmospheres, and fine particulate ingress — conditions routinely encountered in cement plants, chemical processing facilities, and coastal port installations.

Spare parts availability is a critical procurement consideration for long-lifecycle automation systems. The BMEAHI0812 remains an active catalog item within Schneider Electric’s Modicon M580 ecosystem, and KNMKS maintains verified stock with a support terms confirmed by quotation on every unit shipped. Each module undergoes pre-shipment functional verification including channel calibration checks, backplane communication handshake testing, and visual inspection for connector integrity — ensuring that replacement modules arrive ready for immediate installation without additional bench testing.

For migration projects transitioning from legacy Modicon Quantum or Premium platforms, the BMEAHI0812 supports direct backplane insertion into M580 racks alongside existing I/O modules, enabling phased hardware upgrades without full system replacement. When combined with the BMENOC0301 network option card and BMEP582040 M580 CPU, the module participates in a fully Ethernet-native control architecture that supports IEC 61850, Modbus TCP, and EtherNet/IP simultaneously — future-proofing the control system for digital transformation initiatives.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable M580-based control cabinet is built on layered protection across power, communication, I/O, and safety domains. The BMEAHI0812 anchors the analog acquisition layer, but its fault-protection value is fully realized only when the surrounding cabinet architecture is equally robust.

On the power side, the BMXCPS4002 dual-input redundant power supply ensures that analog input scanning continues uninterrupted during single-source power events — a common cause of spurious process alarms in facilities with unstable utility feeds. Surge protection at the cabinet entry point, using devices such as the BMXSDI1602 digital input module’s surge-rated variants, prevents transient overvoltage from propagating to sensitive analog circuits.

For communication integrity, the BMENOC0311 Ethernet communication module provides dual-port network redundancy, ensuring that analog data from the BMEAHI0812 reaches the SCADA layer even during a single network path failure. In safety-instrumented architectures, the XPSMCMCO0000 safety relay module can be configured to receive fault signals from the M580 safety CPU and execute hardwired de-energize-to-trip actions independently of the process control network — providing a final layer of protection against software or communication failures.

Where analog signals must travel long distances from field transmitters to the control cabinet, signal conditioners and galvanic isolators prevent ground loop currents from corrupting the BMEAHI0812’s measurements. Pairing the module with shielded, twisted-pair field wiring and proper cabinet grounding practices — as specified in Schneider Electric’s M580 installation guidelines — eliminates the majority of EMI-induced measurement errors before they reach the module’s input terminals.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous distillation and reactor control loops, the BMEAHI0812 monitors temperature, pressure, and flow transmitters with per-channel fault detection. A failed transmitter is immediately flagged to the M580 safety CPU, which can initiate a controlled reduction in feed rate or activate emergency shutdown sequences — preventing runaway reactions and protecting personnel in hazardous areas classified under ATEX or IECEx zones.

Power Generation and Substation Automation: Turbine control systems and transformer protection relays depend on accurate analog measurement of current, voltage, and temperature. The BMEAHI0812’s EMI-hardened input architecture maintains measurement accuracy in high-voltage switchgear environments where electromagnetic fields from bus bars and circuit breakers would compromise standard analog modules.

Mining and Mineral Processing: Underground conveyor systems, crusher drives, and flotation cell controls operate in environments with extreme vibration, dust, and humidity. The BMEAHI0812’s conformal-coated PCB and wide operating temperature range ensure reliable analog acquisition in these conditions, supporting continuous production without unplanned stops caused by module degradation.

Water and Wastewater Treatment: Dosing pump control, pH monitoring, and effluent flow measurement require stable, drift-free analog inputs. The BMEAHI0812’s 16-bit resolution and per-channel calibration support ensure that treatment process variables remain within regulatory compliance limits, reducing the risk of environmental incidents caused by measurement inaccuracy.

Metallurgy and Steel Production: Rolling mill tension control and furnace temperature regulation demand sub-millisecond analog update rates and zero tolerance for signal dropout. The BMEAHI0812’s direct X-Bus backplane integration with the M580 CPU minimizes scan cycle latency, supporting tight closed-loop control in high-speed metal forming processes.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide on the BMEAHI0812?
Every BMEAHI0812 unit shipped by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed directly through KNMKS with replacement or repair turnaround coordinated to minimize production downtime.

Q2: What pre-shipment testing is performed on each module?
Each unit undergoes functional verification including all-channel analog signal acquisition testing, backplane communication handshake confirmation, open-wire detection validation, and physical connector inspection. Modules that do not pass all test criteria are quarantined and not shipped.

Q3: Is the BMEAHI0812 compatible with existing Modicon M580 racks and CPUs?
Yes. The BMEAHI0812 is a standard M580 X-Bus module compatible with all M580 rack sizes (4, 8, 12, and 16 slot) and all M580 CPU variants including the BMEP581020, BMEP582040, and BMEH582040 Hot Standby CPU. No firmware modification is required for standard process control applications.

Q4: Can KNMKS guarantee long-term supply for ongoing maintenance and spare parts programs?
KNMKS maintains verified inventory of the BMEAHI0812 and actively monitors Schneider Electric’s product lifecycle status. For customers with multi-year maintenance contracts or large installed bases, KNMKS can arrange reserved stock agreements to ensure spare parts availability aligned with planned maintenance schedules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Schneider Electric
Assorted Brands

Model / Series

BMEAHI0812
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Schneider Electric BMEAHI0812
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
