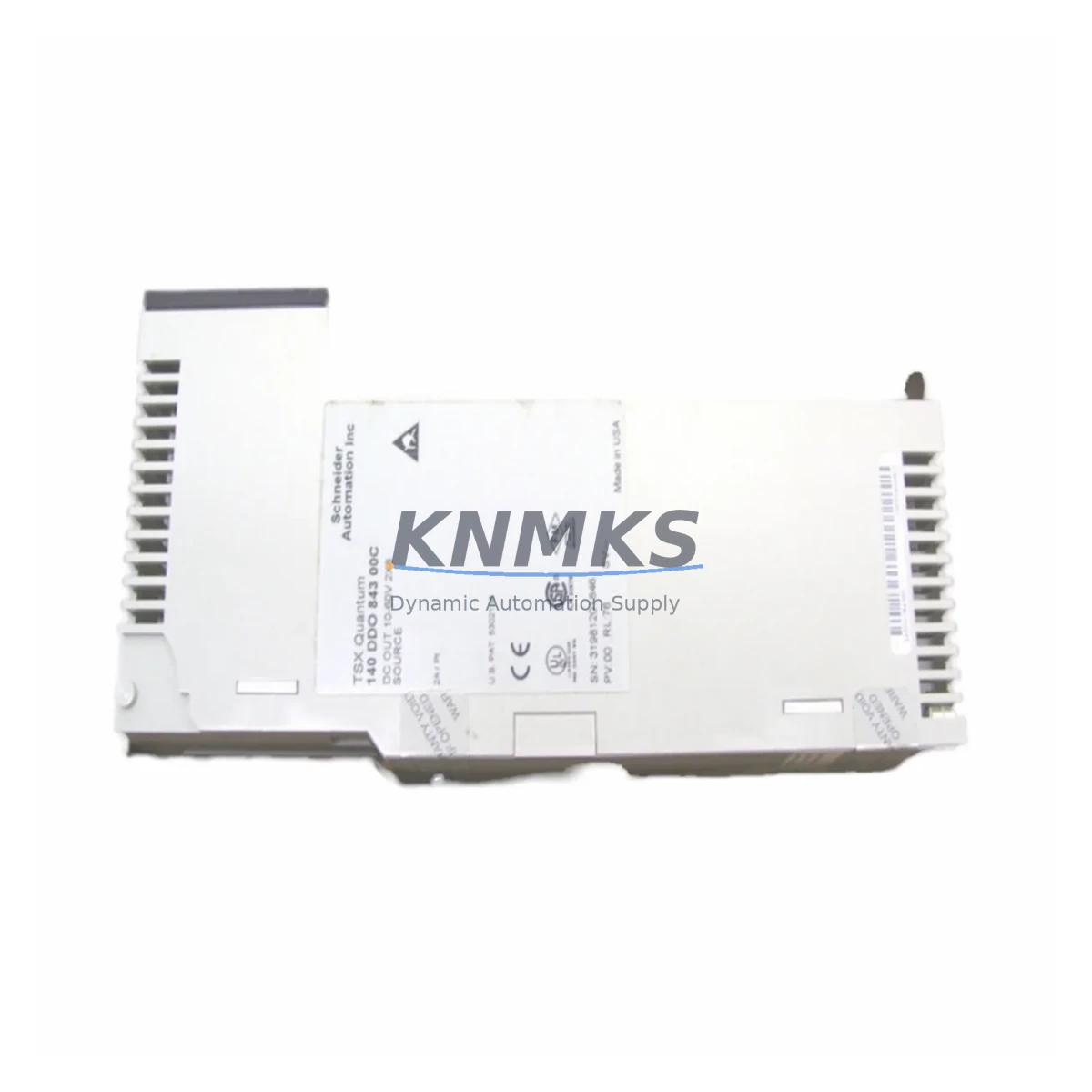

Schneider 140DDO84300 Migration-Ready Discrete Output Module for Legacy Quantum Systems

The Schneider Electric 140DDO84300 is an 84-point sourcing discrete output module engineered for the Modicon Quantum automation platform. As legacy Quantum control systems approach end-of-life and spare parts become increasingly scarce, the 140DDO84300 serves as a validated, migration-ready replacement that allows plant engineers to extend system uptime without committing to a full platform overhaul. Whether you are managing a petrochemical DCS retrofit, upgrading a power generation control cabinet, or restoring a water treatment SCADA system, this module provides a direct drop-in path with minimal re-engineering effort.

Each unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Stock is maintained to support both emergency breakdown replacements and planned multi-unit procurement for long-cycle spare parts programs spanning 12 to 36 months.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 140DDO84300 into an aging Quantum control system requires a structured pre-replacement audit. Begin by confirming the 140XBP series backplane slot assignment and verifying that the existing 140CPS series power supply — typically the 140CPS11420 or 140CPS21400 — has sufficient current headroom to support the output module alongside other installed cards. In multi-rack configurations using a 140CRA31200 remote I/O adapter, confirm that the remote drop address and I/O map in the Unity Pro project match the physical slot position of the replacement module.

Field wiring termination should be reviewed against the original terminal block layout. The 140DDO84300 uses a 40-pin connector interface; confirm that the existing field wiring harness and terminal block assembly are undamaged and correctly labeled before reinsertion. In installations where the original module was paired with a 140XTS series terminal strip or a third-party marshalling panel, verify pin-to-signal mapping against the as-built wiring diagram.

For systems running Concept 2.6 or Unity Pro XL, no software modification is required when the replacement module occupies the same rack slot and address. However, if the control program references the module by symbolic variable rather than direct address, a brief variable re-validation in the project browser is recommended. HMI screens built on Vijeo Designer or FactoryLink that display discrete output status will continue to function without modification, provided the I/O address mapping is preserved.

In larger cabinet upgrades where the 140DDO84300 is being installed alongside a new 140NOE77101 Ethernet communication module or a 140CPU65160 high-performance processor, plan the backplane slot sequence carefully to balance power distribution and minimize inter-module interference. Document the final slot map before powering up the rack to support future maintenance and audit requirements.

Downtime Control During System Migration

Minimizing unplanned downtime during a Quantum output module replacement requires preparation before the maintenance window opens. Prior to shutdown, export a full backup of the Unity Pro or Concept project, including the I/O configuration, symbol table, and communication parameters. Capture a screenshot or export of the current HMI status display so that post-restart verification can be completed against a known baseline.

During the physical swap, tag and photograph all field wiring connections before disconnecting the terminal block from the existing 140DDO84300. This step is critical in high-density cabinets where multiple output modules share adjacent terminal strips. Reinserting the replacement module into the correct backplane slot and reconnecting the field wiring harness in the correct orientation will prevent output address mismatches that could trigger process alarms or actuator misfires on restart.

After reinsertion, power up the rack in a controlled sequence: energize the 140CPS power supply first, confirm backplane communication is established, then bring the CPU online. Monitor the Unity Pro diagnostic viewer or the Concept I/O status table to confirm that all 84 output points are recognized and in the expected initial state before releasing control to the process. For remote I/O drops, verify that the CRA adapter re-establishes communication with the head-end CRP module before enabling field outputs.

With a pre-tested, stock-verified 140DDO84300 unit, the physical replacement and restart sequence can typically be completed within a single planned maintenance window, reducing exposure to extended production loss and avoiding the cascading costs of uncontrolled downtime in continuous-process industries.

Retrofit Support FAQ

Q1: Is the 140DDO84300 a direct replacement for a failed unit in an existing Quantum rack?
Yes. The 140DDO84300 is a single-slot Quantum module and installs directly into the same backplane slot as the unit being replaced. No mechanical modification, software change, or HMI reconfiguration is required when the module address is preserved. Confirm the slot number in the Unity Pro or Concept I/O configuration before installation.

Q2: What pre-shipment testing is performed on each unit?
Each 140DDO84300 unit undergoes functional output verification prior to dispatch. All 84 output channels are exercised under load conditions to confirm switching integrity. A test report is available on request. Units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: Can this module be used in a remote I/O drop configuration?
Yes. The 140DDO84300 is compatible with Quantum remote I/O drops using the 140CRA31200 adapter and 140CRP31200 head module. Confirm the remote drop address and I/O map in the control program match the physical installation. No additional configuration is required beyond standard Quantum remote I/O setup procedures.

Q4: What is the support terms coverage and what does it include?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failure under normal operating conditions. Units that fail within the confirmed support period will be replaced or refunded. Contact our technical support team with the unit serial number and a description of the failure mode to initiate a support terms claim.
