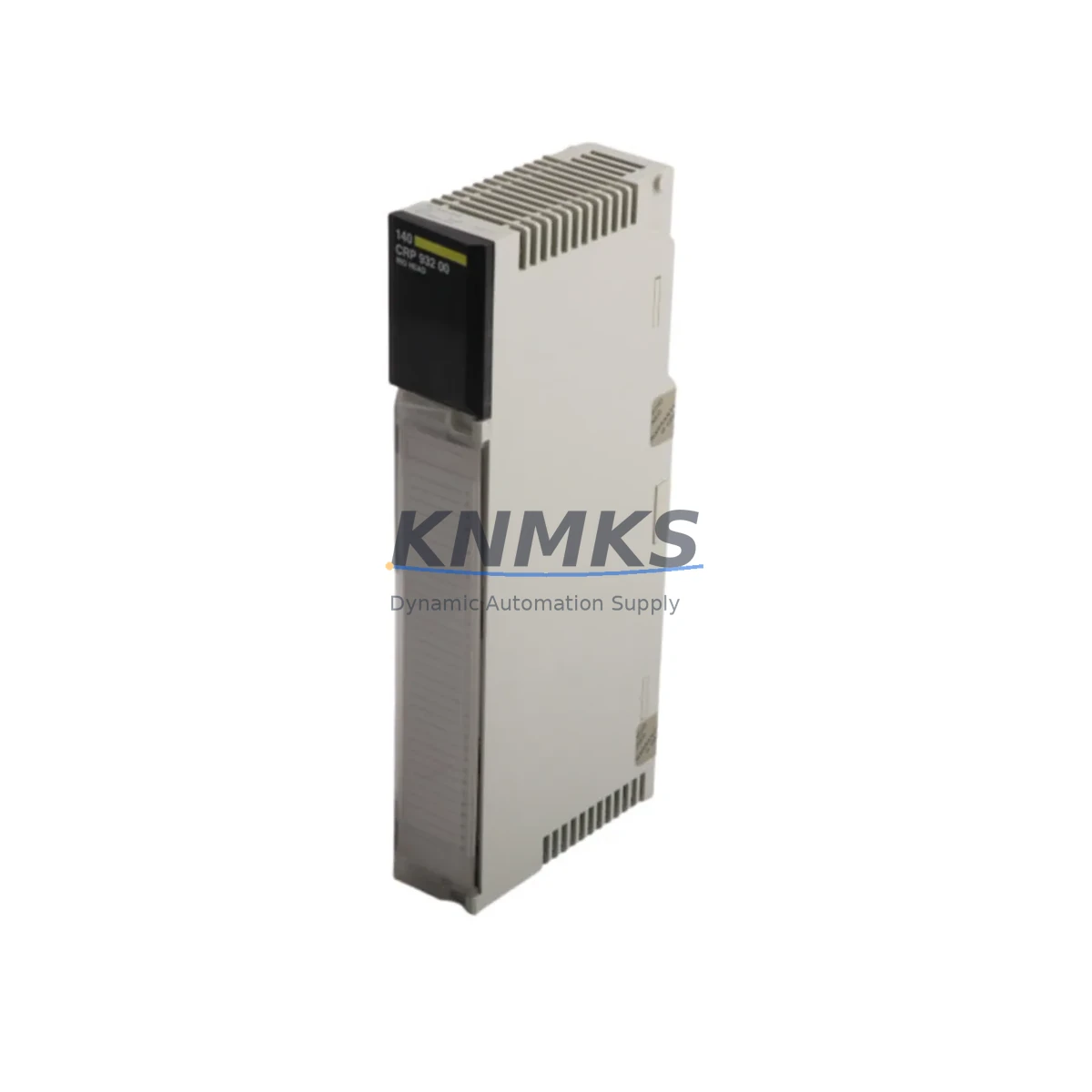

Schneider 140CRP93200 Migration-Ready RIO Head for Quantum

Overview

Schneider 140CRP93200 Migration-Ready RIO Head for Quantum: Legacy System Migration and Compatible Upgrade

The Schneider Electric 140CRP93200 is a Modicon Quantum Remote I/O (RIO) Head Module engineered for distributed I/O communication across Modbus Plus networks. As legacy Quantum platforms approach end-of-life and spare part availability tightens, the 140CRP93200 remains a critical component for engineers managing aging control architectures, executing phased retrofits, or maintaining production continuity without full system replacement. This module serves as a direct, wiring-compatible replacement for failed or obsolete RIO head units in existing Quantum racks, enabling facilities to extend operational life while planning longer-term migration to modern platforms such as the Modicon M580 or Modicon M340.

For plants operating distributed I/O drops across large process areas, the 140CRP93200 provides the Modbus Plus coaxial interface required to maintain communication between the Quantum CPU — such as the 140CPU65160 or 140CPU67160 — and remote I/O racks housing analog and digital modules. Replacing a failed RIO head with a pre-tested 140CRP93200 eliminates the need to rewire terminal blocks, reconfigure module addresses, or modify PLC logic, provided the replacement unit is installed in the same rack slot and the Modbus Plus node address is correctly set via the rotary switches on the module face.

Before installation, engineers should verify the power supply capacity of the remote rack — typically a 140CPS11420 or 140CPS21400 power supply — to confirm it can support the 140CRP93200 alongside the installed I/O modules. Backplane slot compatibility within the Quantum rack must also be confirmed, as the RIO head occupies a dedicated slot and communicates via the internal backplane bus. If the existing rack is a 140XBP01600 or 140XBP00600 chassis, slot assignments and module addressing should be reviewed against the original hardware configuration file before powering up the replacement unit.

Program compatibility is a key concern during any RIO head replacement. Because the 140CRP93200 operates transparently at the I/O communication layer, Unity Pro or Concept software projects do not require modification when replacing a like-for-like unit. However, if the migration involves transitioning from an older 140CRP93100 or a different RIO head variant, engineers must confirm that the I/O map, module addressing, and Modbus Plus node assignments remain consistent. HMI screens connected via Vijeo Designer or FactoryLink referencing specific I/O addresses should be validated post-replacement to ensure display accuracy.

Communication link integrity is essential. The Modbus Plus coaxial cable termination at the 140CRP93200 must use the correct 75-ohm BNC terminator at each end of the segment. Cable continuity, node addressing, and network topology should be verified using the Modbus Plus Network Analyzer or equivalent diagnostic tool before resuming production. If the site is transitioning from Modbus Plus to Ethernet-based I/O as part of a broader migration, the 140CRP93200 can remain in service during the transition period while new Ethernet RIO heads — such as those used in the Quantum EIO architecture — are commissioned in parallel drops.

All 140CRP93200 units supplied by KNMKS are pre-shipment tested under simulated Modbus Plus network conditions, verifying communication handshake, I/O data exchange, and module self-diagnostics prior to dispatch. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained for rapid dispatch to minimize unplanned downtime during emergency replacements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 140CRP93200 into an existing Quantum architecture requires a structured pre-installation review. Begin by documenting the current rack layout, including the slot position of the existing RIO head, the I/O modules installed in adjacent slots, and the power budget of the rack power supply. If the rack uses a 140CPS11420 single-slot power supply, confirm that total module current draw — including the 140CRP93200 — does not exceed the rated output. For high-density racks with multiple analog modules such as the 140ACI04000 or 140ACO13000, a power audit is recommended before proceeding.

The Modbus Plus network segment connected to the 140CRP93200 should be inspected for cable condition, connector integrity, and correct termination. Aging coaxial cable or corroded BNC connectors are a common source of intermittent communication faults that can be misdiagnosed as module failure. Replacing the RIO head without addressing cable issues will not resolve network instability. A Modbus Plus tap and drop cable assembly should be available on-site during commissioning.

For sites planning a phased migration from Modbus Plus to Ethernet-based I/O, the 140CRP93200 can coexist with Ethernet RIO heads in a hybrid Quantum architecture during the transition. New I/O drops can be commissioned using Ethernet-based head modules while existing Modbus Plus drops — served by the 140CRP93200 — remain in service. This approach allows production to continue without a full cutover, reducing migration risk and enabling incremental validation of the new I/O infrastructure. A 140NOE77101 Ethernet communication module installed in the Quantum CPU rack can support parallel network management during this period.

If the retrofit involves replacing a failed RIO head in a remote rack that also houses a 140CRP93200 alongside digital I/O modules such as the 140DDI35300 or 140DDO35300, the I/O module configuration in the PLC project should be exported and archived before any hardware changes. This ensures that the original I/O map can be restored quickly if the replacement process introduces unexpected addressing conflicts. A programming cable connected to the CPU — or remote access via a 140NOE77101 — allows real-time monitoring of I/O status during commissioning without requiring physical presence at the CPU rack.

Downtime Control During System Migration

Minimizing unplanned downtime during a 140CRP93200 replacement requires preparation before the maintenance window begins. The replacement unit should be on-site and pre-tested before the existing module is removed. Node address settings should be recorded from the failed unit and replicated on the replacement before installation. If the Modbus Plus network serves multiple remote drops, the impact of taking one drop offline should be assessed against the process control logic — some control loops may need to be placed in manual mode during the replacement to prevent process upsets.

Once the replacement 140CRP93200 is installed and powered, the Modbus Plus network should be monitored for successful node registration before returning I/O to automatic control. Unity Pro or Concept diagnostics can confirm that the remote rack is communicating correctly and that all I/O modules in the rack are reporting expected status. HMI screens should be checked for correct data display before releasing the system to operations. The entire replacement process — from module removal to confirmed I/O communication — can typically be completed within a planned two-hour maintenance window when the replacement unit is pre-tested and node addressing is prepared in advance.

For sites with no spare 140CRP93200 on hand, KNMKS maintains in-stock inventory for rapid dispatch, with same-day shipping available for orders placed before the daily cutoff. Emergency replacement support is available via [email protected] or +86 18359268345. All units are dispatched with pre-shipment test documentation confirming communication functionality and module self-diagnostic status.

Retrofit Support FAQ

Q: Is the 140CRP93200 a direct replacement for the 140CRP93100?
A: The 140CRP93200 and 140CRP93100 are both Modicon Quantum Modbus Plus RIO Head Modules, but they differ in firmware version and minor hardware revisions. In most applications, the 140CRP93200 can replace the 140CRP93100 in the same rack slot with the same node address settings. However, engineers should verify compatibility against the specific Quantum CPU firmware version in use and consult the Schneider Electric hardware compatibility matrix for their platform revision before committing to the swap.

Q: What pre-shipment testing is performed on the 140CRP93200?
A: Each unit supplied by KNMKS undergoes functional testing under simulated Modbus Plus network conditions, including communication handshake verification, I/O data exchange confirmation, and module self-diagnostic checks. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Do I need to modify my Unity Pro or Concept project when replacing the RIO head?
A: For a like-for-like replacement of the same model in the same rack slot with the same node address, no program modification is required. The PLC will recognize the replacement module using the existing hardware configuration. If the replacement involves a different model variant or a change in rack slot position, the hardware configuration in the PLC project must be updated and re-downloaded to the CPU.

Q: What is the lead time and support terms for the 140CRP93200?
A: KNMKS maintains in-stock inventory of the 140CRP93200 for immediate dispatch. Standard lead time is 1–3 business days for international shipments, subject to destination and logistics carrier. All units carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Contact [email protected] or +86 18359268345 for stock confirmation and shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Schneider Electric
Assorted Brands

Model / Series

140CRP93200
Assorted Series

Product Family

I/O Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

I/O range

Digital, analog and remote I/O modules

Common needs

Channel count, signal and bus type

Project support

PLC expansion and distributed control

Inquiry Support

• Digital and analog signal matching
• Remote station and rack expansion support
• Spare module inquiry for downtime recovery

What to Send Us

• Brand and exact model number: Schneider Electric 140CRP93200
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
