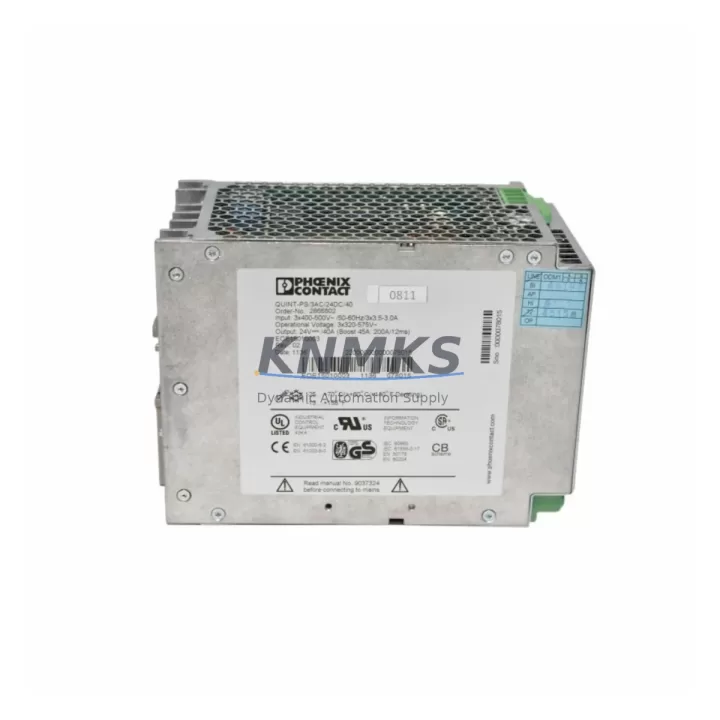

The Phoenix Contact 2866802 — model QUINT-PS/3AC/24DC/40 — is a high-capacity three-phase DIN-rail power supply delivering 24VDC at 40A continuous output. Designed for demanding industrial environments, this unit is a critical backbone component in PLC control cabinets, distributed control systems, and factory automation panels. Sourced as an original spare, the 2866802 is stocked specifically to support maintenance engineers and procurement teams who require fast, reliable replacement of aging or failed PSUs without compromising system uptime.

In high-availability production environments, an unplanned power supply failure can cascade into full line stoppages. The QUINT-PS series is engineered with active power boost capability — delivering up to 200% rated current for 5 seconds to reliably start heavy inductive loads — and integrated SFB (Selective Fuse Breaking) technology to selectively blow downstream fuses without tripping the entire supply rail. Stocking the 2866802 as a ready-to-install spare eliminates the lead time risk associated with sourcing from OEM channels during emergency shutdowns.

Maintenance engineers working on QUINT-PS-based control cabinets should treat the 2866802 replacement as part of a broader cabinet health review. During any scheduled or emergency PSU swap, it is best practice to simultaneously inspect the 24VDC bus bar connections, terminal block torque values, and downstream load distribution. Verifying the integrity of adjacent components — including the QUINT-BUFFER/24DC/40 buffer module if installed, and any QUINT-DIODE redundancy modules sharing the same DC bus — ensures the replacement PSU operates within its rated parameters from first power-on.

For procurement engineers managing multi-site spare parts inventories, the 2866802 represents a high-priority stocking item for any facility running Phoenix Contact QUINT-PS infrastructure. Its 3-phase input (340–550VAC) makes it suitable for both European and Asian industrial grid standards, and its DIN-rail form factor ensures drop-in compatibility with existing cabinet layouts. All units are tested prior to shipment and covered by a support terms confirmed by quotation, providing procurement teams with documented quality assurance for audit and maintenance records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 2866802 in a live control cabinet, a structured inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure the new unit operates within specification. Begin by verifying the three-phase input fusing — typically 10A gG fuses per phase — and confirm that the upstream circuit breaker rating matches the PSU’s inrush current profile. Inspect all 24VDC output terminal connections for oxidation, loose torque, or thermal discoloration, which can indicate sustained overload conditions that may have contributed to the original failure.

Check the downstream load distribution across the 24VDC bus. If the cabinet includes a QUINT-BUFFER/24DC/40 buffer module, verify its capacitor health and charge/discharge cycle count. For redundant power architectures, inspect any QUINT-DIODE/40AC/2X20/1X40 diode modules to confirm they are not masking a failed parallel PSU. Review the status of 24VDC relay coils — particularly Phoenix Contact PLC-RSC or Weidmüller relay modules — as coil inrush spikes from multiple simultaneous relay actuations can stress the PSU output stage over time.

For cabinets integrating Phoenix Contact ILC or RFC series PLCs, confirm that the 24VDC logic supply rail is stable post-replacement using a calibrated multimeter before re-enabling the PLC CPU. If the cabinet includes PROFIBUS or PROFINET communication modules, verify that the communication power supply (typically a separate 24VDC rail) is within tolerance, as voltage sag during PSU startup can cause communication timeouts and require a full network re-initialization. Signal isolators and analog I/O modules — such as the MACX MCR series — should also be checked for correct output after the PSU swap, as they are sensitive to supply voltage transients during power cycling.

Annual maintenance checklists for QUINT-PS-based cabinets should include: input fuse continuity check, output voltage calibration verification, terminal block re-torque, fan vent cleaning (if applicable), and a functional test of the SFB selective fuse-breaking feature using a controlled short-circuit load. Documenting these checks against the 2866802 serial number supports support requests and provides traceability for ISO-compliant maintenance programs.

Site Replacement Workflow

Step 1 — Isolation: De-energize the cabinet via the upstream main isolator. Confirm LOTO (Lockout/Tagout) procedure is complete. Verify zero voltage on all three input phases using a CAT III rated multimeter.

Step 2 — Documentation: Photograph the existing wiring layout, terminal assignments, and DIN-rail position of the failed 2866802 before disconnection. Record the output voltage setting from the adjustment potentiometer.

Step 3 — Removal: Disconnect the three-phase input terminals (L1, L2, L3, PE) and the 24VDC output terminals (+, –). Release the DIN-rail locking tab and slide the unit free.

Step 4 — Installation: Clip the replacement 2866802 onto the DIN rail. Reconnect input and output terminals per the documented layout. Set the output voltage potentiometer to match the recorded value (typically 24.0–24.5VDC for PLC logic supplies).

Step 5 — Commissioning: Re-energize the cabinet. Measure output voltage under no-load, then under full load. Confirm the green OK LED is illuminated and no fault signals are present on the connected PLC or DCS. Log the replacement in the cabinet maintenance record with date, technician ID, and new unit serial number.

This workflow supports direct replacement of legacy QUINT-PS/3AC/24DC/40 units with the current 2866802 without requiring cabinet rewiring or DIN-rail modification, minimizing downtime to under 30 minutes for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 2866802 a direct drop-in replacement for older QUINT-PS/3AC/24DC/40 units?
Yes. The 2866802 maintains the same DIN-rail footprint, terminal layout, and electrical ratings as previous QUINT-PS/3AC/24DC/40 production runs. No cabinet modification is required for direct replacement.

Q2: What testing is performed before shipment?
Each unit undergoes output voltage verification, load regulation testing, and visual inspection for physical damage before dispatch. A test record is available upon request for quality audit purposes.

Q3: How long is the support terms, and what does it cover?
All 2866802 units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact.

Q4: Can long-term supply be arranged for multi-site maintenance programs?
Yes. Blanket purchase orders and scheduled delivery agreements are available for procurement teams managing multi-site QUINT-PS spare parts inventories. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stocking options.
