MTL MTL5541 Maintenance-Proven Spare Part for Factory Uptime

Overview

MTL MTL5541 Maintenance-Proven Spare Part for Factory Uptime

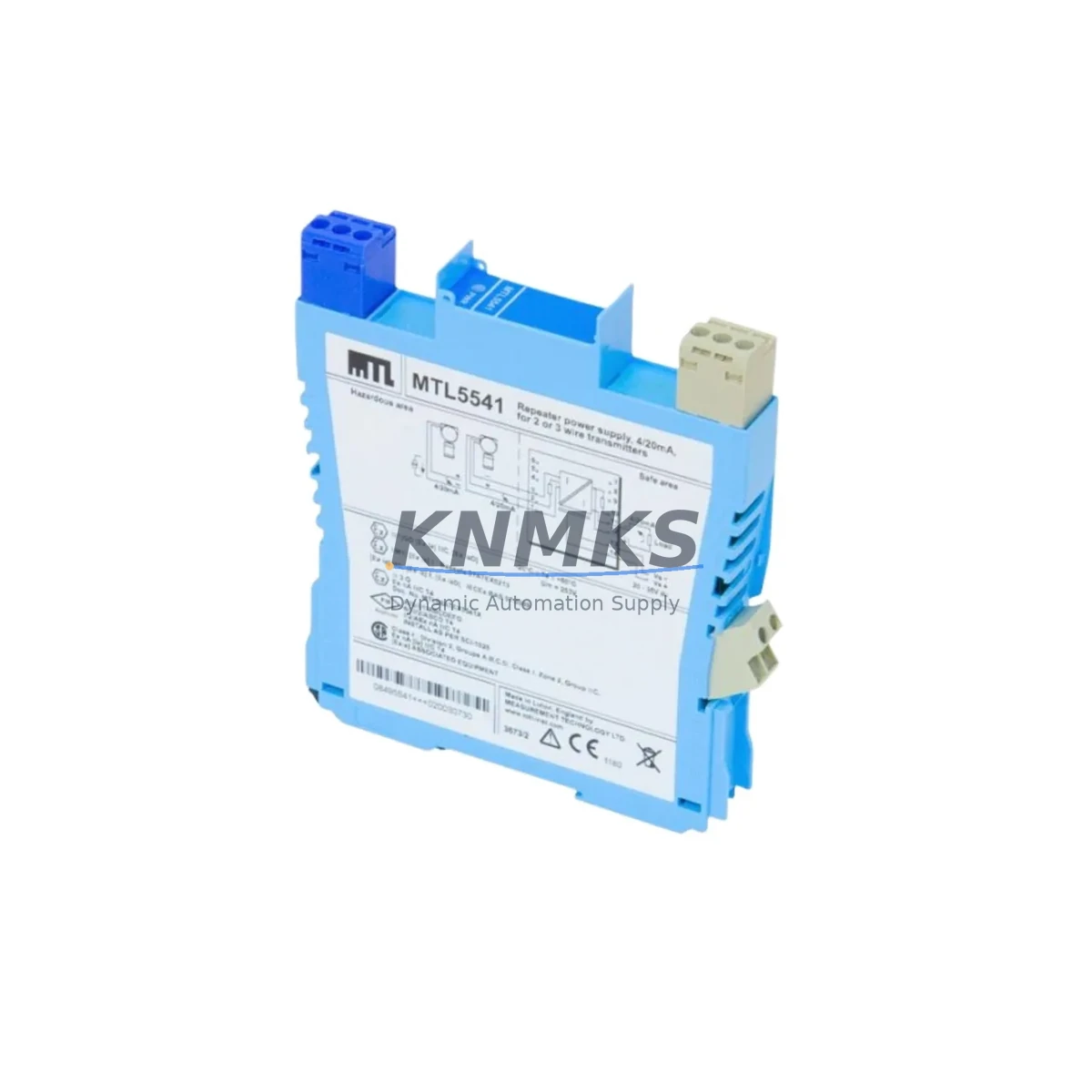

The MTL5541 is an intrinsically safe (IS) repeater power supply designed for the MTL5000 Series, widely deployed in hazardous area process control loops across petrochemical plants, offshore platforms, power generation facilities, and water treatment installations. As a field-proven component in 4–20 mA two-wire transmitter loops, the MTL5541 provides galvanic isolation and loop power to field instruments located in Zone 0, Zone 1, and Zone 2 hazardous areas, while maintaining safe energy limits in accordance with IEC 60079-11 and ATEX directives.

For maintenance engineers managing aging DCS and PLC infrastructure, the MTL5541 represents a critical spare that directly impacts loop availability and process uptime. A single failed repeater power supply can render an entire measurement loop blind, triggering nuisance alarms, forcing manual sampling, or causing unplanned shutdowns. Stocking a validated MTL5541 replacement ensures that loop restoration can be completed within a single maintenance window — without waiting on extended lead times from OEM channels.

Our MTL5541 units are sourced from verified supply chains, individually inspected, and subjected to pre-shipment functional testing to confirm output voltage, current limiting behavior, and isolation integrity before dispatch. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional performance, giving procurement engineers confidence in long-term spare parts planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing an MTL5541 in the field, a disciplined maintenance engineer will treat the event as an opportunity to audit the surrounding loop and cabinet infrastructure. The MTL5000 Series backplane and associated DIN rail assembly should be inspected for corrosion, loose terminal connections, and signs of moisture ingress — particularly in installations near cooling towers, wash-down areas, or coastal environments.

The 24 V DC loop supply feeding the MTL5541 should be verified at the power distribution terminal block. If the plant uses a dedicated IS power supply unit such as the MTL5995 or a compatible Eaton MTL DIN rail PSU, confirm that output voltage is within specification and that the supply has adequate current headroom for all active loops on the same rail. A degraded or overloaded power supply is a common root cause of intermittent loop faults that are incorrectly attributed to the repeater module itself.

Downstream of the MTL5541, the field transmitter wiring should be checked for insulation resistance and continuity. In older installations, cable sheath degradation or junction box seal failures can introduce leakage currents that compromise IS certification and cause erratic 4–20 mA readings. Zener barriers or galvanic isolators installed in parallel signal paths — such as the MTL5011 or MTL5021 — should also be inspected and replaced if their protective elements show signs of degradation.

For sites running Honeywell, Yokogawa, or Emerson DeltaV DCS systems, the AI (Analog Input) card receiving the 4–20 mA signal from the MTL5541 output should be confirmed as functional. A faulty AI channel can mimic a failed repeater, leading to unnecessary module swaps. Where HART communication is used over the same loop, verify that the HART multiplexer or modem connected to the safe-area side of the MTL5541 is correctly terminated and that HART pass-through is not blocked by incorrect load resistance.

Procurement engineers building annual MRO spare parts kits for MTL5000-based systems should consider stocking the MTL5541 alongside related modules such as the MTL5544 (4–20 mA with HART), MTL5546 (switch/proximity detector interface), and MTL5582 (solenoid driver) to cover the most common loop types in a single cabinet. Fuse holders and DIN rail terminal blocks rated for IS applications should also be included in the kit, as these consumables are frequently overlooked until a fault occurs.

Site Replacement Workflow

Replacing an MTL5541 on a live plant requires coordination between the maintenance engineer, the control room operator, and — where required by site safety procedures — the permit-to-work system. The following workflow minimizes loop downtime and ensures system compatibility is maintained throughout the replacement process.

Step 1 — Isolation and Loop Inhibit: Notify the DCS operator to inhibit the affected loop alarm and place the AI channel in manual mode. This prevents nuisance trips during the replacement and allows the operator to hold the last good process value.

Step 2 — Module Removal: De-energize the MTL5000 backplane segment if site procedures require it, or confirm that the hot-swap capability of the MTL5000 Series is approved for use at this installation. Remove the faulty MTL5541 by releasing the DIN rail locking tab and disconnecting the field and safe-area wiring terminals. Label all wires before disconnection.

Step 3 — Visual Inspection: Inspect the backplane connector, terminal blocks, and adjacent modules for signs of overheating, arcing, or contamination. Clean the DIN rail mounting area before installing the replacement unit.

Step 4 — Installation and Verification: Install the replacement MTL5541, reconnect all terminals to the labeled positions, and restore power. Confirm that the loop current reads correctly at the DCS AI channel — typically 4 mA at zero-scale and 20 mA at full-scale. Use a HART communicator or loop calibrator to verify signal integrity if the transmitter supports it.

Step 5 — Return to Service: Remove the loop inhibit, return the AI channel to automatic mode, and confirm with the control room operator that the process variable is reading correctly. Update the maintenance management system (CMMS) with the replacement record, including the new unit serial number and date of installation.

This workflow applies equally to planned annual maintenance replacements and emergency fault-response scenarios. Having a pre-tested MTL5541 spare on the shelf reduces the total loop restoration time from days to under two hours in most installations.

Spare Parts Support FAQ

Q1: Is this MTL5541 a direct drop-in replacement for the original Eaton MTL unit?
Yes. The MTL5541 supplied by KNMKS is functionally equivalent to the original Eaton MTL production unit. It is compatible with the MTL5000 Series backplane and DIN rail mounting system, and maintains the same electrical interface for field and safe-area wiring. No firmware or configuration changes are required at the DCS level.

Q2: What pre-shipment testing is performed on each MTL5541?
Each unit undergoes functional output verification, loop current pass-through testing, and isolation resistance measurement before dispatch. Units that do not meet specification are quarantined and not shipped. A test record is available on request for quality-critical installations.

Q3: What is the support terms coverage and how is it claimed?
All MTL5541 units carry a support terms confirmed by quotation from the date of shipment. Support requests are handled directly by KNMKS. In the event of a confirmed manufacturing defect or functional failure within the confirmed support period, we will arrange replacement or credit at no additional cost. Contact [email protected] with the order reference and a description of the fault.

Q4: Can KNMKS support long-term supply for multi-site MRO programs?
Yes. KNMKS maintains stock of MTL5000 Series modules to support planned maintenance programs, annual turnaround kits, and emergency call-off orders. For multi-site procurement agreements or volume pricing on MTL5541 and related modules, contact our technical sales team at [email protected] or +86 18359268345 to discuss a supply framework agreement.
