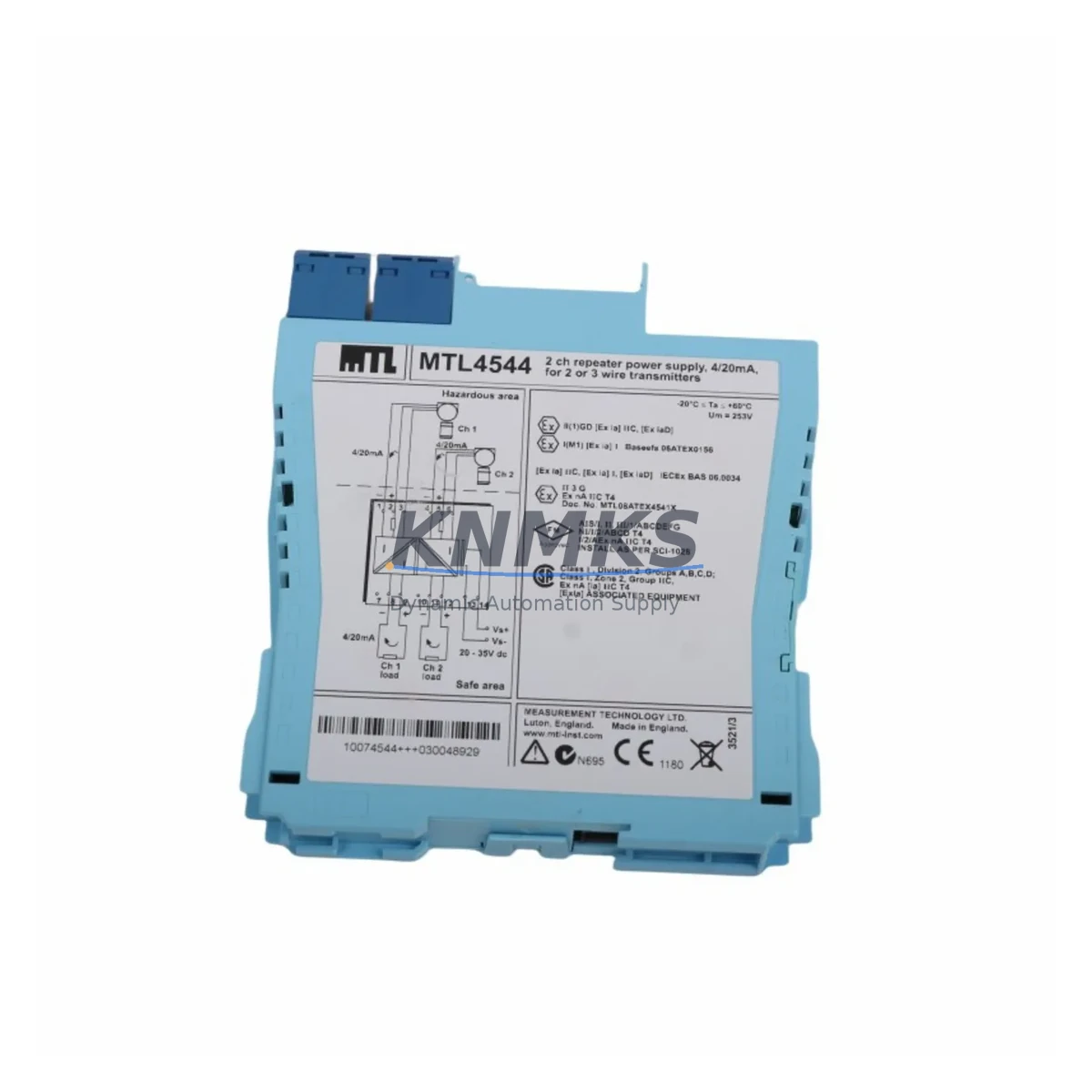

The MTL Instruments MTL4544 is an original repeater power supply and IS (intrinsically safe) barrier designed for the MTL4500 Series — one of the most widely deployed Zener barrier platforms in hazardous-area process automation. As a maintenance-proven spare part, the MTL4544 is engineered to sustain continuous factory operation in petrochemical, oil & gas, pharmaceutical, and chemical processing environments where unplanned downtime carries significant operational and safety risk.

For maintenance engineers managing aging DCS or PLC control systems, holding a verified MTL4544 spare in the cabinet is a fundamental risk-reduction strategy. The MTL4500 Series barriers are commonly installed in large multi-loop marshalling cabinets, and a single failed barrier can interrupt a critical field instrument loop — triggering process shutdowns, false alarms, or loss of measurement integrity. Sourcing a pre-tested, original MTL4544 replacement from a reliable supplier with a support terms confirmed by quotation ensures that when a fault is isolated, the swap can be completed within minutes rather than days.

This unit is supplied as a direct original spare, tested before shipment, and backed by long-term stock availability to support both emergency replacement and planned annual maintenance programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a control cabinet inspection or responds to a field instrument fault, the MTL4544 rarely fails in isolation. The MTL4500 Series backplane architecture means that adjacent barriers, shared power rails, and connected field wiring all warrant simultaneous inspection. A structured maintenance approach significantly reduces the risk of repeat callouts and secondary failures.

During a planned replacement of the MTL4544, engineers should verify the condition of the MTL4500 Series DIN rail backplane itself — connector corrosion or mechanical damage to the backplane can cause intermittent loop faults that persist even after a barrier swap. The 24 V DC DIN rail power supply feeding the barrier rail should be load-tested; an aging or undersized power supply is a common root cause of multiple barrier faults appearing simultaneously.

On the field side, the 2-wire 4–20 mA transmitter connected through the MTL4544 should be loop-tested after replacement to confirm signal integrity. If the transmitter is located in a Zone 1 hazardous area, the field cable and cable gland sealing should be inspected for moisture ingress — a frequent cause of barrier degradation in outdoor or coastal installations.

At the safe-area termination, the analog input card of the connected DCS or PLC should be verified for correct channel configuration and input impedance. In systems using Yokogawa CENTUM VP, Honeywell Experion, or Siemens S7-300/400 analog I/O modules, a misconfigured input range can mask a barrier fault or generate spurious alarms after a replacement. Checking the I/O channel diagnostic status in the DCS historian is a recommended post-replacement step.

For cabinets with mixed barrier types, it is good practice to also inspect neighboring MTL4541 (single-channel repeater) and MTL4546 (switch/proximity detector) units on the same backplane segment, as shared power rail degradation can affect multiple channels. Additionally, signal isolators or loop-powered signal conditioners installed downstream of the barrier should be checked for correct output scaling, particularly if the MTL4544 replacement follows a period of signal drift complaints from the control room.

Finally, panel fuses or miniature circuit breakers protecting the 24 V DC barrier supply rail should be inspected and replaced if there is any evidence of thermal discoloration or contact resistance increase — a precaution that prevents nuisance trips during the post-maintenance commissioning test.

Site Replacement Workflow

The MTL4544 is designed for tool-free removal and insertion on the MTL4500 Series backplane, making site replacement straightforward even under time pressure. The following workflow is recommended for maintenance engineers performing an emergency or planned swap:

Step 1 — Isolate and document: Before removal, record the existing loop current reading at the DCS analog input. This baseline confirms whether the fault is in the barrier or the field instrument. Notify the control room operator to place the affected loop in manual mode.

Step 2 — Remove the faulty unit: Slide the MTL4544 out of the backplane connector. No field wiring disconnection is required — the backplane carries all connections. Inspect the backplane connector pins for corrosion or mechanical damage before inserting the replacement.

Step 3 — Insert the replacement MTL4544: Slide the new unit firmly into the backplane slot until the locking tab engages. Confirm the unit LED status indicator shows correct power-on state.

Step 4 — Loop verification: Return the DCS loop to automatic mode and confirm the 4–20 mA signal is within the expected range. Compare against the pre-fault baseline. If signal deviation persists, the fault source is in the field instrument or wiring, not the barrier.

Step 5 — Documentation and stock replenishment: Log the replacement in the CMMS (Computerized Maintenance Management System) and initiate a purchase order to replenish the spare. Maintaining a minimum of one MTL4544 per 20 installed units is a widely adopted inventory strategy for high-criticality process loops.

This workflow minimizes mean time to repair (MTTR) and ensures system compatibility is maintained without requiring re-engineering or reconfiguration of the existing DCS loop.

Spare Parts Support FAQ

Q1: Is the MTL4544 a direct drop-in replacement for an existing MTL4500 Series installation?
Yes. The MTL4544 is fully compatible with the MTL4500 Series DIN rail backplane and requires no rewiring or reconfiguration. It is a plug-in replacement that restores loop function immediately upon insertion, provided the backplane and field wiring are in good condition.

Q2: What is the support terms coverage and how is it supported?
All MTL4544 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Each unit is tested before dispatch. In the event of a support terms claim, KNMKS provides replacement or repair support. Contact [email protected] with your order reference and fault description.

Q3: Can KNMKS support long-term or blanket purchase orders for MTL4544 spares?
Yes. KNMKS maintains stock of MTL4500 Series barriers to support both emergency single-unit orders and annual maintenance blanket orders. Long-term supply agreements are available for customers managing large installed bases. Contact +86 18359268345 to discuss volume pricing and lead time commitments.

Q4: How do I verify compatibility before ordering if my installed unit has a different revision suffix?
MTL4544 revision suffixes (e.g., MTL4544A, MTL4544B) are functionally interchangeable on the same backplane generation. If you are uncertain about compatibility with your specific backplane revision or DCS interface card, send your existing unit’s label photograph or datasheet reference to [email protected] and our technical team will confirm compatibility before shipment.
