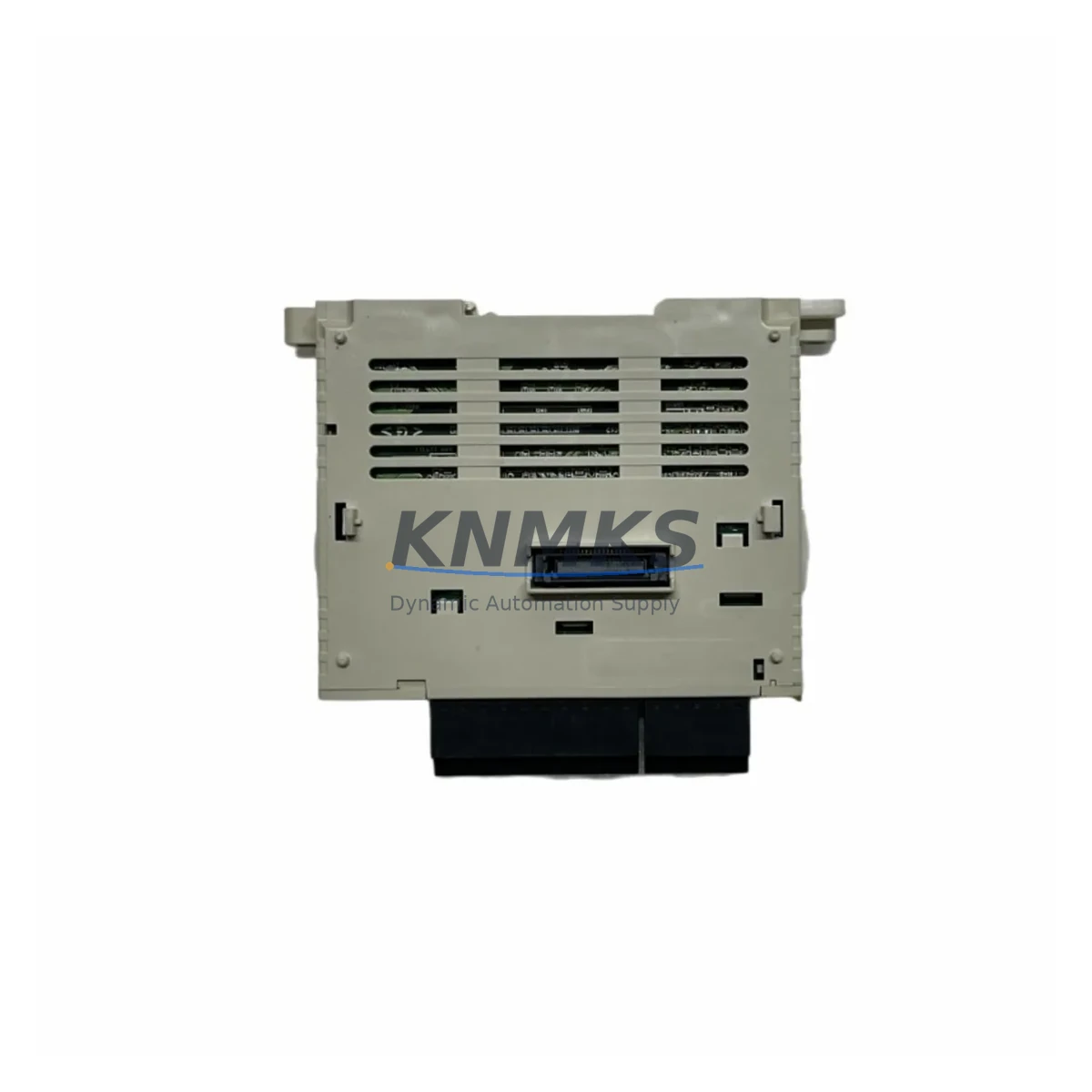

Mitsubishi FX3U-485ADP-MB RS-485 Modbus Legacy Retrofit

Overview

Mitsubishi FX3U-485ADP-MB RS-485 Modbus Legacy Retrofit: Migration-Ready Communication for Aging Control Systems

The Mitsubishi FX3U-485ADP-MB is a dedicated RS-485 Modbus RTU communication adapter designed for the FX3U and FX3UC series of compact PLCs. As legacy automation lines face increasing pressure from discontinued components, aging fieldbus infrastructure, and obsolete HMI communication links, the FX3U-485ADP-MB provides a direct, terminal-compatible retrofit path that preserves existing program logic while restoring reliable serial communication to the control system.

This module mounts directly to the left-side expansion port of the FX3U or FX3UC main unit — no additional adapter board or backplane slot is required. The compact form factor ensures it fits within existing control cabinet layouts without requiring panel modifications or additional DIN rail space. For maintenance engineers managing multi-line facilities with mixed-generation Mitsubishi FX-series controllers, this is a critical stocking item that eliminates the need for full PLC replacement when communication hardware fails.

The FX3U-485ADP-MB supports Modbus RTU master and slave operation, enabling direct integration with variable frequency drives, servo amplifiers, temperature controllers, and third-party field devices that communicate over RS-485. In retrofit scenarios where the original FX2N-485-BD or FX3U-232ADP communication board has reached end-of-life or is no longer available through standard distribution channels, the FX3U-485ADP-MB provides a functionally equivalent replacement with compatible terminal pinout and parameter structure.

Before installation, engineers should verify the following during retrofit planning: available 5 VDC power budget from the FX3U main unit (the adapter draws power from the PLC’s internal bus), terminal block wiring polarity for SDA, SDB, SG, and FG lines, communication parameter settings stored in special data registers D8120 and D8400, and the Modbus station address configuration in the existing ladder program. If the control system also includes an FX3U-ENET or FX3U-232ADP on the same expansion bus, the total power consumption of all left-side adapters must remain within the FX3U’s 5 VDC expansion bus limit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FX3U-485ADP-MB into a legacy control system requires a structured pre-installation review. In most retrofit scenarios, the communication adapter is being replaced because the original unit has failed, is no longer available, or the control system is being upgraded from an FX2N-based architecture to FX3U while retaining the existing RS-485 field network.

Begin by auditing the existing wiring harness. The RS-485 bus connecting the FX3U to downstream devices — such as Mitsubishi FR-A700 or FR-E700 series variable frequency drives, MR-J4 servo amplifiers, or third-party Modbus RTU temperature controllers — must be verified for correct termination resistance (typically 110 Ω at each end of the bus) and proper shielding continuity. Incorrect termination is a common source of communication errors after adapter replacement.

If the control cabinet also houses an FX3U-32MT or FX3U-64MT main unit alongside an FX3U-4AD analog input module or FX3U-4DA analog output module, confirm that the total left-side expansion bus current draw does not exceed the PLC’s rated capacity. Adding the FX3U-485ADP-MB to a system already running an FX3U-ENET Ethernet adapter and an FX3U-232ADP RS-232 adapter requires careful power budget calculation before commissioning.

For systems migrating from FX2N to FX3U, the ladder program must be reviewed for any use of RS instruction blocks or FROM/TO instructions that reference the original communication board’s buffer memory. The FX3U-485ADP-MB uses a different special register mapping compared to the FX2N-485-BD, and program modifications may be required in GX Works2 or GX Developer before the retrofit is complete. HMI screens built in GT Designer3 for GOT2000 series panels should also be verified to confirm that the communication driver and station number assignments remain consistent after the adapter swap.

Pre-shipment testing is performed on every unit prior to dispatch. Each FX3U-485ADP-MB is verified for correct RS-485 signal output, Modbus RTU frame integrity, and physical connector condition. Units are shipped with original-specification terminal blocks and include a support terms confirmed by quotation covering manufacturing defects from the date of delivery.

Downtime Control During System Migration

Minimizing unplanned downtime during a communication adapter replacement is a primary concern for maintenance teams operating continuous production lines. The FX3U-485ADP-MB retrofit process is designed to be completed within a single planned maintenance window, typically under two hours when the replacement unit is pre-staged and the program backup is available.

Before beginning the physical swap, back up the existing PLC program using GX Works2 or GX Developer via the USB or RS-232 programming port. This preserves all ladder logic, special register settings, and device comments without requiring access to the RS-485 port being replaced. If the system uses a GOT1000 or GOT2000 HMI panel, confirm that the HMI project file is also backed up and that the communication settings — including PLC type, station number, and baud rate — are documented.

Power down the FX3U main unit and all connected expansion modules before removing the failed adapter. The FX3U-485ADP-MB connects to the left-side expansion port using a dedicated connector that does not require tools to seat correctly, but the locking tab must be fully engaged before power is restored. After installation, restore power and verify that the RUN LED on the FX3U main unit illuminates without error codes. Check the SD and RD LEDs on the FX3U-485ADP-MB to confirm active communication with the RS-485 field network.

If communication is not immediately restored after the swap, check D8438 (communication error count) and D8439 (error code) in the PLC’s special data registers using GX Works2 online monitoring. Common post-replacement issues include mismatched baud rate settings, incorrect parity configuration, or a missing termination resistor on the RS-485 bus. These can typically be resolved within the same maintenance window without requiring additional hardware.

Retrofit Support FAQ

Q: Is the FX3U-485ADP-MB a direct replacement for the FX2N-485-BD?
A: Functionally equivalent for Modbus RTU applications, but the register mapping differs. The FX2N-485-BD uses buffer memory accessed via FROM/TO instructions, while the FX3U-485ADP-MB uses special data registers (D8400 series). Program review and modification in GX Works2 is required before commissioning.

Q: Can this adapter be used alongside other left-side expansion adapters on the FX3U?
A: Yes. The FX3U supports up to two left-side adapters. If an FX3U-232ADP or FX3U-ENET is already installed, verify that the combined 5 VDC current draw of all adapters does not exceed the FX3U main unit’s expansion bus rating. Refer to the FX3U Hardware Manual for current consumption specifications.

Q: What pre-shipment testing is performed on each unit?
A: Every FX3U-485ADP-MB is tested for RS-485 signal integrity, Modbus RTU communication function, and physical connector condition prior to dispatch. Units that do not pass functional verification are not shipped. A support terms confirmed by quotation covering manufacturing defects applies from the date of delivery.

Q: Is stock available for immediate dispatch?
A: Yes. The FX3U-485ADP-MB is maintained as a stocked item to support urgent maintenance and breakdown replacement requirements. Lead time and availability can be confirmed by contacting the sales team directly. Orders are processed and dispatched within standard business hours.
