Mitsubishi FX2N-128MR-001 Maintenance-Proven Spare Part

Overview

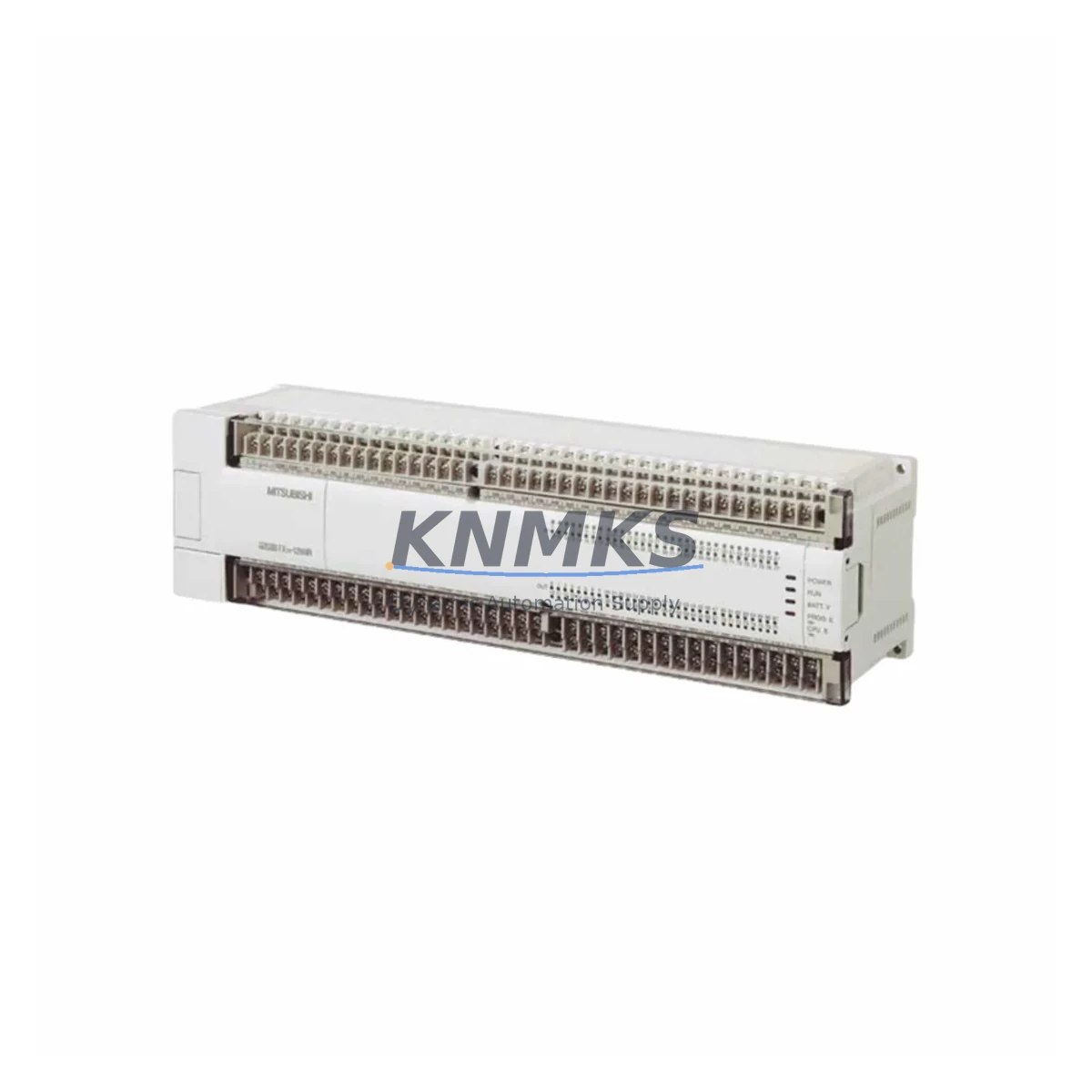

Mitsubishi FX2N-128MR-001 Maintenance-Proven Spare Part for Factory Uptime

The Mitsubishi FX2N-128MR-001 is a 128-point relay output programmable logic controller from the FX2N Series — one of Mitsubishi Electric’s most widely deployed compact PLC platforms in discrete manufacturing, material handling, packaging lines, and process automation. With 64 inputs and 64 relay outputs, this unit delivers robust I/O density in a compact DIN-rail form factor, making it a critical control node in production environments where continuous uptime is non-negotiable.

For maintenance engineers managing aging FX2N-based control systems, securing a verified, pre-tested FX2N-128MR-001 spare is the single most effective action to reduce mean time to repair (MTTR) during unplanned outages. KNMKS supplies original FX2N-128MR-001 units sourced from authorized channels, each subject to pre-shipment functional testing and backed by a support terms confirmed by quotation — ensuring your replacement unit performs to factory specification from the moment it arrives on site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing an FX2N-128MR-001 in a live production environment, a disciplined maintenance approach extends well beyond swapping the main CPU unit. The FX2N platform’s modular architecture means that adjacent components in the same control cabinet are subject to the same operational stress and aging cycles.

Begin with the power supply rail: the FX2N-1PS-5V internal power supply board and any external 24VDC supply feeding the input commons should be inspected for voltage stability and ripple before commissioning the replacement CPU. A degraded power supply is a leading cause of premature PLC failure and intermittent I/O faults that are difficult to diagnose under production pressure.

Next, audit the expansion bus. The FX2N-128MR-001 supports up to eight expansion modules connected via the right-side bus connector. Inspect the FX2N-16EX input expansion units and FX2N-16EYR relay output expansion modules for contact wear, particularly on high-cycle outputs controlling solenoids, contactors, or motor starters. Relay output contacts on heavily cycled modules should be tested for continuity and contact resistance.

Communication integrity is equally critical. If the control system uses RS-485 networking to SCADA or HMI panels, verify the FX2N-485-BD communication board — a common wear item that is often overlooked during CPU replacement. Similarly, if the system connects to a GOT1000 or GOT2000 series HMI via RS-422, confirm cable shielding and termination resistance before restarting the line.

For sites running analog process control loops, inspect any FX2N-4AD analog input modules and FX2N-4DA analog output modules for calibration drift. Analog modules in high-vibration or high-temperature environments are susceptible to offset errors that can cause setpoint deviations after a CPU swap.

Finally, review the terminal block wiring on the I/O base. Loose or corroded terminals on the 128-point I/O connector strip are a frequent source of intermittent faults following a CPU replacement. Re-torque all terminal screws to specification and inspect for insulation degradation on field wiring before energizing the replacement unit.

Procurement engineers should consider stocking a minimum of one FX2N-128MR-001 unit alongside a FX2N-32MR-001 or FX2N-64MR-001 as a partial-coverage backup for smaller FX2N nodes in the same facility. This tiered spare parts strategy ensures that a single procurement order covers multiple control points, reducing emergency sourcing lead times across the plant.

Site Replacement Workflow

Step 1 — Pre-Replacement Backup: Use GX Developer or GX Works2 to upload and save the existing ladder program, parameter file, and device comments from the outgoing FX2N-128MR-001. Store the backup on a local engineering workstation and a secondary USB drive. Confirm the program version matches the last known-good revision in your maintenance management system.

Step 2 — Power Down and Isolation: De-energize the control cabinet via the main isolator. Lock out and tag out (LOTO) per site safety procedures. Discharge any capacitive loads on the 24VDC supply rail before disconnecting the PLC.

Step 3 — Module Removal: Disconnect the I/O terminal blocks, expansion bus connector, communication board, and power supply wiring in sequence. Label all connectors if not already marked. Remove the FX2N-128MR-001 from the DIN rail by releasing the mounting clips.

Step 4 — Replacement Installation: Mount the new FX2N-128MR-001 on the DIN rail. Reconnect the expansion bus, communication board, and I/O terminal blocks in reverse order. Verify that the RUN/STOP switch is in the STOP position before applying power.

Step 5 — Program Download and Verification: Connect the programming cable and download the backed-up program using GX Developer or GX Works2. Verify all parameters, including I/O assignments, timer presets, and communication settings. Perform a forced I/O test on all 64 inputs and 64 relay outputs before returning the system to automatic mode.

Step 6 — Commissioning: Return the RUN/STOP switch to RUN. Monitor the system for the first 30 minutes of operation, checking for error codes (ERR LED), I/O faults, and communication alarms. Document the replacement in the site maintenance log with the new unit’s serial number and support terms start date.

Spare Parts Support FAQ

Q1: Is the FX2N-128MR-001 still available as a new original unit?
The FX2N Series has reached end-of-production status with Mitsubishi Electric, but original new-old-stock (NOS) and certified refurbished units remain available through specialist industrial spare parts suppliers. KNMKS maintains multi-region stock of FX2N-128MR-001 units to support emergency replacements and planned maintenance outages. Each unit is pre-shipment tested and supplied with a support terms confirmed by quotation regardless of production date.

Q2: How do I verify compatibility before ordering?
The FX2N-128MR-001 is compatible with all FX2N Series expansion modules, the FX2N-CNV-BC bus converter for FX0N/FX2 expansion, and programming software GX Developer v8.x and GX Works2. If your application uses special function modules (analog, positioning, or communication), confirm the module model numbers against the FX2N hardware manual (JY992D88101) before ordering. Contact KNMKS at [email protected] with your existing module list for a compatibility review.

Q3: What is included with the shipment and what does the support terms confirmed by quotation cover?
Each FX2N-128MR-001 is shipped with pre-shipment test documentation confirming I/O functionality and communication port integrity. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the rated specification. Support requests are processed via [email protected] with a return merchandise authorization (RMA) within 5 business days.

Q4: Can KNMKS support long-term supply agreements for FX2N spare parts?
Yes. KNMKS offers long-term supply agreements (LTSAs) for facilities managing multiple FX2N-based control systems. LTSAs include reserved stock allocation, priority dispatch for emergency orders, and fixed pricing for 12–36 month terms. This is particularly valuable for plants with planned phase-out timelines where a controlled migration to FX5U or iQ-R Series is scheduled over multiple maintenance windows. Contact +86 18359268345 to discuss LTSA terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Mitsubishi Electric
Assorted Brands

Model / Series

FX2N-128MR-001
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Mitsubishi Electric FX2N-128MR-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
