Mitsubishi A1S35B Fail-Safe 5-Slot Base for Industrial Control

Overview

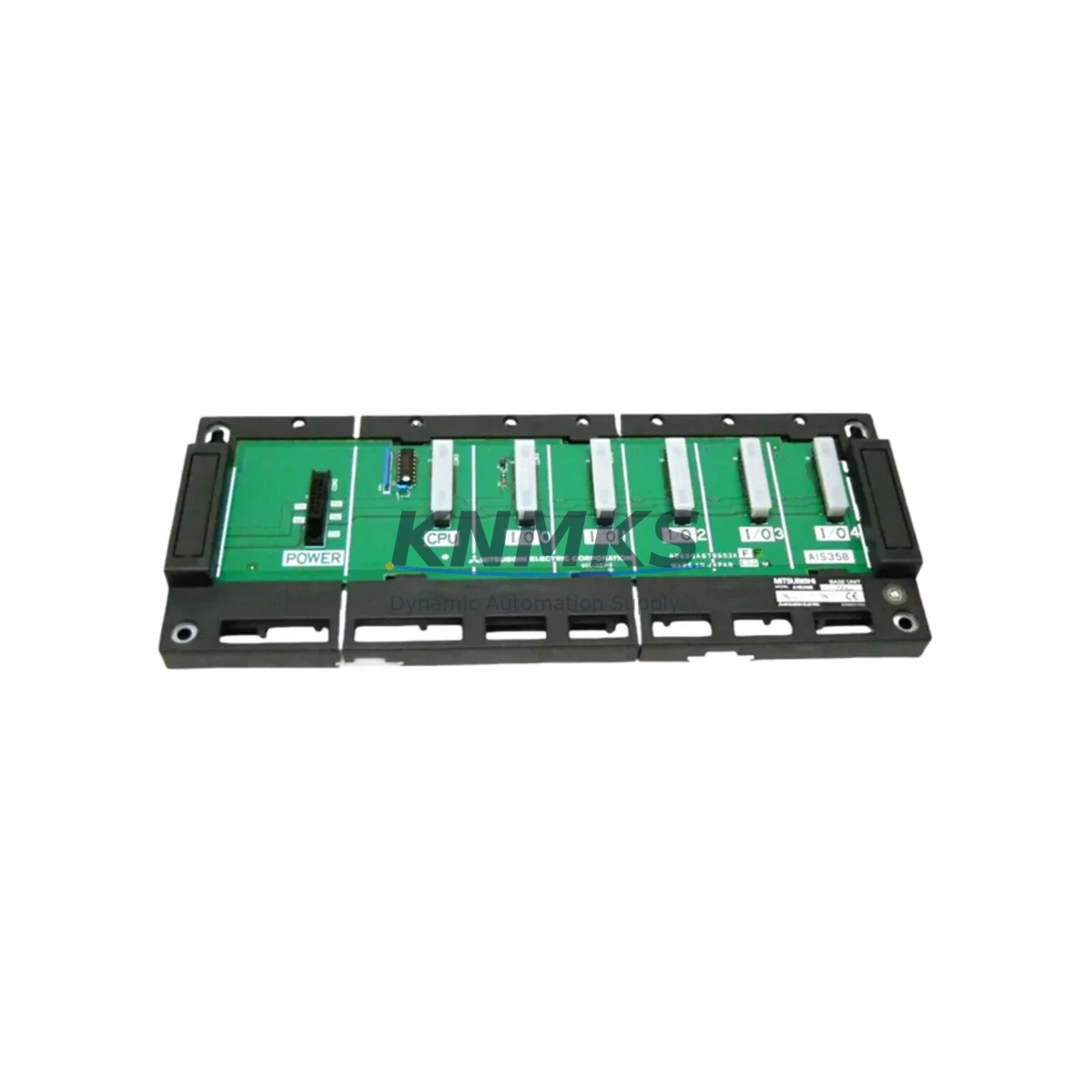

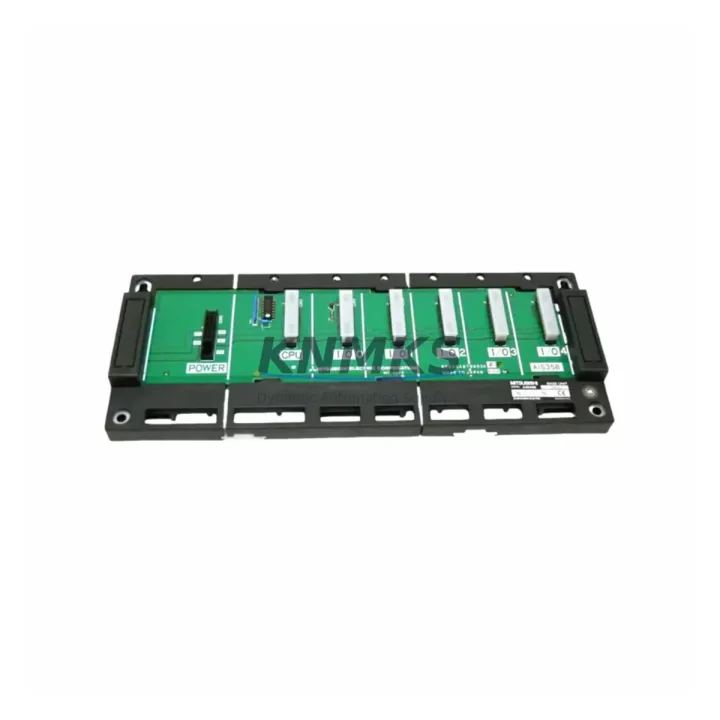

Mitsubishi A1S35B Fail-Safe 5-Slot Base for Industrial Control

The Mitsubishi A1S35B is a 5-slot base unit designed for the MELSEC-AnS series programmable logic controller platform. Built to sustain continuous operation in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and heavy manufacturing — the A1S35B delivers the structural and electrical foundation that critical control cabinets depend on. Its robust backplane architecture ensures stable module-to-module communication, minimizes signal drift across I/O and CPU modules, and maintains power rail integrity even under sustained electrical stress, high-frequency vibration, and wide thermal cycling.

In high-stakes control loops where an unplanned interruption means production loss, safety hazard, or regulatory non-compliance, the A1S35B provides the fail-safe mechanical and electrical backbone that keeps the MELSEC-AnS system online. Its slot isolation design prevents a single module fault from cascading into adjacent slots, protecting the A1S CPU module, analog I/O modules such as the A1S68AD, and communication interface modules like the A1SJ71UC24-R4 from cross-contamination of fault conditions. This architecture is especially critical in safety interlock circuits, emergency shutdown (ESD) panels, and burner management systems where false trips or missed trips carry severe consequences.

The A1S35B is rated for operation in environments with elevated electromagnetic interference (EMI), common in variable frequency drive (VFD) cabinets, high-current motor control centers, and arc furnace control rooms. Its grounded backplane structure provides a low-impedance reference plane that suppresses conducted and radiated noise, reducing the risk of communication anomalies between the CPU and peripheral modules. When paired with a dedicated power supply module such as the A1S61PN or A1S62PN, the system achieves a stable, regulated DC bus that resists input voltage fluctuations and surge transients — a frequent cause of unexpected PLC resets in facilities with weak grid infrastructure or frequent load switching.

For control cabinets operating in dusty, humid, or high-temperature enclosures, the A1S35B’s compact form factor supports efficient airflow management and simplifies the integration of cabinet cooling systems. Its standardized DIN-rail and panel-mount compatibility allows direct replacement of aging base units without rewiring the existing module complement, making it the preferred choice for maintenance teams executing scheduled outage replacements or emergency spare swaps. The unit ships pre-tested against Mitsubishi Electric’s original factory acceptance criteria, with full functional verification of backplane bus continuity, slot connector integrity, and power rail isolation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable MELSEC-AnS control cabinet is built around the A1S35B as its structural core, but its fail-safe performance depends equally on the quality of every module seated in its slots. The A1SHCPU high-performance CPU module provides the processing headroom needed for complex safety ladder logic and fast scan cycles in time-critical interlock applications. For power conditioning, the A1S62PN power supply module delivers regulated 5 VDC and 24 VDC rails with built-in overvoltage and overcurrent protection, shielding all downstream modules from grid-side disturbances including voltage sags, surges, and harmonic distortion common in heavy industrial facilities.

Analog signal integrity — a persistent challenge in high-EMI environments — is maintained by the A1S68AD analog input module, which provides 8-channel isolated analog acquisition with high common-mode rejection. For process communication, the A1SJ71UC24-R4 serial communication module enables robust RS-422/RS-485 links to field instruments, HMI panels, and SCADA gateways, maintaining data integrity even in electrically noisy cable trays. Where digital output reliability is paramount — such as in ESD valve actuation or motor starter control — the A1SY10 transistor output module provides fast, isolated switching with built-in short-circuit protection. Together, these components form a coordinated protection architecture that minimizes the risk of control interruption, signal anomaly, and unplanned shutdown across the full cabinet lifecycle.

Critical Industrial Safety Applications

The A1S35B is deployed across a broad spectrum of safety-critical industrial sectors. In petrochemical and refinery operations, it serves as the base for emergency shutdown and process interlock controllers, where continuous uptime and deterministic response to fault conditions are non-negotiable. In power generation facilities — including coal, gas, and hydroelectric plants — it supports turbine governor control, excitation system monitoring, and auxiliary equipment sequencing, where a control interruption can trigger grid instability or equipment damage.

In mining and mineral processing, the A1S35B withstands the high vibration, dust ingress, and wide temperature swings characteristic of underground and open-cut environments, maintaining reliable control of conveyor systems, crusher drives, and ventilation interlocks. Water and wastewater treatment facilities rely on it for pump station automation, chemical dosing control, and SCADA-integrated monitoring, where regulatory compliance demands continuous, verifiable operation. In metallurgical and steel mill applications, it operates in close proximity to high-current induction furnaces and rolling mill drives, where its EMI-hardened backplane design is essential for maintaining signal fidelity. Port and marine terminal automation systems use the A1S35B in crane control, ship-to-shore loader sequencing, and hazardous area monitoring, where fail-safe operation directly supports personnel safety and cargo integrity.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the A1S35B?
The support terms confirmed by quotation cover all manufacturing defects, backplane bus failures, slot connector faults, and power rail anomalies identified under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch from our multi-region inventory.

Q2: What pre-shipment testing is performed on each A1S35B unit?
Every A1S35B undergoes full backplane bus continuity testing, slot connector integrity verification, and power rail isolation checks before dispatch. Units that do not meet Mitsubishi Electric’s original factory acceptance criteria are quarantined and not shipped.

Q3: Is the A1S35B compatible with all MELSEC-AnS series modules?
Yes. The A1S35B is fully compatible with the complete MELSEC-AnS module range, including A1S-series CPU modules, power supply modules, digital and analog I/O modules, and communication interface modules. It is also compatible with AnS-series extension base units for expanded slot configurations.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
KNMKS maintains dedicated multi-region stock of the A1S35B to support both emergency replacement and scheduled maintenance programs. Long-term supply agreements are available for customers with recurring demand, ensuring continuity of spare parts availability for the full operational life of installed MELSEC-AnS systems.
