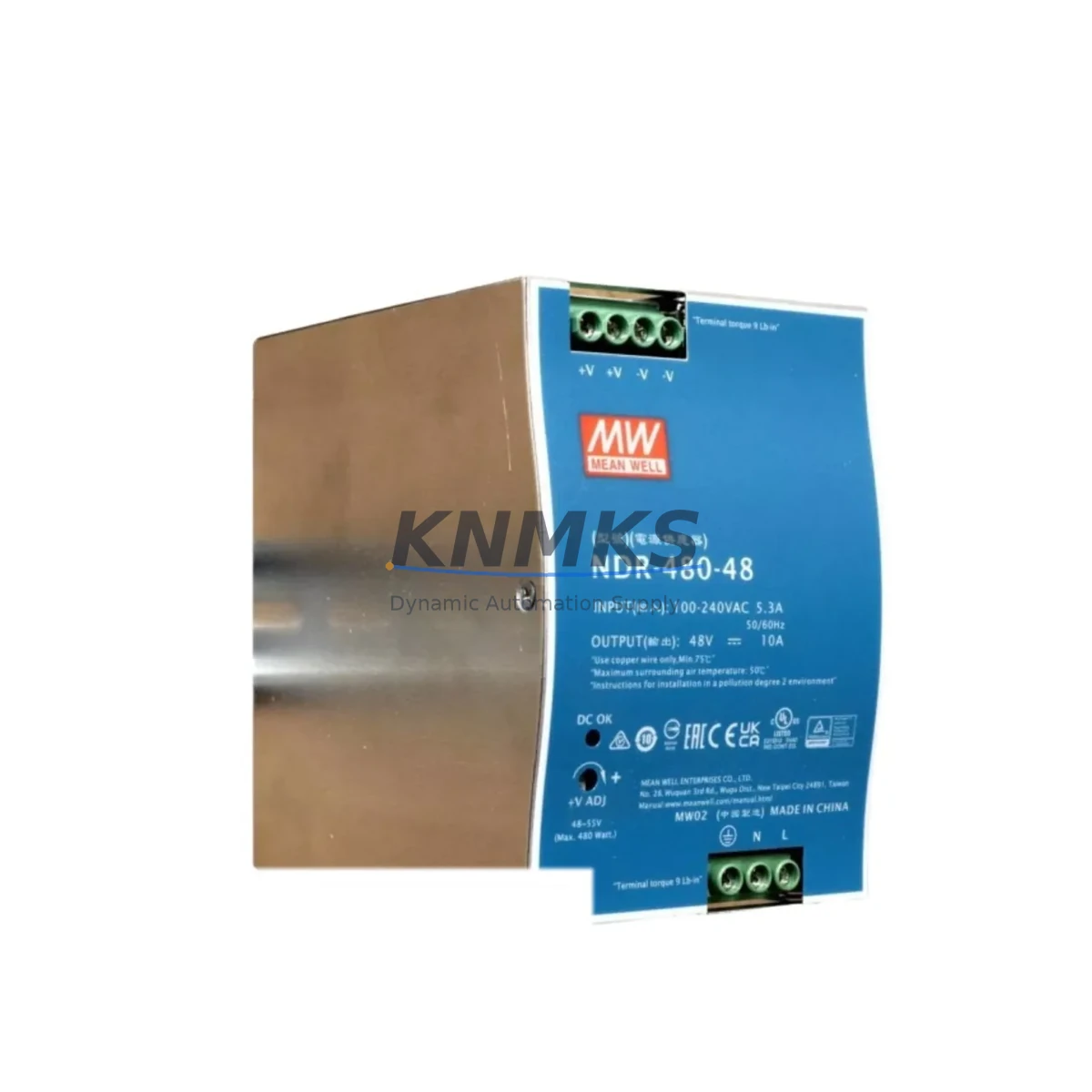

Mean Well NDR-480-48 Fail-Safe DIN Rail Power Supply

Overview

Mean Well NDR-480-48 Fail-Safe DIN Rail Power Supply: Fault Protection for Critical Industrial Control Reliability

The Mean Well NDR-480-48 is a 480W, 48VDC DIN Rail-mount power supply engineered for continuous, fail-safe operation in demanding industrial environments. Designed to sustain critical control loops, safety interlocks, and high-load automation cabinets, the NDR-480-48 delivers stable DC power even under conditions of high electromagnetic interference, voltage surges, wide ambient temperature swings, and mechanical vibration. For maintenance engineers and system integrators managing DCS, PLC, and SCADA-based installations, this unit represents a proven, stocked, and support terms-backed solution that minimizes unplanned downtime risk.

Industrial power systems are the backbone of every control cabinet. A single power supply failure can cascade into process shutdowns, safety interlock trips, and costly production losses. The NDR-480-48 addresses this risk through robust surge immunity, wide input voltage tolerance, active power factor correction, and thermal protection — all within a compact DIN Rail form factor that integrates directly into standard 35mm rail assemblies alongside PLCs, I/O modules, and relay banks.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-density control cabinets serving continuous process industries, power quality directly determines system availability. The NDR-480-48 is typically deployed alongside a coordinated set of protection and control components to form a resilient power and signal architecture. Within the same cabinet, a Mean Well DDR-120D-24 or similar 24VDC auxiliary rail supply handles low-voltage I/O and sensor loops, ensuring that the 48V bus powering field devices remains isolated from logic-level fluctuations. Upstream of the NDR-480-48, a properly rated surge protective device (SPD) — such as a Phoenix Contact TRABTECH or equivalent DIN Rail SPD — clamps transient overvoltages before they reach the PSU input terminals, protecting against lightning-induced surges and switching transients common in heavy industrial environments.

For cabinet thermal management, the fanless convection design of the NDR-480-48 eliminates a common failure point, but cabinet-level airflow must still be managed. Pairing this unit with a Rittal SK 3105 or equivalent cabinet thermostat and fan unit ensures ambient temperatures remain within the PSU’s derating curve, particularly in summer or in enclosed outdoor enclosures. On the output side, a Mean Well UPS module such as the DC UPS01 or a compatible battery backup module can be integrated to provide ride-through capability during brief mains interruptions — critical for safety PLC systems that must complete a controlled shutdown sequence before power loss.

Communication integrity in the same cabinet is protected by ensuring that PROFIBUS or PROFINET repeaters and isolators — such as those from Siemens or Phoenix Contact — are powered from a separate, clean 24VDC rail rather than sharing the 48V bus. This prevents conducted noise from high-current actuator switching from corrupting fieldbus signals. Similarly, where Siemens S7-300 or S7-400 series CPU modules or ABB AC500 PLCs are co-located in the same cabinet, their power modules should be fed from a dedicated, fused branch of the NDR-480-48 output, with individual miniature circuit breakers (MCBs) protecting each branch circuit against localized faults without tripping the entire 48V bus.

Critical Industrial Safety Applications

The NDR-480-48 is deployed across a broad range of critical industrial sectors where power supply reliability is directly linked to process safety and regulatory compliance.

In petrochemical and refinery facilities, the unit powers 48VDC field instrument loops, solenoid valve drivers, and emergency shutdown (ESD) relay panels. Its wide input voltage tolerance and surge immunity make it suitable for installations where generator switchover events cause momentary voltage dips and spikes. The fanless design is particularly valued in Zone 2 classified areas where dust ingress and flammable atmosphere concerns limit the use of fan-cooled equipment inside purged enclosures.

In electric power generation and substation automation, the NDR-480-48 supports protection relay panels, RTU power rails, and SCADA communication equipment. Substations are among the most electrically hostile environments for power supplies, with frequent switching transients, ground potential rise events, and high-frequency interference from nearby high-voltage equipment. The unit’s 6kV line-to-earth surge rating and Class B EMC compliance provide a meaningful margin of protection in these conditions.

In mining and mineral processing, where vibration, dust, and humidity are constant challenges, the NDR-480-48’s sealed convection cooling and wide temperature range support reliable operation in surface and underground control rooms. Conveyor drive control panels, crusher automation cabinets, and ventilation safety systems all benefit from a stable, high-power 48VDC supply that does not require periodic fan replacement.

In water and wastewater treatment plants, the unit powers pump control panels, SCADA RTUs, and chemical dosing system controllers. The support terms confirmed by quotation and confirmed in-stock availability are particularly important for municipal operators who must maintain spare parts inventories to meet regulatory uptime requirements without long procurement lead times.

In metallurgical and steel mill applications, high electromagnetic interference from arc furnaces, induction heaters, and large motor drives creates a challenging environment for power electronics. The NDR-480-48’s active PFC and robust EMC filtering help maintain stable output voltage even when the upstream mains supply is heavily distorted.

In port automation and marine vessel systems, where salt air, humidity, and vibration are persistent stressors, the NDR-480-48 is used in crane control panels, mooring winch automation, and vessel power management systems. Its compact DIN Rail form factor allows integration into space-constrained marine electrical panels without compromising on output capacity.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the NDR-480-48?
The support terms confirmed by quotation cover manufacturing defects, component failures, and functional faults that occur under normal operating conditions within the specified input voltage, load, and temperature ranges. Units that fail within the confirmed support period are repaired or replaced at no charge. Support requests are processed with documented failure description and return authorization. Extended support terms or blanket stock agreements are available for high-volume or critical-application customers — contact [email protected] for details.

Q2: What pre-shipment testing is performed on each NDR-480-48 unit?
Each unit undergoes functional output voltage verification, load regulation testing, and protection function confirmation (OVP, OCP, short circuit) before dispatch. Units sourced from authorized distribution channels carry Mean Well factory test records. For customers requiring additional incoming inspection documentation, test reports can be provided upon request at the time of order.

Q3: Is the NDR-480-48 compatible with existing Mean Well NDR-series installations?
Yes. The NDR-480-48 is dimensionally and electrically compatible with the broader Mean Well NDR series mounting footprint and uses the same 35mm DIN Rail interface. It can replace or supplement earlier NDR-series units in existing cabinet layouts without requiring panel modifications. Output voltage is adjustable via front-panel trimmer to match legacy system setpoints within the 43.2–52.8V range.

Q4: How does KNMKS support long-term supply continuity for critical spare parts programs?
KNMKS maintains regional warehouse stock of the NDR-480-48 and related Mean Well NDR-series units to support blanket purchase orders and emergency spare parts programs. For facilities with planned maintenance schedules or regulatory spare parts requirements, we offer reserved stock arrangements with agreed lead times. Contact our technical sales team at [email protected] or +86 18359268345 to discuss your supply continuity requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

NDR-480-48
Assorted Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Other Brands NDR-480-48
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
