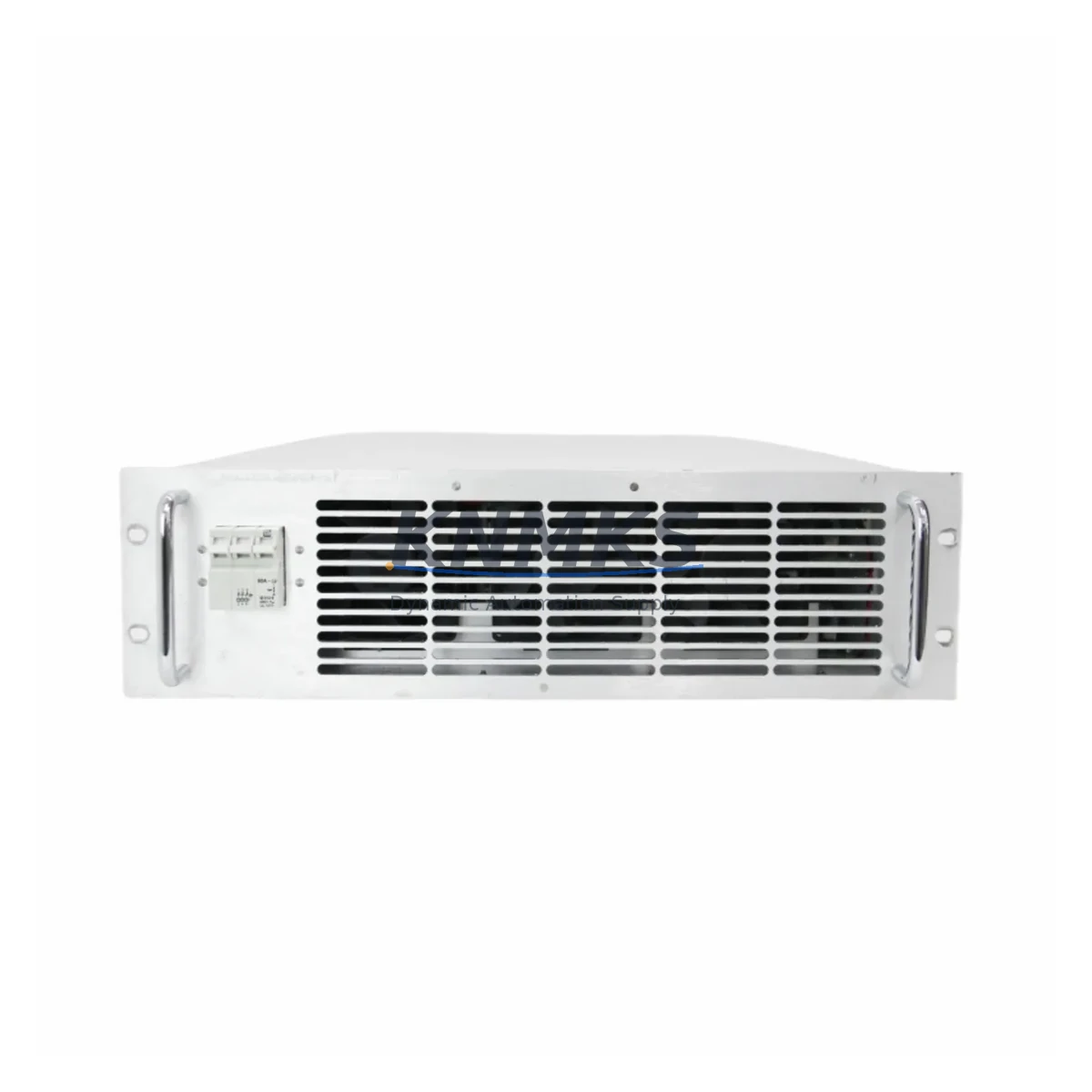

LUMINA POWER LPS-10000-250-40 Spare Part for Factory Uptime

Overview

LUMINA POWER LPS-10000-250-40 Maintenance-Proven Spare Part for Factory Uptime

The LUMINA POWER LPS-10000-250-40 is a high-performance programmable DC power supply rated at 10kW output, 250VDC, 40A, engineered for demanding industrial automation environments. As a maintenance-proven spare part within the LPS Series, this unit supports continuous factory operation by providing a verified, drop-in replacement for aging or failed power supply modules in control cabinets, test benches, and process automation systems. Every unit is sourced as an original LUMINA POWER component, pre-shipment tested, and backed by a support terms confirmed by quotation — giving maintenance engineers and procurement teams the confidence to stock and deploy without compromise.

Whether you are managing a scheduled annual overhaul, responding to an unplanned shutdown, or building a strategic spare parts buffer for a long-lifecycle installation, the LPS-10000-250-40 delivers the electrical performance and compatibility assurance required for mission-critical uptime recovery. Its programmable output characteristics make it suitable for a wide range of DC bus applications, electrochemical processes, motor drive testing, and industrial power conditioning tasks where precise voltage and current control are non-negotiable.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for systems powered by the LPS-10000-250-40 extends well beyond the power supply itself. When a maintenance engineer identifies this unit for replacement during a scheduled inspection or emergency fault response, the surrounding electrical ecosystem must be evaluated in parallel to prevent repeat failures and ensure a clean restoration of production.

Begin with the AC input distribution: verify that the upstream three-phase circuit breaker and input fusing are rated correctly and show no signs of thermal stress or contact erosion. A degraded input protection device is a common root cause of premature power supply failure and is frequently overlooked during reactive maintenance. Alongside the breaker, inspect the input terminal block and wiring harness for insulation breakdown, loose crimps, or oxidation — particularly in high-humidity or high-vibration environments.

On the DC output side, check the output bus bars, shunt resistors, and load cables for continuity and rated current capacity. If the LPS-10000-250-40 feeds a motor drive or servo amplifier, confirm that the drive’s DC bus capacitors are within specification and that the regenerative braking resistor or dynamic braking module is functional — a failed braking resistor can cause DC bus overvoltage that damages the replacement supply immediately upon commissioning.

For systems using the LPS-10000-250-40 in a PLC or DCS-controlled process, inspect the analog reference signal wiring between the controller’s AO module and the power supply’s programming input. Signal drift caused by a failing signal isolator or analog output card can cause erratic output behavior that mimics a faulty power supply. Replacing the supply without addressing the signal chain will result in a repeat fault. Similarly, if the unit is controlled via RS-232 or Ethernet, verify the communication cable integrity and network switch port before commissioning the replacement.

Within the same control cabinet, it is good practice to inspect the 24VDC auxiliary power supply that powers relay coils, PLC I/O cards, and HMI panels. A marginal auxiliary supply operating near its load limit can cause intermittent resets that are misdiagnosed as power supply faults. Companion components such as DIN rail terminal blocks, relay modules, and surge protection devices on the DC output circuit should also be checked for contact wear and proper torque. Documenting these inspections as part of the LPS-10000-250-40 replacement record creates a traceable maintenance history that supports future audits and support requests.

Site Replacement Workflow

Replacing the LUMINA POWER LPS-10000-250-40 on-site follows a structured sequence designed to minimize downtime and eliminate commissioning errors. Before de-energizing the cabinet, capture the existing output voltage and current setpoints from the HMI or controller — these values must be re-entered after the replacement unit is installed, as the LPS Series does not retain non-volatile setpoints across power cycles in all firmware versions.

Step 1 — Isolation: Open the upstream AC circuit breaker and apply lockout/tagout (LOTO) per site safety procedures. Verify zero voltage on the DC output bus using a calibrated meter before touching any terminals.

Step 2 — Documentation: Photograph all wiring connections, label each conductor, and record the serial number of the outgoing unit for support terms and asset management records.

Step 3 — Removal: Disconnect AC input, DC output, control signal, and communication cables in sequence. Slide the unit out of the rack or panel mount. Note the weight (approx. 2.6kg) — use appropriate handling for rack-mounted installations.

Step 4 — Installation: Mount the replacement LPS-10000-250-40, reconnect all cables per the documented wiring layout, and verify terminal torque to OEM specification. Confirm that the control interface (analog, RS-232, or Ethernet) is correctly configured to match the outgoing unit’s settings.

Step 5 — Commissioning: Energize with no load first. Verify output voltage at the programmed setpoint. Apply load incrementally and confirm current limiting behavior. Check for alarm outputs and communication handshake with the PLC or DCS before returning the system to full production.

This workflow is compatible with both planned maintenance windows and emergency unplanned replacements. Stocking a pre-tested LPS-10000-250-40 spare reduces mean time to repair (MTTR) from days to hours, directly protecting production throughput and OEE targets.

Spare Parts Support FAQ

Q1: Is the LPS-10000-250-40 a direct drop-in replacement for the original LUMINA POWER unit?
Yes. Each unit supplied is an original LUMINA POWER LPS Series component (SKU: LPS-10000-250-40, internal references 11001381 / EX9699545 / 715-11005-001) and is electrically and mechanically compatible with existing LPS Series installations. No firmware modification or hardware adaptation is required for standard replacement scenarios. Confirm your input voltage specification and control interface variant before ordering if your installation uses a non-standard configuration.

Q2: What does the support terms confirmed by quotation cover, and how is it validated?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing, and a test record is available upon request. Support requests require the original invoice, the unit serial number, and a fault description. Units showing evidence of incorrect installation, overvoltage exposure, or physical damage are excluded from support terms coverage.

Q3: How should procurement engineers manage long-term supply risk for the LPS-10000-250-40?
The LPS Series is a mature product line with extended field life in industrial installations. Procurement risk is best managed by maintaining a minimum buffer stock of one replacement unit per critical production line, combined with a scheduled review of OEM end-of-life (EOL) announcements. We maintain long-term supply capability for the LPS-10000-250-40 and can support blanket purchase orders for multi-site maintenance programs. Contact our sales team to discuss volume pricing and consignment stock arrangements.

Q4: Can the replacement unit be verified before installation in a live system?
Yes. All units are pre-shipment tested at rated output. For additional assurance, the LPS-10000-250-40 can be bench-tested using a resistive load bank before installation. Connect the unit to a three-phase AC source within the rated input range, program the output to a safe test voltage (e.g., 10VDC), and verify output regulation and current limiting before deploying in the production environment. This step is strongly recommended for emergency replacements where installation conditions cannot be fully pre-verified.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

11001381 LPS-10000-250-40 EX9699545 715-11005-001
Assorted Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Other Brands 11001381 LPS-10000-250-40 EX9699545 715-11005-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
