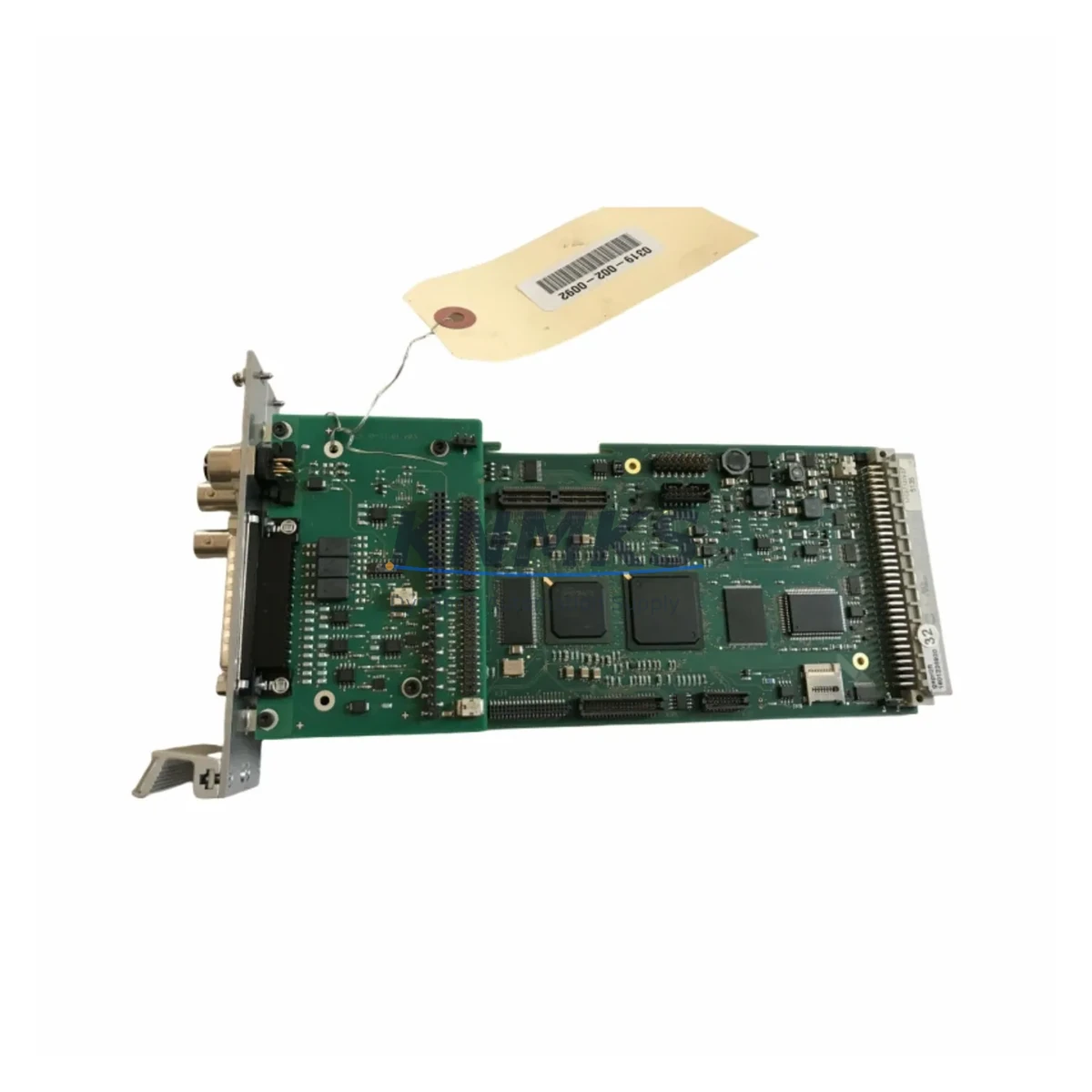

Lam Research 18-22-30-A1-1613166 Migration-Ready PCB Controller

Overview

Lam Research 18-22-30-A1-1613166 Migration-Ready PCB Controller for Legacy Etch Systems

The Lam Research 18-22-30-A1-1613166 is a migration-ready PCB controller card engineered for direct replacement and retrofit integration within legacy Lam Research etch and deposition platforms. As semiconductor fabs and process equipment operators face increasing pressure to extend the operational life of end-of-life (EOL) tool sets, the 18-22-30-A1-1613166 provides a verified, drop-in compatible solution that eliminates the need for full system replacement. This controller card supports continuity of process control logic, preserves existing I/O mapping, and maintains compatibility with the original backplane architecture — reducing retrofit risk and minimizing unplanned downtime during changeover.

When planning a replacement for the 18-22-30-A1-1613166, engineers must confirm several critical parameters before installation. Power supply capacity at the rack level must be validated to ensure the replacement card draws within the original specification envelope — particularly relevant when the host chassis also contains legacy RF match controllers or endpoint detection modules. Terminal wiring assignments on the edge connector must be verified against the original schematic, as pin-out variations between revision levels of the 1613166 board family can cause signal conflicts if not cross-checked. Backplane slot addressing must be confirmed in the system configuration file, and any module address changes must be reflected in the PLC ladder logic or recipe management software before the card is seated.

Program compatibility is a key concern during migration. The original control sequences — including etch endpoint detection routines, gas flow interlocks, and chamber pressure ramp profiles — must be validated against the replacement card’s firmware revision. In systems where the HMI interface communicates directly with the controller card via a proprietary serial or parallel bus, screen map alignment must be confirmed to prevent display errors or alarm mismatches after swap-out. Communication links to upstream process control systems, including any RS-232 or GPIB interfaces used for recipe download or data logging, should be tested under live conditions before the tool is returned to production.

Physical installation space must also be confirmed. The 18-22-30-A1-1613166 occupies a defined slot pitch within the Lam Research controller chassis, and any adjacent cards — such as the RF power interface board, the endpoint detection card, or the gas panel I/O module — must remain undisturbed during the swap. Firmware version compatibility between the replacement PCB and the host system’s operating software should be verified with the system’s service documentation prior to commissioning.

All units are pre-shipment tested under functional load conditions and dispatched with a support terms confirmed by quotation. Multi-region stock is maintained to support emergency replacement timelines, with global dispatch available for critical tool-down situations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 18-22-30-A1-1613166 requires a structured approach to the surrounding control architecture. In most Lam Research etch platforms, the PCB controller card operates alongside a suite of interdependent modules that must remain stable during the swap. The RF power interface board — responsible for matching network control and power delivery feedback — must be confirmed as electrically isolated from the controller card’s signal bus before removal. The gas panel I/O module, which manages mass flow controller (MFC) setpoints and valve sequencing, shares address space with the controller card in many configurations and must be re-validated after the replacement card is seated.

The endpoint detection card, where fitted, communicates with the controller card to trigger etch stop events based on optical emission or interferometry signals. This communication path must be re-established and tested with a dummy etch cycle before the tool is returned to production wafers. The chamber pressure control loop — typically managed through a throttle valve controller interfaced to the PCB card — must also be re-tuned if the replacement card introduces any latency differences in the analog output channel.

Where the system includes a legacy HMI panel running on a dedicated workstation, the operator interface screens must be verified for correct alarm display, recipe parameter visibility, and interlock status reporting after the controller card swap. In systems using a GPIB backbone for recipe management, the instrument address of the replacement card must match the original configuration exactly to avoid communication timeouts. Programming cables and diagnostic tools compatible with the 1613166 board family should be on-hand during commissioning to support firmware verification and any required parameter re-entry.

Downtime Control During System Migration

Minimizing tool downtime during a controller card replacement requires pre-staging all replacement components and documentation before the maintenance window begins. The original program logic — including all recipe parameters, interlock thresholds, and endpoint detection settings — should be backed up from the host system before the 18-22-30-A1-1613166 is removed. Where the system architecture permits, a parallel bench test of the replacement card using a spare chassis or test fixture can validate firmware and I/O response before the card enters the live tool.

During the physical swap, all adjacent cards should remain seated and powered down in sequence according to the system’s shutdown procedure. The replacement card should be inserted with the chassis fully de-energized, and the system should be brought up in diagnostic mode before resuming normal process control. A short qualification run — typically one to three test wafers or a dry cycle — should be completed and reviewed before the tool is released to production. This approach protects the original process logic, maintains field control continuity, and reduces the risk of introducing new faults during the retrofit.

Retrofit Support FAQ

Q: Is the 18-22-30-A1-1613166 a direct replacement for all 1613166 revision levels?
A: The 18-22-30-A1-1613166 is compatible with the primary 1613166 board family. Revision suffix variants should be cross-checked against the host system’s configuration documentation before ordering. Our technical team can assist with revision-level compatibility confirmation prior to dispatch.

Q: What commissioning steps are required after installation?
A: After seating the replacement card, verify slot address assignment in the system configuration file, confirm HMI screen alignment, re-validate endpoint detection communication, and perform a dry or test cycle before returning the tool to production. Firmware version should be confirmed against the host system’s service record.

Q: How is the unit tested before shipment?
A: All 18-22-30-A1-1613166 units undergo functional load testing prior to dispatch. Test results are available upon request. Units are dispatched with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: Multi-region stock is maintained for the 18-22-30-A1-1613166 to support emergency tool-down situations. Global dispatch is available, with expedited shipping options for critical replacement timelines. Contact our sales team for current stock status and lead time confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Lam Research
Assorted Brands

Model / Series

18-22-30-A1-1613166
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Lam Research 18-22-30-A1-1613166
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
