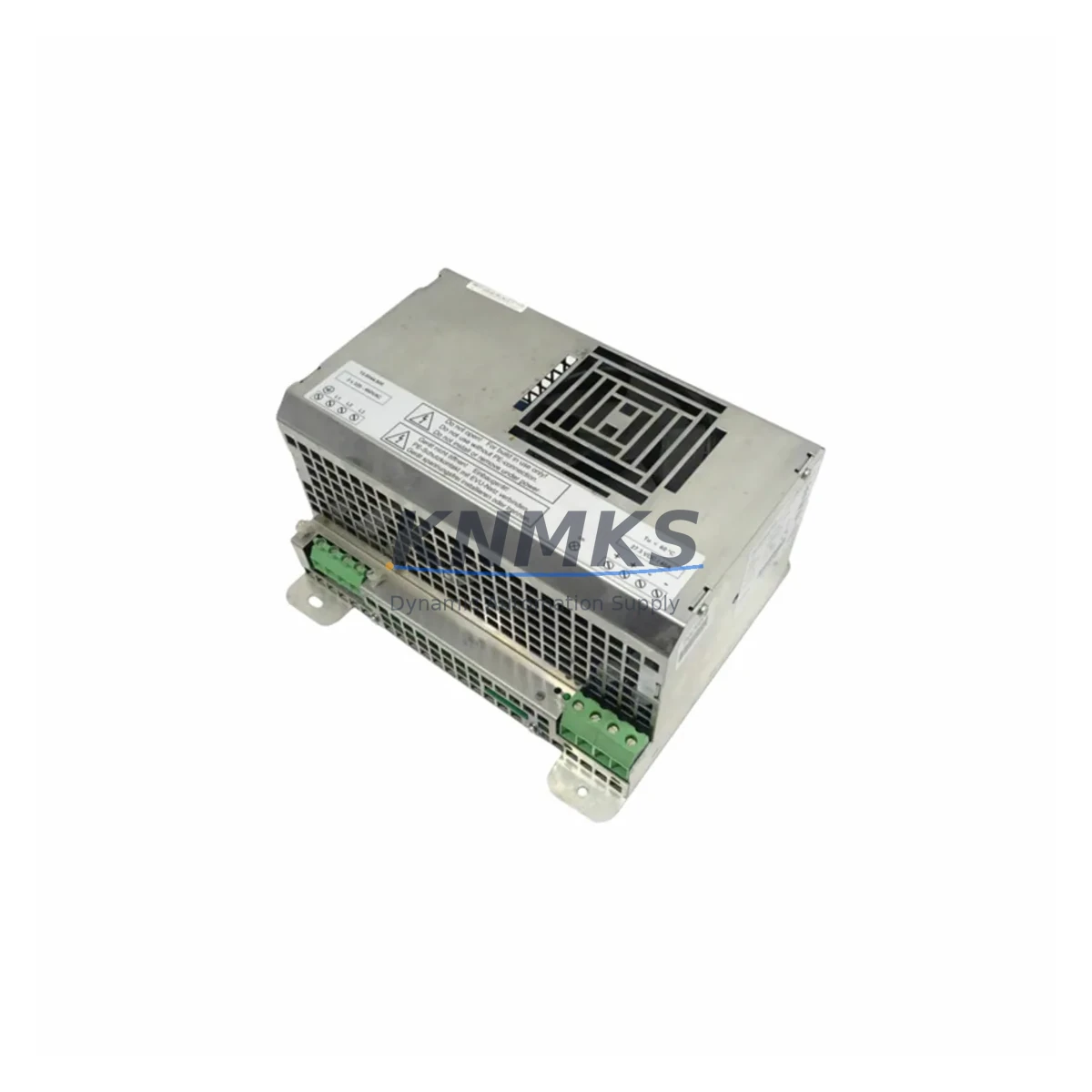

KUKA PH1003-2840 Migration-Ready PSU for Legacy KRC Systems

The KUKA PH1003-2840 is a 24 VDC power supply module engineered for direct retrofit into KUKA KRC2 and early KRC4 robot controller cabinets. As KUKA progressively phases out legacy KRC2 hardware, engineering teams managing multi-robot cells face increasing pressure to source verified replacement power supply units that maintain electrical compatibility without requiring cabinet redesign or software re-commissioning. The PH1003-2840 addresses this challenge with a mechanically and electrically compatible form factor, pre-tested output regulation, and a support terms confirmed by quotation covering both parts and labour.

For facilities running KUKA KR 6, KR 16, KR 30, or KR 60 series manipulators on KRC2 controllers, the PH1003-2840 is the recommended power supply replacement when the original unit exhibits symptoms such as undervoltage faults, E-Stop loop instability, or intermittent 24 VDC bus dropout. Before installation, engineers should verify the incoming AC supply voltage (typically 3-phase 400 VAC ±10%), confirm the cabinet’s internal DC bus load does not exceed the module’s rated output current, and inspect the existing terminal block wiring harness for corrosion or loose crimps that may have contributed to the original failure.

During a KRC2-to-KRC4 migration project, the PH1003-2840 is frequently retained in the intermediate phase to maintain 24 VDC auxiliary power to the safety PLC, the KCP teach pendant interface, and the X11 safety connector circuit while the main controller backplane and drive modules are being upgraded. This staged approach allows the robot cell to remain in a safe, de-energised-but-monitored state during the transition, reducing unplanned downtime and protecting the integrity of the existing safety interlock wiring.

When planning a full cabinet retrofit, the PH1003-2840 is typically installed alongside the KUKA KPS-600 servo power supply, the KSP 600-3×64 axis controller modules, and the DSE-IBS or DSE-RDW resolver/encoder interface boards. The 24 VDC output from the PH1003-2840 feeds the controller’s logic bus, which in turn powers the MFC3 main computer board, the RDC resolver digitising card, and any installed fieldbus gateway modules such as the KUKA Interbus or DeviceNet interface. Ensuring the PH1003-2840 is correctly seated on the DIN rail and that all output terminals are torqued to specification is a prerequisite before powering up the MFC3 and initiating the KSS software boot sequence.

For sites operating KUKA robots integrated into a broader Siemens SIMATIC or Profibus-DP network, the 24 VDC supply stability provided by the PH1003-2840 is critical to maintaining reliable communication between the KRC2 controller and the upstream PLC. Voltage sag on the 24 VDC bus is a known cause of spurious Profibus DP timeout faults, which can trigger unplanned E-Stop events across the entire robot cell. Replacing a degraded power supply with a verified PH1003-2840 unit is therefore a low-risk, high-impact intervention that can resolve persistent communication faults without requiring changes to the PLC program or network topology.

All PH1003-2840 units supplied by KNMKS are sourced from authorised distribution channels, subjected to pre-shipment functional testing under rated load conditions, and shipped with a full support terms confirmed by quotation. Multi-region stock is maintained to support both emergency same-week dispatch and scheduled maintenance outages. Quantity pricing and long-term supply agreements are available for OEM integrators and maintenance contractors managing large KUKA robot fleets.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful KRC2 power supply retrofit begins with a thorough audit of the controller cabinet before any hardware is removed. Engineers should document the existing wiring layout, photograph all terminal connections, and record the current KSS software version displayed on the KCP teach pendant. This baseline documentation is essential for restoring the system to its original state if any unexpected issues arise during the swap.

The PH1003-2840 supplies 24 VDC to several interdependent subsystems within the KRC2 cabinet. The MFC3 main computer board draws logic power from this bus, as does the RDC resolver digitising card that processes encoder feedback from each robot axis. If the RDC card loses power unexpectedly during a live system, it will generate a mastering data loss fault on the next boot, requiring the robot to be re-mastered using the EMT (Electronic Mastering Tool) or a dial gauge on each axis. Replacing the PH1003-2840 during a planned shutdown — rather than as an emergency repair — eliminates this risk entirely.

For cabinets that also house a KUKA KPS-600 servo power supply and KSP 600-3×64 axis modules, the 24 VDC bus from the PH1003-2840 must be stable before the KPS-600 is enabled. The KPS-600 uses the 24 VDC signal to confirm controller readiness before releasing the DC link to the axis drives. Any instability in the PH1003-2840 output will therefore prevent the servo drives from enabling, manifesting as a persistent “drives not ready” fault on the KCP pendant. Replacing the PH1003-2840 resolves this class of fault without requiring changes to the KPS-600 or the axis module configuration.

Sites integrating KUKA robots with Siemens SIMATIC S7-300 or S7-400 PLCs via Profibus-DP should note that the KRC2’s Interbus or DeviceNet gateway module also draws power from the 24 VDC bus. A degraded PH1003-2840 can cause intermittent fieldbus dropouts that appear as PLC communication faults rather than robot controller faults, making root-cause diagnosis difficult. Replacing the power supply is a recommended first step in any Profibus timeout troubleshooting workflow before modifying PLC network parameters or fieldbus cable termination.

Where the robot cell includes a KUKA SmartPAD or legacy KCP2 teach pendant, the pendant’s internal display and input circuitry are also powered via the 24 VDC bus. Pendant lockup or display blanking during operation is a secondary symptom of PH1003-2840 degradation and should be investigated alongside any reported E-Stop or communication faults.

Downtime Control During System Migration

Minimising downtime during a KRC2 power supply replacement requires preparation, sequencing, and a clear rollback plan. The recommended approach is to schedule the replacement during a planned maintenance window of at least two hours, ensuring that the robot cell is in a safe, locked-out state before any cabinet work begins. The robot program and mastering data should be backed up to a USB drive via the KSS archive function before the cabinet is opened, protecting against data loss in the event of an unexpected power interruption during the swap.

The physical replacement of the PH1003-2840 is straightforward: isolate the incoming AC supply, discharge the DC bus capacitors (allow a minimum of five minutes after isolation), disconnect the terminal block wiring harness from the old unit, remove the DIN rail mounting screws, and slide the new unit into position. Reconnect the wiring harness in the documented sequence, torque all terminals to specification, and restore AC power. The KRC2 controller should boot normally within 60 seconds, and the KSS software will perform an automatic self-test of the 24 VDC bus before enabling the drives.

After the controller has booted, verify the following before returning the robot to automatic operation: confirm that the E-Stop loop is closed and the safety PLC is in the run state; check that the KCP pendant is communicating normally and displaying the correct program; verify that the Profibus or DeviceNet fieldbus link to the upstream PLC is active and showing no fault codes; and confirm that the robot’s mastering status is valid on all axes. If mastering data has been lost, re-master each axis using the EMT before running any production program. This structured commissioning sequence ensures that the robot cell returns to full production capability within the planned maintenance window, with no residual faults carried over from the power supply failure.

Retrofit Support FAQ

Q: Is the KUKA PH1003-2840 a direct drop-in replacement for the original KRC2 power supply?
A: Yes. The PH1003-2840 is mechanically and electrically compatible with the standard KRC2 cabinet DIN rail mounting position. No cabinet modification, wiring redesign, or software change is required. Confirm your controller generation (KRC2 or KRC2 ed05) via the KSS version label before ordering.

Q: Will replacing the PH1003-2840 affect my robot’s program or mastering data?
A: If the replacement is performed during a planned shutdown with the AC supply fully isolated, program and mastering data stored on the MFC3 hard drive will be unaffected. As a precaution, always archive the robot program and mastering data to a USB drive before opening the cabinet.

Q: What pre-shipment testing is performed on each PH1003-2840 unit?
A: Every unit supplied by KNMKS is tested under rated load conditions to verify output voltage regulation, ripple, and thermal performance before dispatch. A test report is available on request. All units are covered by a support terms confirmed by quotation from the date of dispatch.

Q: How quickly can a PH1003-2840 be dispatched for an emergency breakdown?
A: KNMKS maintains multi-region stock of the PH1003-2840 to support same-week emergency dispatch to most global destinations. Contact [email protected] or call +86 18359268345 to confirm current stock availability and lead time for your location.
