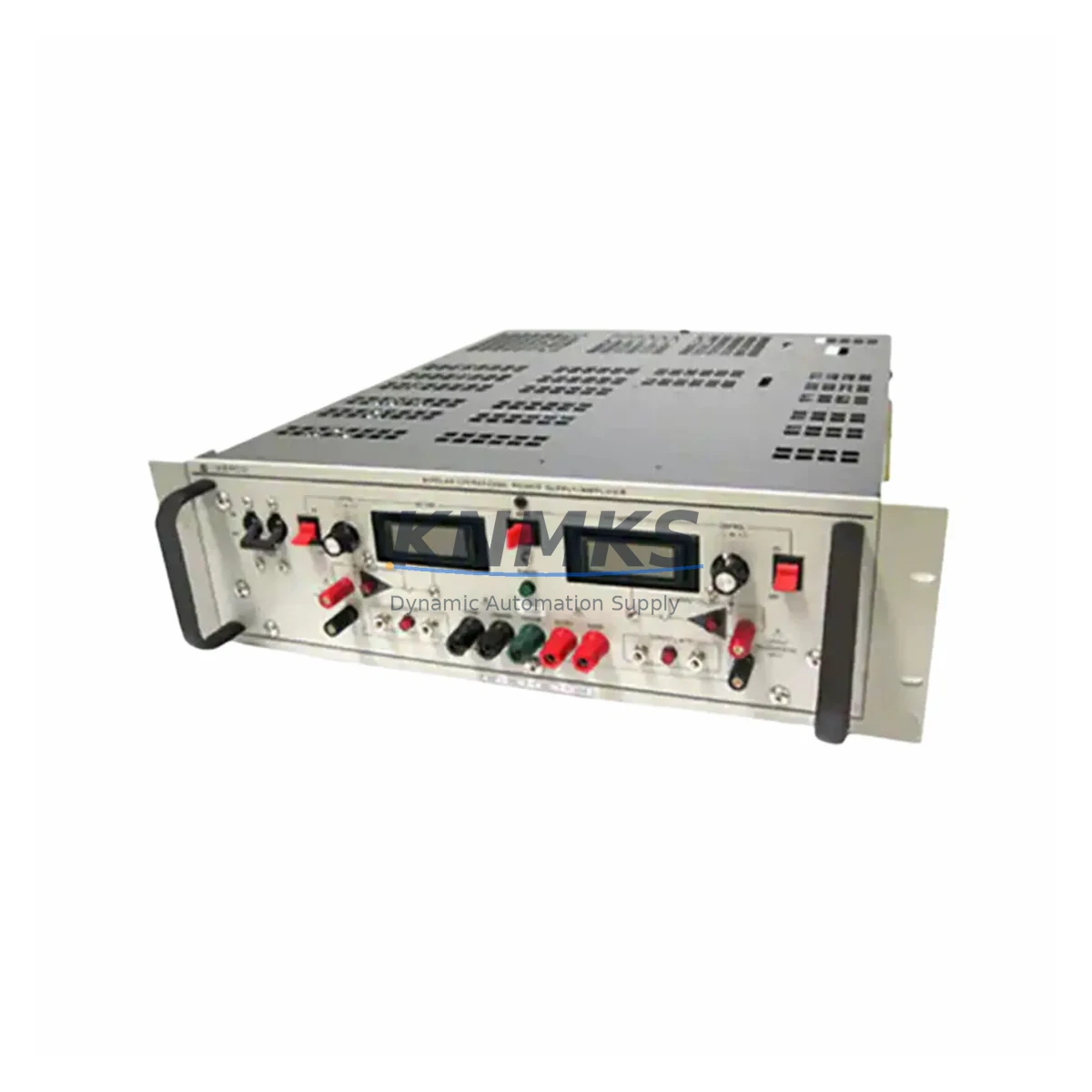

KEPCO BOP-20-20M Fail-Safe Bipolar DC Power Supply

Overview

KEPCO BOP-20-20M Fail-Safe Bipolar DC Power Supply for Industrial Control Reliability

The KEPCO BOP-20-20M is a 400W, 4-quadrant bipolar DC power supply delivering ±20V and ±20A output with precision linear regulation. Engineered for continuous industrial operation, it provides fail-safe power conditioning in critical control loops, high-EMI environments, and demanding test-and-measurement applications. Its ability to source and sink current in all four quadrants makes it indispensable in servo drive validation, electrochemical process control, and safety interlock power circuits where unidirectional supplies introduce unacceptable risk of control interruption or signal drift.

At KNMKS, every BOP-20-20M unit is pre-shipment tested, covered by a support terms confirmed by quotation, and held in multi-region stock to support emergency replacements and scheduled maintenance outages without lead-time delays.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-stakes control cabinets — particularly those housing servo amplifiers, precision analog I/O modules, or safety relay assemblies — power quality is the first line of defense against unplanned downtime. The BOP-20-20M’s linear regulation architecture eliminates the switching noise that plagues SMPS-based supplies, protecting sensitive signal chains from voltage spikes and EMI-induced drift that can trigger nuisance trips in safety PLCs or cause analog setpoint errors in process controllers.

When integrated alongside a KEPCO BOP-50-8M (±50V/±8A) in a dual-rail cabinet layout, the BOP-20-20M handles the low-voltage, high-current servo excitation rail while the BOP-50-8M manages the high-voltage instrumentation bus — a proven split-rail strategy that isolates fault propagation between power domains. For cabinets requiring active surge suppression on the AC input side, pairing the BOP-20-20M with a dedicated transient voltage surge suppressor (TVSS) module rated for industrial 230 VAC environments prevents surge-induced regulation collapse during grid switching events common in petrochemical and mining substations.

In safety interlock circuits, the BOP-20-20M’s current-sinking capability allows it to absorb regenerative energy from inductive loads — such as solenoid valves and contactor coils — without requiring external freewheeling diodes or snubber networks. This directly reduces the risk of voltage transients that can corrupt communication frames on PROFIBUS DP or Modbus RTU fieldbus segments sharing the same cabinet ground plane. For cabinets in dusty or humid environments (IP54 enclosures or better), supplementing the BOP-20-20M with a cabinet thermostat and forced-ventilation controller ensures the supply’s internal thermal shutdown threshold is never approached during peak summer ambient conditions. Additionally, integrating a 24 VDC UPS module on the logic power rail — fed from the BOP-20-20M’s auxiliary output — maintains PLC CPU and HMI panel continuity during brief AC supply interruptions, preventing mid-cycle program faults in continuous batch processes.

Critical Industrial Safety Applications

Petrochemical & Refinery: In ATEX-adjacent control rooms and DCS marshalling cabinets, the BOP-20-20M powers precision analog output cards driving control valves and flow transmitters. Its 4-quadrant operation ensures that valve positioner feedback loops remain stable even during rapid setpoint reversals, eliminating the deadband errors that cause process excursions in distillation column control.

Electric Power Generation & Transmission: Excitation system test benches and relay protection test sets in power plants rely on the BOP-20-20M’s low-ripple output to simulate generator field currents with millivolt-level accuracy. Any supply noise at this stage can produce false differential relay operations, making linear regulation a non-negotiable safety requirement.

Mining & Mineral Processing: Conveyor drive control panels and crusher motor soft-start systems in underground mining operations face extreme vibration and dust ingress. The BOP-20-20M’s robust rack-mount chassis and thermal protection circuitry maintain regulation integrity under these conditions, reducing the risk of drive faults that could strand personnel or damage equipment in confined headings.

Water & Wastewater Treatment: SCADA-controlled pump stations and chemical dosing systems require stable ±15V analog rails for flow meter transmitters and pH/ORP analyzers. The BOP-20-20M’s programmable output allows remote setpoint adjustment via the plant DCS, enabling operators to trim supply voltage to match sensor calibration ranges without physical intervention at the panel.

Metallurgy & Steel: Induction furnace control systems and rolling mill tension regulators demand power supplies capable of rapid polarity reversal without output glitches. The BOP-20-20M’s seamless 4-quadrant transition eliminates the dead-time artifacts that cause tension spikes in strip steel rolling, protecting both product quality and mechanical drive components.

Port & Marine: Shipboard automation panels and port crane PLC cabinets operating in salt-air environments benefit from the BOP-20-20M’s sealed front panel and conformal-coat-ready PCB design. Its compliance with CE EMC standards ensures it meets the electromagnetic compatibility requirements of marine classification societies for onboard electrical installations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the BOP-20-20M?
The support terms covers all manufacturing defects, component failures, and regulation performance deviations from published specifications. Units that fail to meet CV/CC accuracy, OVP/OCP trip thresholds, or ripple specifications within 12 months of shipment are repaired or replaced at no charge. Support requests are processed within 5 business days of unit receipt at our facility.

Q2: What pre-shipment tests are performed before dispatch?
Every BOP-20-20M undergoes a full functional test sequence: CV and CC regulation accuracy at 25%, 50%, and 100% load; OVP and OCP trip-point verification; output ripple measurement under full load; thermal run at 40 °C ambient for 30 minutes; and analog programming interface calibration check. Test records are retained and available upon request.

Q3: Is the BOP-20-20M a direct drop-in replacement for older KEPCO BOP series units?
Yes. The BOP-20-20M maintains mechanical and electrical compatibility with the KEPCO BOP series rack-mount form factor. Connector pinouts, analog programming interface voltage ranges (0–10 V), and front-panel control layout are consistent with earlier BOP production runs, allowing direct substitution in existing 19″ control cabinet installations without rewiring or mechanical modification.

Q4: Can long-term supply agreements be arranged for scheduled maintenance programs?
Yes. KNMKS supports blanket purchase orders and scheduled release agreements for customers with recurring replacement requirements — particularly for planned outage programs in power generation, petrochemical, and continuous manufacturing facilities. Multi-region stock allocation can be reserved against a framework agreement to guarantee availability during critical maintenance windows. Contact [email protected] to discuss terms.
