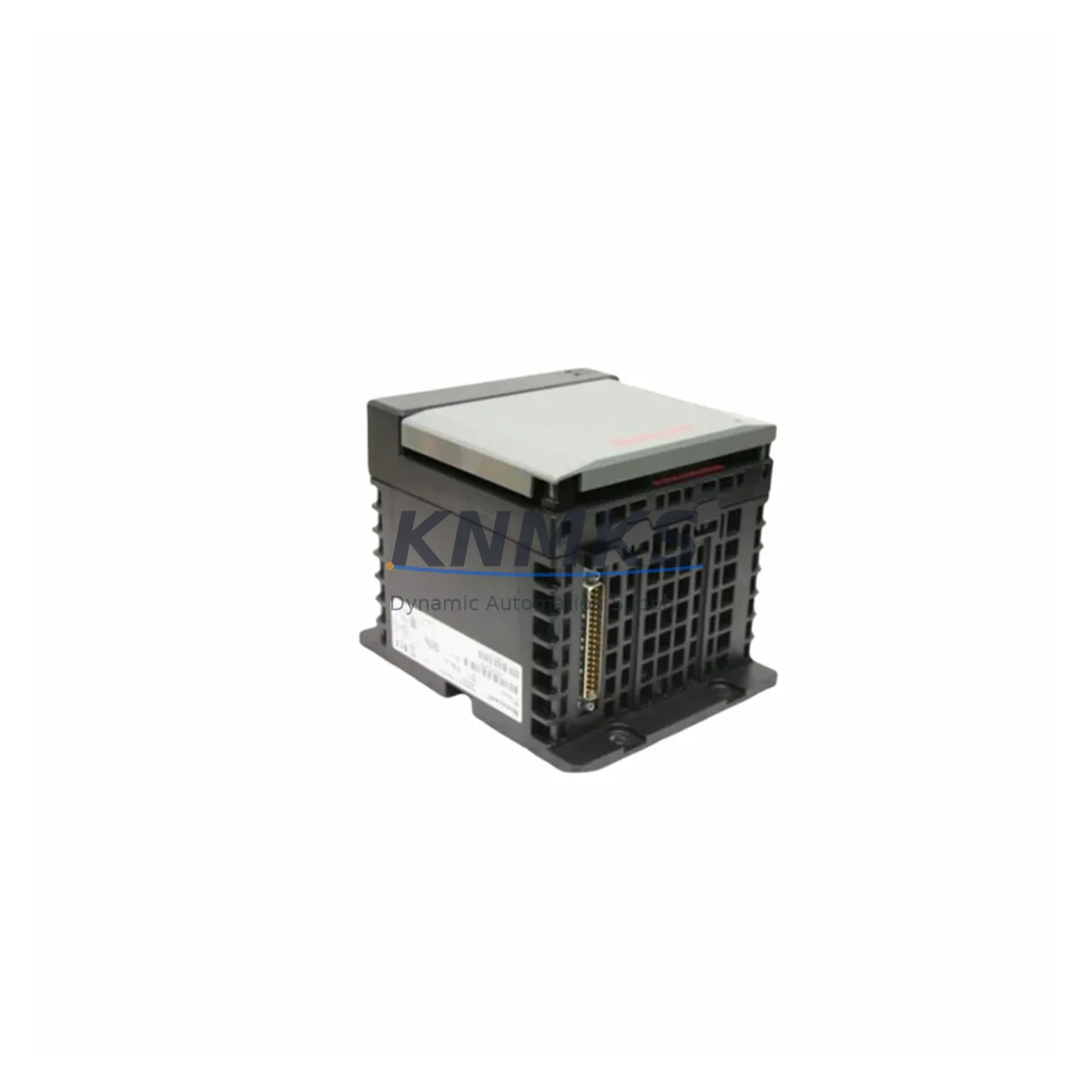

Honeywell TK-RPCXX1 Maintenance-Proven Spare Part

Overview

Honeywell TK-RPCXX1 Maintenance-Proven Spare Part for Factory Uptime

The Honeywell TK-RPCXX1 is a critical power supply module within the Experion PKS distributed control system (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and pharmaceutical manufacturing. When this module fails or approaches end-of-service life, the consequences extend beyond a single cabinet: the entire controller node loses regulated power, triggering unplanned shutdowns, process upsets, and costly recovery cycles. Stocking a verified, pre-tested TK-RPCXX1 spare is not optional for facilities running Experion PKS — it is a fundamental element of any credible maintenance strategy.

KNMKS supplies the TK-RPCXX1 as an original Honeywell spare part, sourced from authorized channels and subject to pre-shipment functional verification. Each unit ships with a support terms confirmed by quotation and full traceability documentation, giving maintenance engineers and procurement teams the confidence they need to approve the purchase and execute the replacement without hesitation. Multi-region stock ensures fast global dispatch, minimizing the window between fault detection and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A TK-RPCXX1 replacement should never be executed in isolation. The power supply module sits at the heart of the Experion PKS controller node, and its failure or degradation places stress on every downstream component in the same cabinet. A disciplined maintenance engineer will treat a TK-RPCXX1 swap as the trigger for a broader cabinet inspection and spare audit.

Begin with the Experion PKS C300 Controller Module (or C200, depending on your node generation): verify firmware revision, check for any latent fault logs that may have accumulated during the power anomaly, and confirm that the controller resumes normal scan cycles after the new power supply is seated. Next, inspect the TK-IOLI01 or TK-IOLI16 I/O Link Interface modules — these are the first components to exhibit erratic behavior when supply voltage drifts outside tolerance, and a degraded TK-RPCXX1 is a common root cause of intermittent I/O communication faults that are misdiagnosed as field wiring issues.

The Experion PKS backplane assembly itself deserves attention: check connector seating, look for signs of thermal discoloration near the power input pins, and verify that the redundant power path (if configured) is switching correctly. If your site runs a 1+1 redundant power arrangement, the companion power module should be tested under load to confirm it can carry the full node independently — a single-point failure in the redundant unit is a common finding during post-incident reviews.

On the field side, inspect the 24 VDC cabinet power supply (typically a Honeywell or third-party DIN-rail PSU feeding the controller enclosure) for output voltage accuracy and ripple. A marginal cabinet PSU is frequently the upstream cause of repeated TK-RPCXX1 failures. Also check terminal block integrity on the power input wiring — loose or corroded terminals create resistance that manifests as voltage drop under load, accelerating module wear.

For sites with Honeywell Safety Manager or Safety Builder integration, confirm that the safety network communication link remains healthy after the power restoration sequence. Finally, review the Experion PKS FTE (Fault Tolerant Ethernet) switch status — a power interruption at the controller node can occasionally corrupt FTE switch ARP tables, causing temporary communication loss that resolves only after a switch reboot.

Maintaining a minimum of one TK-RPCXX1 spare per controller node cluster, alongside spares for the C300 controller, I/O link interfaces, and cabinet PSU, is the baseline inventory posture recommended for facilities with zero-tolerance downtime requirements.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the TK-RPCXX1 part number against the label on the installed module and the Experion PKS hardware configuration report. Verify that the replacement unit’s firmware label (if applicable) matches site requirements. Do not rely on visual similarity alone — the TK-RPCXX1 family may include hardware revisions with different output characteristics.

Step 2 — System state capture: Before de-energizing the module, export the current controller configuration from Experion Station and save a timestamped backup. If the node is in a redundant pair, initiate a controlled switchover to the secondary controller to maintain process continuity during the replacement.

Step 3 — Safe removal: Follow Honeywell’s lockout/tagout procedure for the controller enclosure. Remove the TK-RPCXX1 by releasing the module latch and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before inserting the replacement.

Step 4 — Installation and power-up: Seat the new TK-RPCXX1 firmly until the latch engages. Restore cabinet power and observe the module status LEDs through the startup sequence. A healthy module will indicate normal output within seconds. Monitor Experion Station for controller node reconnection and verify that all I/O points return to their last known good state.

Step 5 — Post-replacement validation: Run a full I/O scan verification from Experion Station, check the system event log for any residual fault codes, and confirm that the redundant power path (if applicable) is active and healthy. Document the replacement in the site maintenance log with the new module’s serial number and the date of installation.

This workflow minimizes downtime, preserves system compatibility, and creates the audit trail required for regulated industries. KNMKS pre-tests every TK-RPCXX1 before shipment, so the replacement unit arrives ready for immediate installation without bench testing delays.

Spare Parts Support FAQ

Q1: Is the TK-RPCXX1 compatible with both C200 and C300 Experion PKS controller nodes?
The TK-RPCXX1 is designed for the Experion PKS controller enclosure power architecture. Compatibility with specific node generations (C200, C300, ACE) depends on the hardware revision of the installed backplane. KNMKS recommends providing your controller node model and hardware revision when ordering to confirm exact fit. Our technical team can cross-reference your configuration before shipment.

Q2: What does “pre-tested before shipment” mean for the TK-RPCXX1?
Every TK-RPCXX1 supplied by KNMKS undergoes functional verification under load conditions before packaging. This includes output voltage accuracy checks, ripple measurement, and redundancy switching validation where applicable. The test results are retained in our quality records. This eliminates the risk of receiving a DOA (dead-on-arrival) unit and allows your team to proceed directly to installation upon receipt.

Q3: What is covered under the support terms confirmed by quotation, and how is a claim processed?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a support terms claim, contact KNMKS at [email protected] with the order reference, module serial number, and a description of the fault. Replacement units are dispatched on a priority basis to minimize site downtime.

Q4: Can KNMKS support long-term supply agreements for TK-RPCXX1 and related Experion PKS spares?
Yes. KNMKS maintains multi-region stock of TK-RPCXX1 and a broad range of Experion PKS components to support both emergency replacements and scheduled annual outage procurement. Long-term supply agreements (LTSAs) are available for facilities that require guaranteed stock reservation, fixed pricing, and priority dispatch. Contact [email protected] or call +86 18359268345 to discuss your site’s spare parts requirements.
