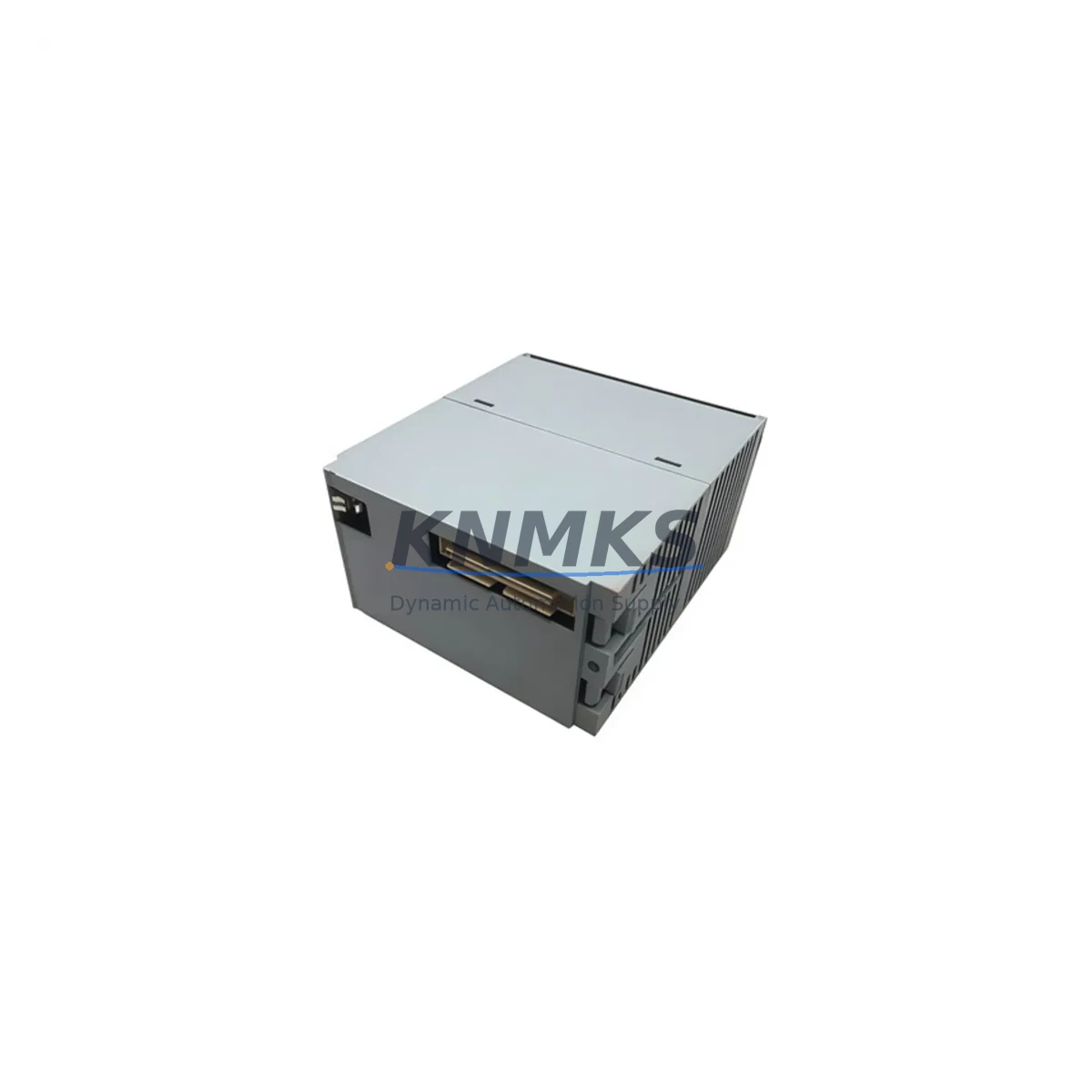

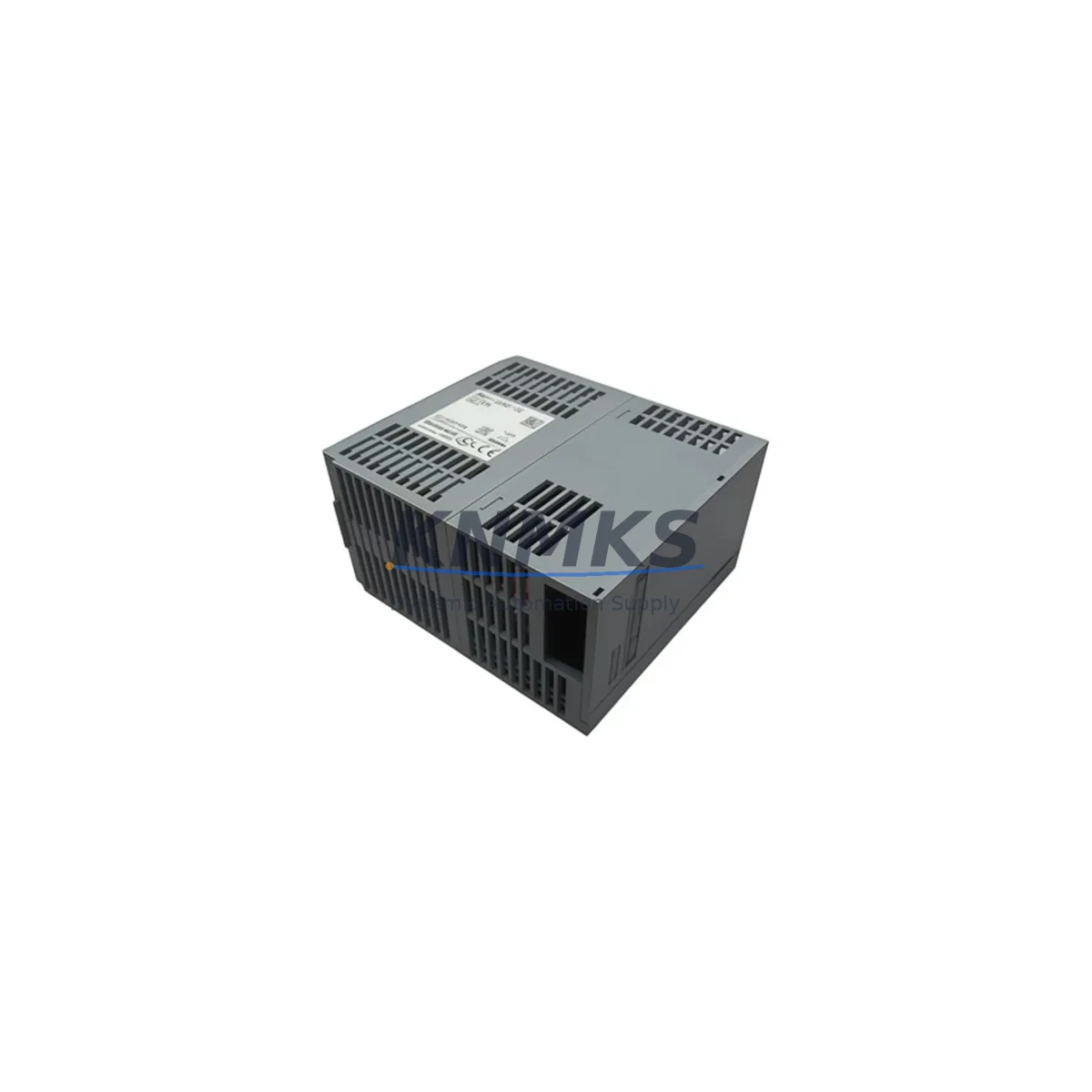

Honeywell 2MLP-DC42-CC Migration-Ready DC Power Supply

Overview

Honeywell 2MLP-DC42-CC Migration-Ready DC Power Supply: Legacy System Retrofit & Compatibility Upgrade

The Honeywell 2MLP-DC42-CC is a DC power supply module engineered for the Experion PKS (Process Knowledge System) control platform, widely deployed across refining, petrochemical, power generation, and continuous process industries. As legacy Honeywell TDC 3000 and PlantScape systems reach end-of-support milestones, the 2MLP-DC42-CC has become a critical component in brownfield migration projects — providing a verified, drop-in power solution that preserves existing backplane wiring, cabinet layouts, and control logic without forcing a full system overhaul.

For automation engineers managing aging distributed control systems, sourcing a replacement power supply that meets original OEM specifications is rarely straightforward. The 2MLP-DC42-CC addresses this challenge directly: it maintains the same output voltage and current ratings, connector pinout, and DIN-rail or chassis mounting footprint as the original module it replaces, allowing retrofit teams to swap the unit during a planned maintenance window rather than scheduling an extended shutdown.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 2MLP-DC42-CC typically begins well before the module arrives on site. Engineers should audit the existing control cabinet to confirm available slot positions in the Experion PKS chassis, verify that the incoming AC supply feeding the power rail is within specification, and document the current DC bus load contributed by all installed I/O modules, communication cards, and controller blades sharing the same backplane.

In many legacy installations, the 2MLP-DC42-CC operates alongside the Honeywell CC-PCNT01 pulse counter I/O module and the CC-TAIX01 analog input module — both of which draw regulated DC power from the same chassis rail. If either of these modules has been expanded or if additional Honeywell CC-PDOB01 digital output modules have been added since the original system commissioning, the total load budget must be recalculated before the replacement power supply is seated. Overloading a power module in a redundant Experion PKS chassis can trigger an unplanned failover to the secondary controller, causing a momentary process upset even if the primary control loop remains intact.

Communication infrastructure also warrants careful review. Experion PKS systems frequently use the Honeywell FTE switch module to maintain Fault Tolerant Ethernet connectivity between the C300 controller and the server cabinet. The FTE network must remain powered and stable throughout the power supply swap; if the chassis hosts both the FTE interface card and the 2MLP-DC42-CC in adjacent slots, the replacement sequence should be planned to avoid simultaneous loss of both the power source and the network bridge. In some configurations, a temporary external 24 VDC bench supply can be used to keep the FTE card alive during the hot-swap window.

For sites migrating from older TDC 3000 hardware to Experion PKS, the 2MLP-DC42-CC often enters the project scope as part of a broader cabinet consolidation effort. The legacy Honeywell HPM (High-Performance Process Manager) power supplies are not electrically interchangeable with Experion PKS chassis modules, so the migration plan must account for new backplane assemblies, updated terminal block wiring, and revised I/O mapping in the Experion Configuration Studio. The Honeywell CC-SCMB01 serial communication module may also need to be re-addressed if the new chassis assigns different slot numbers to communication cards, which in turn affects the HMI tag database and any Modbus or HART pass-through configurations already in service.

Before the replacement module ships, each 2MLP-DC42-CC unit undergoes functional power-on testing and output voltage verification at our Xiamen facility. Test records are available upon request and accompany the shipment documentation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any brownfield power supply replacement. The 2MLP-DC42-CC supports hot-swap capability in redundant Experion PKS chassis configurations, meaning the failed or aging module can be extracted and the replacement seated while the secondary power supply continues to feed the backplane — provided the chassis is equipped with dual-PSU slots and the redundancy feature has been enabled in the system configuration.

Before initiating the swap, the site engineer should export a full backup of the C300 controller configuration from Experion Configuration Studio, including all control module definitions, function block parameters, and alarm setpoints. This backup serves as the recovery baseline in the unlikely event that the controller performs a cold restart during the module exchange. The HMI display pages and historian tag assignments do not need to be modified, as the 2MLP-DC42-CC replacement does not alter the controller’s logical address or the I/O channel mapping visible to the SCADA layer.

For non-redundant chassis installations, the replacement window should be coordinated with the process team to align with a scheduled low-production period. The typical physical swap — removing the old module, seating the 2MLP-DC42-CC, and confirming DC bus stability — takes under fifteen minutes for a trained technician. Post-installation checks should include measuring the output voltage at the backplane test points, confirming that all I/O module status LEDs return to their normal run state, and verifying that the Experion server re-establishes communication with the controller within the expected reconnection timeout. If the site uses a Honeywell Safety Manager or Safety System Interface in the same cabinet, the safety loop status should be confirmed independently before returning the unit to automatic control.

Inventory availability is maintained to support emergency replacement scenarios. In-stock units can be dispatched within 24–48 hours of order confirmation, reducing the risk of extended production loss while waiting for a long lead-time OEM order.

Retrofit Support FAQ

Q1: Is the 2MLP-DC42-CC a direct replacement for the original Honeywell power supply in my Experion PKS chassis, or will I need to modify the wiring?
The 2MLP-DC42-CC is designed as a drop-in replacement with an identical connector pinout and chassis slot footprint. In the vast majority of Experion PKS C300 and C200 installations, no wiring modification is required. We recommend verifying the slot designation and backplane revision of your specific chassis before installation, as early-revision backplanes may have minor mechanical tolerance differences.

Q2: How do I confirm compatibility before placing an order, and what information should I provide?
Please share your existing module part number, the Experion PKS chassis model, and the firmware revision of your C300 or C200 controller. Our technical team will cross-reference these details against our compatibility database and confirm suitability before shipment. Contact us at admin@knmks.com or +86 18359268345.

Q3: What pre-shipment testing is performed on each unit?
Every 2MLP-DC42-CC undergoes output voltage verification, load regulation testing, and visual inspection prior to dispatch. Units are shipped with a test record. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of receipt.

Q4: What is your typical lead time, and do you maintain stock for emergency orders?
We maintain in-stock inventory of the 2MLP-DC42-CC to support both planned retrofit projects and emergency replacement scenarios. Standard orders ship within 3–5 business days; emergency orders can be expedited to 24–48 hours dispatch upon confirmation. Contact admin@knmks.com to check real-time stock availability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

2MLP-DC42-CC
Experion PKS Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Honeywell 2MLP-DC42-CC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
