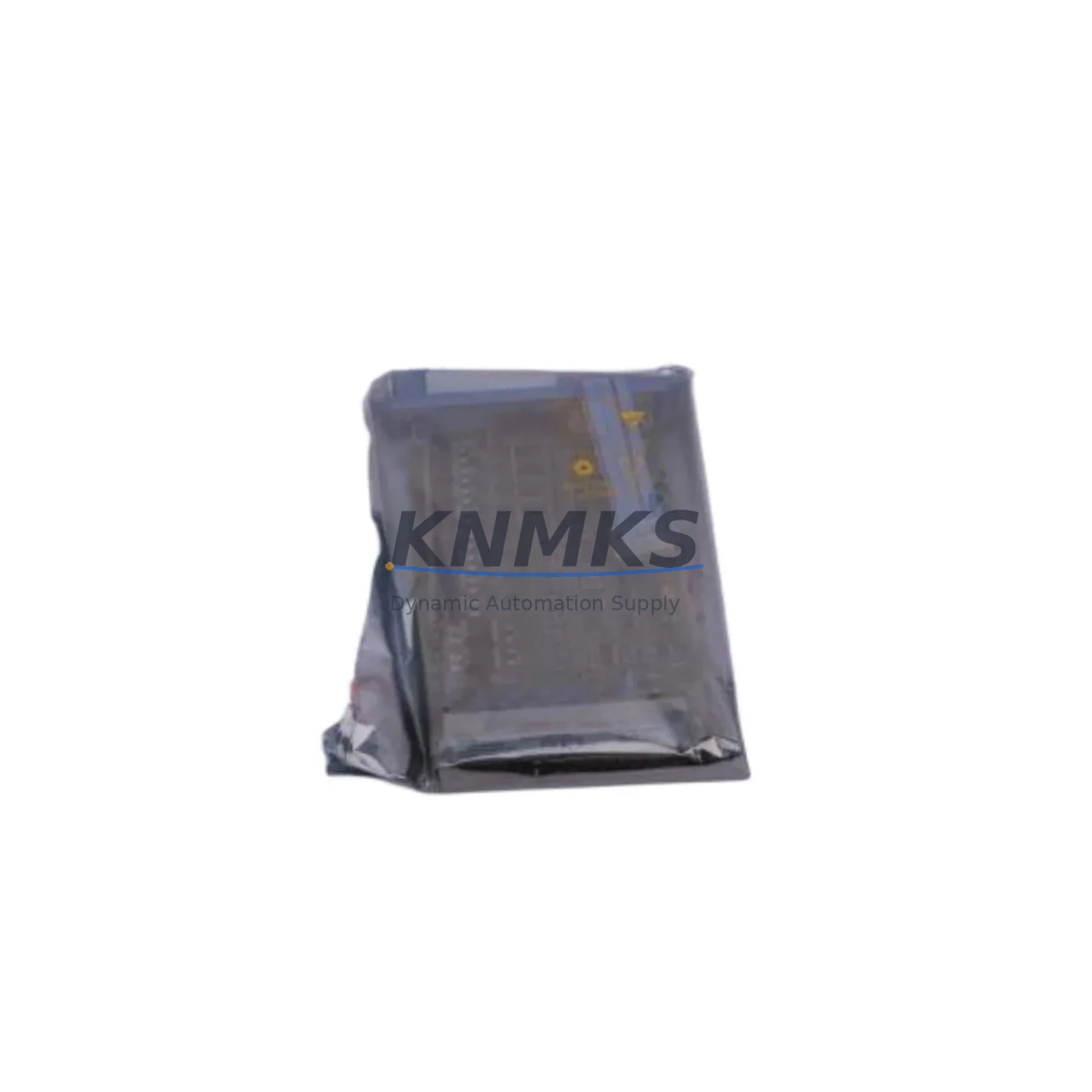

Honeywell TK-ORC161 Fail-Safe Relay Output Module

Overview

Honeywell TK-ORC161 Fail-Safe Relay Output Module: Fault Protection and Critical Industrial Reliability

The Honeywell TK-ORC161 is a 16-channel relay output module engineered for the Experion PKS C300 Distributed Control System (DCS) platform. Designed to meet the demanding requirements of continuous industrial production environments, this module delivers fail-safe switching performance across critical control loops, safety interlocks, and high-load control cabinet applications. Whether deployed in petrochemical processing, power generation, metallurgical plants, or water treatment facilities, the TK-ORC161 provides the output reliability that mission-critical field operations depend on.

In industrial environments where electromagnetic interference (EMI), voltage surges, dust ingress, humidity, high ambient temperatures, and mechanical vibration are constant threats, the TK-ORC161 is built to maintain stable relay switching without signal drift, false actuation, or communication anomalies. Its robust hardware design minimizes the risk of unplanned shutdowns caused by output module failure — a critical advantage in facilities where control interruption carries significant safety and financial consequences.

Each unit undergoes full functional testing prior to shipment, verifying relay contact integrity, channel isolation, and communication handshake with the C300 controller. Backed by a support terms confirmed by quotation, the TK-ORC161 is available from verified inventory, supporting both planned maintenance cycles and urgent spare-part replacement scenarios.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered Experion PKS control cabinet, the TK-ORC161 relay output module operates as part of a layered protection architecture. Reliable relay switching depends on stable upstream power delivery — the Honeywell TK-PRS021 power supply module provides regulated 24 VDC to the I/O chassis, ensuring that relay coil energization remains consistent even during grid fluctuations or momentary brownouts. Pairing the TK-ORC161 with a redundant power supply configuration eliminates single-point power failure as a cause of relay output loss.

On the input side, the Honeywell TK-IDY161 16-channel digital input module works in tandem with the TK-ORC161 to form complete digital I/O pairs for interlock and permissive logic. In safety interlock circuits — such as emergency shutdown (ESD) sequences or motor protection loops — the accuracy and response speed of both input and output modules are critical to preventing hazardous conditions from escalating.

For applications involving analog process variables that feed into relay-driven control actions, the Honeywell TK-AIP161 analog input module provides high-resolution signal acquisition. When process values breach defined safety thresholds, the C300 controller commands the TK-ORC161 to switch the appropriate relay contacts, isolating equipment or triggering protective responses. This closed-loop architecture is fundamental to process safety management in continuous manufacturing.

Communication integrity between the C300 controller and the I/O modules — including the TK-ORC161 — is maintained through the Honeywell CC-TAIX11 I/O Link interface module. In high-EMI environments such as variable frequency drive (VFD) rooms or high-voltage switchgear areas, shielded I/O Link cabling and proper grounding of the chassis are essential to prevent communication anomalies that could cause spurious relay actuation or missed output commands. The Honeywell TK-FTEB01 FTE bridge module further supports network redundancy, ensuring that control commands reach the output modules even during partial network faults.

For cabinet thermal management — a key factor in relay contact longevity — proper spacing of high-density relay output modules and the use of chassis-level cooling accessories help maintain operating temperatures within specification, reducing the risk of premature relay wear in high-cycle applications.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as crude distillation, catalytic cracking, and hydrotreatment, the TK-ORC161 drives relay outputs for pump start/stop commands, valve actuator control, and emergency isolation sequences. Its fail-safe relay design ensures that in the event of a module fault, relay contacts default to a safe de-energized state, preventing uncontrolled process continuation.

Power Generation and Substation Control: In thermal power plants and grid substations, relay output modules control circuit breaker trip coils, transformer cooling fans, and auxiliary equipment. The TK-ORC161’s surge-protected relay contacts withstand the high-energy transients common in switchgear environments, maintaining reliable switching without contact welding or premature failure.

Mining and Mineral Processing: Conveyor belt interlocks, crusher protection circuits, and ventilation control systems in underground and open-pit mining operations rely on relay output modules to execute safety-critical switching commands. The TK-ORC161’s resistance to dust, vibration, and temperature extremes makes it well-suited for these harsh field conditions.

Water and Wastewater Treatment: Pump station control, chemical dosing system interlocks, and UV disinfection equipment switching are typical relay output applications in water treatment facilities. The TK-ORC161 supports reliable 24/7 operation in high-humidity environments, reducing the risk of relay contact corrosion and control interruption.

Metallurgy and Steel Production: In electric arc furnace (EAF) control systems, rolling mill automation, and ladle handling equipment, relay output modules must withstand extreme electromagnetic interference generated by high-current equipment. The TK-ORC161’s channel isolation and EMI-hardened design maintain output integrity in these electrically hostile environments.

Port and Marine Automation: Crane control systems, mooring winch interlocks, and cargo handling automation in port terminals and shipboard control systems require relay output modules that perform reliably in salt-air, high-humidity, and vibration-intensive conditions. The TK-ORC161’s robust construction supports long-term deployment in these demanding marine and port environments.

Safety and Quality FAQ

Q1: What support terms coverage does the TK-ORC161 carry?
Every TK-ORC161 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This covers relay contact failure, communication faults, and hardware defects under normal operating conditions. Support requests are supported with direct technical assistance and replacement unit dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each TK-ORC161 undergoes functional verification testing prior to shipment, including relay contact continuity checks across all 16 channels, I/O Link communication handshake verification, and visual inspection for physical integrity. Units that do not pass full functional testing are not shipped.

Q3: Is the TK-ORC161 compatible with all Experion PKS C300 system revisions?
The TK-ORC161 is designed for use within the Honeywell Experion PKS C300 I/O subsystem and is compatible with standard C300 I/O Link chassis configurations. For specific firmware revision compatibility or integration with upgraded C300 controller versions, consult your system documentation or contact our technical team for confirmation prior to installation.

Q4: Can KNMKS support long-term and repeat supply of the TK-ORC161 for planned maintenance programs?
Yes. KNMKS maintains verified inventory of the TK-ORC161 and supports both single-unit urgent replacement orders and bulk procurement for planned maintenance and capital spares programs. Long-term supply agreements are available for facilities requiring guaranteed stock availability across multi-year maintenance cycles.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

TK-ORC161
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell TK-ORC161
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
