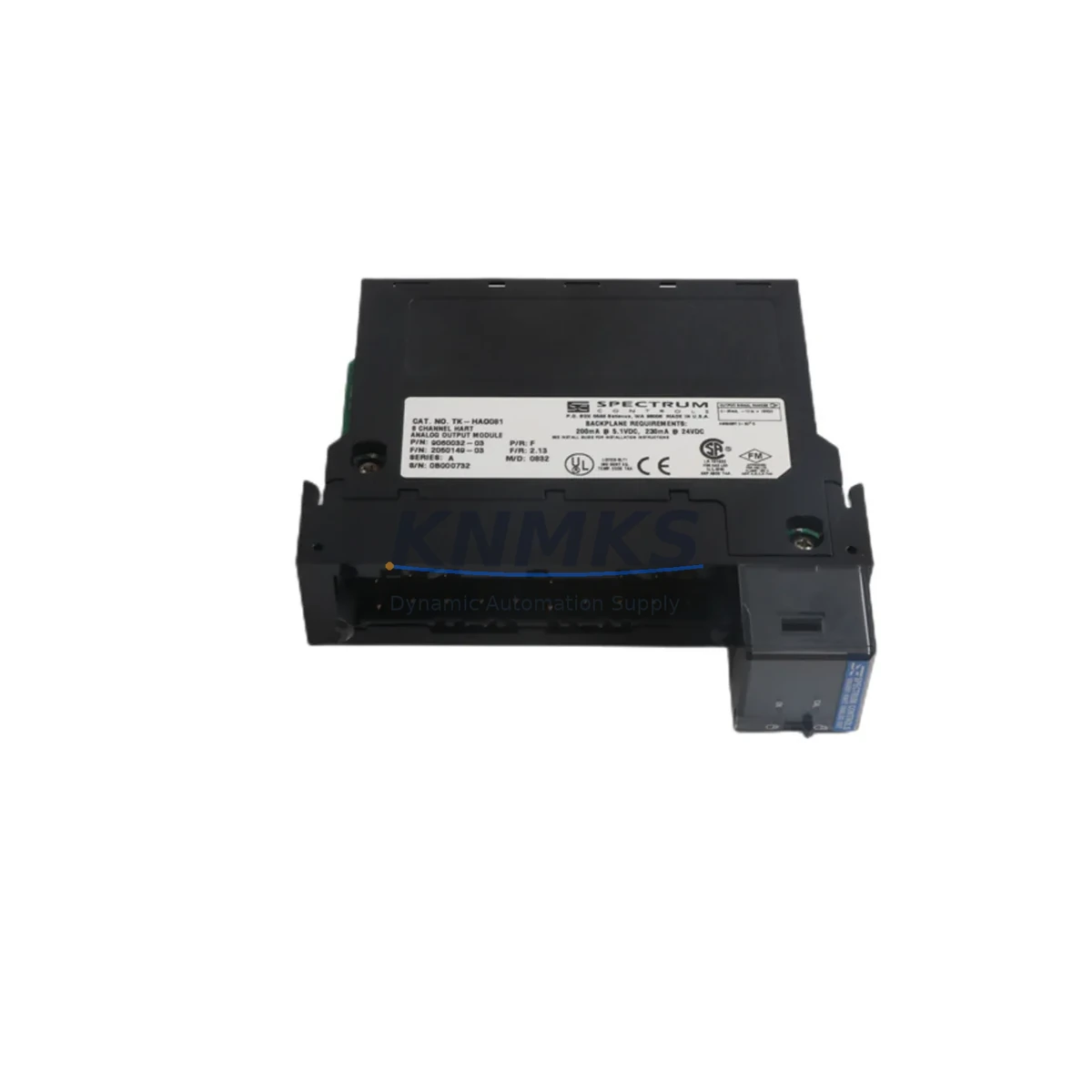

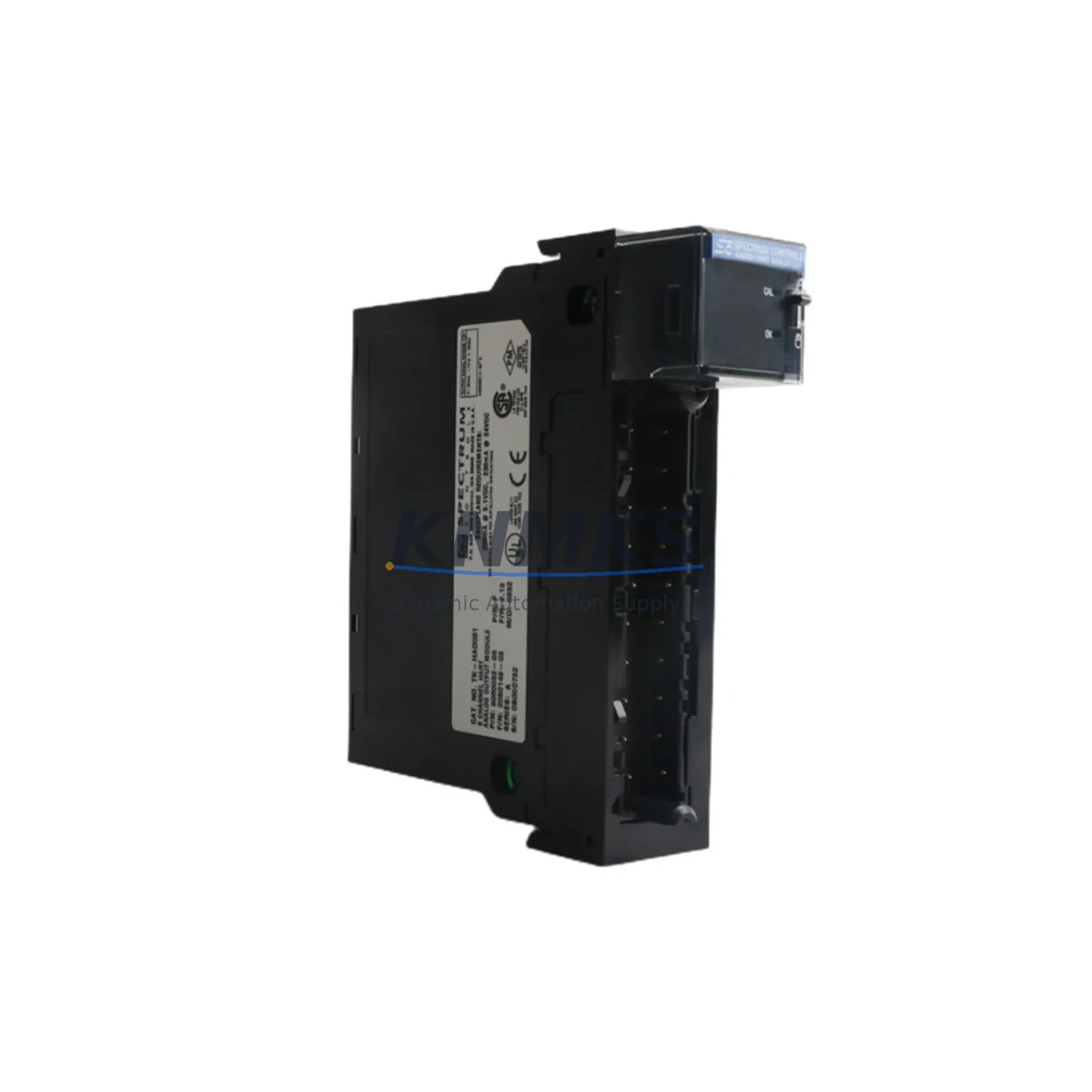

Honeywell TK-HAO081 Migration-Ready Analog Output for Legacy DCS

Overview

Honeywell TK-HAO081 Migration-Ready Analog Output for Legacy DCS Systems

The Honeywell TK-HAO081 is an 8-channel analog output module designed for the Experion PKS distributed control system platform. As legacy TDC 3000 and PlantScape systems approach end-of-support, the TK-HAO081 has become a critical component in brownfield migration projects where engineers must maintain signal continuity, preserve existing field wiring, and avoid full-scale control cabinet replacements. This module supports 4–20 mA output signals and is fully compatible with the C300 controller environment, making it a preferred choice for phased DCS upgrades across refining, petrochemical, and power generation facilities.

When planning a migration from a legacy Honeywell TDC 3000 or HPM (High-Performance Process Manager) environment, the TK-HAO081 fits directly into the IOTA (I/O Termination Assembly) architecture without requiring new field cable runs. Engineers replacing obsolete AO modules must verify the existing IOTA model — typically the TK-FTEB011 or TK-FTEB021 FTE bridge — to confirm backplane slot compatibility and module addressing. The TK-HAO081 uses the same 40-pin IOTA connector standard as other TK-series I/O modules, which significantly reduces rewiring labor during cutover.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TK-HAO081 retrofit begins with a thorough audit of the existing control cabinet. Before removing the legacy AO module, engineers should document all field terminal wiring using the existing loop drawings and cross-reference them against the TK-HAO081 channel map. In most Experion PKS installations, the IOTA termination board handles the physical field connections, so the module swap itself is non-intrusive to field wiring — a key advantage over older HPM-era I/O replacements.

Power supply capacity is a frequent oversight in DCS retrofit projects. The TK-PRS021 power supply module, commonly used in Experion PKS cabinets, must be verified against the total load of all installed I/O modules. Adding or replacing modules without recalculating the power budget can cause intermittent faults or module resets during commissioning. Similarly, if the project involves expanding I/O capacity alongside the AO replacement, the TK-MDF011 mounting bracket and chassis extension hardware should be sourced in advance to avoid delays.

For projects that also involve communication protocol migration — for example, transitioning from legacy Modbus RTU field devices to HART-enabled instruments — the TK-HAO081’s HART pass-through capability (when paired with a compatible IOTA) allows engineers to commission HART diagnostics without replacing field transmitters. This is particularly valuable in aging chemical plants where field device replacement budgets are constrained. In parallel, if the control strategy requires updates to reflect new AO channel assignments, the Experion Configuration Studio and the associated C300 controller program must be updated before the module is brought online.

HMI faceplate updates are another often-overlooked step. When AO module tags are reassigned during migration, Experion Station displays and any third-party SCADA systems connected via OPC DA or OPC UA must be updated to reflect the new tag paths. Coordinating this with the HMI engineering team before cutover prevents operator confusion during the first live run. If the facility uses a Honeywell Uniformance historian, the tag mapping in the historian configuration should also be reviewed.

Downtime Control During System Migration

Minimizing production downtime is the primary constraint in any brownfield DCS migration. For TK-HAO081 replacements, the recommended approach is a hot-standby swap sequence: the new module is pre-configured and verified offline using a bench test setup before the scheduled maintenance window. During the cutover, the C300 controller is placed in manual mode for the affected control loops, the legacy AO module is removed, the TK-HAO081 is inserted into the IOTA slot, and the controller is returned to automatic mode after confirming output signal integrity on each channel.

Pre-loading the module configuration into Experion Configuration Studio before the maintenance window is essential. This allows the C300 to recognize the new module immediately upon insertion, reducing the time the affected loops spend in manual. Engineers should also prepare a rollback plan — retaining the original module and its configuration backup — in case unexpected firmware incompatibilities arise. Keeping the original TDC 3000 or HPM program logic archived and accessible ensures that the control narrative can be reconstructed if the migration encounters issues.

Field signal verification should be performed channel by channel using a loop calibrator before handing control back to the DCS. Each 4–20 mA output should be confirmed at 0%, 25%, 50%, 75%, and 100% of span to validate linearity and confirm that field devices are responding correctly. This structured commissioning approach, combined with pre-shipment functional testing of the TK-HAO081 unit, ensures that the module arrives site-ready and that the maintenance window stays within the planned duration.

Retrofit Support FAQ

Q1: Is the TK-HAO081 a direct drop-in replacement for legacy Honeywell HPM analog output modules?
The TK-HAO081 is designed for the Experion PKS TK-series I/O architecture and is not a direct pin-for-pin replacement for HPM AO modules. However, it is the correct replacement within the Experion PKS platform when migrating from older TK-series AO modules. For HPM-to-Experion migrations, the IOTA and field termination hardware must also be updated as part of the project scope.

Q2: What firmware version is required on the C300 controller to support the TK-HAO081?
Honeywell recommends Experion PKS R400 or later for full TK-HAO081 feature support, including HART pass-through diagnostics. Earlier firmware versions may support basic AO functionality but will not expose advanced diagnostic parameters in Configuration Studio. Firmware upgrade planning should be included in the migration schedule.

Q3: Can the TK-HAO081 be pre-tested before installation on site?
Yes. All TK-HAO081 units supplied by KNMKS are functionally tested prior to shipment. A test certificate is available upon request. Customers are also encouraged to perform a bench verification using a loop calibrator and a spare C300 controller or simulation environment before the scheduled maintenance window to confirm module health and configuration integrity.

Q4: What is the support terms coverage and lead time for the TK-HAO081?
KNMKS provides a support terms confirmed by quotation on all TK-HAO081 units from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Units are typically available from stock, with same-week dispatch for urgent retrofit and emergency replacement requirements. Contact our team for current inventory status and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

TK-HAO081
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell TK-HAO081
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
