Honeywell TK-CCR014 Migration-Ready Network Module for Legacy DCS

Overview

Honeywell TK-CCR014 Migration-Ready Network Module for Legacy DCS: Proven Compatibility for Experion PKS C300 Retrofit Projects

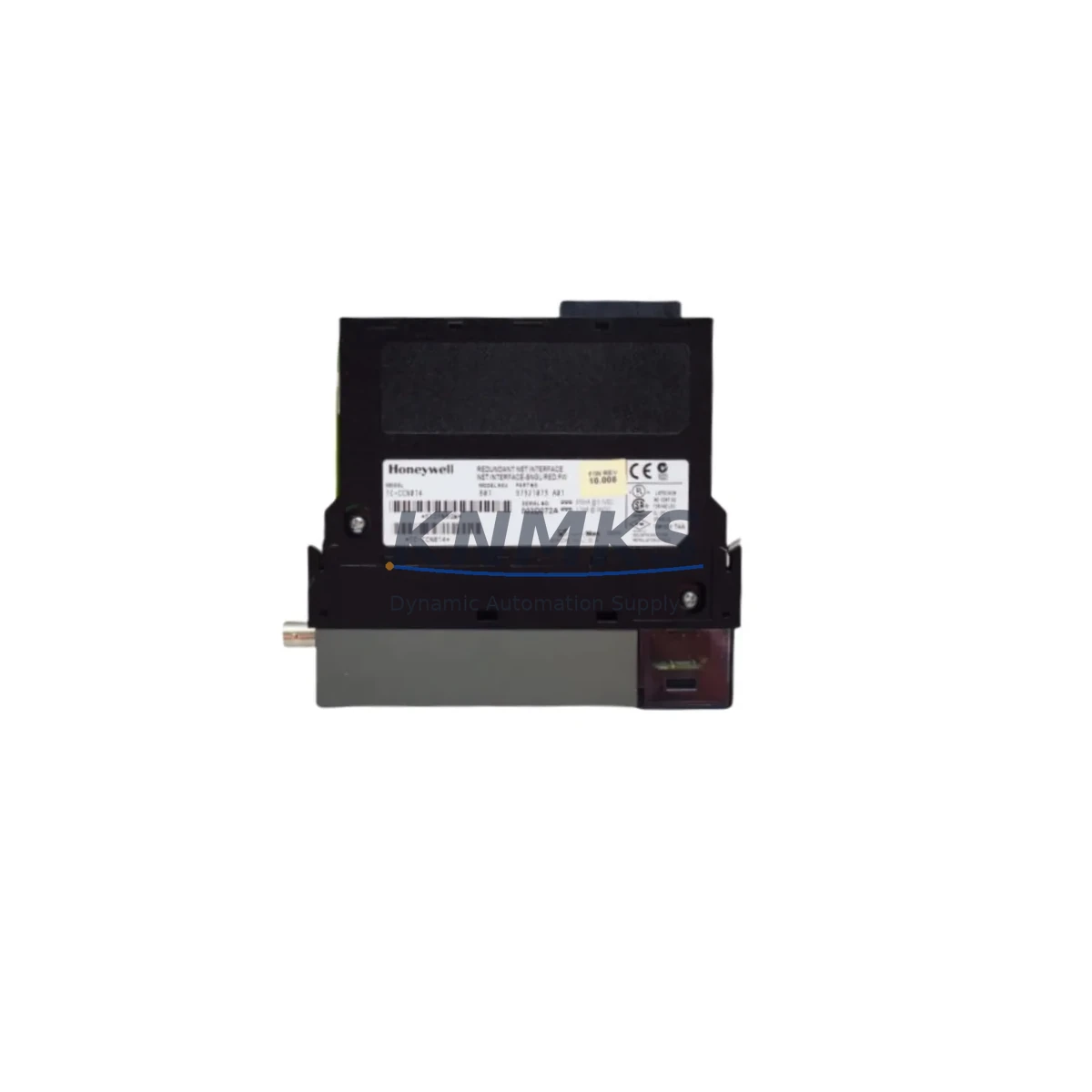

The Honeywell TK-CCR014 is a redundant network interface module engineered for the Experion PKS C300 controller platform. Designed as a migration-ready replacement for aging or end-of-life communication modules in legacy distributed control systems, the TK-CCR014 supports Fault Tolerant Ethernet (FTE) architecture and enables seamless integration into existing C300 controller chassis without requiring backplane redesign or firmware overhaul. For automation engineers managing long-lifecycle installations in refining, petrochemical, power generation, and continuous process industries, this module represents a reliable path to extending system service life while preserving existing control logic and HMI configurations.

When planning a retrofit or spare parts replacement involving the TK-CCR014, engineers must verify several critical compatibility parameters before installation. Power supply capacity within the C300 chassis must be confirmed — the module draws from the shared backplane bus, and installations running near the rated load of the Honeywell CC-PWR024 or equivalent power supply module should be audited before adding or swapping communication modules. Terminal wiring on the FTE network ports must match the existing Cat5e or Cat6 infrastructure, and any managed switch configurations (VLAN tagging, port mirroring, or storm control settings) should be documented prior to module removal.

Backplane slot assignment is another key consideration. The TK-CCR014 occupies a dedicated slot in the C300 chassis, and its module address must be consistent with the controller configuration stored in Experion PKS Control Builder. If the original module address has been customized or if the chassis has been partially reconfigured, the replacement module address must be re-mapped before the controller is brought online. Failure to align module addressing will result in communication faults and may trigger safety interlocks in SIL-rated loops.

Program compatibility is preserved in most retrofit scenarios because the TK-CCR014 maintains the same FTE protocol stack as earlier C300 network modules. However, engineers should confirm the Experion PKS server version and ensure that the Control Execution Environment (CEE) firmware on the C300 controller is at a compatible revision level. In systems running older Experion R400 or R410 releases, a firmware update to the Honeywell C300 Controller itself may be required before the new network module is recognized correctly by the system.

HMI screen configurations and historian tag bindings are not affected by a network module swap, provided the FTE node address and controller tag structure remain unchanged. This is a significant advantage for facilities where HMI redevelopment would require extended downtime or operator retraining. In parallel redundant FTE topologies, the secondary network path through the TK-CCR014 ensures that a single cable or switch failure does not interrupt process control — a critical requirement for continuous operations where unplanned shutdowns carry significant production cost.

For installations that also involve I/O expansion or signal path changes, the TK-CCR014 retrofit is often performed alongside replacement of Honeywell TK-PCIC01 process controller interface cards or CC-TAIX11 analog input terminal assemblies. In multi-chassis configurations, the FTE network module must be coordinated with the Honeywell ENET-2 or equivalent Ethernet switch infrastructure to maintain deterministic scan times across all C300 nodes. Where legacy serial communication links are being migrated to Ethernet-based protocols, a Honeywell TK-PRG001 programming and configuration cable may be required for initial module commissioning and parameter verification.

Installation space confirmation is straightforward for standard C300 chassis configurations, but in compact control cabinets or retrofit enclosures where chassis have been stacked or repositioned, physical clearance for the module latch mechanism and cable routing should be verified before ordering. The TK-CCR014 ships in standard module form factor consistent with the C300 platform and does not require adapter brackets or custom mounting hardware.

All units supplied by KNMKS are tested prior to shipment, including power-on verification, FTE port link negotiation, and backplane communication checks. Each module is covered by a support terms confirmed by quotation from the date of shipment. Stock is maintained across regional distribution points to support urgent spare parts requirements and planned maintenance windows. Lead times for in-stock units are typically 3–7 business days for international shipments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TK-CCR014 retrofit begins with a structured pre-installation audit. Engineers should document the current FTE network topology, including switch port assignments, IP address allocations, and redundancy path status. In systems where the existing network module has partially failed — exhibiting intermittent FTE link drops or elevated error counts in the Experion PKS Station — the replacement sequence should be planned during a scheduled maintenance window to avoid uncontrolled controller failover.

Where the retrofit scope extends beyond the network module, common companion replacements include the Honeywell CC-TAIX11 analog input terminal assembly for I/O channel restoration, the CC-PWRR01 redundant power supply module for chassis power path upgrades, and the Honeywell TK-PCIC01 process controller interface card where backplane communication integrity has degraded. In multi-node architectures, coordinating the TK-CCR014 replacement with a review of the FTE switch infrastructure — particularly any aging Honeywell ENET-2 managed switches — ensures that the upgraded network module operates within a fully validated communication environment.

Signal isolation requirements should also be reviewed during retrofit planning. Where analog I/O signals share grounding paths with digital communication circuits, the addition of signal isolators between field devices and C300 I/O modules can prevent ground loop interference from affecting FTE communication stability after the module swap.

Downtime Control During System Migration

Minimizing unplanned downtime during a TK-CCR014 replacement requires a disciplined change management approach. Before removing the existing module, a full backup of the Experion PKS Control Builder project — including all CEE configurations, tag databases, and FTE network definitions — must be completed and verified. The backup should be stored on an isolated engineering workstation, not on the Experion server that will remain online during the swap.

In redundant FTE topologies, the replacement can be performed with the secondary network path active, allowing the C300 controller to maintain process control continuity through the backup FTE link while the primary network module is swapped. After installation, the new TK-CCR014 should be brought online in monitoring mode first, with FTE link status and error counters verified in the Experion PKS Station before the module is promoted to primary network path status.

Field control continuity is maintained throughout this sequence because the C300 controller’s control execution environment operates independently of the network module during the brief transition period. Operators should be informed of the maintenance window and any alarm suppression applied to FTE-related diagnostic points should be documented and reversed immediately after commissioning is confirmed.

Retrofit Support FAQ

Q: Is the TK-CCR014 a direct drop-in replacement for earlier Honeywell C300 network modules?
A: Yes, the TK-CCR014 is designed as a form-fit-function replacement for compatible C300 network module variants. Module address configuration in Control Builder must be verified to match the original slot assignment before the replacement module is powered on.

Q: What pre-shipment testing is performed on each TK-CCR014 unit?
A: Each unit undergoes power-on verification, FTE dual-port link negotiation testing, and backplane communication checks before shipment. Test records are available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Can the TK-CCR014 be installed without taking the C300 controller offline?
A: In redundant FTE configurations, the network module can be replaced with the secondary FTE path active, maintaining controller operation. In simplex (non-redundant) configurations, a brief controller restart is required after module installation to re-establish FTE communication.

Q: What is the typical lead time and stock availability?
A: In-stock units ship within 3–7 business days internationally. KNMKS maintains buffer stock for the TK-CCR014 to support both planned maintenance and emergency spare parts requirements. Contact admin@knmks.com or +86 18359268345 for current availability and volume pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345
