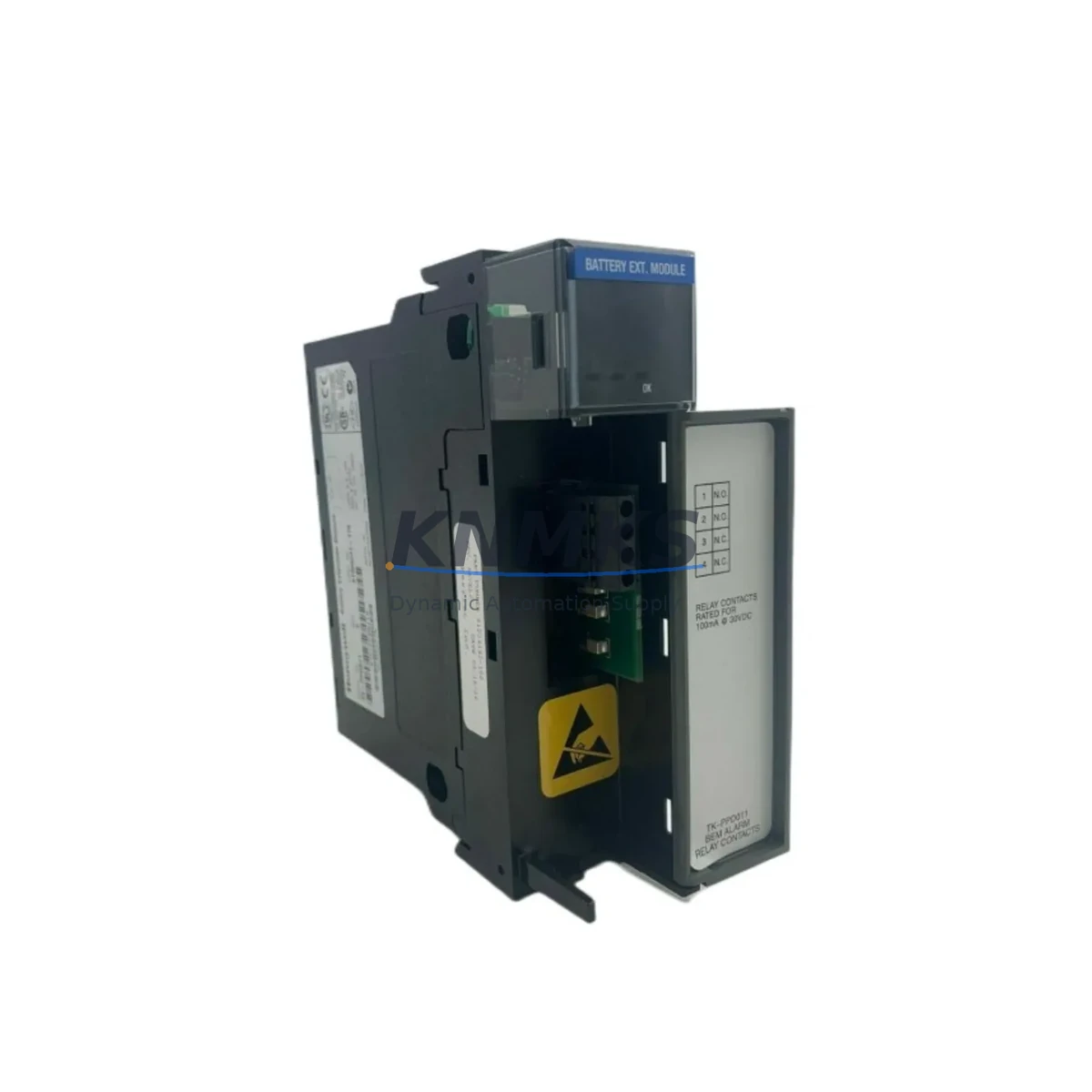

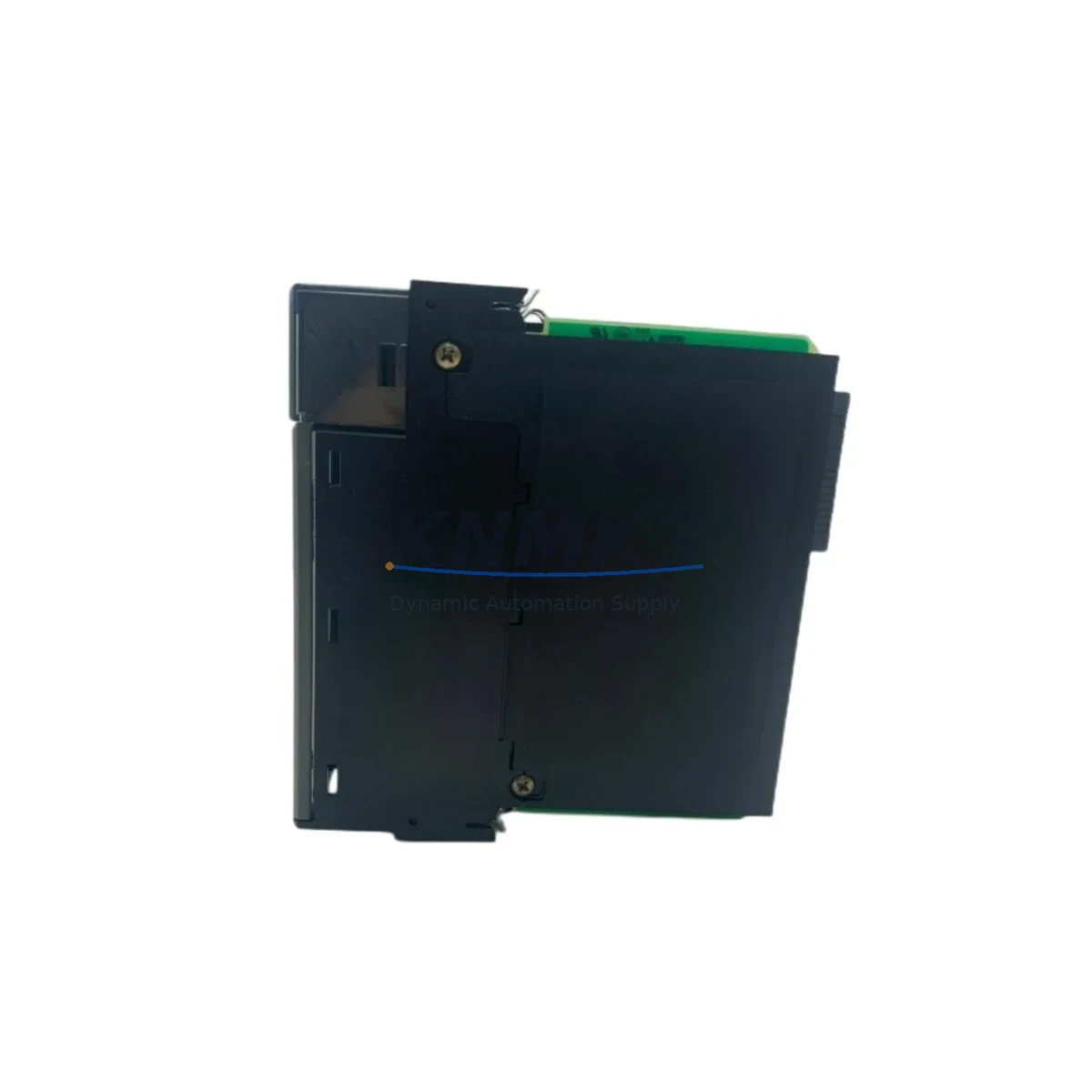

Honeywell TC-PPD011 51309241-125 Migration-Ready Battery Module

Overview

Honeywell TC-PPD011 51309241-125 Migration-Ready Battery Module: Legacy DCS System Retrofit & Compatibility Upgrade

The Honeywell TC-PPD011 (Part No. 51309241-125) is a critical battery backup module designed for Honeywell TotalPlant Solution (TPS) and Experion PKS distributed control systems. As legacy DCS platforms approach end-of-life and spare parts become increasingly scarce, the TC-PPD011 remains one of the most sought-after replacement components for engineers managing aging control infrastructure in refining, petrochemical, power generation, and continuous process industries.

This module provides sustained power backup to the processor and memory subsystems within the TPS cabinet architecture, ensuring that critical control logic, setpoints, and configuration data are preserved during planned shutdowns, power interruptions, or unplanned outages. For facilities still operating on Honeywell TPS or transitioning toward Experion PKS via a phased migration strategy, maintaining a verified stock of TC-PPD011 modules is essential to operational continuity.

Each unit shipped from KNMKS undergoes pre-shipment functional verification, is packaged in anti-static protective materials, and is covered by a 12-month replacement support terms. Global logistics support is available with lead times confirmed at order placement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the TC-PPD011 in an active TPS or Experion PKS environment requires careful pre-migration planning to avoid unintended process disruptions. Before pulling the existing module, engineers should document the current battery status indicator readings on the Honeywell PM (Process Manager) or HPM (High-Performance Process Manager) node, and confirm that the associated TC-FPCXX series power conditioner is delivering stable DC rail voltage within specification.

In cabinet configurations where the TC-PPD011 supports multiple I/O subsystems, it is advisable to audit the connected TC-IOLI01 or TC-IOLI16 I/O link interface modules to ensure no active scan cycles are interrupted during the swap. If the control cabinet also houses TC-CCR013 or TC-CCR014 communication controller modules, verify that the LCN or FTE communication links remain active through redundant paths before proceeding with the battery module replacement.

For facilities executing a phased migration from TPS to Experion PKS, the TC-PPD011 often remains in service during the transition period while new C300 or C200E controllers are being commissioned in parallel. In this scenario, maintaining a verified spare TC-PPD011 on-site prevents unplanned downtime caused by battery depletion in the legacy TPS nodes that continue to handle live process control during the cutover window.

Physical installation space should be confirmed against the existing cabinet slot assignment. The TC-PPD011 occupies a standard TPS module slot and does not require additional mounting hardware, but technicians should inspect the backplane connector pins for oxidation or mechanical wear before seating the replacement unit. Torque specifications for the module retention screws should follow the Honeywell TPS Hardware Installation Guide applicable to the cabinet revision in use.

Downtime Control During System Migration

Minimizing control system downtime during a battery module replacement is achievable through structured pre-work and a disciplined hot-swap or cold-swap protocol depending on the redundancy configuration of the target node. For redundant HPM configurations, the TC-PPD011 can typically be replaced on the standby node while the primary node maintains process control, provided the switchover logic has been validated and the operator station is staffed during the procedure.

Prior to replacement, all critical setpoints, tuning parameters, and control logic should be backed up from the Honeywell Engineering Repository or exported via the Experion Configuration Studio. This ensures that in the unlikely event of a configuration loss during the module swap, restoration can be completed within the planned maintenance window without requiring a full re-engineering effort.

Field technicians should also confirm that HMI display pages referencing the affected node’s battery status are updated post-replacement to reflect the new module’s charge state. Stale alarm conditions related to low battery warnings should be acknowledged and cleared only after the replacement module has been confirmed operational through the Honeywell Station diagnostic interface. Maintaining communication link continuity through the FTE switch infrastructure during the swap is critical — any interruption to the Cisco IE series industrial Ethernet switches supporting the FTE backbone should be coordinated with the network team in advance.

Retrofit Support FAQ

Q1: Is the TC-PPD011 (51309241-125) a direct replacement for all TC-PPD011 variants?
The 51309241-125 is the primary part number for the TC-PPD011 battery module. Before installation, confirm the firmware revision stamped on the module label matches the revision supported by your TPS or Experion PKS node software version. In most TPS configurations, the module is interchangeable across minor hardware revisions, but this should be verified against the Honeywell compatibility matrix for your specific system release.

Q2: What pre-shipment testing does KNMKS perform on the TC-PPD011?
Each TC-PPD011 unit undergoes functional verification prior to shipment, including battery charge capacity assessment and connector integrity inspection. Units are shipped in anti-static packaging with a test report available upon request. All units are covered by a 12-month replacement support terms from the date of shipment.

Q3: Can the TC-PPD011 be installed while the TPS system is online?
In redundant node configurations, the battery module on the standby node can typically be replaced while the primary node remains in control. For simplex node configurations, a planned shutdown window is required. Always follow the Honeywell TPS maintenance procedures and coordinate with the control room operator before proceeding with any module replacement on a live system.

Q4: What is the lead time and inventory availability for the TC-PPD011 51309241-125?
KNMKS maintains stock of the TC-PPD011 for immediate shipment. Lead time is confirmed at order placement based on current inventory levels. For urgent requirements or bulk procurement, contact our sales team directly to confirm availability and arrange expedited logistics.
