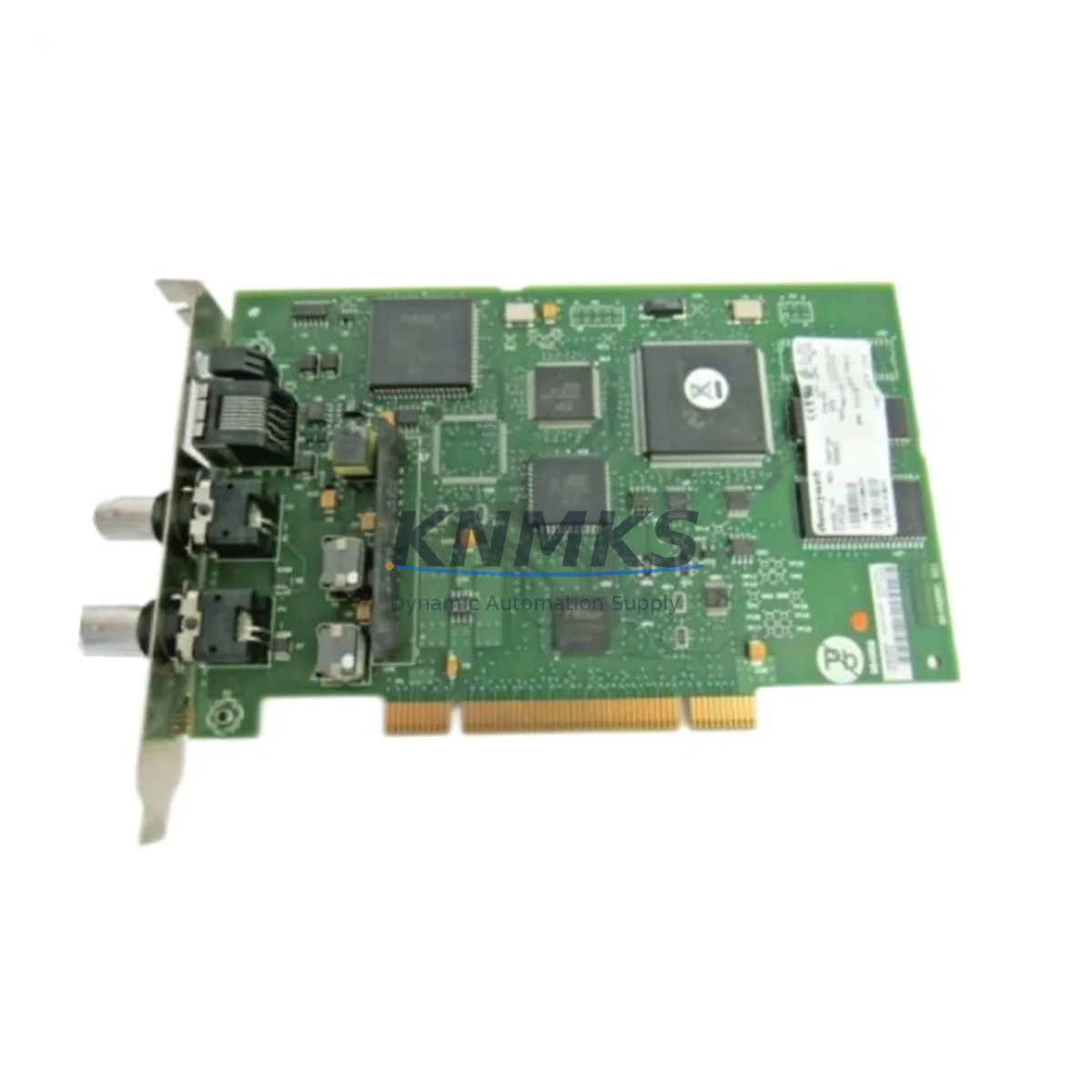

Honeywell TC-PCIC02 Fail-Safe ControlNet Interface

Overview

Honeywell TC-PCIC02 Fail-Safe ControlNet Interface: Fault Protection and Critical Industrial Field Reliability

The Honeywell TC-PCIC02 is a high-integrity ControlNet Interface Module engineered for the Experion PKS Distributed Control System platform. Designed to operate continuously in demanding industrial environments, the TC-PCIC02 delivers deterministic, fail-safe communication between the process controller and field devices — making it a cornerstone component in critical control cabinets across petrochemical, power generation, mining, water treatment, metallurgy, and continuous manufacturing facilities.

In high-stakes industrial operations, communication integrity between the DCS controller and I/O subsystems is non-negotiable. A single point of communication failure can cascade into unplanned shutdowns, process upsets, or — in safety-critical applications — hazardous conditions. The TC-PCIC02 addresses this risk directly by providing a robust, noise-immune ControlNet interface that maintains signal fidelity even under severe electromagnetic interference (EMI), voltage transients, and ground loop conditions commonly found in heavy industrial switchgear rooms and motor control centers.

The module’s architecture supports redundant ControlNet topologies, enabling hot-standby configurations that eliminate single points of failure in the communication backbone. When paired with the Honeywell TC-CCR014 C200 Controller or the TC-CCR016 redundant controller chassis, the TC-PCIC02 forms a fully fault-tolerant control node capable of bumpless switchover — ensuring that a hardware fault in the primary controller does not interrupt the control loop or trigger a spurious trip in the safety interlock system.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a collection of individual components. The TC-PCIC02 performs at its highest reliability when integrated within a properly engineered Experion PKS cabinet architecture. In continuous process plants, the ControlNet interface module is typically installed alongside the Honeywell TC-CCR014 C200 Controller Module, which handles the real-time execution of control strategies, and the TC-PSA024 or TC-PSA048 power supply modules that deliver clean, regulated 24 VDC to the backplane — protecting all modules from upstream power quality issues including voltage sags, surges, and harmonic distortion from variable frequency drives (VFDs).

For I/O expansion and field signal integrity, the TC-PCIC02 communicates with remote I/O chassis populated with modules such as the TC-IAH161 16-channel analog input module or the TC-OAH163 analog output module, both of which are designed for high-accuracy signal conditioning in noisy field environments. In safety interlock loops — such as emergency shutdown (ESD) systems or burner management systems (BMS) — the ControlNet backbone managed by the TC-PCIC02 must maintain deterministic scan times to ensure that safety function response times comply with IEC 61511 requirements. Any communication latency or packet loss on this backbone can delay the execution of a safety-critical output, which is why the dual-media redundancy capability of the TC-PCIC02 is not merely a convenience feature but a fundamental safety design requirement.

Cabinet thermal management is equally critical. In high-density control cabinets where multiple C200 controller nodes, I/O modules, and communication interfaces are co-located, heat accumulation can degrade module performance and accelerate component aging. The TC-PCIC02’s operating temperature range of 0°C to +60°C provides adequate margin for most enclosed panel environments, but integrators should ensure that cabinet ventilation or forced-air cooling maintains internal temperatures below this threshold — particularly in tropical climates or outdoor enclosures exposed to solar loading.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation, catalytic cracking, and hydroprocessing units, the TC-PCIC02 serves as the communication backbone between the Experion PKS controller and field-mounted transmitters, control valves, and motor starters. Its EMI immunity is essential in environments where high-voltage switchgear, large motor loads, and radio-frequency sources create persistent electromagnetic noise that can corrupt digital communication signals on lesser-grade interfaces.

Power Generation and Substation Control: Thermal power plants and combined-cycle facilities rely on Experion PKS for boiler control, turbine protection, and auxiliary system management. The TC-PCIC02’s support for redundant ControlNet media ensures that a cable fault or connector failure does not interrupt the communication path between the controller and critical I/O — a requirement that aligns with IEC 61850 substation automation principles for high-availability control systems.

Mining and Mineral Processing: In ore crushing, grinding, flotation, and tailings management operations, control systems are exposed to extreme vibration, dust ingress, and wide temperature swings. The TC-PCIC02’s robust mechanical design and IEC 60068-2-6 vibration compliance make it suitable for installation in control rooms adjacent to heavy crushing and conveying equipment, where structural vibration is transmitted through the building fabric into the control cabinet.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, uninterrupted control of pumping stations, chemical dosing systems, and filtration processes. A communication failure between the DCS controller and the pump control I/O can result in overflow events, chemical overdosing, or regulatory non-compliance. The TC-PCIC02’s deterministic ControlNet communication eliminates the timing uncertainty associated with Ethernet-based protocols in these latency-sensitive applications.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mills generate some of the most severe electromagnetic environments in industry. The TC-PCIC02’s IEC 61000-4 compliant EMI design ensures communication integrity even when installed in close proximity to high-current bus bars, thyristor drives, and arc furnace transformers.

Safety and Quality FAQ

Q1: What support terms does the TC-PCIC02 carry?
All TC-PCIC02 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed with priority dispatch of a replacement unit to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every TC-PCIC02 undergoes functional verification testing prior to dispatch, including power-on self-test (POST) confirmation, ControlNet port integrity check, and backplane communication validation. Units supplied as tested surplus are additionally subjected to extended burn-in testing to screen for latent component failures.

Q3: Is the TC-PCIC02 compatible with all Experion PKS controller generations?
The TC-PCIC02 is compatible with C200 and C200E controller nodes within the Experion PKS platform. Compatibility with specific firmware revisions should be confirmed against the Honeywell Experion PKS hardware compatibility matrix. KNMKS technical support can assist with compatibility verification prior to order placement.

Q4: Can KNMKS support long-term or repeat supply of the TC-PCIC02?
Yes. KNMKS maintains dedicated inventory of Honeywell Experion PKS components including the TC-PCIC02 to support both emergency replacement and planned maintenance programs. Long-term supply agreements and scheduled delivery programs are available for facilities managing multi-site DCS standardization or lifecycle replacement projects.
