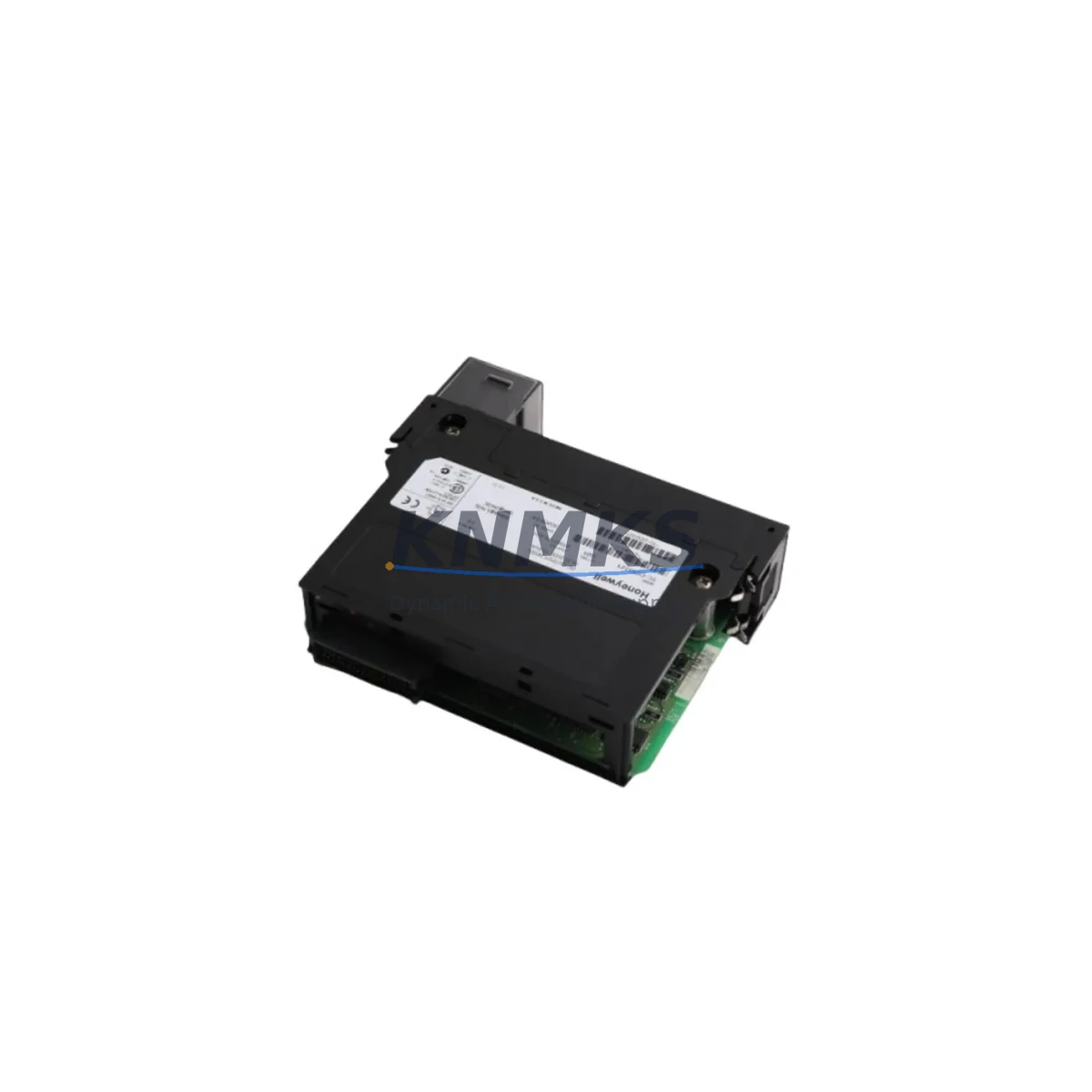

Honeywell TC-ODK161 Fail-Safe Relay Output Module

Overview

Honeywell TC-ODK161 Fail-Safe Relay Output Module: Fault Protection for Critical Industrial Control

The Honeywell TC-ODK161 is a discrete relay output module engineered for the Experion PKS distributed control system platform — one of the most widely deployed DCS architectures in continuous process industries worldwide. Designed to deliver deterministic switching performance under demanding field conditions, the TC-ODK161 provides 16 channels of isolated relay output, making it a cornerstone component in safety-critical control cabinets where unplanned shutdowns, signal drift, or output misfires carry severe operational and safety consequences.

In high-stakes environments such as petrochemical refineries, power generation facilities, metallurgical plants, and offshore platforms, relay output modules are not merely switching devices — they are the final control elements that actuate valves, contactors, motor starters, and interlock circuits. A single output failure can cascade into a process trip, equipment damage, or a safety incident. The TC-ODK161 is built to eliminate that risk through robust hardware design, galvanic channel isolation, and compatibility with Honeywell’s redundant controller architectures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The TC-ODK161 does not operate in isolation — its reliability is amplified when deployed as part of a coordinated control cabinet protection strategy. In a typical Experion PKS control node, the TC-ODK161 relay output module works in conjunction with the TC-CCR014 controller chassis and TC-FPCXX02 field power conditioner to ensure that relay switching commands are delivered cleanly even during upstream power fluctuations or transient surges. The field power conditioner suppresses voltage spikes that would otherwise stress relay coil circuits and shorten contact life.

For applications requiring interlock integrity, the TC-ODK161 is commonly paired with the TC-IDK161 discrete input module, which reads back field contact status to confirm that relay outputs have physically actuated — a critical closed-loop verification step in safety instrumented systems. In high-vibration environments such as compressor stations or heavy press lines, the TC-FPCXX02 power supply module’s regulated output prevents the micro-interruptions that can cause spurious relay trips or missed actuations.

Where communication integrity is paramount — such as in distributed safety loops spanning multiple control rooms — the TC-ODK161 integrates with Honeywell’s FTE (Fault Tolerant Ethernet) network infrastructure, ensuring that I/O scan cycles remain uninterrupted even during single-network-path failures. Complementary modules such as the TC-PRS021 redundant power supply and CC-TAIX01 analog input termination assemblies round out a cabinet architecture designed for zero-unplanned-downtime operation.

In dusty, humid, or chemically aggressive environments — common in water treatment plants, fertilizer production, and mining concentrators — the TC-ODK161’s sealed backplane connector and conformal-coated PCB design resist corrosion and contamination ingress, maintaining contact resistance stability over multi-year service intervals without requiring periodic cleaning or recalibration.

Critical Industrial Safety Applications

Petrochemical & Refinery: The TC-ODK161 is widely deployed in crude distillation unit (CDU) control systems, where it actuates emergency shutdown (ESD) valves and high-integrity pressure protection system (HIPPS) outputs. Its fail-safe de-energize-to-trip behavior aligns with IEC 61511 safety lifecycle requirements, making it suitable for SIL 1 and SIL 2 loop architectures when applied within a validated Experion PKS safety configuration.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the TC-ODK161 controls boiler interlock circuits, turbine trip relays, and auxiliary equipment sequencing. Its ability to sustain reliable switching under high-frequency electrical noise — generated by large motor drives and transformer switching — makes it a preferred choice for generator protection panels.

Mining & Mineral Processing: Conveyor belt interlock systems, crusher protection circuits, and flotation cell control loops in mining operations demand relay modules that can withstand continuous vibration, dust infiltration, and wide ambient temperature swings. The TC-ODK161’s robust mechanical design and wide operating temperature range make it a dependable choice for remote concentrator plant control rooms.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the TC-ODK161 to control pump motor starters, chemical dosing system contactors, and UV disinfection unit interlocks. Its 16-channel density reduces cabinet footprint while maintaining full channel isolation — critical in environments where ground loops and stray currents are common.

Metallurgy & Steel: Electric arc furnace (EAF) control systems, rolling mill interlock panels, and ladle transfer car controls operate in some of the most electrically hostile environments in industry. The TC-ODK161’s EMI-hardened design ensures that relay output commands are executed accurately even in the presence of high-current arc discharge interference.

Port & Marine: Ship automation systems and port crane control panels require relay output modules certified for marine-grade vibration and humidity exposure. The TC-ODK161, when deployed in sealed enclosures, meets the environmental demands of shipboard machinery control and offshore platform safety systems.

Safety and Quality FAQ

Q1: What support terms coverage does the TC-ODK161 carry?
Every TC-ODK161 unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing — including relay actuation verification, channel isolation check, and backplane communication handshake — before dispatch. A test report is available upon request.

Q2: Is the TC-ODK161 compatible with my existing Experion PKS system version?
The TC-ODK161 is designed for the Honeywell Experion PKS I/O subsystem and is backward-compatible across multiple Experion PKS software releases. It is also functionally compatible with HC900 hybrid controller configurations. If you are integrating into a specific firmware revision or redundant controller pair, our technical team can confirm compatibility based on your system’s C300 or C200 controller generation before shipment.

Q3: Can KNMKS support long-term or scheduled supply agreements for the TC-ODK161?
Yes. KNMKS maintains dedicated inventory reserves for critical Honeywell Experion PKS I/O modules, including the TC-ODK161, to support planned maintenance shutdowns, multi-site spare parts programs, and 12–36 month supply agreements. Contact our sales team to discuss volume pricing, lead time guarantees, and consignment stock arrangements tailored to your plant’s maintenance schedule.

Q4: What should I verify before replacing a TC-ODK161 in a live control system?
Before replacing a TC-ODK161 in an operating Experion PKS system, confirm that the replacement module carries the same hardware revision as the installed unit, that the I/O chassis slot is powered down or that the system supports hot-swap replacement in your specific configuration, and that all 16 output channels are mapped correctly in the Experion Control Builder configuration. KNMKS recommends performing a loop check on all relay outputs after module replacement to confirm field device response before returning the loop to automatic control.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

TC-ODK161
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell TC-ODK161
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
