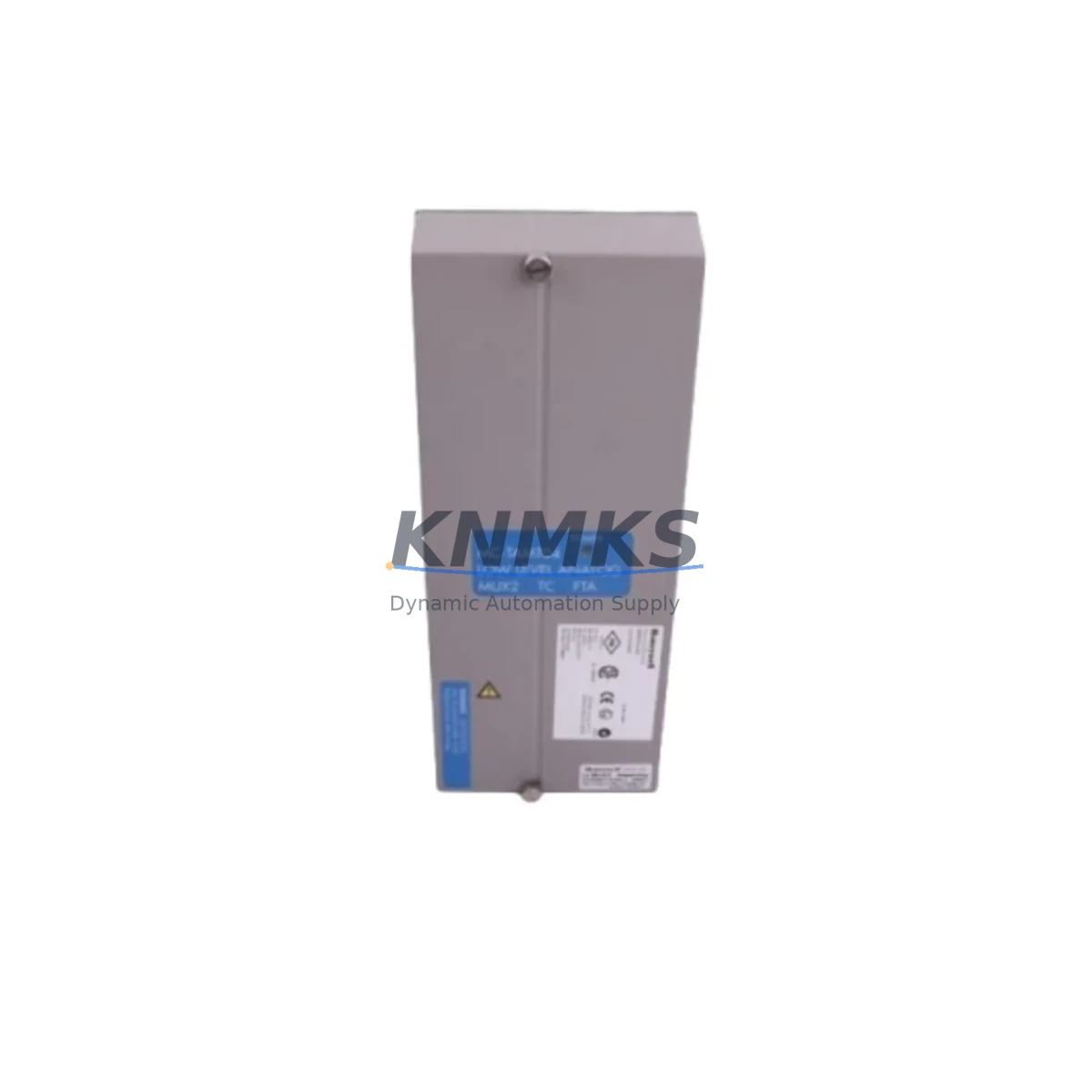

Honeywell TC-IDW161 Fail-Safe AC DI Module for Industrial Control

Overview

Honeywell TC-IDW161 Fail-Safe AC DI Module for Industrial Control

The Honeywell TC-IDW161 is a 16-channel AC Digital Input Module engineered for mission-critical process control environments within the Experion PKS and TotalPlant Solution (TPS) distributed control system architecture. Designed to meet the demanding requirements of continuous production facilities, this module delivers fail-safe signal acquisition, robust EMI immunity, and long-term operational stability across a wide range of hazardous and high-uptime industrial sites.

In petrochemical complexes, power generation plants, and metallurgical facilities where unplanned downtime carries severe safety and financial consequences, the TC-IDW161 provides the reliable AC digital input interface that control engineers depend on. Its hardened design addresses the core failure modes that compromise field-level signal integrity: contact bounce, voltage transients, ground loops, electromagnetic interference from variable frequency drives and high-current switchgear, and thermal stress from densely packed control cabinets. By maintaining clean, validated input states under these conditions, the module protects the integrity of safety interlocks, permissive logic, and process shutdown sequences that depend on accurate field status reporting.

The TC-IDW161 is built to operate continuously without recalibration or manual intervention, reducing the maintenance burden on instrumentation teams responsible for large-scale DCS installations. Its compatibility with the Experion PKS C300 Controller and the broader Honeywell Series C I/O infrastructure means it integrates directly into existing control strategies without requiring software re-engineering or hardware adapters. For facilities managing aging TPS or PlantScape systems, the TC-IDW161 also serves as a validated migration-ready replacement, extending the operational life of legacy control architectures while preserving existing field wiring and loop documentation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the TC-IDW161 within a well-engineered control cabinet architecture requires careful attention to the surrounding I/O infrastructure. In high-density Experion PKS cabinets, the module is typically installed alongside the Honeywell TC-ODW161 AC Digital Output Module, which handles the corresponding actuator-side switching for the same process loops. Together, these modules form a matched AC I/O pair that simplifies cabinet layout, reduces wiring complexity, and ensures consistent signal-level compatibility across the input-output boundary.

For applications where analog process variables must be monitored alongside discrete status inputs, the Honeywell TC-IAH161 Analog Input Module provides the complementary signal conditioning layer within the same I/O chassis. In safety-critical loops where both digital and analog inputs feed into a common interlock calculation, co-locating these modules on a shared carrier reduces scan-time latency and simplifies the control narrative for process safety management reviews.

Power integrity is a foundational requirement for any fail-safe I/O installation. The Honeywell CC-PWR01 Power Supply Module and associated redundant power distribution components ensure that the TC-IDW161 and its chassis neighbors receive clean, regulated DC bus power even during upstream AC supply disturbances. In facilities with known power quality issues — including voltage sags, harmonic distortion from large motor loads, and momentary interruptions during switchgear operations — a redundant power architecture prevents nuisance I/O faults that can trigger spurious shutdowns or mask genuine field alarms.

Communication reliability between the I/O chassis and the Honeywell C300 Controller is maintained through the Fault-Tolerant Ethernet (FTE) network, which provides dual-path redundancy at the control network level. In environments with high electromagnetic interference — common in substations, arc furnace facilities, and compressor stations — proper FTE cable routing, shielding, and separation from power conductors is essential to prevent communication timeouts that could cause the TC-IDW161 to enter its defined safe state unnecessarily. The Honeywell EPLCG4 or equivalent FTE switch infrastructure supports the deterministic communication timing that the Experion PKS architecture requires for reliable I/O scanning.

For installations in dusty, humid, or chemically aggressive environments — including offshore platforms, coastal chemical terminals, and underground mining control rooms — the TC-IDW161 should be housed in appropriately rated enclosures with positive-pressure purging or sealed gasket protection. Pairing the module with Honeywell Experion PKS Remote I/O enclosure solutions allows field-side installation closer to the process, reducing field cable runs and the associated signal degradation risks in long-distance AC wiring.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous process units such as crude distillation, hydrocracking, and gas compression trains, the TC-IDW161 monitors the discrete status of motor starters, valve position switches, pressure switches, and emergency shutdown (ESD) pushbuttons. Its ability to accurately report field device states under high-EMI conditions — generated by large induction motors, heat tracing systems, and variable speed drives — is critical to the reliability of the safety instrumented system (SIS) boundary conditions and the DCS-level basic process control system (BPCS) interlocks that operate in parallel.

Power Generation and Substation Control: Thermal power plants, combined-cycle facilities, and grid-connected substations rely on AC digital input modules to monitor breaker status, transformer tap positions, and protection relay outputs. The TC-IDW161’s optical isolation and AC input filtering prevent ground potential differences and induced voltages — common in high-voltage switchyard environments — from corrupting the input state reported to the Experion PKS controller. This ensures that turbine protection sequences, load shedding logic, and automatic generation control (AGC) functions receive accurate field data at all times.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. Conveyor belt interlocks, crusher protection circuits, and ventilation fan status monitoring all depend on reliable AC digital input acquisition. The TC-IDW161’s robust construction and defined fail-safe behavior ensure that a module fault results in a predictable, safe-state response rather than an ambiguous input condition that could allow hazardous equipment to continue operating.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use AC digital inputs to monitor pump run/stop status, valve open/closed confirmation, level switch activation, and chemical dosing system interlocks. The TC-IDW161 supports the high-availability control strategies required by facilities that must maintain continuous operation to meet regulatory discharge standards and public health obligations.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate some of the most severe electromagnetic environments in industrial automation. The TC-IDW161’s EMI immunity and optical isolation make it suitable for monitoring the discrete inputs associated with furnace electrode positioning, cooling water flow confirmation, and emergency tilt interlock circuits in these demanding applications.

Port and Marine Terminal Operations: Ship-to-shore crane control systems, bulk material handling conveyors, and tank farm management systems at port facilities require reliable discrete input monitoring across large geographic areas with multiple grounding systems. The TC-IDW161’s isolation characteristics help manage the ground loop currents that are endemic to large outdoor industrial installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the TC-IDW161?
Every TC-IDW161 unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers functional failures under normal operating conditions and includes technical support for installation and commissioning questions. Support requests are processed directly through our sales team at admin@knmks.com.

Q2: What pre-shipment testing is performed on each unit?
All TC-IDW161 modules undergo full functional verification prior to dispatch. This includes power-on testing, channel-by-channel input state verification, communication interface validation, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the TC-IDW161 compatible with existing Experion PKS and TPS installations?
Yes. The TC-IDW161 is designed for direct installation into Honeywell Experion PKS Series C I/O chassis and is compatible with the C300 Controller and associated FTE network infrastructure. It is also a validated replacement option for equivalent modules in legacy TotalPlant Solution (TPS) and PlantScape systems, supporting migration projects that require hardware refresh without control strategy re-engineering.

Q4: Can long-term spare parts supply be guaranteed for multi-site or multi-year maintenance programs?
KNMKS maintains stock of the TC-IDW161 and related Experion PKS I/O modules to support long-range spare parts programs with 12–36 month planning horizons. We work with procurement and reliability engineering teams to establish blanket order arrangements, consignment stock agreements, and priority allocation for critical infrastructure operators. Contact admin@knmks.com to discuss your site’s specific spare parts strategy.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

TC-IDW161
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell TC-IDW161
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
