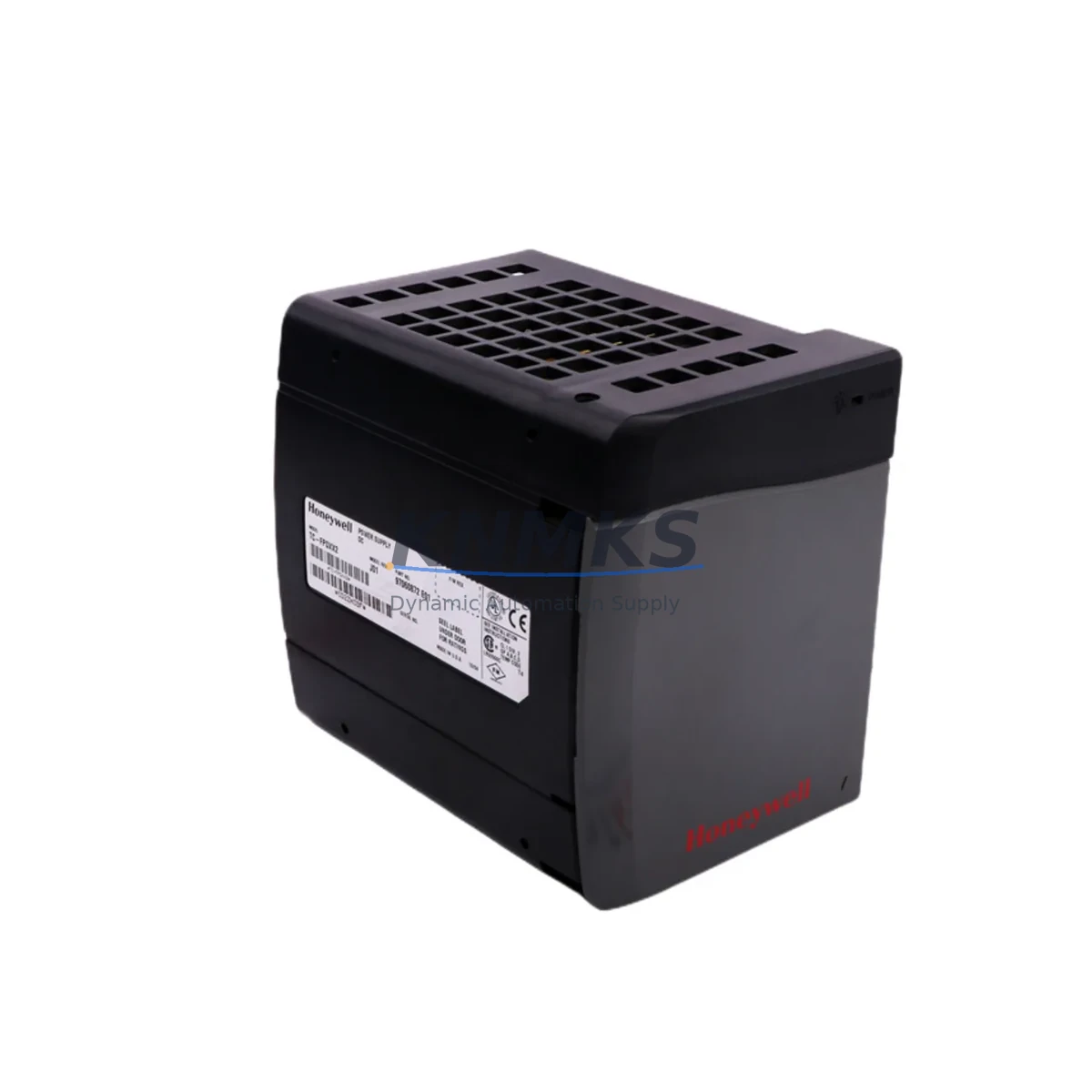

Honeywell TC-FPDXX2 Migration-Ready Power Supply for Legacy DCS

Overview

Honeywell TC-FPDXX2 Migration-Ready Power Supply for Legacy DCS: Retrofit and Upgrade for TPS Control Systems

The Honeywell TC-FPDXX2 is a field-proven power supply module engineered for the TotalPlant Solution (TPS) Distributed Control System platform. As legacy TPS installations approach end-of-support milestones, the TC-FPDXX2 serves as a critical component in both direct replacement scenarios and structured control system modernization projects. Whether you are restoring an aging power rail, replacing a failed unit under production pressure, or executing a phased migration from an obsolete DCS architecture, the TC-FPDXX2 delivers the electrical stability and form-factor compatibility that retrofit engineers depend on.

For facilities operating legacy Honeywell TPS cabinets, sourcing a verified replacement power supply is often the first and most time-sensitive step in a system recovery or upgrade project. The TC-FPDXX2 is designed to occupy the same backplane slot as its predecessors, eliminating the need for cabinet re-engineering or custom mounting brackets. Before installation, engineers should confirm the existing power bus voltage rating, verify that the cabinet’s total load does not exceed the module’s rated output capacity, and inspect the terminal block wiring for compatibility with the module’s connector pinout. Mismatched terminal assignments are a common source of commissioning delays and must be resolved before energizing the replacement unit.

In broader retrofit planning, the TC-FPDXX2 is frequently deployed alongside the Honeywell TC-CCR014 controller module and TC-IAH061 analog input cards, which together form the core of a TPS I/O subsystem. When upgrading a full control cabinet, the power supply is typically the first module replaced, followed by the controller and then the I/O modules, allowing each stage to be validated independently. The TC-FPDXX2’s output specifications are compatible with the standard 24 VDC I/O bus used across the TPS family, meaning that existing field wiring to transmitters, solenoids, and signal isolators can generally be retained without modification.

Communication infrastructure is another key consideration during DCS migration. TPS systems using the Honeywell Data Hiway or Local Control Network (LCN) protocol require that all replacement modules maintain address compatibility with the existing network configuration. The TC-FPDXX2 does not carry a network address itself, but its stable power output is essential for maintaining the integrity of communication modules such as the TC-NIM001 Network Interface Module, which bridges the LCN to field devices. Any power instability introduced by an undersized or failing supply can manifest as intermittent communication faults, making the power supply the first diagnostic checkpoint in network troubleshooting.

HMI continuity is a practical concern that is often underestimated during retrofit planning. Operators working with legacy Honeywell GUS (Global User Station) or PHD historian interfaces rely on uninterrupted power to the DCS backplane to maintain live process displays. A controlled power supply replacement, executed during a planned maintenance window, allows the HMI screens to be frozen at last-known values rather than going to fault state, preserving operator situational awareness throughout the changeover. Firmware version alignment between the replacement TC-FPDXX2 and the existing controller firmware should be confirmed with the system integrator prior to installation, as version mismatches can trigger diagnostic alarms on startup.

Installation space verification is mandatory before ordering. The TC-FPDXX2 occupies a defined slot width within the TPS universal cabinet, and adjacent modules — including redundant power supply units and the TC-PRS021 power relay module — must be accounted for in the physical layout. In high-density cabinets, removal of the failed unit may require temporary disconnection of neighboring modules, which should be sequenced carefully to avoid unplanned process interruptions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TC-FPDXX2 retrofit begins with a thorough audit of the existing TPS cabinet. Engineers should document the current power budget across all installed modules — including the TC-CCR014 controller, TC-IAH061 analog input cards, TC-OAH083 analog output modules, and any TC-NIM001 network interface units — to confirm that the replacement supply’s rated output is sufficient for the total system load. Undersizing the power supply in a multi-module cabinet is a leading cause of intermittent faults and premature module failure.

Terminal block wiring should be photographed and labeled before the failed unit is removed. In older TPS installations, field wiring documentation may be incomplete or inconsistent with the as-built cabinet layout, making visual verification essential. The TC-FPDXX2’s connector pinout should be cross-referenced against the existing wiring before the module is seated and powered. Where signal isolators are present between field devices and I/O cards, their power source — whether derived from the DCS bus or an independent 24 VDC rail — must be confirmed to avoid inadvertent de-energization during the swap.

For facilities planning a broader migration from TPS to a current-generation Honeywell Experion PKS platform, the TC-FPDXX2 can serve as a bridge component, maintaining power stability in the legacy cabinet while new Experion C300 controllers and EHPM modules are commissioned in parallel. This phased approach allows process control to remain on the proven TPS architecture until the new system has been fully validated, reducing the risk of a hard cutover under production conditions.

Downtime Control During System Migration

Minimizing unplanned downtime during a power supply replacement requires a structured pre-work checklist and a clearly defined rollback plan. Before the maintenance window opens, the replacement TC-FPDXX2 should be bench-tested against a known-good power load to confirm output voltage stability and inrush current behavior. All spare fuses, terminal ferrules, and torque specifications for the cabinet’s terminal blocks should be staged at the work site.

During the replacement, the existing controller program logic should be preserved in the TC-CCR014’s battery-backed memory, which retains configuration data through a power interruption of standard duration. Operators should be briefed to switch affected control loops to manual mode before the supply is de-energized, preventing process upsets caused by controller output freeze or default-to-zero behavior. Once the TC-FPDXX2 is installed and the cabinet is re-energized, the controller’s diagnostic display should be monitored for a minimum of five minutes to confirm stable bus voltage, absence of module fault codes, and successful re-establishment of LCN communication links.

HMI screens connected to the affected controller node should be verified for live data refresh before operators return loops to automatic mode. Any discrepancy between the HMI display and field instrument readings should be investigated before resuming automatic control, as sensor signal interruptions during the swap can occasionally leave stale values in the historian buffer. A post-installation functional test covering all I/O points served by the replaced supply is recommended before the maintenance window is formally closed.

Retrofit Support FAQ

Q: Is the TC-FPDXX2 a direct drop-in replacement for all TPS power supply variants?
A: The TC-FPDXX2 is designed for the TPS Universal Cabinet platform and is compatible with the standard backplane slot used across the TPS family. However, engineers should verify the specific slot position, output voltage rating, and load requirements of the unit being replaced, as TPS cabinets may contain multiple power supply variants with different output ratings. Confirm the part number of the failed unit before ordering.

Q: What pre-shipment testing is performed on the TC-FPDXX2?
A: Each TC-FPDXX2 unit undergoes functional output testing prior to shipment, including verification of output voltage stability under load and inspection of connector integrity. Units are shipped with a test record and are covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions.

Q: How do I confirm firmware compatibility before installation?
A: Firmware version requirements for the TC-FPDXX2 are determined by the controller module installed in the same cabinet, typically the TC-CCR014 or equivalent. Cross-reference the controller’s current firmware version against Honeywell’s TPS compatibility matrix, or consult your system integrator. In most cases, the TC-FPDXX2 does not carry user-programmable firmware, but the controller’s boot sequence may perform a hardware handshake that is version-sensitive.

Q: What is the typical lead time and stock availability?
A: The TC-FPDXX2 is maintained availability confirmed by RFQ for immediate dispatch. Standard lead time for in-stock units is 1–3 business days for domestic shipments. For urgent plant recovery situations, expedited shipping options are available. Contact the sales team to confirm current inventory levels and delivery timelines for your location.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

TC-FPDXX2
Legacy Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Honeywell TC-FPDXX2
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
