ABB SDCS-POW-1 Migration-Ready Power Supply for Legacy DCS400: Retrofit and Compatibility Upgrade Guide

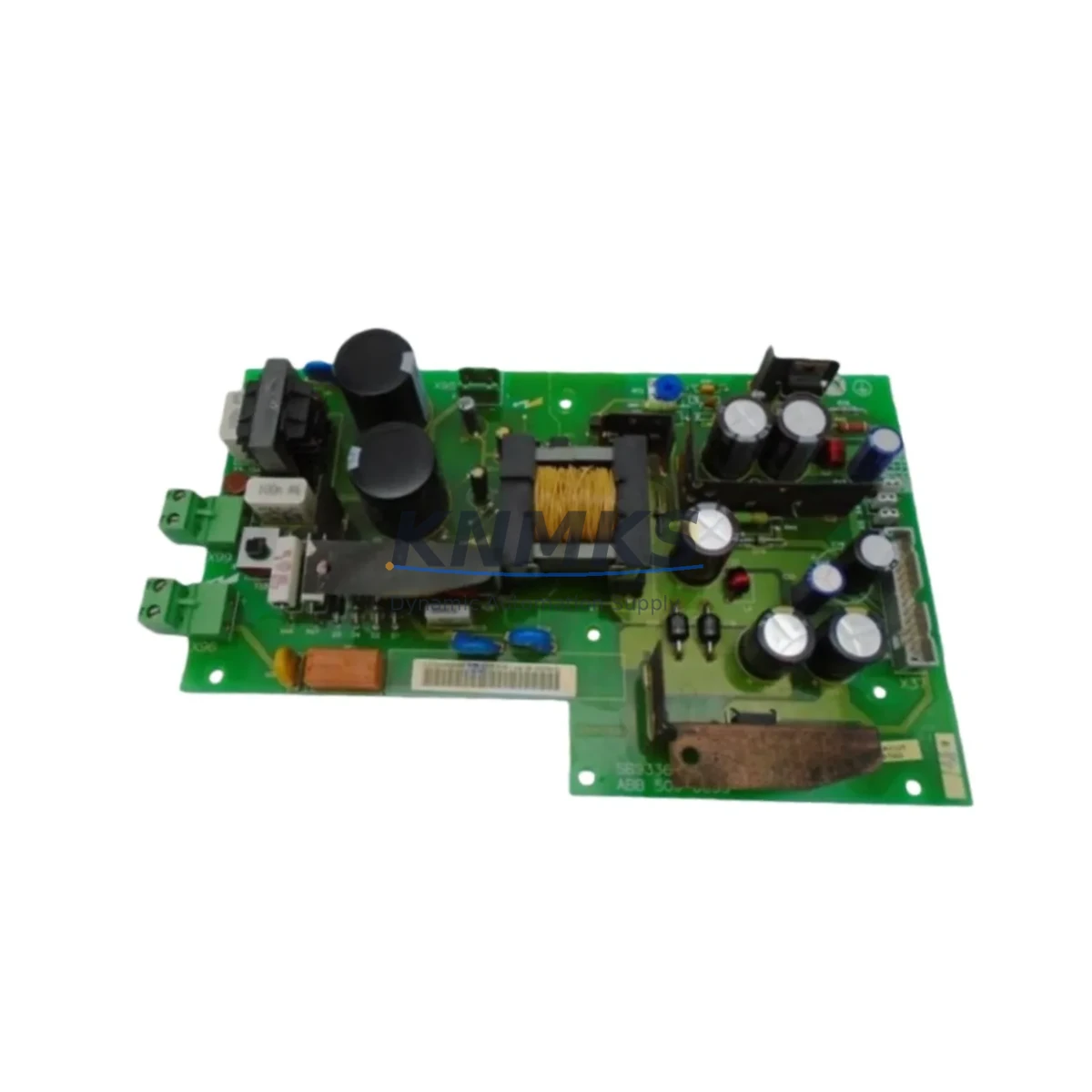

The ABB SDCS-POW-1 is a dedicated internal power supply module engineered for the ABB DCS400 Series DC drive platform. As legacy DCS400 installations continue to age across manufacturing lines, steel mills, paper machines, and material handling systems, the SDCS-POW-1 has become one of the most critical spare components in any retrofit or system modernization project. Whether you are replacing a failed unit on an emergency basis or executing a planned control system upgrade, understanding the full scope of compatibility, wiring adaptation, and commissioning requirements is essential to minimizing downtime and protecting existing program logic.

The SDCS-POW-1 supplies regulated internal voltages to the DCS400 drive control board, gate firing circuits, and auxiliary I/O interfaces. When this module fails, the entire drive becomes inoperative, making rapid and verified replacement a top priority. For facilities running multiple DCS400 units in coordinated drive trains — such as those paired with ABB SDCS-CON-2 control boards or SDCS-FEX-2 field excitation modules — a single power supply failure can cascade into a full line stoppage. Stocking a verified replacement SDCS-POW-1 is therefore a standard recommendation in any spare parts lifecycle plan for DCS400-based systems.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-POW-1 replacement begins well before the module arrives on site. Retrofit planning for DCS400-based systems requires a structured review of the surrounding control architecture. In most legacy installations, the DCS400 drive operates as part of a larger automation cell that may include a programmable logic controller, an HMI panel, and a fieldbus network connecting multiple drive axes. Before removing the failed power supply, engineers should document the current drive parameter set using the ABB DCS400 keypad or a connected PC tool, ensuring that motor data, speed references, current limits, and ramp settings are preserved for restoration after the swap.

Terminal wiring on the DCS400 is generally unaffected by an internal power supply replacement, since the SDCS-POW-1 is an internal board-level component rather than a field-wiring module. However, this maintenance window is an ideal opportunity to inspect the condition of the SDCS-CON-2 control board, which manages the drive’s closed-loop regulation and I/O interface. If the SDCS-CON-2 shows signs of capacitor aging or corrosion on its terminal blocks, replacing it alongside the SDCS-POW-1 reduces the risk of a secondary failure shortly after restart. Similarly, the SDCS-FEX-2 field excitation module, which controls the DC motor field current, should be visually inspected and tested during the same outage window.

For systems communicating over Profibus DP via the SDCS-COM-3 adapter, engineers must verify that the fieldbus node address and baud rate settings are retained in the drive’s non-volatile memory after the power supply replacement. In installations where the DCS400 is supervised by a Siemens S7 or Allen-Bradley ControlLogix PLC, the PLC program’s drive status monitoring logic should be tested in manual mode before returning the line to automatic operation. If the site uses an ABB Panel 400 or a third-party HMI for drive visualization, confirm that the HMI communication link re-establishes correctly after the drive powers up with the new SDCS-POW-1 installed.

Where the DCS400 is mounted in a shared control cabinet alongside other drive modules or motor starters, confirm that the cabinet’s available power capacity is sufficient after the replacement. Internal power supply modules draw their operating power from the drive’s main AC input, so no separate power feed is required, but the overall cabinet thermal load should be reviewed if multiple drives are being serviced simultaneously. If the retrofit scope extends to adding new I/O points or expanding the drive’s analog reference inputs, this is also the appropriate time to evaluate whether an SDCS-IOB-3 I/O extension board is needed to support the expanded signal requirements.

Downtime Control During System Migration

Minimizing production downtime during a DCS400 power supply replacement requires a disciplined pre-staging and execution approach. The SDCS-POW-1 is a stocked item available for immediate dispatch, which eliminates the lead time uncertainty that often extends unplanned outages when sourcing obsolete or long-lead components. Upon receipt, the module should be bench-tested or at minimum visually inspected against the original unit before the planned maintenance window begins.

On the day of replacement, the recommended sequence is to perform a controlled drive shutdown, record all active fault codes and parameter values, de-energize the drive cabinet following lockout/tagout procedures, and then proceed with the board swap. The SDCS-POW-1 is secured within the DCS400 chassis by a board-to-board connector and mechanical standoffs; no soldering or field wiring changes are required. Reassembly and initial power-up typically take less than one hour for a technician familiar with the DCS400 platform.

After power-up, the drive should be tested in open-loop mode before reconnecting to the production load. Verify that the internal voltage rails are within specification, that the SDCS-CON-2 control board initializes without fault, and that the fieldbus communication link — whether DeviceNet via SDCS-COM-1 or Profibus via SDCS-COM-3 — re-establishes with the supervisory PLC. Only after all communication links and I/O responses are confirmed should the drive be returned to closed-loop automatic control. This structured commissioning sequence protects the existing program logic, prevents nuisance trips, and ensures that the production line resumes at full capacity without secondary incidents.

For facilities managing multiple DCS400 units across a plant, a rolling replacement strategy — servicing one drive per scheduled maintenance window rather than attempting simultaneous replacements — further reduces operational risk and allows the maintenance team to apply lessons learned from each replacement to subsequent units.

Retrofit Support FAQ

Q: Is the SDCS-POW-1 a direct replacement for all DCS400 hardware revisions?
A: Yes. The SDCS-POW-1 is compatible across the DCS401, DCS402, and DCS404 variants of the DCS400 platform. No mechanical or electrical modification is required for direct substitution. If your drive is an early production unit, verify the drive firmware version to confirm compatibility with the replacement board’s hardware revision.

Q: Will replacing the SDCS-POW-1 erase the drive’s parameter settings?
A: The DCS400 stores its parameter set in non-volatile memory on the SDCS-CON-2 control board, not on the power supply module. Replacing the SDCS-POW-1 alone will not erase drive parameters. However, as a best practice, always back up the full parameter set before any internal board replacement.

Q: What commissioning checks are required after installation?
A: After installing the SDCS-POW-1, power up the drive and verify that no internal fault codes are active. Confirm that the SDCS-CON-2 control board initializes correctly, that all fieldbus communication links re-establish, and that analog and digital I/O signals respond as expected. Run the drive in open-loop mode before reconnecting to the production load.

Q: What does the support terms confirmed by quotation cover, and is pre-shipment testing performed?
A: Every SDCS-POW-1 unit is functionally tested prior to shipment to verify electrical integrity and output voltage performance. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of delivery. In-stock units are available for immediate dispatch to minimize unplanned downtime.
