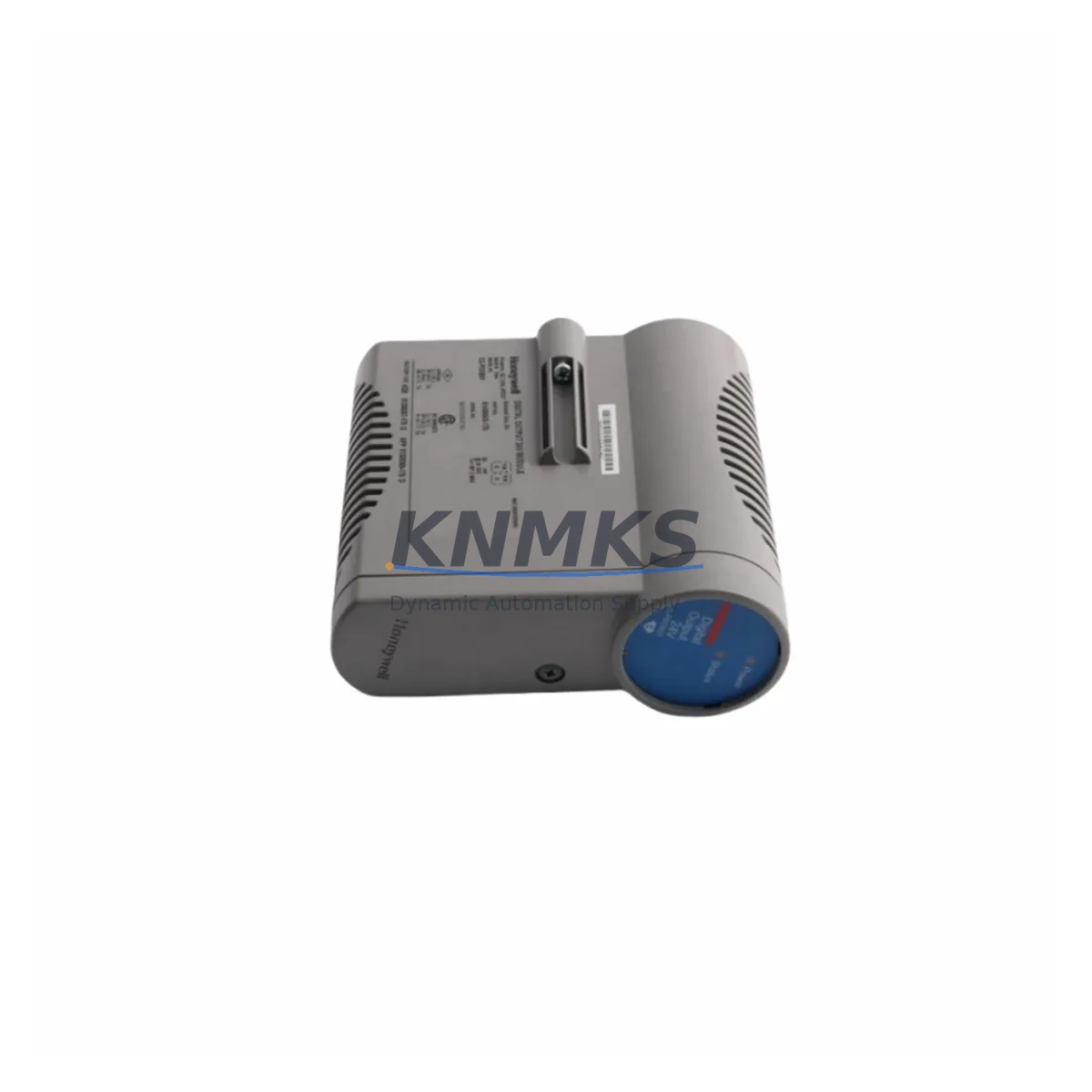

Honeywell TC-FFC010 Migration-Ready Redundant Power Supply for Legacy Control Systems

Overview

Honeywell TC-FFC010 Migration-Ready Redundant Power Supply for Legacy Control Systems

The Honeywell TC-FFC010 is a redundant power supply module engineered for mission-critical distributed control system (DCS) environments. Designed to serve as a direct replacement for aging or discontinued power supply units within the Honeywell Experion PKS, TotalPlant Solution (TPS), and TDC 3000 control platforms, the TC-FFC010 enables plant engineers and system integrators to extend the operational life of existing control infrastructure without committing to a full platform migration. With verified compatibility across multiple legacy rack configurations and a support terms confirmed by quotation backed by pre-shipment functional testing, this module is a proven choice for brownfield retrofit projects, control cabinet upgrades, and spare parts lifecycle management programs.

When planning a power supply replacement within a Honeywell DCS environment, engineers must confirm several critical parameters before installation. These include the input voltage range (typically 24 VDC or 120/240 VAC depending on cabinet configuration), the total power budget of the populated chassis, the backplane connector pinout compatibility, and the physical form factor to ensure the TC-FFC010 seats correctly within the existing rack without requiring mechanical modification. In redundant configurations, the module must be validated against the active power supply’s load-sharing behavior to prevent transient voltage drops during switchover events.

Terminal wiring adaptation is another key consideration. Legacy TDC 3000 and TPS installations often use older field termination assemblies (FTAs) and marshalling panels that may require adapter cables or rewiring to interface cleanly with the TC-FFC010’s connector layout. Documenting the existing wiring scheme before removal of the original module is strongly recommended to reduce commissioning time and eliminate the risk of miswiring during the retrofit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TC-FFC010 retrofit begins with a thorough audit of the existing control system architecture. In a typical Honeywell TPS or Experion PKS installation, the power supply module operates within a populated chassis alongside controller modules such as the C200 or C300 process controllers, I/O link modules, and communication interface cards. Before removing the legacy power supply, engineers should document the chassis slot map, record all module addresses, and export a backup of the current controller configuration using Honeywell’s Control Builder engineering tool.

In many brownfield sites, the control cabinet also houses Honeywell PMIO (Process Manager I/O) modules, remote I/O nodes connected via FTE (Fault Tolerant Ethernet) links, and Series C I/O modules that interface with field instruments. These components draw power from the chassis bus, and any interruption in supply during the swap must be managed carefully. Where possible, the replacement should be performed with the redundant power supply active, allowing the TC-FFC010 to be installed in the standby slot and brought online before the original unit is decommissioned.

For sites running older TDC 3000 hardware, the migration path may also involve replacing associated Highway Gateway modules or updating the Universal Control Network (UCN) interface cards to maintain communication continuity. In these cases, the TC-FFC010 installation is often one step in a broader phased upgrade that includes new Experion PKS server nodes, updated HMI stations running Honeywell’s Station software, and revised alarm management configurations. Planning the power supply replacement as part of this broader scope ensures that the control system’s power architecture is aligned with the upgraded platform’s requirements from day one.

Signal isolators and intrinsic safety barriers installed in the marshalling cabinet should also be reviewed during the retrofit. If the existing barriers are powered from the same distribution rail as the legacy power supply, the TC-FFC010’s output characteristics must be confirmed to be within the operating range of those devices to avoid nuisance trips or instrument signal degradation after the swap.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live DCS power supply replacement. The TC-FFC010’s redundant architecture is specifically designed to support hot-swap procedures in systems where a second power supply slot is available and populated. In this configuration, the replacement can be completed without interrupting the control loop execution or the HMI display refresh cycle, preserving process continuity throughout the maintenance window.

Before initiating the swap, the site team should verify that the active power supply is carrying the full chassis load within its rated capacity, and that the TC-FFC010 has completed its internal self-test and is ready to assume load. The system event log in Experion PKS should be monitored in real time during the transition to detect any transient alarms or communication faults that may indicate a wiring issue or module address conflict.

For sites where redundancy is not available and a cold swap is required, the recommended approach is to pre-stage the TC-FFC010 with all configuration parameters verified, prepare a rollback plan using the exported controller backup, and coordinate the maintenance window with the operations team to align with a planned process shutdown or low-production period. Post-installation, the commissioning checklist should include verification of all I/O channel statuses, confirmation of communication link integrity across the FTE network, and a functional test of the redundancy switchover mechanism before returning the system to automatic control.

All units supplied are pre-shipment tested under load conditions to confirm output voltage stability, redundancy handshake function, and alarm relay operation. This testing protocol reduces the risk of infant failure and supports a faster return to service after installation.

Retrofit Support FAQ

Q: Is the TC-FFC010 a direct replacement for the original Honeywell power supply in my TPS or TDC 3000 system?
A: The TC-FFC010 is designed as a compatible replacement for same-series Honeywell DCS power supply modules. Cross-reference the original OEM part number and chassis generation to confirm direct interchangeability. Our technical team can assist with compatibility verification prior to order placement.

Q: What commissioning steps are required after installing the TC-FFC010?
A: After physical installation, verify the module address assignment matches the original unit, confirm the redundancy handshake with the active power supply, review the system event log for any fault codes, and perform a functional test of the load-sharing and switchover behavior. No firmware upload is typically required for a same-platform replacement.

Q: How should I handle terminal wiring differences between the TC-FFC010 and my existing installation?
A: Document the existing wiring configuration before removal. If the connector pinout differs from the original module, adapter cables or field wiring modifications may be required. Refer to the Honeywell hardware reference manual for the TC-FFC010 and compare against the original module’s wiring diagram to identify any adaptation requirements.

Q: What support terms and stock availability does KNMKS provide for the TC-FFC010?
A: All TC-FFC010 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment and are pre-shipment tested to confirm functional operation. Stock is maintained across multiple global warehouse locations to support rapid dispatch. Contact our sales team to confirm current inventory levels and lead times for your project schedule.
