Honeywell 51198651-100 SPS5785 Migration-Ready DCS Power Supply

Overview

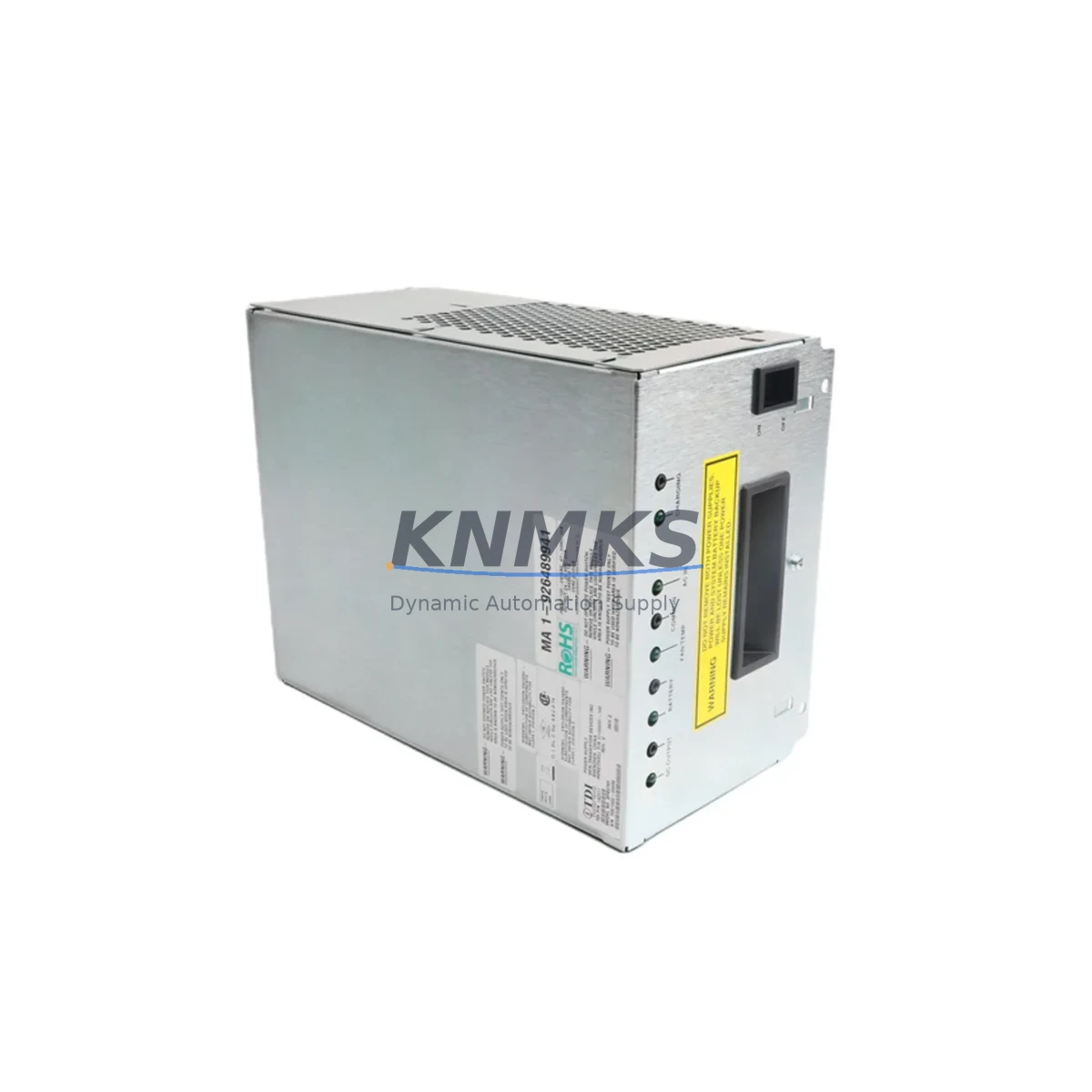

Honeywell 51198651-100 SPS5785 Migration-Ready DCS Power Supply for Legacy Control Systems

The Honeywell 51198651-100 SPS5785 is a proven, migration-ready DCS power supply module engineered for direct integration into legacy Honeywell TDC 3000 and Experion PKS distributed control system architectures. As original TDC 3000 infrastructure ages beyond its supported lifecycle, plant engineers and system integrators face increasing pressure to source reliable replacement power supply modules that maintain electrical compatibility, preserve existing wiring configurations, and avoid costly full-system overhauls. The 51198651-100 SPS5785 addresses this challenge directly — providing a drop-in power solution that supports continuity of control without requiring reprogramming of the existing application logic or reconfiguration of the I/O subsystem.

This module is particularly relevant in retrofit scenarios where the original Honeywell SPS5785 power supply has reached end-of-life or has been discontinued by the OEM. Facilities operating TDC 3000 High-Performance Process Manager (HPPM) cabinets, Universal Control Network (UCN) nodes, or Experion PKS C200/C300 controller enclosures frequently encounter power supply degradation as the primary failure mode in aging control cabinets. Replacing the 51198651-100 SPS5785 on a like-for-like basis eliminates the need to redesign the power distribution rail, re-terminate field wiring, or modify the backplane slot assignment — all of which represent significant sources of downtime risk and commissioning complexity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Honeywell 51198651-100 SPS5785 into an existing control cabinet begins with a structured pre-replacement assessment. Engineers should first audit the power budget of the target enclosure — particularly in cabinets housing multiple I/O modules such as the Honeywell 51304485-150 or 51309276-175 analog input cards, which draw regulated DC power from the same supply rail. Overloading a replacement power supply due to undocumented I/O expansion is one of the most common causes of premature failure in retrofit projects.

Backplane slot assignment must be confirmed against the existing cabinet layout drawing before the 51198651-100 SPS5785 is physically installed. In TDC 3000 HPPM enclosures, the power supply occupies a dedicated slot on the left side of the module carrier; this position is fixed and does not require address configuration. However, in Experion PKS C200 controller enclosures, the power supply position relative to the controller module and the Honeywell CC-PCNT01 or CC-PAIX02 I/O modules must be verified to ensure the backplane power distribution is correctly sequenced during startup.

For facilities that have already migrated portions of their control network to Experion PKS while retaining legacy TDC 3000 nodes, the 51198651-100 SPS5785 supports a phased replacement strategy. The UCN communication link between TDC 3000 nodes and Experion PKS servers remains unaffected by a power supply swap, provided the replacement module is energized and stable before the UCN node is brought back online. This is particularly important in plants where the Honeywell NIM (Network Interface Module) or the Honeywell HG-IOLINK gateway is used to bridge legacy and modern control segments.

Where the retrofit scope extends beyond the power supply to include I/O migration, engineers should plan for the parallel installation of Honeywell PMIO or Series C I/O modules alongside the existing TDC 3000 I/O cards. This allows field signals to be verified on the new I/O before the old cards are decommissioned, reducing the risk of undetected wiring errors causing process upsets. The 51198651-100 SPS5785 provides the stable, regulated DC output required to support both legacy and new I/O modules during this parallel-run commissioning phase.

Downtime Control During System Migration

Minimizing unplanned downtime during a power supply replacement in a live DCS environment requires careful sequencing of isolation, replacement, and restoration steps. For the Honeywell 51198651-100 SPS5785, the recommended approach is to perform the replacement during a scheduled maintenance window, with the affected controller node placed in a safe hold state and all associated regulatory control loops transferred to manual mode at the DCS operator station.

Before de-energizing the cabinet, the existing application logic — including PID tuning parameters, interlock configurations, and sequence program states — should be backed up from the Honeywell Engineering Workstation (EWS) or Universal Station (US). This ensures that if the controller requires a cold restart following the power supply replacement, the application can be reloaded without loss of configuration data. In Experion PKS environments, the Control Builder project file should be saved and version-stamped before any hardware intervention.

Once the 51198651-100 SPS5785 is installed and the cabinet is re-energized, output voltage should be measured at the backplane connector before the controller module is powered. This step confirms that the replacement supply is within specification and prevents damage to downstream modules — including communication cards, I/O modules, and the controller CPU itself — from an out-of-tolerance supply. After the controller has completed its self-test and re-established communication with the UCN or Ethernet control network, regulatory loops can be returned to automatic mode in a controlled sequence, starting with the least critical loops and progressing to primary process control.

For sites with redundant power supply configurations, the switchover function should be tested after the replacement is complete by deliberately removing power from the primary supply and confirming that the secondary supply assumes the load without interruption to the controller or I/O modules. This test should be documented as part of the post-maintenance commissioning record.

Retrofit Support FAQ

Q: Is the Honeywell 51198651-100 SPS5785 a direct replacement for the original discontinued module?
A: Yes. The 51198651-100 SPS5785 is a like-for-like replacement for the original Honeywell SPS5785 power supply used in TDC 3000 and Experion PKS control cabinets. No mechanical modification, wiring change, or software reconfiguration is required for a standard replacement. Confirm the AC input voltage range and output load requirements match your cabinet specification before installation.

Q: What pre-shipment testing is performed on each unit?
A: Every 51198651-100 SPS5785 unit is functionally tested prior to shipment, including output voltage verification under load, ripple measurement, and power-on self-test. Units are shipped with a test report and are covered by a support terms confirmed by quotation from the date of delivery.

Q: How do I confirm wiring compatibility with my existing TDC 3000 cabinet?
A: The 51198651-100 SPS5785 uses the standard Honeywell TDC 3000 power supply connector and terminal block layout. Compare the terminal designations on the replacement module against your existing cabinet wiring diagram. If the original wiring diagram is unavailable, our technical team can assist with identification based on the cabinet model and serial number.

Q: What is the lead time and stock availability?
A: The Honeywell 51198651-100 SPS5785 is maintained availability confirmed by RFQ for immediate dispatch. Standard lead time for in-stock units is 1–3 business days for domestic shipments and 3–7 business days for international orders. Contact our sales team to confirm current inventory levels and arrange expedited shipping if required.
