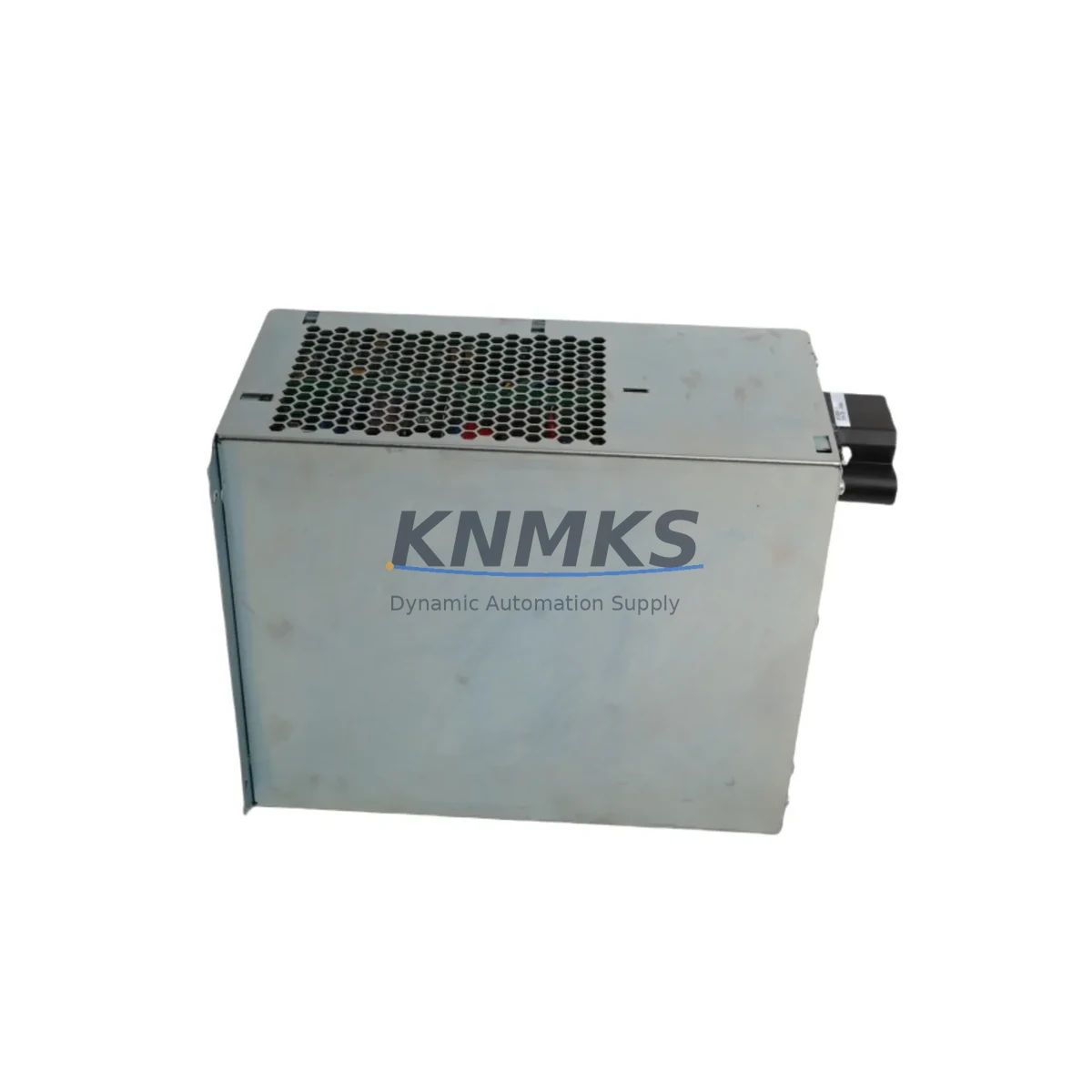

Honeywell SPS5785 51198651-100 Migration-Ready Power Supply

Overview

Honeywell SPS5785 51198651-100 Migration-Ready Power Supply: Legacy System Retrofit & Compatibility Upgrade

The Honeywell SPS5785 (part number 51198651-100) is a migration-ready DCS power supply module engineered for direct replacement in Honeywell Experion PKS, TDC 3000, and PlantScape legacy control architectures. As aging distributed control systems approach end-of-life and original spare parts become increasingly scarce, the SPS5785 provides a verified drop-in solution that preserves existing wiring infrastructure, backplane slot assignments, and field terminal layouts — dramatically reducing retrofit risk and unplanned downtime during system modernization projects.

For facilities managing legacy Honeywell control cabinets, the SPS5785 addresses one of the most critical pain points in plant modernization: sourcing a power supply that maintains full electrical and mechanical compatibility with the original chassis. The module delivers regulated DC output matched to the power budget requirements of the C200 and C300 controller families, and it integrates directly into the Universal Control Network (UCN) and FTE (Fault Tolerant Ethernet) backplane environments without requiring firmware re-flashing or hardware adaptation brackets.

Before installation, engineers should verify the existing cabinet’s total power load against the SPS5785’s rated output capacity, confirm that terminal block wiring assignments match the original 51198651-100 pinout, and check that the backplane slot address configuration is consistent with the site’s I/O module map. Where the legacy system uses a redundant power supply pair, both units should be replaced simultaneously to avoid asymmetric load conditions during switchover events.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SPS5785 retrofit begins well before the module arrives on site. The engineering team should audit the full control cabinet inventory, identifying not only the power supply but also associated components that may require simultaneous attention. In many TDC 3000 and Experion PKS installations, the power supply works in close coordination with the PM I/O Link module, which manages communication between the controller and field I/O cards. If the PM I/O Link is also approaching end-of-life, replacing it alongside the SPS5785 eliminates a second maintenance window and reduces cumulative downtime.

Similarly, the C200 or C300 controller module itself should be inspected for firmware currency. Mismatched firmware between a newly installed power supply and an aging controller can produce intermittent fault alarms that are difficult to diagnose without a full system baseline. The site’s Honeywell Configuration Studio or Control Builder environment should be used to export and archive the current control strategy before any hardware is touched, ensuring that program logic can be restored rapidly if an unexpected fault occurs during commissioning.

For cabinets that also house Honeywell HLAI (High-Level Analog Input) or LLAI (Low-Level Analog Input) modules, the power budget calculation must account for the full I/O card population. Adding a replacement SPS5785 without verifying total load can result in undervoltage conditions that cause I/O modules to drop offline intermittently — a failure mode that is often misdiagnosed as a field instrument problem rather than a power supply issue.

Where the legacy system includes a Honeywell FIM (Field Interface Module) or serial communication gateway for Modbus or HART protocol bridging, the communication link should be tested independently before and after the power supply swap. Protocol migration projects that combine a power supply replacement with a simultaneous upgrade from serial Modbus to FTE Ethernet should be staged carefully, with the power supply replacement completed and verified first before any communication protocol changes are made.

Facilities that are also upgrading their HMI from an older Honeywell Station to a current Experion PKS Flex Station should coordinate HMI screen validation with the power supply replacement schedule. HMI faceplate alarms tied to power supply status points will need to be re-mapped if the new module uses a different diagnostic register address than the original 51198651-100.

Downtime Control During System Migration

Minimizing production interruption during a DCS power supply replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window opens, the site team should complete a full backup of the Experion PKS database, including all controller configurations, alarm setpoints, historian tags, and HMI graphics. This backup should be stored on an isolated network drive and verified for completeness — not simply assumed to be current.

Where the SPS5785 is installed in a redundant power supply configuration, the switchover sequence should be rehearsed in a tabletop exercise with the control room operator, the field technician, and the DCS engineer present. The operator should be prepared to acknowledge and suppress non-critical alarms during the switchover interval to prevent alarm floods from masking genuine process upsets. The field technician should have a calibrated multimeter available to verify output voltage at the backplane connector before the new module is declared in service.

For non-redundant installations where a brief control interruption is unavoidable, the outage window should be scheduled during a planned process hold or low-throughput period. The replacement sequence — power down, module extraction, new module insertion, power restoration, status verification — typically takes under 30 minutes for an experienced technician, but the site should budget 90 minutes to allow for unexpected wiring discrepancies or address configuration adjustments.

After restoration, the DCS engineer should monitor the system for a minimum of two hours before releasing the process to normal operation, watching for any anomalous power supply diagnostic alarms, unexpected I/O module resets, or communication link interruptions that could indicate an installation issue. All findings should be documented in the site’s maintenance management system to support future spare parts planning and lifecycle management.

Retrofit Support FAQ

Q1: Is the SPS5785 (51198651-100) a direct drop-in replacement for the original Honeywell power supply in TDC 3000 and Experion PKS systems?
A: Yes. The SPS5785 is designed as a direct replacement for the original 51198651-100 power supply module. It maintains the same backplane connector interface, terminal block pinout, and chassis slot dimensions as the original unit. No mechanical adapters or wiring modifications are required for standard installations. Engineers should confirm the module address configuration matches the site’s I/O map before powering up.

Q2: What pre-shipment testing is performed on the SPS5785 before delivery?
A: Each SPS5785 unit undergoes functional output voltage verification, load regulation testing, and visual inspection before shipment. Units are tested against the original Honeywell specification for the 51198651-100 part number. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How do I verify firmware compatibility between the SPS5785 and my existing C200 or C300 controller?
A: The SPS5785 does not contain user-programmable firmware and does not require a firmware update for direct replacement. However, the site’s C200 or C300 controller firmware version should be documented before the replacement and compared against Honeywell’s published compatibility matrix for the Experion PKS release currently in use. If the site is running a legacy firmware version that predates the current SPS5785 production revision, contact our technical support team for a compatibility confirmation before proceeding.

Q4: What is the typical lead time and stock availability for the SPS5785 (51198651-100)?
A: We maintain in-stock inventory of the SPS5785 to support urgent replacement requirements. Standard orders ship within 1–3 business days. For projects requiring multiple units or scheduled maintenance outages, we recommend confirming stock availability and reserving units in advance. All units ship with a support terms confirmed by quotation and are available for immediate dispatch to minimize unplanned downtime in critical production environments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

SPS5785-51198651-100
Experion PKS Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Honeywell SPS5785-51198651-100
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
