Honeywell MU-TSIM12 51303932-401 Migration-Ready Serial Interface

Overview

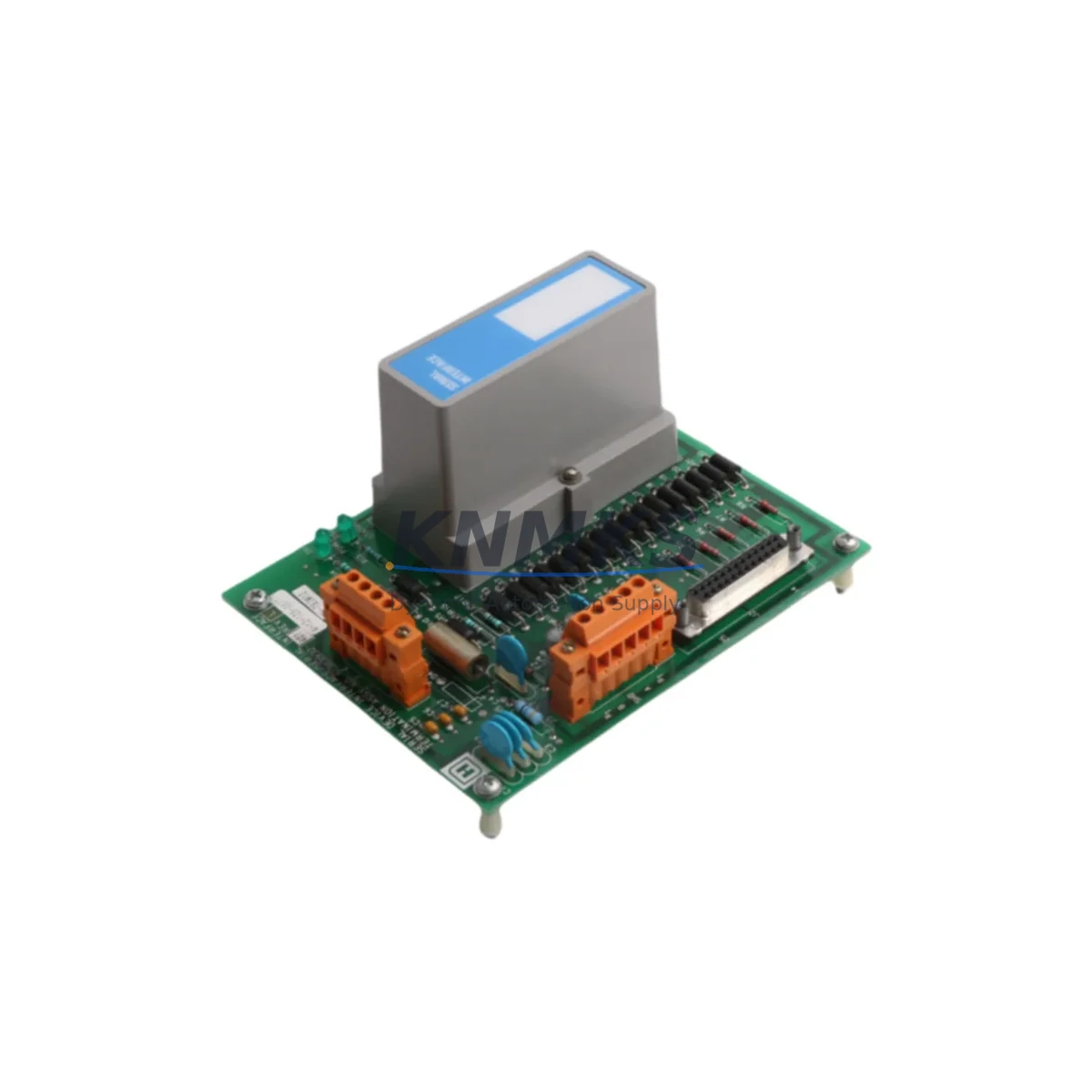

Honeywell MU-TSIM12 51303932-401 Migration-Ready Serial Interface for Legacy Control Systems

The Honeywell MU-TSIM12 (Part No. 51303932-401) is a serial interface module engineered for mission-critical communication tasks within the TDC 3000 distributed control system platform. As legacy TDC 3000 installations approach end-of-life and spare parts become increasingly scarce, the MU-TSIM12 serves as a validated, migration-ready replacement that enables engineers to extend system uptime, protect existing program logic, and defer full platform migration until operationally convenient.

Whether you are managing a phased retrofit of an aging control cabinet, replacing a failed serial interface in a running plant, or planning a structured migration from TDC 3000 to Experion PKS, the MU-TSIM12 51303932-401 provides the electrical and protocol compatibility required to minimize engineering rework and reduce commissioning risk.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the MU-TSIM12 51303932-401 into an active retrofit project requires careful coordination across multiple system layers. Before removal of the legacy module, engineers should document the existing module address configuration and verify that the replacement unit carries the same hardware revision suffix (-401) to ensure backplane register compatibility.

In TDC 3000 environments, the serial interface module typically operates alongside a Honeywell MU-SMCA01 (Serial Multiplexer Card) or a MU-GAIX12 (Gateway Interface Module) that bridges field device data to the UCN highway. During a cabinet upgrade, it is common to simultaneously replace the Honeywell MC-PAOX03 (Power Supply Module) to ensure stable voltage delivery to the new interface card, particularly in cabinets where the original power supply has exceeded its rated service life.

For plants migrating serial device data to Ethernet-based supervisory systems, the MU-TSIM12 is frequently paired with a Honeywell ControlEdge RTU or a third-party Modbus TCP gateway to bridge legacy RS-485 field loops into modern SCADA or Experion PKS historian nodes. In these configurations, engineers must verify baud rate, parity, stop bits, and device polling intervals at both the module level and the gateway level to prevent data collision or timeout faults.

I/O expansion during the same retrofit window often involves adding Honeywell MU-TAIH02 (Analog Input Module) or MU-TAOX02 (Analog Output Module) cards to adjacent slots. Slot assignment and module address sequencing must be re-validated in the engineer workstation database after any card addition to prevent address conflicts that could corrupt the UCN scan table.

HMI screen updates are a frequently underestimated step. When the MU-TSIM12 is replaced as part of a broader control cabinet upgrade, operators should confirm that all associated Honeywell GUS (Global User Station) or Experion PKS operator station displays correctly reflect the new module’s tag assignments. Failure to update HMI faceplates can result in stale data displays or alarm suppression errors during the first post-commissioning shift.

Installation space confirmation is straightforward for like-for-like replacements: the MU-TSIM12 occupies a single standard TDC 3000 card slot with no additional mounting hardware. However, in cabinets where adjacent slots have been repurposed or where a Honeywell PM I/O Link (PIOM) expansion chassis has been added, physical clearance and backplane connector alignment should be verified before insertion.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy DCS retrofit. For MU-TSIM12 replacements, the recommended approach is a pre-staged hot-swap procedure: the replacement module is configured offline using a spare engineer workstation, with module address, baud rate, and communication parameters pre-loaded to match the site’s existing UCN database. This eliminates the need for live parameter entry during the maintenance window and reduces the risk of typographic errors under time pressure.

Before pulling the legacy MU-TSIM12, engineers should perform a full checkpoint save of the TDC 3000 historian and UCN configuration database. This protects accumulated process data and ensures that the control strategy — including PID loop tuning parameters, alarm setpoints, and interlock logic — can be restored without re-engineering in the event of an unexpected complication.

Field device communication continuity is maintained by confirming that all downstream serial devices (flow computers, analyzers, motor drives, or third-party PLCs connected via RS-485) remain powered and in their last-known state during the card swap interval. Most TDC 3000 serial loops tolerate a brief communication interruption of 30–90 seconds without triggering a process shutdown, but this tolerance should be verified against the site’s safety instrumented system (SIS) interlock logic before proceeding.

Post-installation, a structured loop check sequence should confirm that each serial device on the replaced module’s port is responding correctly, that data values are within expected engineering ranges, and that no UCN fault alarms are active. Our pre-shipment functional test report is available upon request and documents the specific communication parameters verified for each unit prior to dispatch.

All MU-TSIM12 51303932-401 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment, providing assurance for both planned retrofit projects and emergency spare part replacements.

Retrofit Support FAQ

Q1: Is the MU-TSIM12 51303932-401 a direct drop-in replacement for my existing TDC 3000 serial interface card?
Yes. The MU-TSIM12 51303932-401 is designed as a direct replacement for same-part-number units within the TDC 3000 platform. Verify that the hardware revision suffix (-401) matches your site Bill of Materials. No chassis modification or additional wiring adapters are required for like-for-like replacement.

Q2: What commissioning steps are required after installation?
After physical installation, use the TDC 3000 engineer workstation to confirm module address assignment, verify UCN scan table integrity, and perform a communication loop test for each serial device on the module’s port. Baud rate, parity, and stop bit settings should be confirmed against the original module’s configuration record before the maintenance window closes.

Q3: Has this unit been tested before shipment, and what support terms is provided?
Yes. Every MU-TSIM12 51303932-401 unit undergoes a 100% functional pre-shipment test covering power-up, communication port verification, and backplane interface integrity. All units are covered by a support terms confirmed by quotation from the date of shipment. A test report is available upon request.

Q4: Can you supply multiple units for a phased retrofit or long-term spare parts program?
Yes. KNMKS maintains inventory of the MU-TSIM12 51303932-401 to support both immediate emergency replacements and structured long-term spare parts agreements (12–36 months). Contact our team to discuss volume pricing, lead times, and consignment stock arrangements for multi-site retrofit programs.
