Honeywell MU-TAIH02 51304453-100 Migration-Ready AI Board

Overview

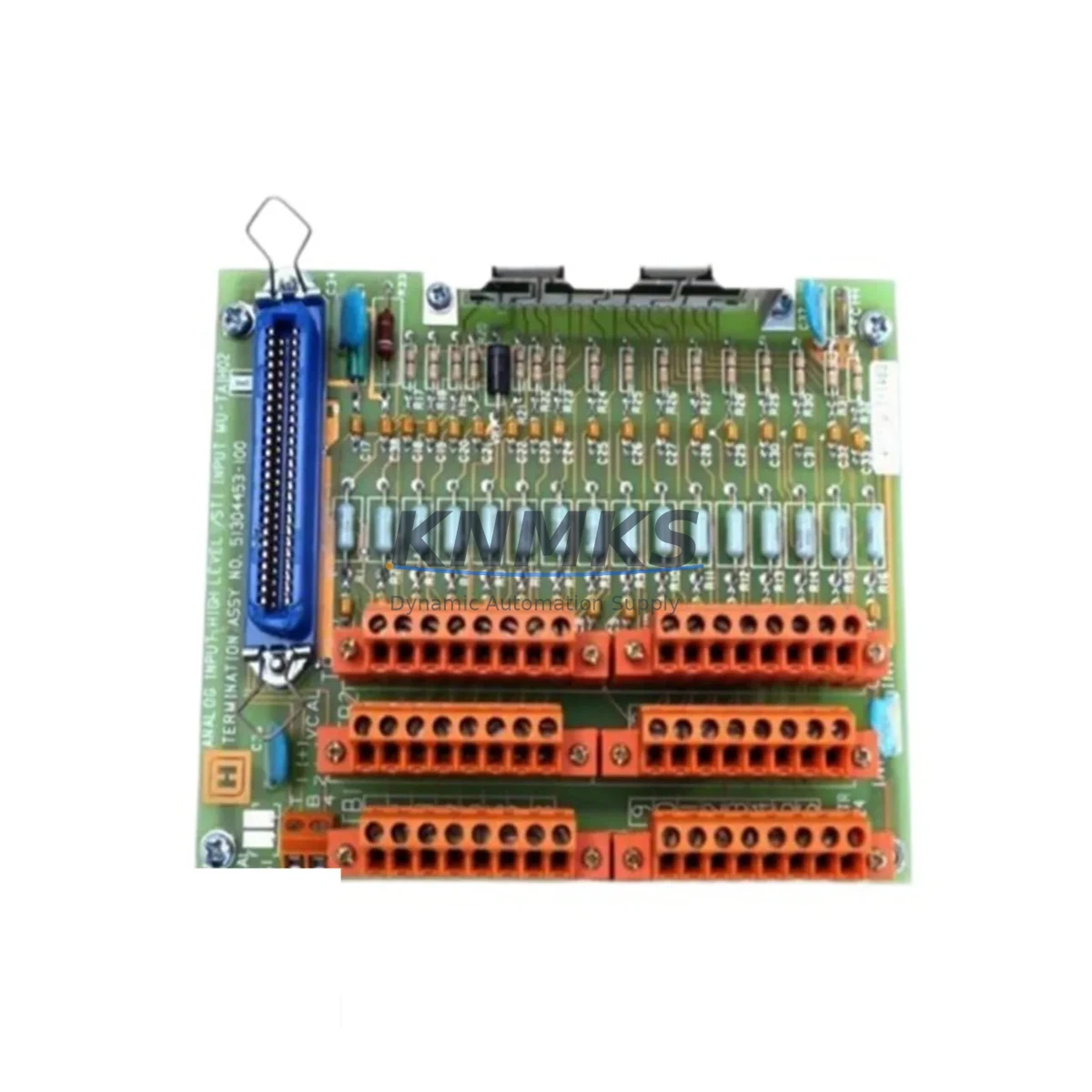

Honeywell MU-TAIH02 51304453-100 Migration-Ready AI Termination Board for Legacy Control Systems

The Honeywell MU-TAIH02 (Part No. 51304453-100) is a high-density Analog Input Termination Assembly designed for use within the Honeywell Experion PKS and legacy TDC 3000 distributed control system platforms. As process plants worldwide accelerate their control system modernization programs, the MU-TAIH02 has become a critical component in retrofit projects where engineers must maintain field wiring continuity while migrating from obsolete I/O subsystems to current-generation controllers such as the C200E or C300 process controllers.

This termination board provides the physical and electrical interface between field instrument cables and the DCS I/O modules, supporting up to 40 analog input channels per assembly. Its screw-terminal field wiring design allows technicians to preserve existing cable schedules during a control system upgrade, eliminating the need to re-pull field wiring — one of the most time-consuming and costly elements of any brownfield retrofit. When paired with the Honeywell MC-TAIH02 I/O module, the MU-TAIH02 forms a complete, validated analog input subsystem ready for immediate commissioning.

For plants currently operating on the older Honeywell TDC 3000 High-Performance Process Manager (HPM) or the Advanced Process Manager (APM), the MU-TAIH02 represents a well-understood migration path. Engineers familiar with the legacy FTA (Field Termination Assembly) architecture will recognize the terminal layout philosophy, reducing retraining time and minimizing documentation rework during the cutover phase.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the MU-TAIH02 begins well before the physical cutover. During the engineering phase, the project team must audit the existing field wiring documentation, confirm terminal assignments against the current loop drawings, and verify that the replacement termination board’s screw-terminal layout matches the as-built cable schedule. In most Experion PKS installations, the MU-TAIH02 mounts adjacent to its paired MC-TAIH02 analog input module, and the ribbon cable interconnect between the two must be inspected for length and routing clearance within the control cabinet.

Power budget verification is an early-stage requirement that is frequently underestimated. While the MU-TAIH02 itself draws no independent power, the associated I/O modules, the Honeywell CC-PWRR01 redundant power supply module, and any additional I/O expansion — such as the Honeywell MC-TDID12 Digital Input module for discrete signal integration — must all be accounted for within the cabinet’s total power envelope. Overloading a power rail during a live migration is a common cause of unplanned shutdowns.

For plants migrating from TDC 3000 to Experion PKS, the communication architecture shift from the legacy Local Control Network (LCN) to the Fault Tolerant Ethernet (FTE) backbone requires careful planning. The MU-TAIH02 sits at the field-wiring layer and is protocol-agnostic, but the upstream controller — typically a Honeywell C300 Controller — must be correctly configured with the appropriate IOLINK addresses and channel assignments before the termination board is energized. Incorrect module addressing is one of the most common commissioning errors in Experion PKS migrations and can result in AI channels appearing offline in the Experion Configuration Studio.

Where the existing control cabinet lacks sufficient physical space for a full I/O expansion, engineers should evaluate whether the Honeywell MU-TAIH12 (a higher-density variant) or a supplementary I/O enclosure is appropriate. Installation space confirmation — including DIN rail length, cable tray clearance, and door-close margin — must be completed during the site survey, not during the cutover window.

HMI screen updates are another often-overlooked element of the retrofit plan. When AI channels are remapped to new module addresses, the corresponding Experion Station displays, trend groups, and alarm configurations must be updated to reflect the new I/O assignments. Failing to synchronize HMI graphics with the new channel map can result in operators monitoring stale or incorrect process values during the critical post-cutover stabilization period.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS migration is the primary operational concern for any plant engineering team. The MU-TAIH02’s screw-terminal field wiring design directly supports a phased cutover strategy: field cables can be pre-terminated on the new board while the legacy system remains in service, and the final switchover is reduced to a ribbon cable swap and a controller scan verification — a procedure that experienced technicians can complete in under 30 minutes per termination assembly.

Before initiating the cutover, the project team should export and archive the current Experion PKS controller database, including all AI channel configurations, alarm limits, engineering unit conversions, and PID tuning parameters. This backup serves as the recovery baseline if the migration encounters unexpected issues. The Honeywell Control Builder engineering environment supports offline simulation, allowing the new I/O configuration to be validated against the archived program logic before any live changes are made.

Loop integrity testing — using a calibrated loop calibrator to inject a 4–20 mA signal at each field terminal and verify the corresponding reading in Experion Station — should be completed on all 40 channels before the process is returned to automatic control. Any channel that fails to respond correctly must be investigated at the terminal level before the loop is closed. This systematic approach protects the original program logic, maintains field control continuity, and ensures that the plant can return to stable operation within the planned maintenance window.

For critical process loops where even brief interruptions are unacceptable, a parallel wiring strategy — where the new MU-TAIH02 is wired in parallel with the existing termination assembly and switched over one loop at a time — can reduce migration risk to near zero, at the cost of additional pre-work and temporary wiring materials.

Retrofit Support FAQ

Q1: Is the MU-TAIH02 51304453-100 a direct replacement for the original Honeywell FTA used in TDC 3000 systems?
The MU-TAIH02 is designed for the Experion PKS platform and is the standard termination assembly used in TDC 3000 to Experion PKS migration projects. While it is not a pin-for-pin drop-in for all legacy TDC 3000 FTA variants, the screw-terminal layout is compatible with most existing field cable schedules. Engineers should verify terminal labeling against as-built drawings before committing to a direct swap. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What commissioning steps are required after installing the MU-TAIH02?
After physical installation and field wiring termination, the commissioning sequence includes: (1) ribbon cable continuity check between the MU-TAIH02 and the paired MC-TAIH02 I/O module; (2) controller database download and IOLINK address verification in Experion Configuration Studio; (3) loop calibration using a 4–20 mA source at each terminal; (4) AI channel scan confirmation in Experion Station; and (5) alarm and engineering unit verification against the process design basis. All units shipped by KNMKS are function-tested prior to dispatch.

Q3: Does KNMKS hold stock of the MU-TAIH02 51304453-100, and what is the lead time?
Yes. The MU-TAIH02 51304453-100 is maintained as a stocked item. Orders confirmed before the daily cut-off are typically dispatched within 1–3 business days. For urgent retrofit or emergency breakdown requirements, please contact admin@knmks.com or call +86 18359268345 to confirm real-time availability and expedited shipping options.

Q4: What support terms coverage applies to the MU-TAIH02 purchased from KNMKS?
All MU-TAIH02 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. In the event of a support terms claim, KNMKS will arrange replacement or repair with priority handling to minimize impact on your production schedule. Support terms terms are documented on the sales order confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

MU-TAIH02 51304453-100
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell MU-TAIH02 51304453-100
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
