Honeywell MC-TDIA72 51303930-150 Spare Part Factory Uptime

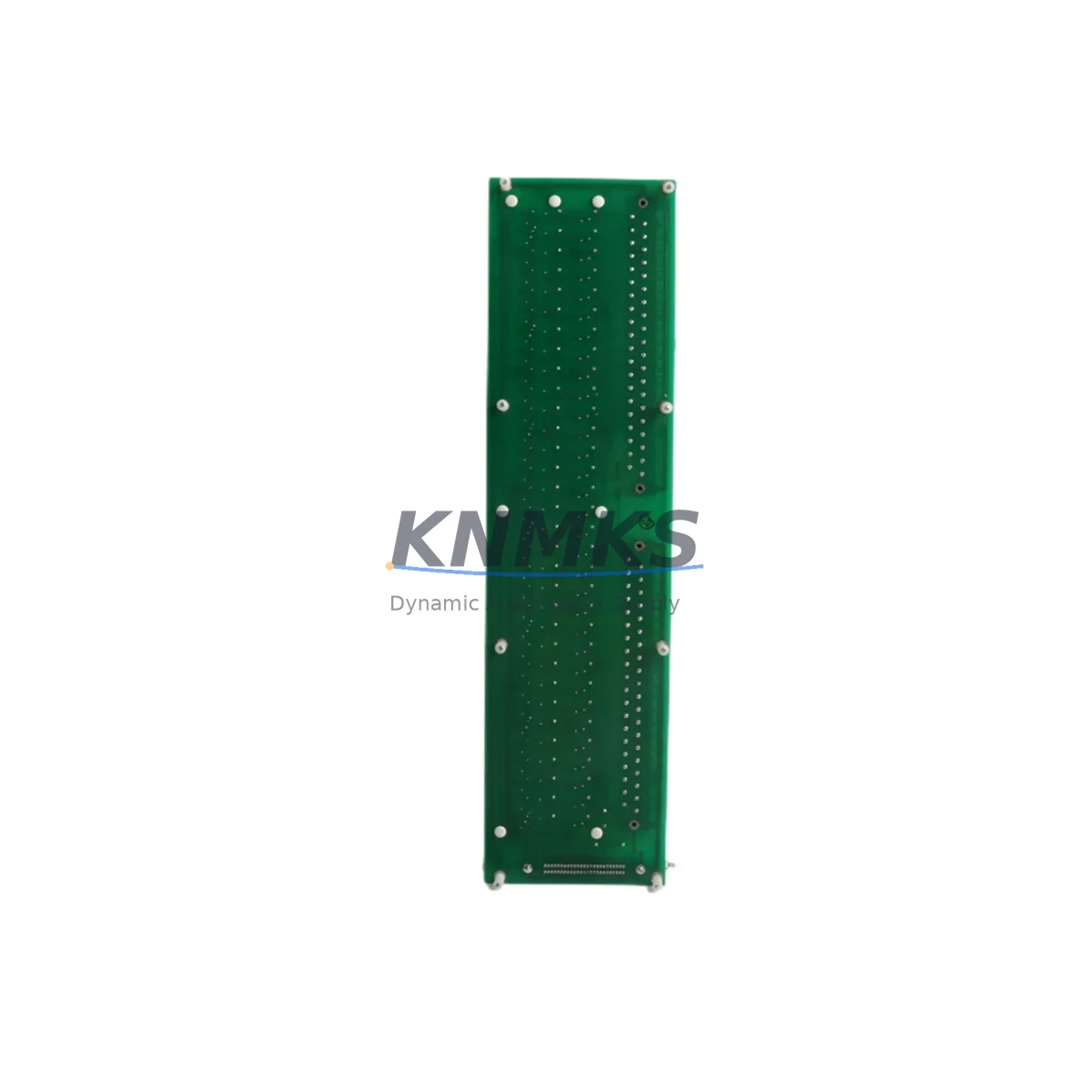

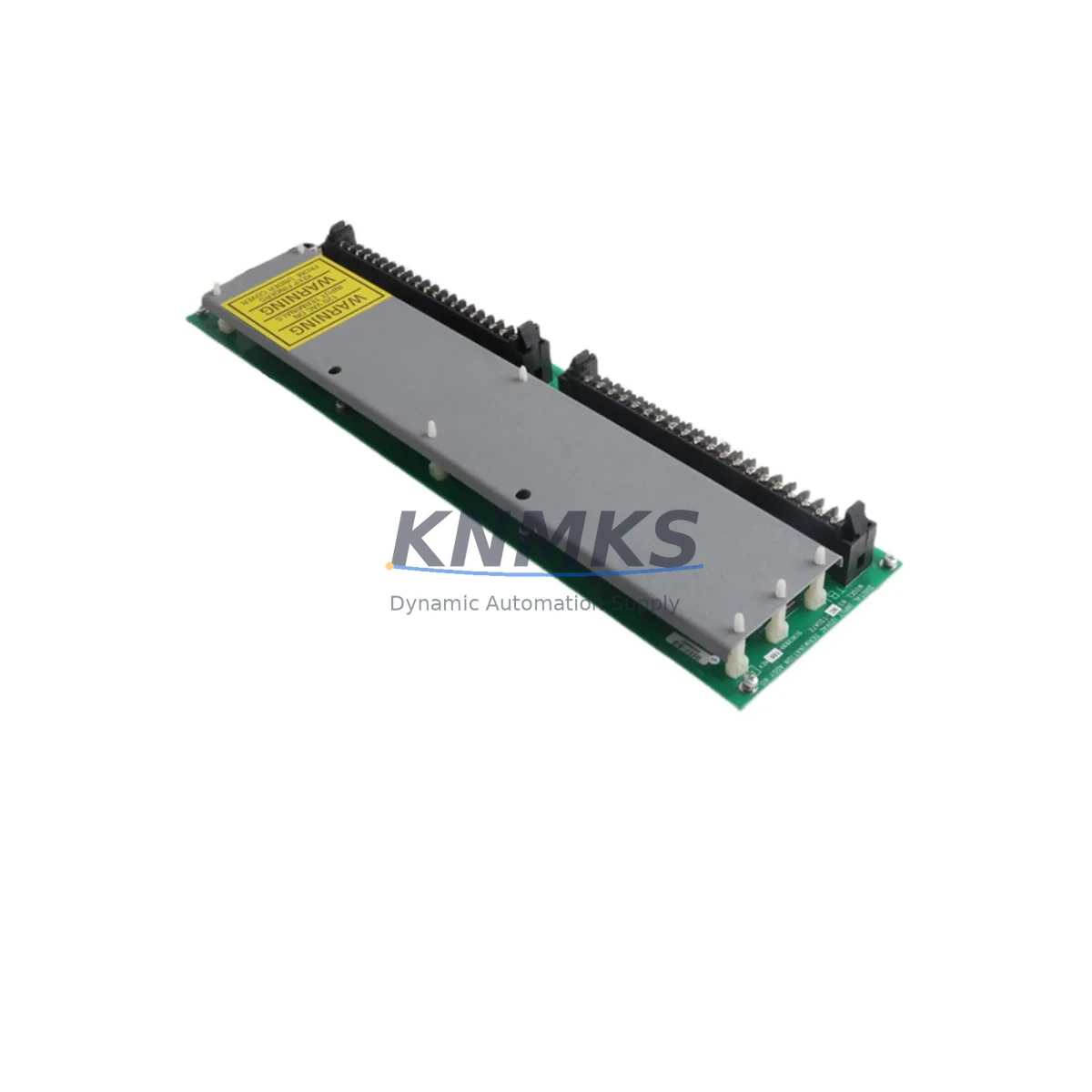

The Honeywell MC-TDIA72 (P/N 51303930-150) is a 72-channel digital input termination assembly designed for the Experion PKS distributed control system. As a critical field interface component, it serves as the primary connection point between field-wired discrete sensors, limit switches, and pushbuttons and the Experion PKS C300 controller infrastructure. Maintaining a verified, tested spare of the MC-TDIA72 in your site inventory is one of the most cost-effective strategies for protecting continuous process operations against unplanned downtime.

For maintenance engineers managing aging Experion PKS installations, the MC-TDIA72 represents a high-priority spare. Its 72-channel capacity means a single module failure can simultaneously disable a large block of discrete input signals — including safety interlocks, valve position feedback, motor run status, and equipment fault indicators. Rapid replacement with a pre-tested, original Honeywell spare is the only reliable path to restoring full system visibility and control without extended troubleshooting delays.

Procurement engineers sourcing MC-TDIA72 51303930-150 replacements should prioritize suppliers who can confirm original Honeywell manufacture, provide functional test documentation, and guarantee support terms confirmed by quotation coverage. Counterfeit or refurbished termination assemblies introduce unacceptable risk in safety-critical DCS environments. KNMKS supplies only original-source MC-TDIA72 modules, each inspected and tested prior to shipment, with full traceability documentation available on request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a MC-TDIA72 51303930-150 failure is suspected or confirmed during a control cabinet inspection or fault isolation routine, the replacement workflow should extend beyond the termination assembly itself. Experienced maintenance engineers treat a DI termination failure as a trigger for a broader cabinet health review.

Begin by verifying the 24 VDC field power supply feeding the MC-TDIA72 input circuits. A degraded or intermittently failing power supply — such as the Honeywell MC-PDIY22 or equivalent PMIO power distribution module — can cause phantom input faults that mimic termination assembly failures. Confirm supply voltage is within specification at the termination assembly terminals before condemning the module.

Next, inspect the associated PMIO backplane and the C300 controller module. The MC-TDIA72 interfaces directly with the PMIO I/O link; a damaged backplane connector or a C300 firmware fault can produce DI channel errors that are incorrectly attributed to the termination assembly. If the C300 controller — such as the Honeywell MC-CONT02 — shows communication alarms alongside the DI faults, address the controller health before replacing the termination assembly.

Field wiring integrity is equally critical. With 72 channels, the MC-TDIA72 aggregates a large number of field cable terminations. During replacement, inspect terminal blocks, cable shields, and field cable insulation for signs of moisture ingress, vibration damage, or corrosion — particularly in outdoor or high-humidity cabinet environments. Signal isolators or surge protection devices installed upstream of the termination assembly, such as Phoenix Contact or Pepperl+Fuchs DI signal conditioners, should also be checked for proper operation.

For plants running redundant Experion PKS architectures, confirm that the redundant PMIO path and its associated termination assembly are healthy before taking the primary MC-TDIA72 offline for replacement. Redundancy switchover should be tested and verified as part of the post-replacement commissioning checklist.

Annual maintenance schedules for Experion PKS cabinets should include MC-TDIA72 termination torque checks, visual inspection for discoloration or burn marks on terminal blocks, and a functional scan of all 72 DI channels against known field device states. Proactive identification of degraded channels prevents unplanned failures during peak production periods.

Site Replacement Workflow

Step 1 — Confirm Spare Compatibility: Verify that the replacement MC-TDIA72 carries P/N 51303930-150 and matches the revision level documented in your Experion PKS cabinet drawings. Honeywell part number suffixes (-150, -175, etc.) may indicate hardware revisions; confirm compatibility with your site’s PMIO backplane revision before installation.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected PMIO chassis. Notify the control room of the planned DI channel outage. For non-redundant systems, coordinate with operations to place affected interlocks and permissives in manual bypass as required by your MOC procedure.

Step 3 — Remove and Replace: Disconnect field wiring from the MC-TDIA72 terminal blocks systematically, labeling each cable group. Remove the assembly from the PMIO chassis. Install the replacement MC-TDIA72, reconnect field wiring per the cabinet wiring schedule, and torque all terminals to specification.

Step 4 — Power-Up and Functional Test: Restore power to the PMIO chassis and observe the Experion PKS system display for channel status. Perform a point-by-point functional test of all 72 DI channels by actuating field devices or using a loop calibrator to simulate input states. Confirm all channels report correctly in the Experion PKS Station display before releasing the system to operations.

Step 5 — Documentation: Update your CMMS with the replacement date, new module serial number, and test results. Return the failed MC-TDIA72 for failure analysis if root cause investigation is required. Replenish your site spare inventory promptly — a single MC-TDIA72 spare is the minimum recommended holding for any Experion PKS installation with active PMIO I/O.

Spare Parts Support FAQ

Q1: Is the MC-TDIA72 51303930-150 still available as a new original Honeywell spare?
A: Yes. KNMKS maintains stock of original Honeywell MC-TDIA72 51303930-150 modules. Each unit is sourced from authorized supply channels, inspected upon receipt, and functionally tested before shipment. A support terms confirmed by quotation is provided from the date of shipment. Contact admin@knmks.com to confirm current stock availability and lead time.

Q2: How do I verify compatibility between the MC-TDIA72 and my existing Experion PKS PMIO backplane?
A: Compatibility is determined by your PMIO backplane revision and the Experion PKS system software version. Provide your cabinet drawing number, backplane P/N, and Experion PKS release version to our technical team and we will confirm compatibility before shipment. We recommend cross-referencing Honeywell document EP-DS-00003 (Experion PKS I/O Compatibility Matrix) for formal guidance.

Q3: What testing is performed on MC-TDIA72 units before shipment?
A: All MC-TDIA72 51303930-150 units shipped by KNMKS undergo a pre-shipment functional inspection covering visual examination, connector integrity check, and channel continuity verification. Test records are available upon request. Units are packed in anti-static packaging with physical protection to prevent transit damage.

Q4: Can KNMKS support long-term supply of MC-TDIA72 spares for multi-year maintenance contracts?
A: Yes. KNMKS supports long-term spare parts supply agreements for Experion PKS components including the MC-TDIA72 51303930-150. We can reserve inventory, provide scheduled delivery, and issue blanket purchase order arrangements to support your annual maintenance budget cycle. Contact our sales team to discuss your site’s long-term spare parts requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

MC-TDIA72 51303930-150
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell MC-TDIA72 51303930-150
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
