Honeywell MC-PRHM01 51404109-175 Fail-Safe Hybrid Process Module

Overview

Honeywell MC-PRHM01 51404109-175 Fail-Safe Hybrid Process Module: Fault Protection and Critical Industrial Field Reliability

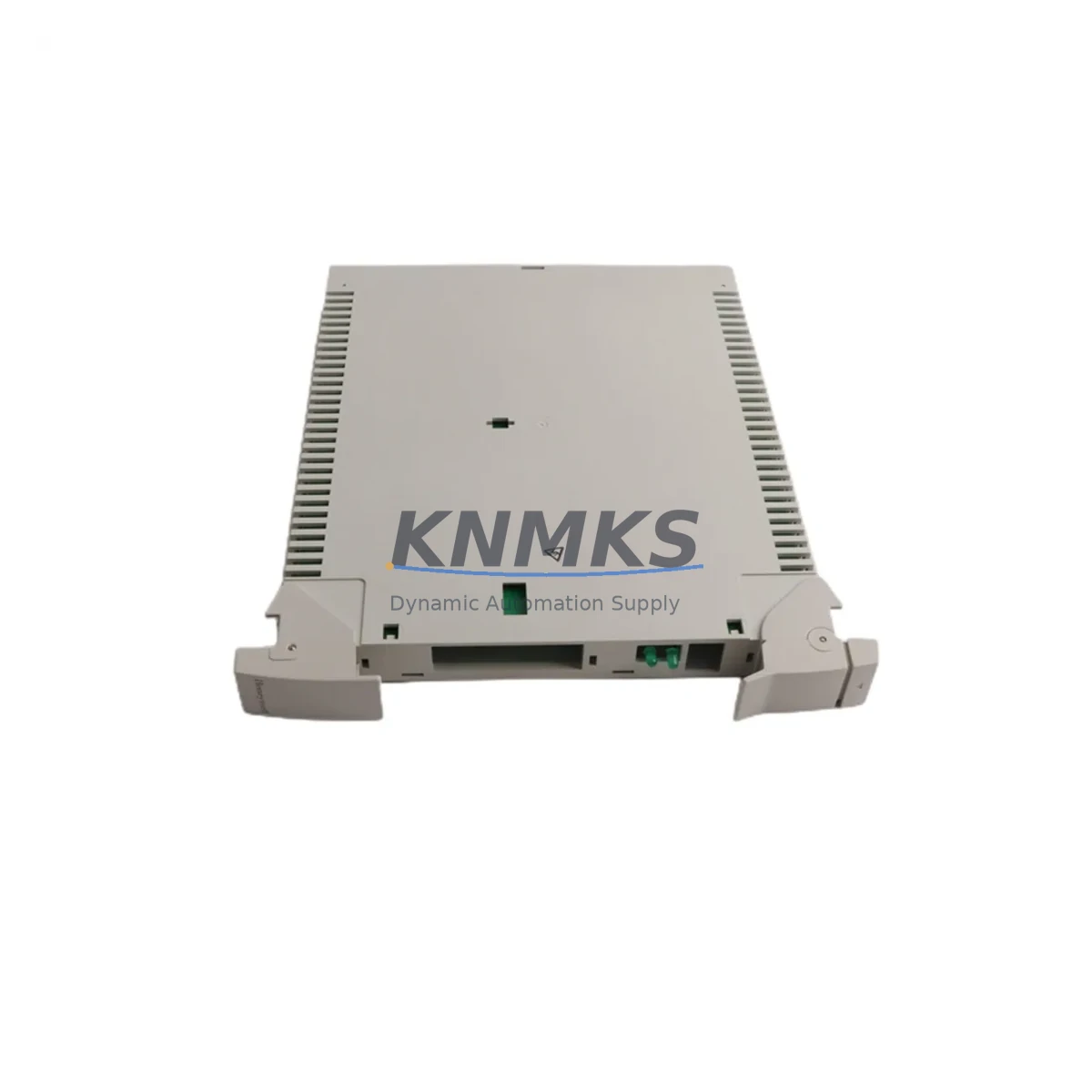

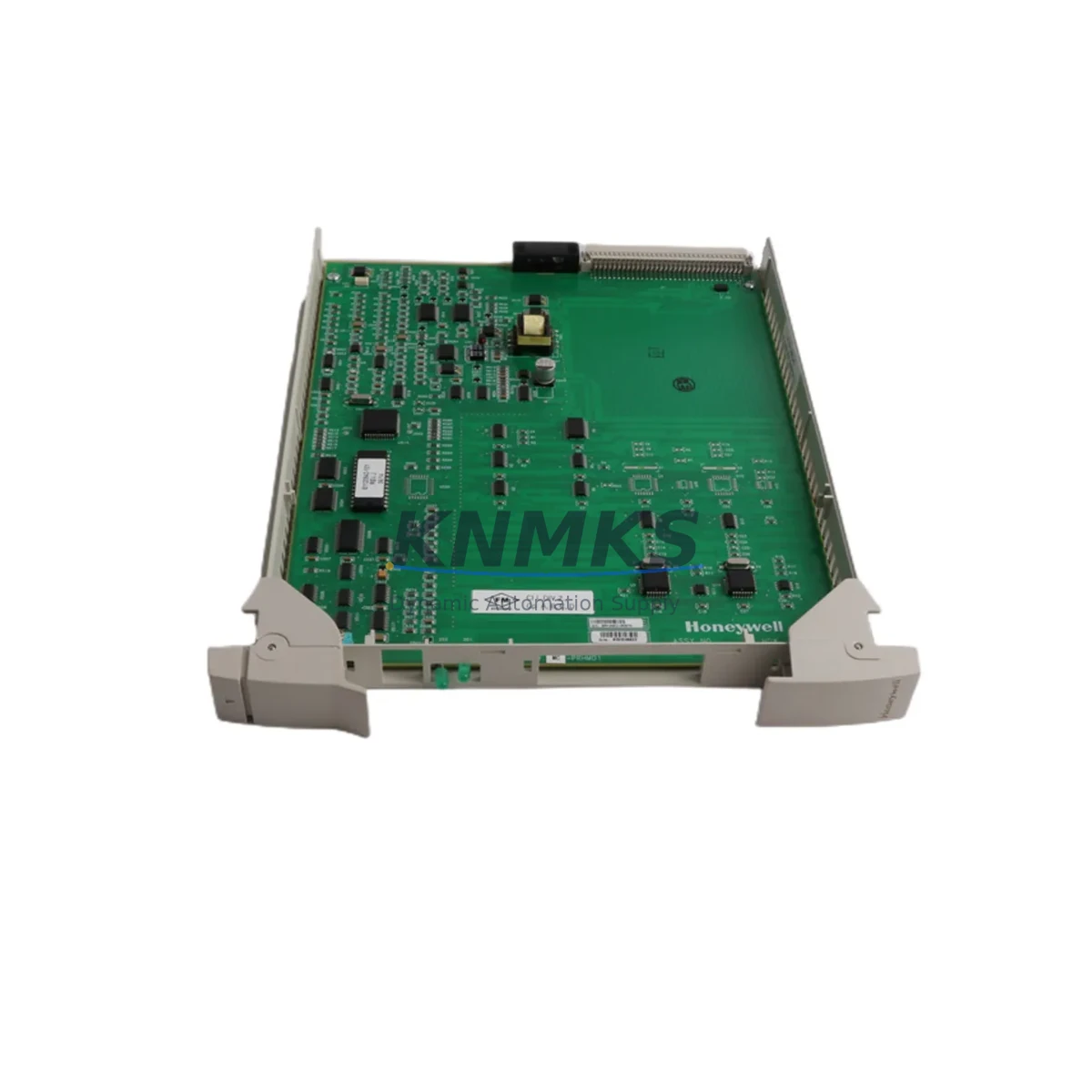

The Honeywell MC-PRHM01 (Part No. 51404109-175) is a fail-safe hybrid process module engineered for the Experion PKS distributed control system (DCS) platform. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, metallurgical operations, and water treatment infrastructure — this module delivers the signal integrity, fault tolerance, and control loop stability that mission-critical processes demand.

In continuous production environments where unplanned downtime carries severe operational and safety consequences, the MC-PRHM01 provides a robust hardware foundation. Its hybrid architecture bridges analog and digital I/O processing within a single module footprint, reducing cabinet complexity while maintaining deterministic scan cycles. This design minimizes the risk of control interruption caused by inter-module communication latency or signal routing failures — a common vulnerability in legacy multi-module configurations.

Signal drift is one of the most insidious threats to process safety. The MC-PRHM01 incorporates precision analog input conditioning with internal reference compensation, ensuring that field transmitter signals — whether 4–20 mA current loops or discrete contact inputs — are accurately represented in the controller without accumulated offset errors. This is particularly critical in high-temperature or high-vibration environments such as compressor stations, rotating equipment skids, and furnace control panels, where thermal cycling can induce baseline drift in lesser modules.

Electromagnetic interference (EMI) is a persistent challenge in heavy industrial cabinets housing variable frequency drives (VFDs), high-current contactors, and power bus bars in close proximity to control wiring. The MC-PRHM01’s shielded signal paths and onboard filtering circuitry suppress conducted and radiated interference, protecting the integrity of critical interlock signals. When deployed alongside the Honeywell MC-TAIX16 analog input termination assembly and MC-TDID16 discrete I/O termination panel, the complete signal chain from field device to controller maintains its noise immunity across the full operating temperature range of -20°C to +70°C.

Power supply stability directly affects module availability. The MC-PRHM01 is designed to operate within the Experion PKS power distribution architecture, which typically pairs the process module with a Honeywell MC-PWRJ01 redundant power junction to ensure uninterrupted supply during single-source failures. Surge and transient protection built into the module’s power input stage guards against voltage spikes from switching events on shared cabinet power rails — a common cause of spurious resets and unplanned controller restarts in facilities with heavy motor loads.

For safety instrumented system (SIS) integration, the MC-PRHM01 supports hardwired interlock architectures where the DCS process module interfaces with dedicated safety logic solvers. In such configurations, the module’s discrete output channels can drive relay coils in the safety shutdown circuit, with the Honeywell FSC (Fail-Safe Controller) safety relay modules providing the final element actuation. This layered approach — DCS process control plus independent SIS — is the standard architecture in IEC 61511-compliant installations across refinery, LNG, and chemical plant applications.

Communication anomalies between the process module and the Experion PKS C300 or C200 controller node can trigger false alarms or, in worst cases, cause the controller to enter a safe-state shutdown. The MC-PRHM01’s FTE (Fault Tolerant Ethernet) compatible backplane interface maintains redundant communication paths, so a single cable or switch fault does not isolate the module from the control network. This redundancy is complemented by the Honeywell ENET-2 dual-port Ethernet switch used in Experion PKS cabinet builds to provide ring-topology fault recovery within milliseconds.

In dusty, humid, or corrosive field environments — such as cement plants, coastal installations, and mining operations — conformal coating on the MC-PRHM01’s PCB assembly provides an additional barrier against moisture ingress and particulate contamination. Combined with the module’s IP20-rated housing and DIN-rail mounting compatibility, it is suitable for installation in sealed control enclosures where periodic cleaning access is limited.

Spare parts availability and lead time are critical considerations for plant maintenance teams managing aging DCS infrastructure. KNMKS maintains verified stock of the MC-PRHM01 51404109-175 with pre-shipment functional testing performed on every unit. Each module undergoes power-on verification, I/O channel continuity checks, and firmware version confirmation before dispatch, ensuring that replacement modules arrive site-ready and reduce the mean time to repair (MTTR) during unplanned outages.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable Experion PKS control cabinet is built on the coordinated performance of multiple hardware layers. The MC-PRHM01 hybrid process module sits at the center of the I/O architecture, but its fault protection capability is fully realized only when paired with complementary components. The Honeywell MC-TAIX16 analog input termination assembly provides the field-side marshalling point for 4–20 mA transmitter loops, isolating field wiring from the module backplane and preventing ground loop currents from corrupting analog readings. For discrete safety interlock signals, the MC-TDID16 discrete I/O termination panel offers relay-isolated output channels that can drive shutdown actuators without back-EMF damage to the module’s output drivers.

Cabinet thermal management is a frequently overlooked reliability factor. In high-density I/O cabinets where multiple process modules, power supplies, and communication switches are installed in a single enclosure, internal temperatures can exceed module ratings during summer peak loads. Pairing the MC-PRHM01 with a Honeywell MC-PWRJ01 redundant power junction not only provides supply redundancy but also distributes heat load across two power sources, reducing thermal stress on individual components. For cabinets in high-ambient environments, supplementary cooling via thermostat-controlled cabinet fans or air conditioners should be specified alongside the module installation.

Communication integrity between the process module and the controller node is protected by the Honeywell ENET-2 dual-port Ethernet switch, which supports ring topology with automatic fault recovery. In the event of a cable break or switch port failure, the ring heals within milliseconds, preventing the communication timeout that would otherwise trigger a module fault alarm. For installations requiring SIS-level protection, the Honeywell FSC safety relay module provides the hardwired final element interface, ensuring that the safety shutdown path remains independent of the DCS communication network and available even during a full DCS controller restart.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In crude distillation units, hydrocracker reactors, and compressor train control systems, the MC-PRHM01 manages the analog process variables — temperature, pressure, flow, and level — that feed the DCS regulatory control loops. Its signal integrity under high-EMI conditions, generated by large motor starters and VFDs in the same facility, ensures that PID controllers receive accurate process variable data and do not generate spurious output changes that could open or close control valves unexpectedly.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the Experion PKS DCS controls boiler combustion, turbine bypass, and auxiliary systems. The MC-PRHM01’s fail-safe design ensures that a module hardware fault results in a defined safe-state output — typically de-energized — rather than an indeterminate output that could leave a fuel valve open or a cooling pump stopped.

Mining and Mineral Processing: Conveyor control, crusher automation, and flotation cell management in mining operations expose control hardware to extreme vibration, dust ingress, and wide temperature swings. The MC-PRHM01’s conformal-coated PCB and robust mechanical design maintain reliable operation in these conditions, reducing the frequency of module replacements that would otherwise require production halts.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous DCS control of dosing pumps, aeration blowers, and filtration systems. The MC-PRHM01 supports the analog I/O density required for these multi-loop control strategies while providing the communication redundancy needed to maintain treatment process continuity during network maintenance windows.

Metallurgy and Steel Production: Electric arc furnace (EAF) and continuous casting operations generate severe electrical transients on facility power systems. The MC-PRHM01’s surge protection and EMI filtering allow it to operate reliably in these environments, maintaining the temperature and flow control loops that determine product quality and furnace lining life.

Port and Marine Automation: Ship-to-shore crane control systems and vessel automation platforms increasingly use DCS architectures for integrated machinery management. The MC-PRHM01’s wide operating temperature range and humidity tolerance make it suitable for marine-grade control cabinets where condensation and salt-laden air are persistent concerns.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the MC-PRHM01 51404109-175?
The support terms confirmed by quotation cover manufacturing defects, component failures, and functional performance issues under normal operating conditions. If the module fails to perform its specified I/O functions within the confirmed support period, KNMKS will provide a replacement unit at no additional cost. The confirmed support period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each MC-PRHM01 unit?
Every MC-PRHM01 unit dispatched by KNMKS undergoes a structured pre-shipment test protocol: power-on functional verification, I/O channel continuity and isolation checks, firmware version confirmation against the Honeywell Experion PKS compatibility matrix, and visual inspection for physical damage or connector contamination. Test records are retained and available upon request for traceability purposes.

Q3: Is the MC-PRHM01 51404109-175 compatible with both C200 and C300 Experion PKS controller nodes?
Yes. The MC-PRHM01 is designed for the Honeywell Experion PKS I/O subsystem and is compatible with both C200 and C300 controller node architectures when installed in the appropriate I/O chassis with the correct termination assemblies. Customers should verify the firmware revision of their existing controller nodes against Honeywell’s compatibility documentation to confirm interoperability with their specific system build.

Q4: Can KNMKS support long-term supply of the MC-PRHM01 for ongoing maintenance and spare parts programs?
Yes. KNMKS maintains a dedicated inventory of Honeywell Experion PKS modules, including the MC-PRHM01 51404109-175, to support plant maintenance teams with predictable spare parts availability. For facilities managing aging DCS infrastructure, KNMKS can provide scheduled supply agreements to ensure critical spare modules are available before unplanned failures occur, reducing the risk of extended production downtime due to parts procurement delays.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

MC-PRHM01 51404109-175
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell MC-PRHM01 51404109-175
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
