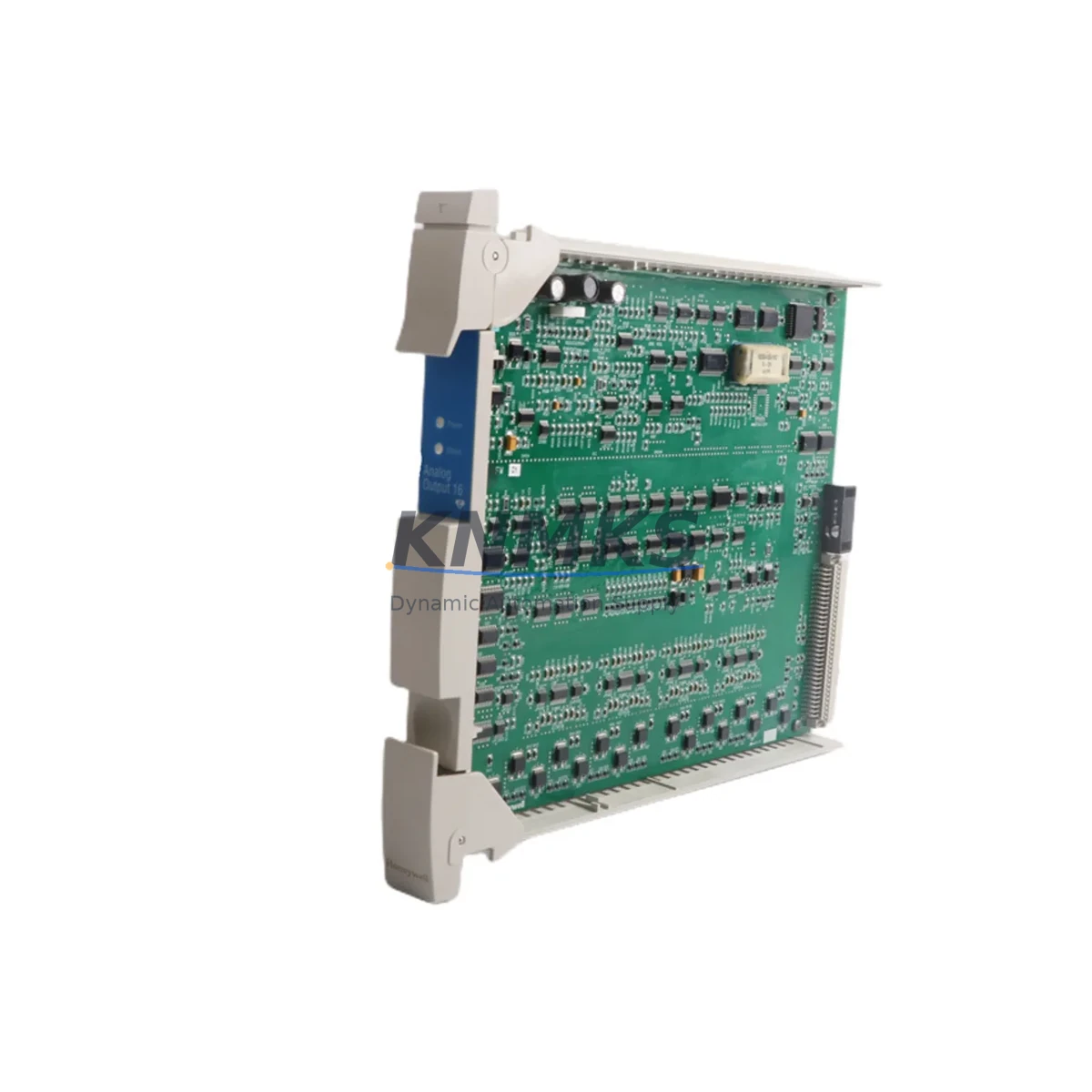

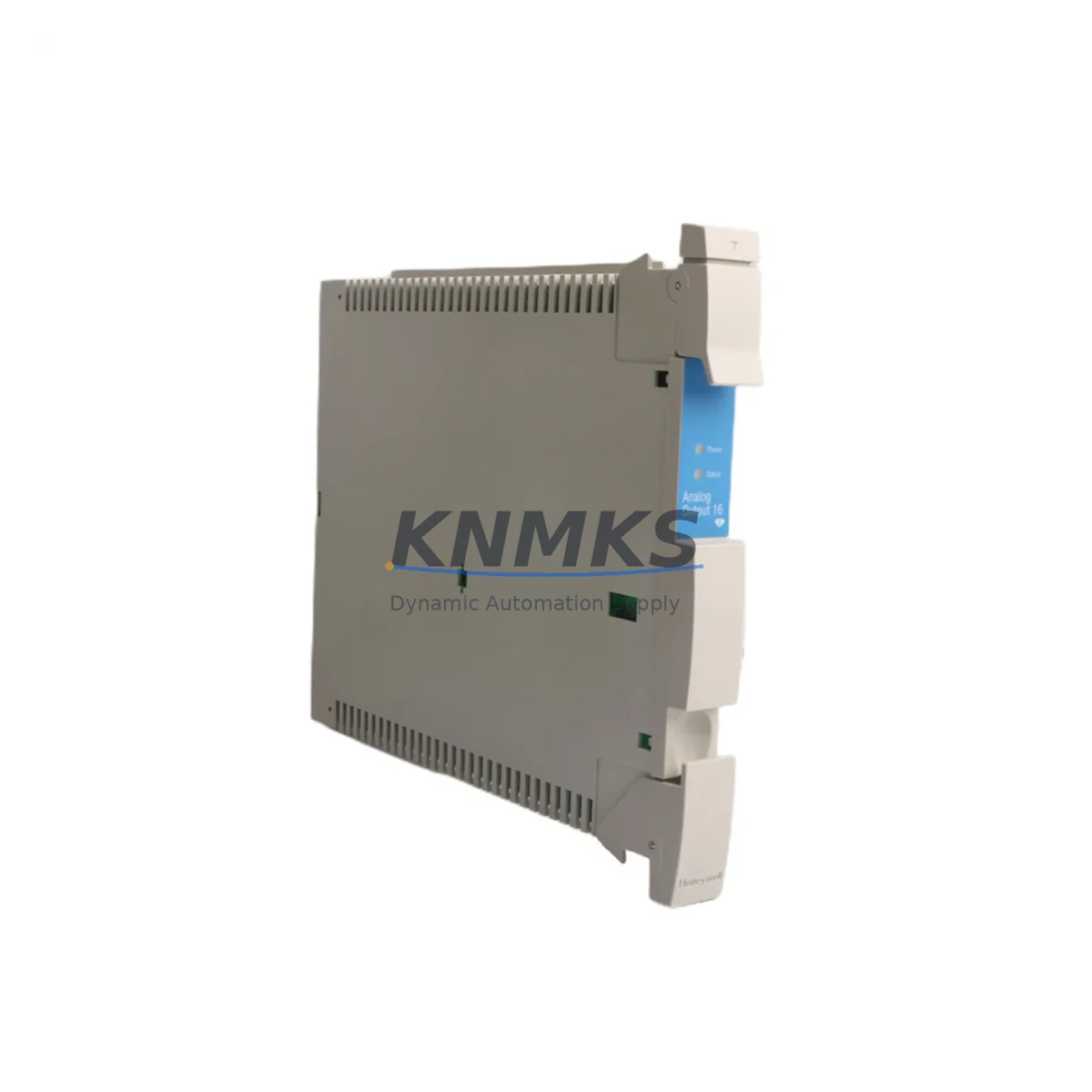

Honeywell MC-PAOY22 Fail-Safe Analog Output Module

Overview

Honeywell MC-PAOY22 Fail-Safe Analog Output Module: Fault Protection for Critical Industrial Control

The Honeywell MC-PAOY22 is an 8-channel analog output module engineered for the Experion PKS Distributed Control System platform. Designed to operate reliably in continuous production environments, high electromagnetic interference zones, and safety-critical interlock loops, the MC-PAOY22 delivers stable 4–20 mA signal output with fail-safe behavior that minimizes the risk of unplanned shutdowns, control loop interruptions, and signal drift under adverse field conditions.

In industries where a single output failure can cascade into process upsets, equipment damage, or personnel hazards, the MC-PAOY22 provides the signal integrity and fault-tolerant architecture that maintenance engineers and process safety teams depend on. Its robust design addresses the core failure modes found in heavy industrial environments: surge-induced output corruption, thermal stress from high-density control cabinets, vibration-related connector fatigue, and moisture ingress in humid or dusty enclosures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The MC-PAOY22 is most effective when deployed as part of a coordinated control cabinet architecture. In Experion PKS installations, it operates alongside the MC-PAIH02 High-Level Analog Input Module, which handles process variable acquisition, while the MC-PAOY22 drives final control elements such as control valves, variable frequency drives, and electro-pneumatic positioners. Together, these modules form a closed-loop control pair that maintains process stability even under partial system faults.

Power supply integrity is foundational to analog output accuracy. The MC-PDOX01 Redundant Power Distribution Module ensures that voltage fluctuations and momentary supply interruptions do not propagate into output signal errors. In cabinets with high channel density, the MC-TAMR03 Redundant Controller Module provides bumpless transfer between primary and backup controllers, ensuring that the MC-PAOY22 continues to receive valid setpoints without interruption during controller switchover events.

For installations in environments with elevated electromagnetic interference — common in motor control centers, variable speed drive rooms, and arc furnace proximity zones — the MC-TAIX02 Isolated Analog Input Module is recommended upstream to prevent common-mode noise from corrupting the reference signals fed to the MC-PAOY22. Additionally, the MC-PDIY22 Digital Input Module can be integrated into the same I/O chassis to monitor interlock status signals, enabling the control system to command the MC-PAOY22 to a defined safe-state output when a protective relay or emergency shutdown signal is detected.

In cabinets subject to high thermal loads from dense I/O populations, proper chassis slot allocation and airflow management are critical. The MC-PAOY22’s operating temperature ceiling of 60°C provides adequate margin for most industrial enclosures, but pairing it with the MC-TAOY11 Redundant Analog Output Module in a 1oo2 (one-out-of-two) output voting architecture further eliminates single-point output failure risk in safety instrumented functions.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous distillation columns, reactor temperature control loops, and fired heater fuel gas control systems, the MC-PAOY22 drives control valve positioners with the signal stability required to maintain product quality and prevent runaway conditions. Its fail-safe last-state hold capability ensures that control valves do not slam shut or open uncontrolled during a DCS communication fault, reducing the risk of pressure excursions and emergency relief valve activation.

Power Generation and Substation Automation: Turbine governor control, boiler feedwater regulation, and excitation system control all demand analog output modules with sub-millisecond response consistency. The MC-PAOY22’s 12-bit resolution and individually isolated channels prevent cross-channel interference that could introduce instability into tightly tuned PID loops governing megawatt-scale generation assets.

Mining and Mineral Processing: Flotation cell reagent dosing, conveyor speed control, and crusher load management in underground and open-pit mining environments expose control hardware to extreme vibration, dust ingress, and wide temperature swings. The MC-PAOY22’s ruggedized construction and sealed connector interface maintain output signal integrity in these demanding conditions, reducing the frequency of unplanned maintenance interventions.

Water and Wastewater Treatment: Dosing pump speed control, aeration blower modulation, and sludge dewatering press control require analog outputs that remain stable across long cable runs in electrically noisy pump stations. The MC-PAOY22’s current loop output (4–20 mA) is inherently resistant to voltage drop over distance, making it well-suited for distributed field installations where signal cables may run hundreds of meters from the control room.

Metallurgy and Steel Production: Electric arc furnace electrode positioning, continuous casting mold level control, and rolling mill tension regulation demand analog output modules capable of operating in environments with intense electromagnetic fields generated by high-current bus bars and induction heating equipment. The MC-PAOY22’s EMC-hardened design maintains output accuracy in these high-interference zones.

Port, Marine, and Offshore Installations: Crane hoist speed control, ballast pump regulation, and dynamic positioning thruster control on vessels and offshore platforms require control hardware certified for marine-grade humidity and vibration exposure. The MC-PAOY22’s humidity tolerance and vibration-resistant chassis mounting make it a reliable choice for these mobile and semi-permanent installations.

Safety and Quality FAQ

Q1: What support terms coverage does the MC-PAOY22 carry?
Every MC-PAOY22 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This support terms covers manufacturing defects, functional failures, and signal output anomalies under normal operating conditions. Support requests are processed with priority to minimize control system downtime.

Q2: Is the MC-PAOY22 tested before shipment?
Yes. All units undergo a full pre-shipment functional test that verifies channel-by-channel output accuracy across the 4–20 mA range, diagnostic response, and backplane communication integrity. Test records are available upon request for quality documentation purposes.

Q3: Is this module compatible with existing Experion PKS installations?
The MC-PAOY22 is designed for direct installation into Honeywell Experion PKS I/O chassis and is compatible with standard Experion R400 and later software releases. It is a drop-in replacement for failed or end-of-life MC-PAOY22 units in existing installations without requiring controller reconfiguration, provided the chassis firmware is current.

Q4: Can KNMKS support long-term spare parts supply for the MC-PAOY22?
KNMKS maintains dedicated stock of MC-PAOY22 modules to support planned maintenance programs, emergency replacements, and multi-year spare parts agreements. For facilities managing Honeywell Experion PKS systems with extended operational lifecycles, we recommend establishing a standing spare parts arrangement to ensure availability independent of OEM lead times, which can extend to 16–26 weeks for legacy DCS I/O modules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

MC-PAOY22
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell MC-PAOY22
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
