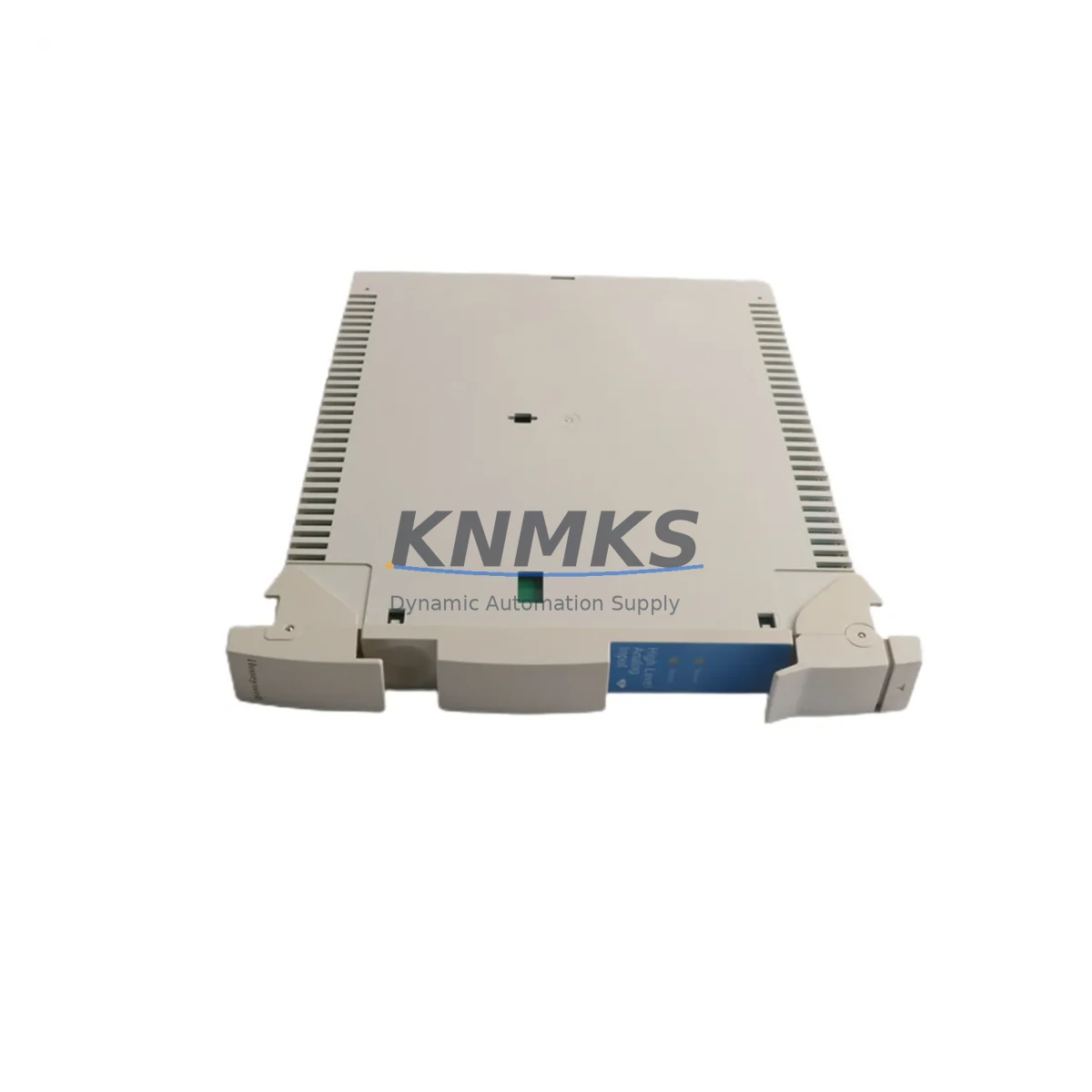

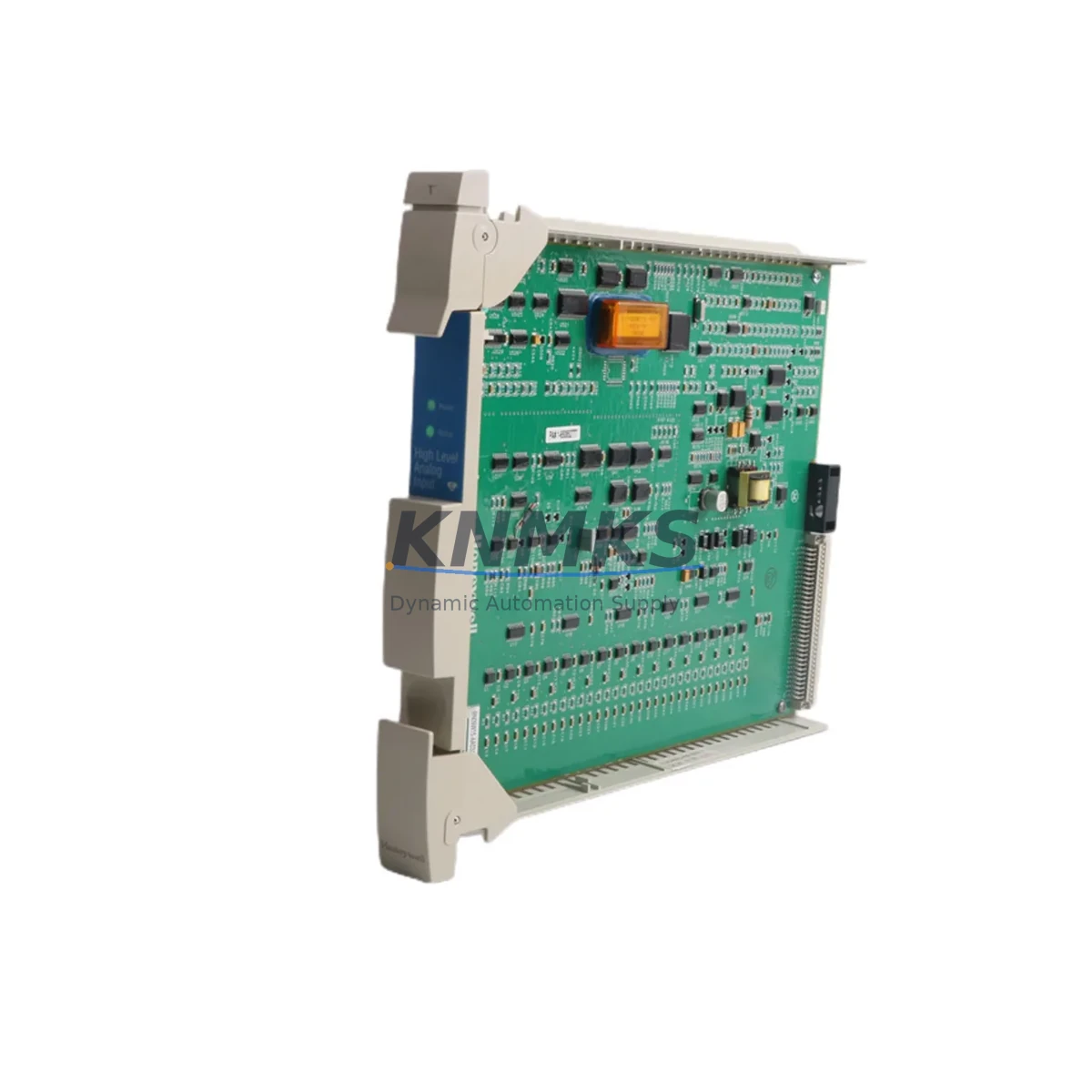

Honeywell MC-PAIH03 51304754-150 Migration-Ready Analog Input

Overview

Honeywell MC-PAIH03 51304754-150 Migration-Ready Analog Input for Legacy Control Systems

The Honeywell MC-PAIH03 (part number 51304754-150) is a high-density analog input module designed for the Experion PKS distributed control system platform. As legacy TDC 3000 and PlantScape systems reach end-of-life, the MC-PAIH03 has become a critical component in brownfield migration projects, enabling engineers to preserve existing field wiring, terminal block layouts, and I/O signal conditioning infrastructure while transitioning to a modern Experion PKS control architecture. This module supports 16 channels of high-level analog input, accepting 4–20 mA and 1–5 V signals, and is fully compatible with the C300 Controller and the IOLINK communication backbone used across Honeywell’s current DCS product family.

When planning a retrofit from a TDC 3000 HPM or a PlantScape Server-based system, the MC-PAIH03 is typically installed in an existing IOTA (I/O Termination Assembly) rail, which eliminates the need to re-pull field cables. Engineers must verify that the existing IOTA model—commonly the MC-TAIH03 or MC-TAIX02—is mechanically and electrically compatible with the 51304754-150 module before installation. Backplane slot addressing must be reconfigured in Experion Control Builder to match the new module’s node address, and any legacy CL (Control Language) logic referencing the old HPM point tags must be migrated to Experion’s Function Block or Control Module structure. This migration step is often the most time-intensive part of the project and should be completed and simulated offline before the scheduled maintenance window.

Power budget verification is essential before deploying the MC-PAIH03 in an existing cabinet. The module draws power from the local Power Supply Module—typically a Honeywell MC-PDOX02 or MC-PDOX03—and engineers must confirm that the aggregate load of all installed I/O modules does not exceed the supply’s rated output. In high-density cabinets where multiple analog input, analog output, and digital I/O modules share a single power rail, it is common to add a supplementary power supply or redistribute modules across chassis to maintain safe operating margins. The MC-PAIH03’s power consumption specification should be cross-referenced against the cabinet’s existing load calculation before the retrofit is finalized.

Communication link integrity is another key validation point. The MC-PAIH03 communicates with the C300 Controller via the FTE (Fault Tolerant Ethernet) network, and the IOLINK segment connecting the module chassis to the controller must be verified for cable integrity, switch port configuration, and VLAN assignment. In older installations where the FTE infrastructure was built on legacy Cisco Catalyst hardware, firmware compatibility between the network switches and the current Experion R500 or R501 release should be confirmed with Honeywell’s compatibility matrix. Any mismatch in FTE switch firmware can cause intermittent communication faults that are difficult to diagnose during live commissioning.

HMI display migration is frequently overlooked during analog input module replacements. When the MC-PAIH03 replaces a legacy HPM analog input card, all associated GUS (Global User Station) or Station displays referencing the old point database must be updated to reflect the new Experion point names and engineering unit ranges. In projects where the HMI is being simultaneously upgraded from GUS to Experion Operator Station, the display migration can be partially automated using Honeywell’s migration tools, but manual verification of each faceplate, trend group, and alarm setpoint is still required to ensure operational continuity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful MC-PAIH03 retrofit begins with a thorough audit of the existing control cabinet. Engineers should document the current chassis layout, including the position of every installed module—analog input, analog output, digital input, digital output, and communication modules—along with their slot addresses and associated point tags. In a typical Experion PKS cabinet, the MC-PAIH03 shares a chassis with modules such as the MC-PAOX03 analog output module, the MC-PDIY22 digital input module, and the MC-PDOY22 digital output module. Understanding the physical arrangement of these modules is essential for planning the replacement sequence and minimizing the risk of disturbing adjacent wiring during the swap.

Terminal block wiring is one of the most critical aspects of the retrofit. The MC-PAIH03 connects to field instruments through the IOTA, which provides screw-terminal or push-in connections for each of the 16 input channels. Before removing the legacy module, engineers should photograph and document all terminal connections, verify wire labeling against the as-built loop drawings, and confirm that the field cable shielding is properly grounded at the IOTA. In older installations where wire labels have faded or loop drawings are outdated, a point-to-point continuity check using a loop calibrator is recommended before the new module is powered up.

For projects that also involve upgrading the communication infrastructure, the MC-PAIH03 retrofit is often coordinated with the replacement of legacy IOLINK cables and the installation of new FTE switches. In these cases, the Honeywell MC-ESMF01 FTE switch module or equivalent managed switch hardware is staged alongside the analog input modules to ensure that the communication backbone is ready before the I/O modules are brought online. Signal isolators may also be required in installations where the field instruments are located in hazardous areas or where ground loop interference has been identified as a recurring issue.

Programming compatibility must be validated before the retrofit window begins. The Experion Control Builder project file should be backed up, and a simulation run should be performed to verify that all control modules referencing the MC-PAIH03’s input channels respond correctly to simulated signal values. Any discrepancies in engineering unit scaling, alarm setpoints, or PID tuning parameters should be resolved in the simulation environment before the live cutover. This approach significantly reduces the risk of process upsets during the transition and allows the commissioning team to focus on physical installation and loop verification during the maintenance window.

Downtime Control During System Migration

Minimizing downtime during an MC-PAIH03 replacement requires careful pre-planning and a disciplined cutover procedure. The recommended approach is to complete all software preparation—including Control Builder configuration, point database updates, and HMI display revisions—at least one week before the scheduled maintenance window. During the window itself, the sequence should follow a hot-standby protocol where possible: the new module is pre-configured and address-assigned offline, the legacy module is removed only after all field instruments have been placed in manual control or bypass, and the new module is inserted and powered up before the bypass is released.

Protecting the original program logic is a non-negotiable requirement. Before any hardware changes are made, the full Experion Control Builder project—including all control modules, function blocks, alarm configurations, and historian point assignments—must be exported and archived to a secure location. This backup serves as the recovery baseline in the event that the cutover encounters unexpected issues. In projects where the control system is running a customized or heavily modified Experion release, the backup should also include the system configuration database and any custom display files associated with the affected process area.

Field control continuity during the migration is maintained by placing all affected loops in manual mode at the operator station before the module swap begins. Operators should be briefed on the expected duration of the maintenance window and the specific process variables that will be unavailable during the transition. For critical loops where manual control is not acceptable, a temporary hardwired bypass or a portable process controller can be used to maintain the required setpoint during the module replacement. After the new MC-PAIH03 is installed and communication is confirmed, each loop should be brought back into automatic control individually, with the commissioning engineer verifying the live signal value against a calibrated reference before releasing the loop to the operator.

Retrofit Support FAQ

Q1: Is the MC-PAIH03 (51304754-150) a direct drop-in replacement for legacy TDC 3000 HPM analog input cards?
The MC-PAIH03 is designed for the Experion PKS platform and is not a direct plug-in replacement for TDC 3000 HPM cards, which use a different backplane and communication architecture. However, it is the recommended migration target for HPM analog input functions when upgrading to Experion PKS. The field wiring can typically be reused via the compatible IOTA, but the control logic and point database must be migrated to Experion’s Control Builder environment.

Q2: What commissioning steps are required after installing the MC-PAIH03?
After physical installation, the module must be assigned a node address in Experion Control Builder and downloaded to the C300 Controller. Each input channel should be verified by injecting a known 4–20 mA signal and confirming that the engineering unit value displayed in the operator station matches the expected reading. Alarm setpoints and historian assignments should also be verified before the loop is returned to automatic control.

Q3: Can the existing field wiring and terminal blocks be reused during the retrofit?
In most cases, yes. The MC-PAIH03 connects to the field through the IOTA, which is designed to remain in place during module replacement. As long as the existing IOTA model is compatible with the MC-PAIH03 and the field wiring is in good condition, the terminal connections do not need to be disturbed. A continuity check and insulation resistance test are recommended before powering up the new module.

Q4: What support terms and pre-shipment testing does this module include?
Every MC-PAIH03 (51304754-150) unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. Prior to dispatch, each module undergoes functional testing to verify communication, channel integrity, and power consumption within specification. In-stock units are available for same-week shipment, and expedited delivery options are available for urgent retrofit projects. Contact admin@knmks.com or +86 18359268345 for availability and lead time confirmation.
