Honeywell MC-GHAO11 51309540-175 Maintenance Spare Part

Overview

Honeywell MC-GHAO11 51309540-175 Maintenance-Proven Spare Part for Factory Uptime

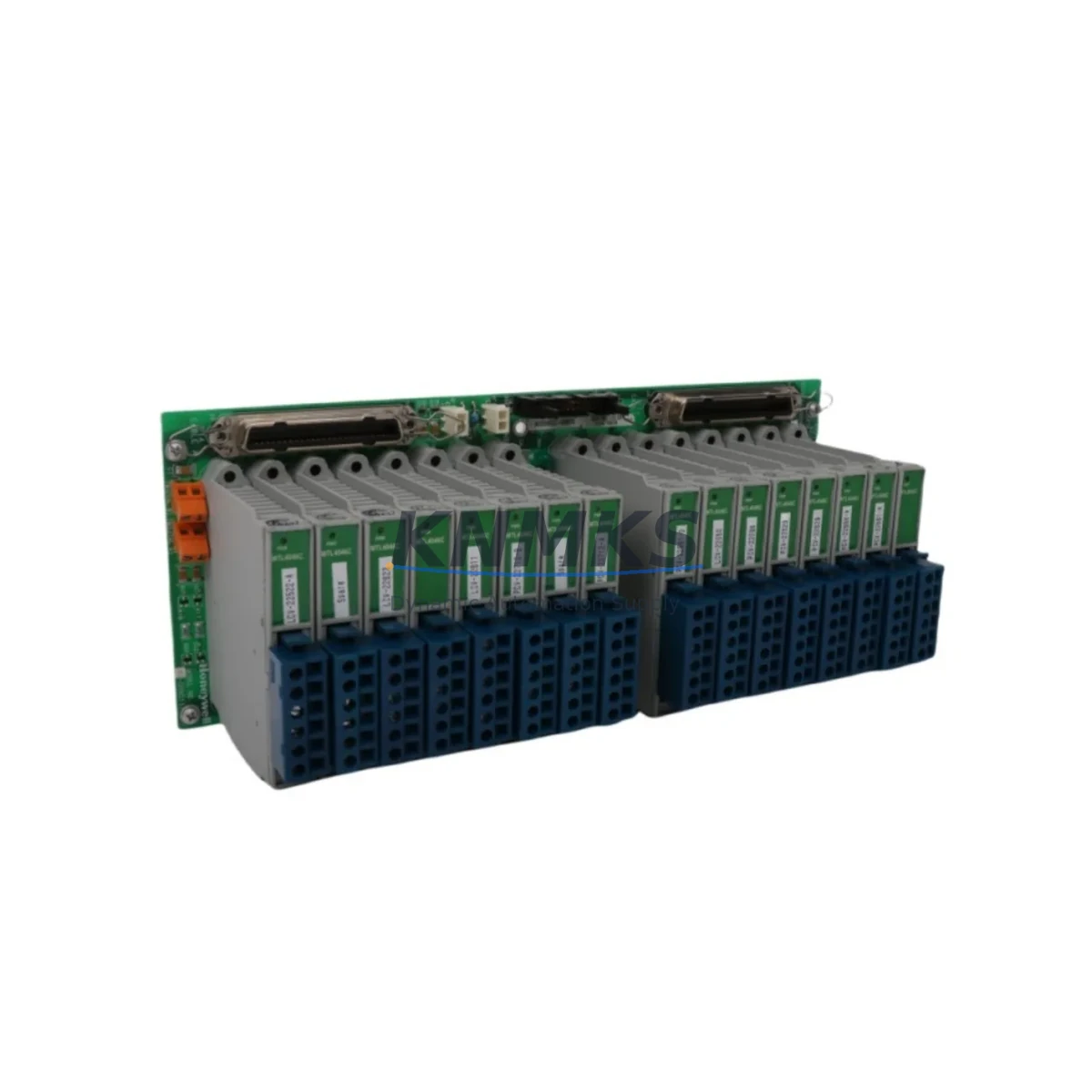

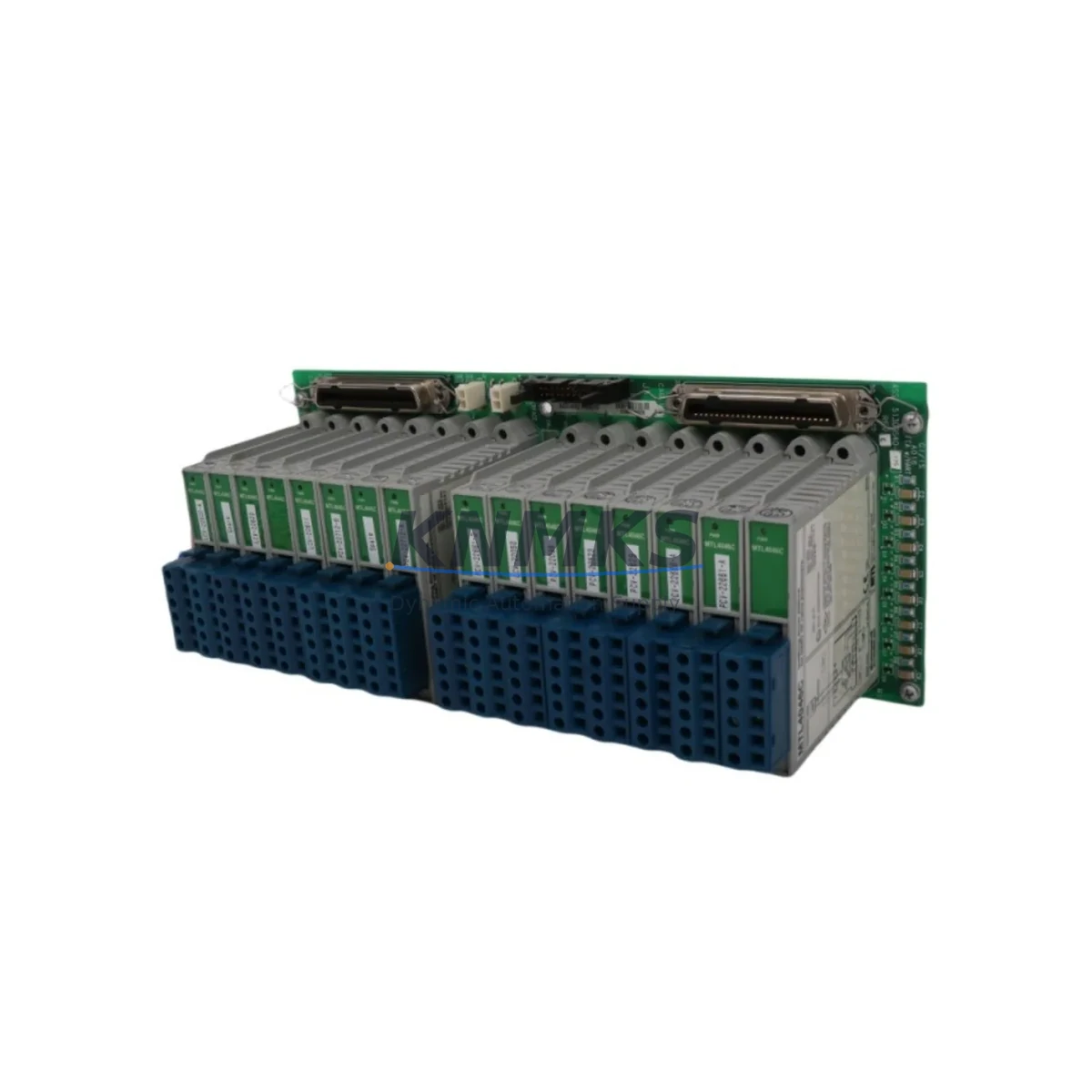

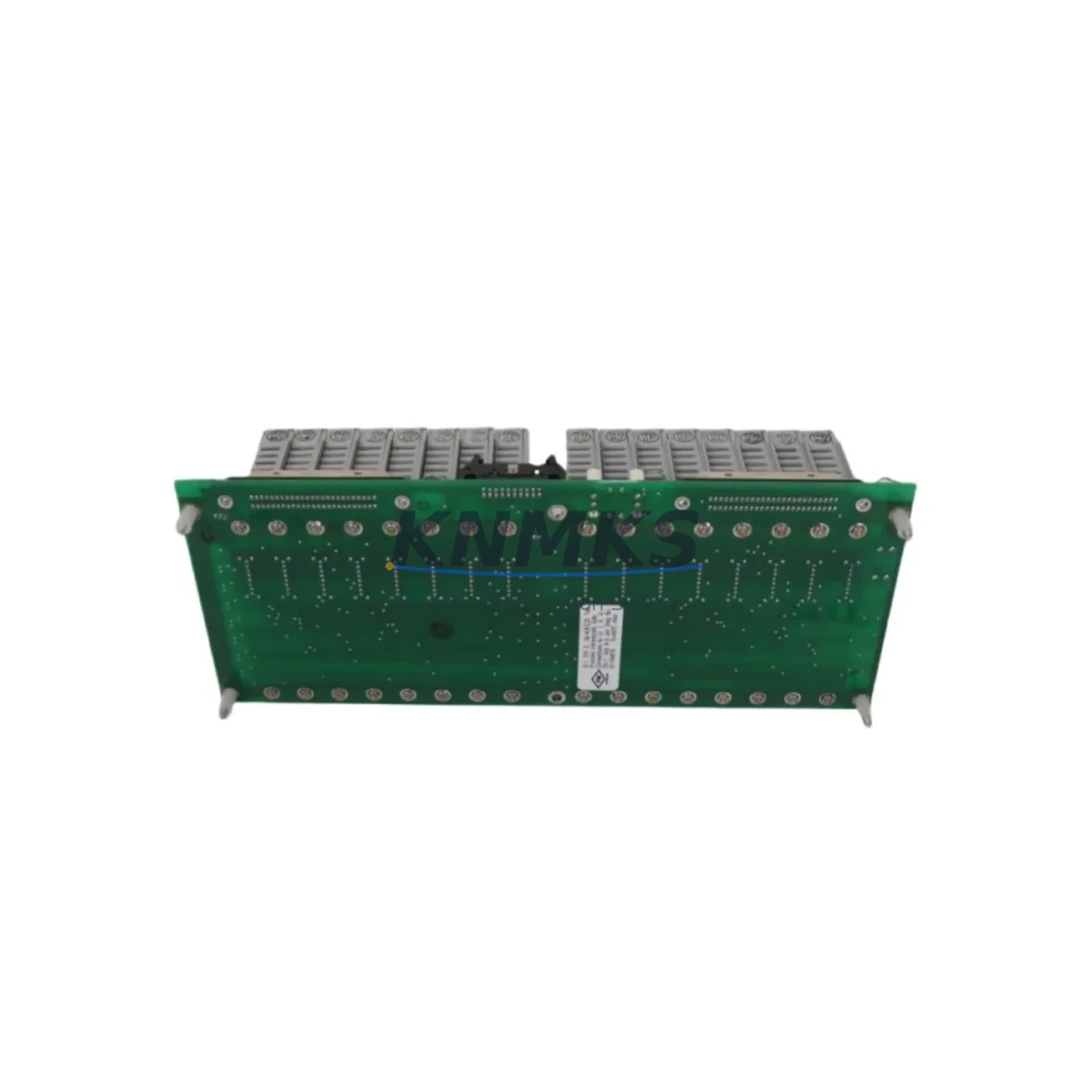

The Honeywell MC-GHAO11 (P/N 51309540-175) is an 8-channel HART Analog Output module designed for the Experion PKS distributed control system. As a critical I/O component within the C300 controller cabinet architecture, this module drives 4–20 mA HART signals to field devices including control valves, positioners, and variable-speed drives. For maintenance engineers managing continuous process plants — refineries, chemical facilities, power generation, and pulp and paper operations — keeping a verified spare of the MC-GHAO11 on the shelf is a fundamental element of any credible uptime strategy.

When a HART Analog Output channel fails or degrades, the consequences extend beyond a single loop. Valve positioners lose their command signal, process variables drift, and operators are forced into manual override — a situation that compounds risk and accelerates unplanned downtime. The MC-GHAO11 51309540-175 allows maintenance teams to execute a hot-swap replacement within a single shift, restoring full DCS authority over the affected loops without requiring a controller restart or system reconfiguration.

KNMKS supplies this module as an original Honeywell spare, fully tested prior to shipment and backed by a support terms confirmed by quotation. Each unit undergoes functional verification of all 8 output channels, HART communication integrity, and terminal block continuity before dispatch. Fast international shipping is available to support emergency breakdown scenarios as well as planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MC-GHAO11 in a live Experion PKS cabinet is rarely an isolated task. Experienced maintenance engineers know that a failed analog output module is often a symptom of broader stress in the I/O subsystem. Before returning the loop to automatic control, a thorough site inspection should cover the following associated components.

The MC-PAIH02 / MC-PAIH03 HART Analog Input modules in the same chassis share the same backplane power bus. If the MC-GHAO11 has failed due to a power transient or ground fault, the input modules may have sustained latent damage — verify their channel diagnostics and loop current readings before closing the cabinet. Similarly, the MC-TDID12 Digital Input module and MC-TDOD08 Digital Output module in adjacent slots should be inspected for alarm conditions that may have been masked during the fault period.

The C300 Controller module (MC-CONT02 or MC-CONT03) itself should be checked for redundancy status. If the primary controller was in a degraded state when the output module failed, confirm that the secondary controller is synchronized and that the redundancy link is healthy before re-enabling automatic control. The IOLINK cable assembly connecting the C300 to the I/O chassis is another common wear item — inspect the connectors for corrosion or mechanical damage, particularly in high-vibration or high-humidity environments.

On the field side, verify the HART loop wiring from the MC-GHAO11 terminal block to each valve positioner or actuator. Insulation resistance testing is recommended if the module failure was accompanied by a ground fault alarm. Check the field junction box terminal strips for loose connections, corrosion, or moisture ingress. If the plant uses signal isolators or HART multiplexers between the DCS and field devices, confirm that these devices are passing HART communication correctly after the module swap.

Finally, review the 24 VDC power supply module feeding the I/O cabinet. A degraded power supply with marginal output voltage is a leading cause of intermittent I/O module faults. If the power supply is approaching its rated service life or shows signs of output ripple, include it in the next planned maintenance window — or replace it proactively alongside the MC-GHAO11 to prevent a repeat failure.

Site Replacement Workflow

Step 1 — Preparation: Download the current controller configuration backup from Experion PKS before beginning any hardware work. Confirm the replacement MC-GHAO11 51309540-175 part number matches the installed module exactly. Verify that the new module firmware revision is compatible with the C300 controller version in service.

Step 2 — Safe State: Place all 8 output loops associated with the module into manual mode at the operator station. Confirm with the process operator that field devices are in a safe hold position. For critical control loops, coordinate with the control room before proceeding.

Step 3 — Module Removal: Disconnect the field wiring terminal block from the module face (the MC-GHAO11 uses a removable terminal block design, which preserves field wiring during the swap). Release the module locking tab and slide the module out of the I/O chassis slot.

Step 4 — Module Installation: Insert the replacement MC-GHAO11 into the same chassis slot. Reconnect the field wiring terminal block. The Experion PKS system will automatically detect the new module and download the I/O configuration — no manual re-parameterization is required in most installations.

Step 5 — Verification: Confirm that all 8 channels show healthy status in the Experion PKS Station display. Perform a loop check on each channel by commanding a known output value and verifying the field device response. Return loops to automatic control sequentially, monitoring process variables for stability.

Step 6 — Documentation: Record the replacement in the plant maintenance management system (CMMS). Log the failed module serial number, failure mode, and replacement date. Update the spare parts inventory to trigger reorder of a replacement MC-GHAO11 for the next event.

Spare Parts Support FAQ

Q1: Is the MC-GHAO11 51309540-175 compatible with both C200 and C300 Experion PKS controllers?
The MC-GHAO11 is primarily designed for the C300 I/O architecture. Compatibility with C200 nodes depends on the specific I/O chassis and firmware version in use. KNMKS recommends confirming the installed controller model and chassis type before ordering. Our technical team can assist with compatibility verification based on your system configuration.

Q2: How is the module tested before shipment?
Each MC-GHAO11 unit supplied by KNMKS undergoes a pre-shipment functional test covering all 8 output channels, HART communication response, terminal block continuity, and backplane connector integrity. A test report is available upon request. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions.

Q3: Can KNMKS support long-term or recurring supply of the MC-GHAO11?
Yes. KNMKS maintains stock of Honeywell Experion PKS I/O modules to support both emergency breakdown orders and planned annual maintenance procurement. Framework agreements and blanket purchase orders are available for customers who require guaranteed supply across multiple maintenance cycles. Contact admin@knmks.com to discuss long-term supply arrangements.

Q4: What is the lead time for emergency orders?
In-stock units are typically dispatched within 24–48 hours of order confirmation. Express international shipping options are available to most destinations. For urgent breakdown situations, contact our team directly at +86 18359268345 to confirm stock availability and arrange priority dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

MC-GHAO11 51309540-175
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell MC-GHAO11 51309540-175
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
